Description

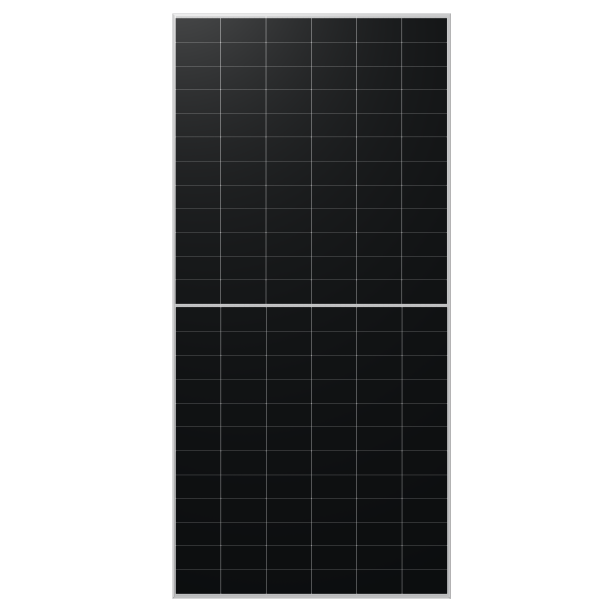

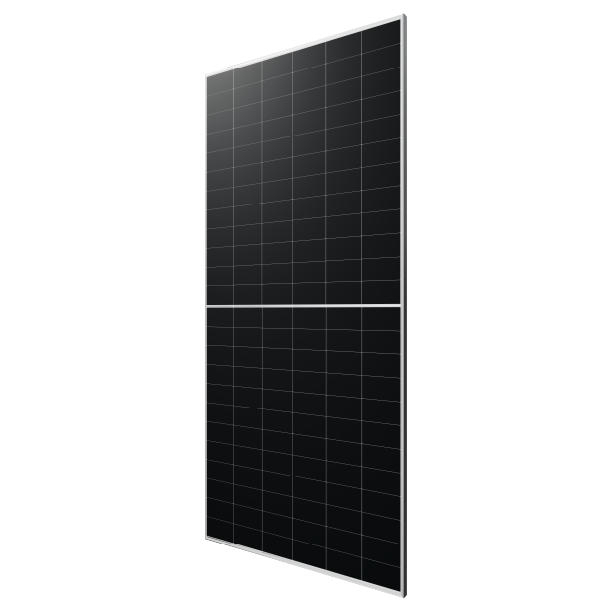

LONGi Hi-MO X10 Guardian HPBC2.0 Bifacial Dual Glass 645W Solar Panel LR8-66HVDF-645M
15-year Warranty for Materials and Processing
30-year Warranty for Extra Linear Power Output

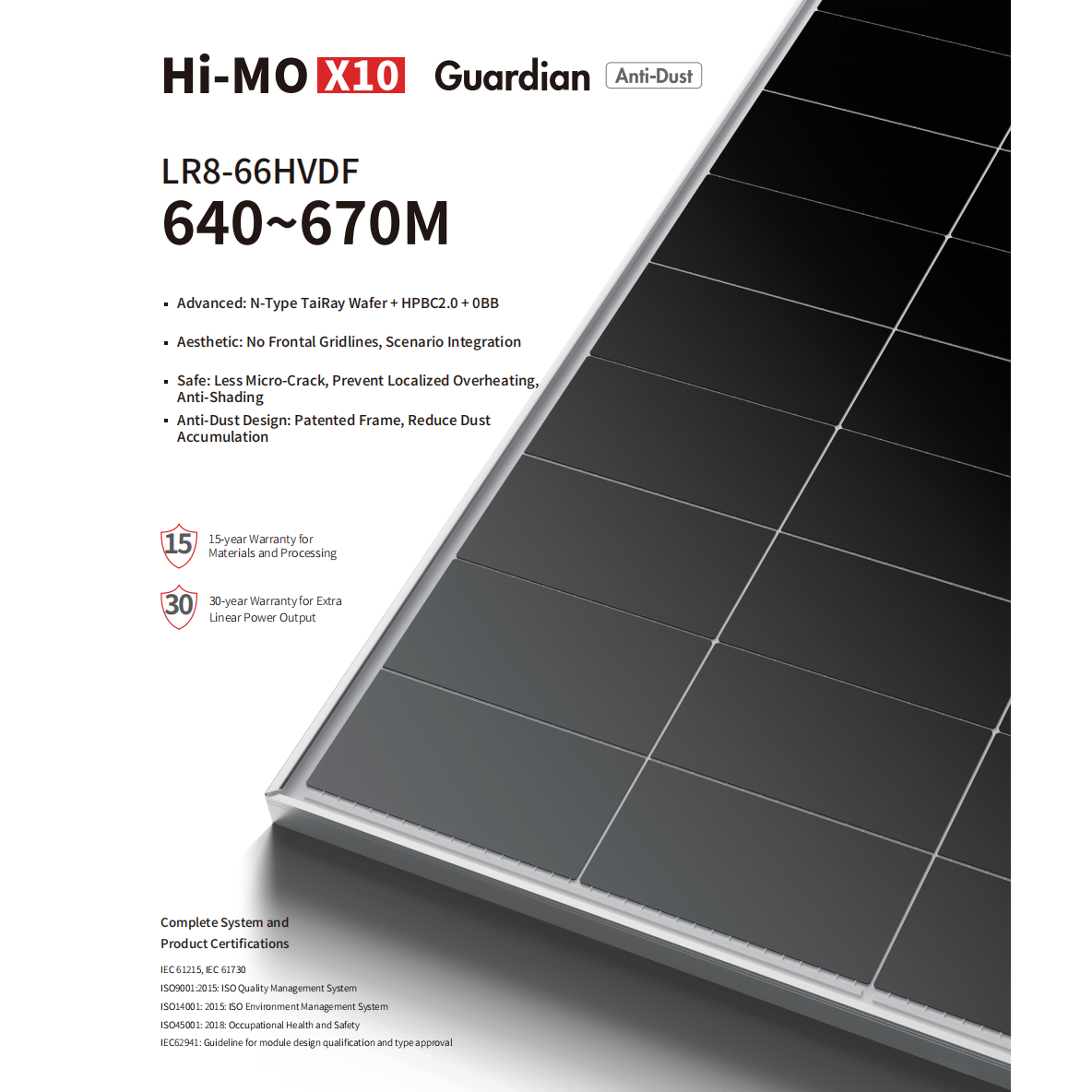

Features
- Advanced: N-Type TaiRay Wafer + HPBC2.0 + 0BB.
- Aesthetic: No Frontal Gridlines, Scenario Integration.
- Safe: Less Micro-Crack, Prevent Localized Overheating, Anti-Shading.
- Anti-Dust Design: Patented Frame, Reduce Dust Accumulation.

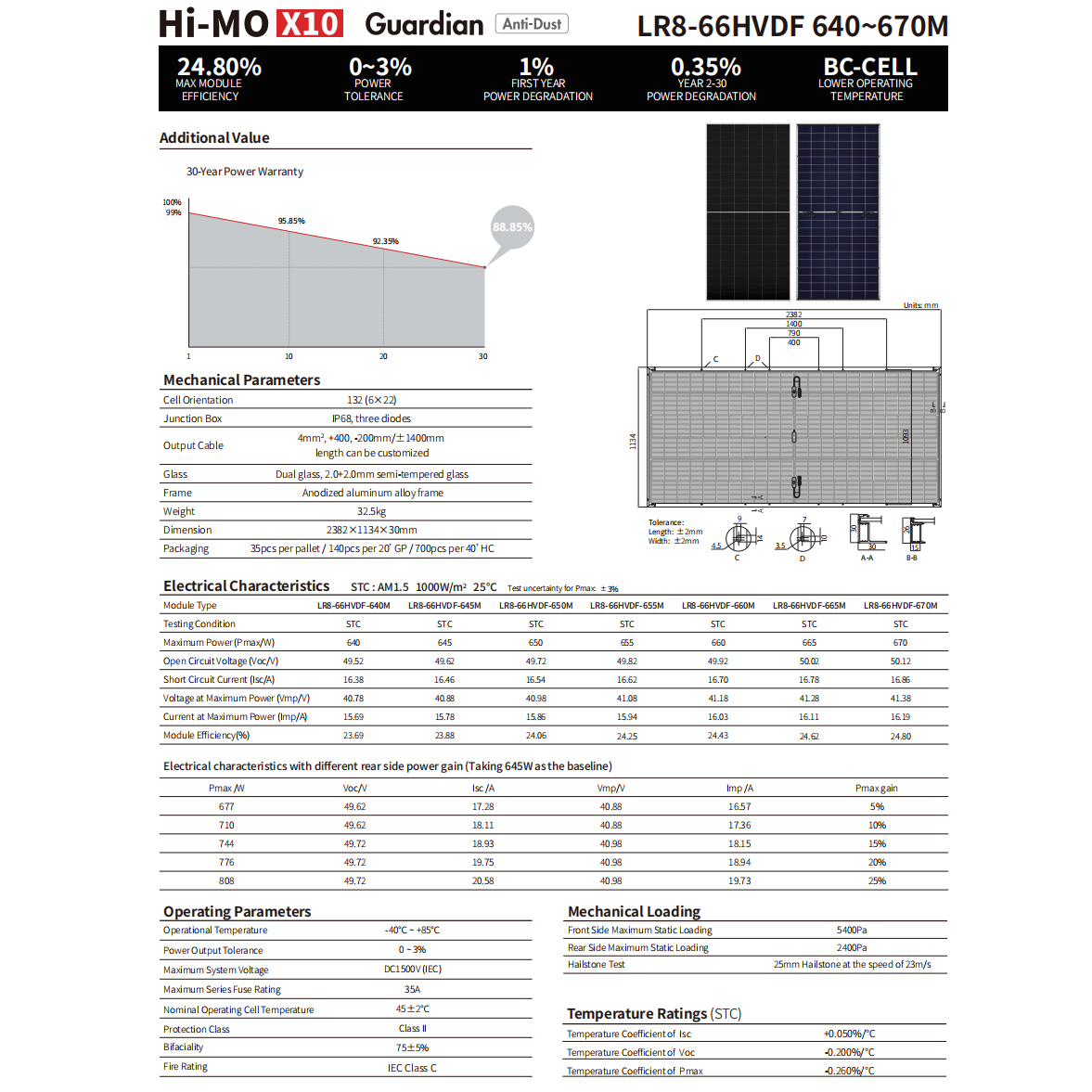

- Electrical Characteristics:
- Type: LR8-66HVDF-645M
- Testing Condition: STC
- Maximum Power (Pmax/W): 645W
- Open Circuit Voltage (Voc/V): 49.62V
- Short Circuit Current (Isc/A): 16.46A
- Voltage at Maximum Power (Vmp/V): 40.88V
- Current at Maximum Power (Imp/A): 15.78A
- Module Efficiency(%): 23.88%
- Mechanical Parameters:
- Junction Box: IP68, three diodes
- Output Cable: 4mm2, +400, -200mm/±1400mm length can be customized
- Glass: Dual glass, 2.0+2.0mm semi-tempered glass
- Frame: Anodized aluminum alloy frame
- Weight: 32.5kg
- Dimension: 2382×1134×30mm
- Mechanical Loading:
- Front Side Maximum Static Loading: 5400Pa
- Rear Side Maximum Static Loading: 2400Pa
- Hailstone Test: 25mm Hailstone at the speed of 23m/s
- Temperature Ratings (STC):
- Temperature Coefficient of Isc: +0.050%/℃
- Temperature Coefficient of Voc: -0.200%/℃
- Temperature Coefficient of Pmax: -0.260%/℃
Ideal for utility-scale, commercial, and high-efficiency residential projects seeking maximum performance, product longevity, and bankable solar solutions backed by LONGi’s global reputation and innovation.
