Description

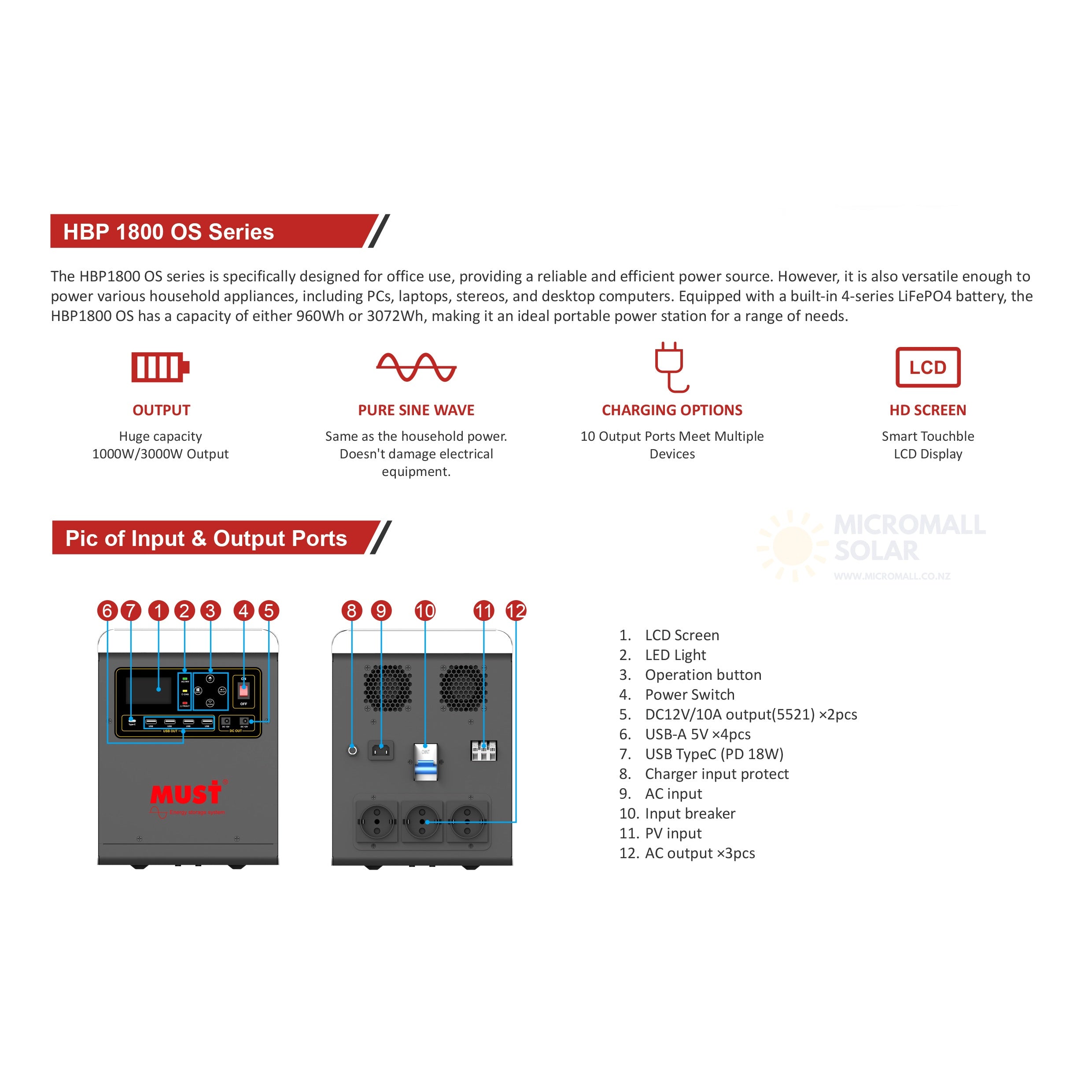

The HBP1800 OS series is specifically designed for office use, providing a reliable and efficient power source. However, it is also versatile enough to power various household appliances, including PCs, laptops, stereos, and desktop computers. Equipped with a built-in 4-series LiFePO4 battery, the HBP1800 OS has a capacity of either 960Wh or 3072Wh, making it an ideal portable power station for a range of needs.

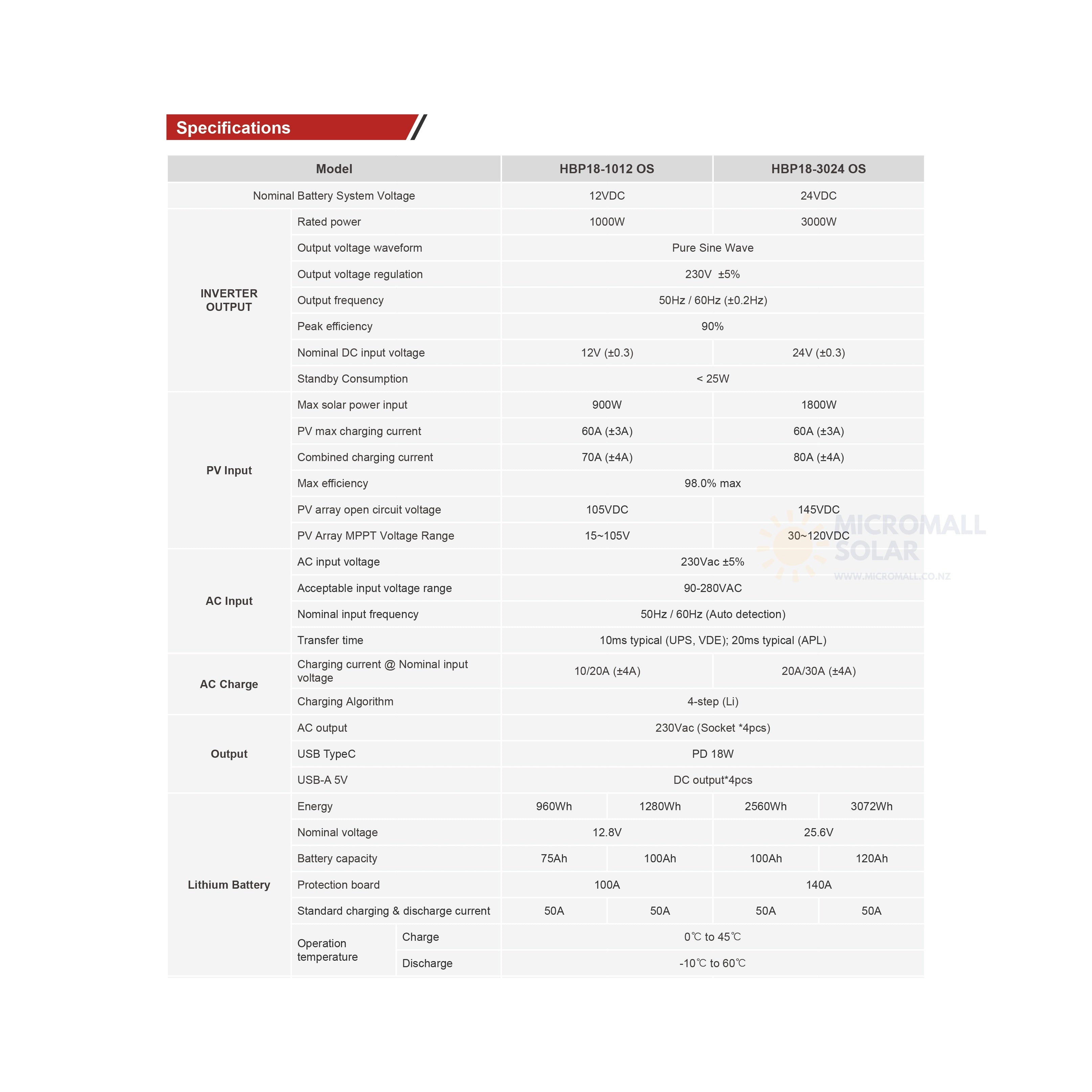

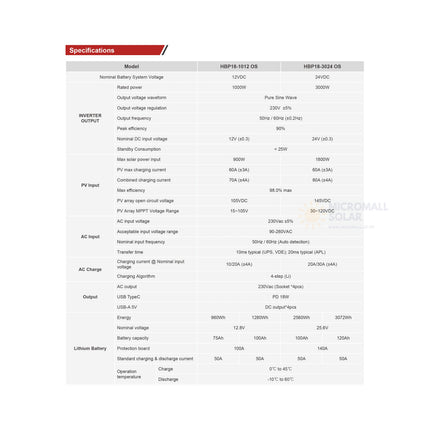

SPECIFICATIONS
Model: HBP18-3024 OS
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated power: 3000W
Output voltage waveform: Pure Sine Wave
Output voltage regulation: 230V ±5%
Output frequency: 50Hz / 60Hz (±0.2Hz)
Peak efficiency: 90%
Nominal DC input voltage: 24V (±0.3)
PV Input
Max solar power input: 1800W
PV max charging current: 60A (±3A)
Combined charging current: 80A (±4A)
Max efficiency: 98.0% max
PV array open circuit voltage: 145VDC
PV Array MPPT Voltage Range: 30~120VDC
AC Input
AC input voltage: 230Vac ±5%
Acceptable input voltage range: 90-280VAC
Nominal input frequency: 50Hz / 60Hz (Auto detection)
AC Charge
Charging current @ Nominal input voltage: 20A/30A (±4A)
Lithium Battery
Energy: 3072Wh
Nominal voltage: 25.6V
Battery capacity: 120Ah
Protection board: 140A
MECHANICAL SPECIFICATIONS
Dimensions (W*H*D) (mm): 288x348x490
