Description

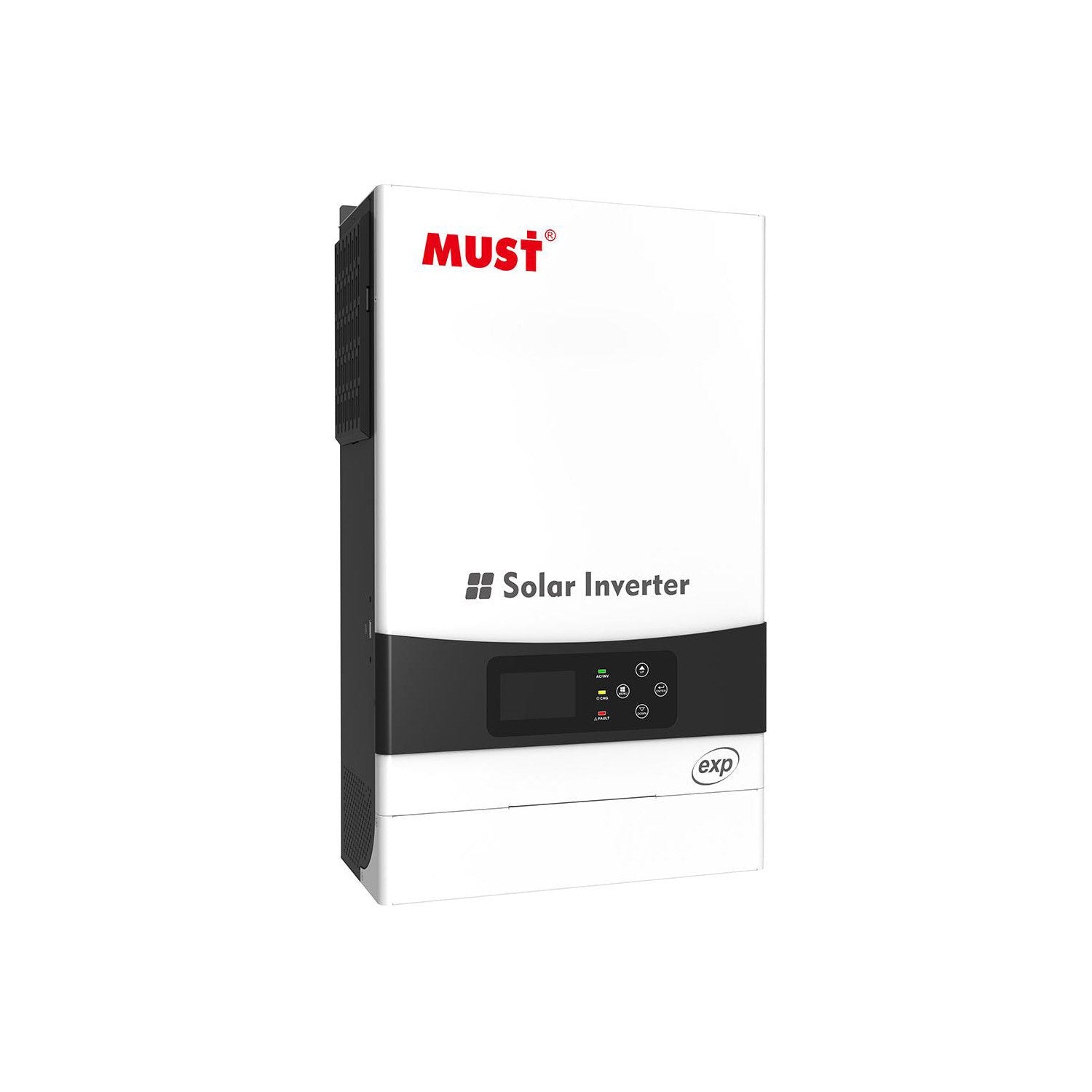

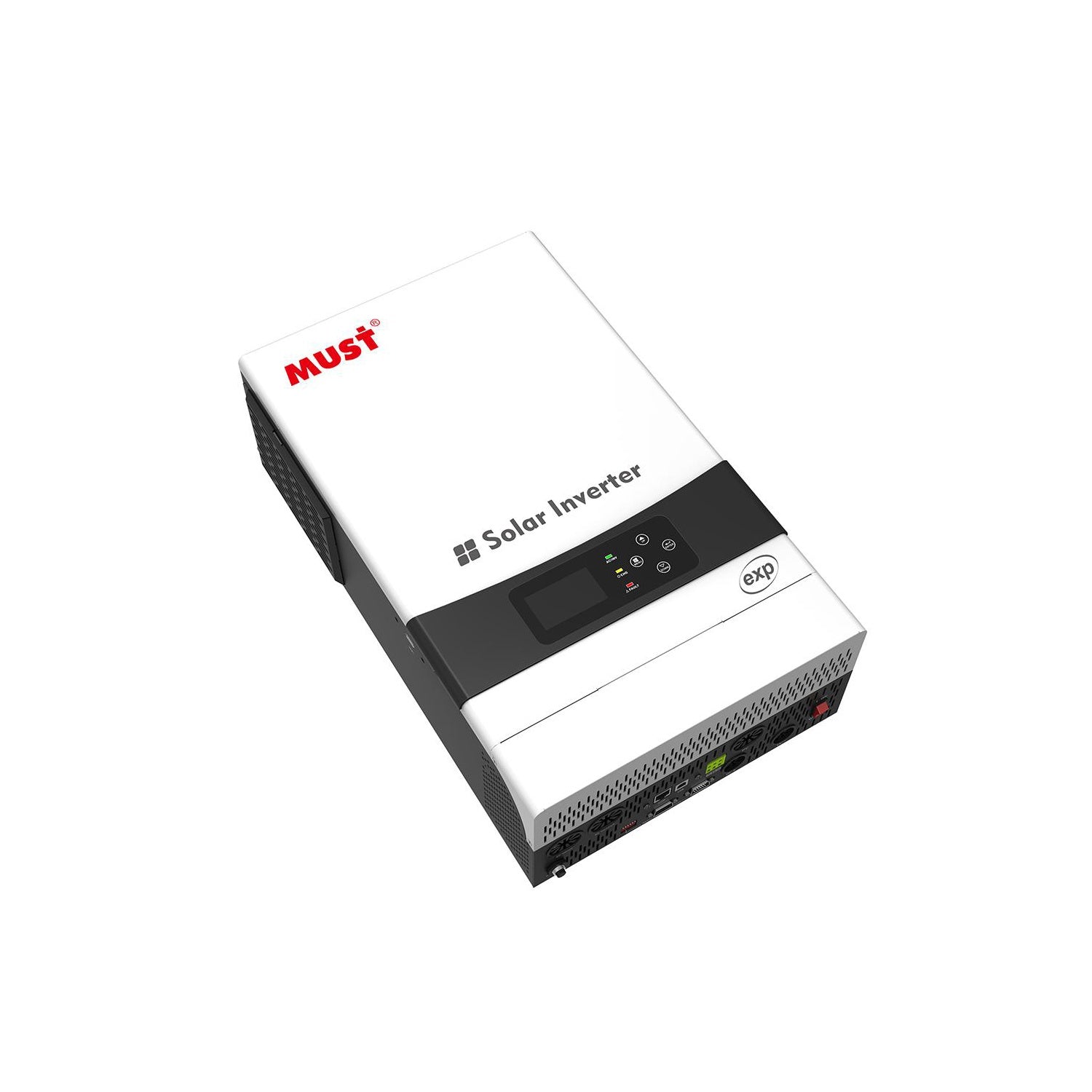

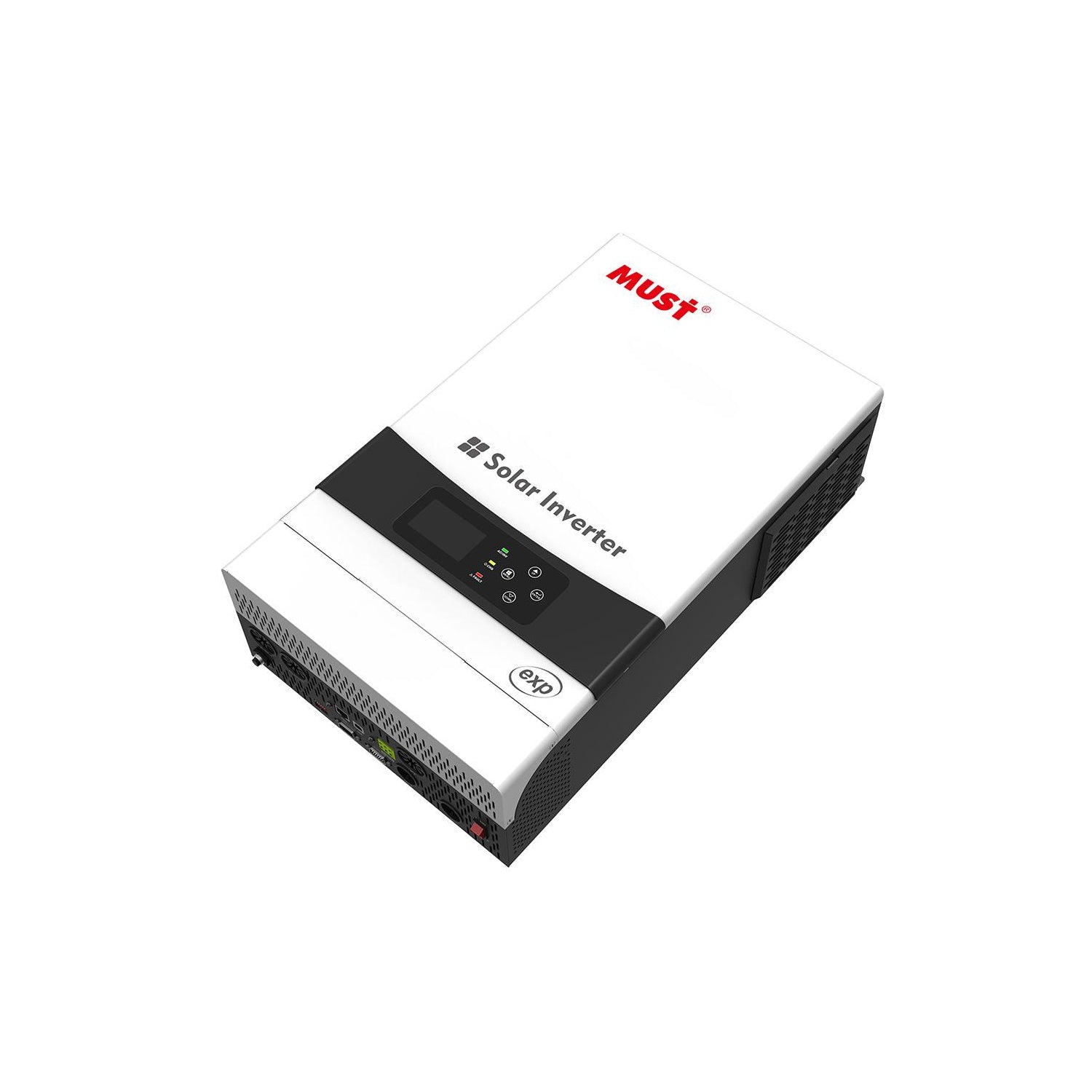

PV1900 EXP is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1900 EXP Series can run without battery. The Maximum PV array open circuit voltage can reach 500V and MPPT voltage is 90 - 430Vdc, which Can help customers make full use of solar energy.
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 500V (450V for parallel)
Can provide the power to the load without battery

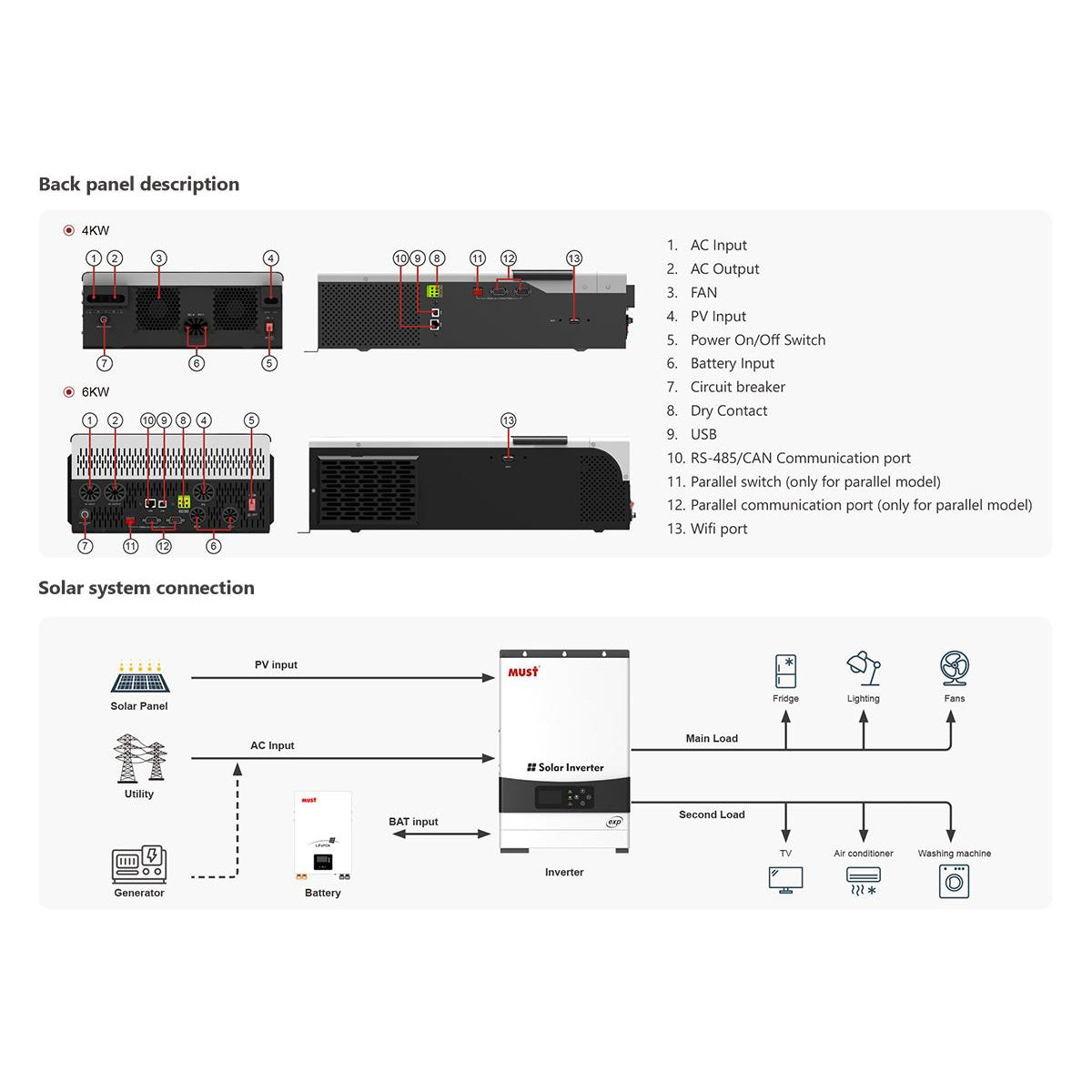

Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
WIFI remote monitoring (optional)
Dual outputs for smart load management(optional)
Can communicate with lithium batteries
MODEL: PV19-4024 EXP
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated Power: 4000VA / 4000W
Surge Power: 8000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): 230VAC +-5%(Setting)
Inverter Efficiency(Peak): 92%
Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage: 230VAC
Selectable Voltage Range: 170 - 280VAC(UPS) / 90 - 280VAC(APL) / 184 - 253VAC(VED4105)
Frequency Range: 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage: 24VDC
Floating Charge Voltage: 27.4VDC
Overcharge Protection: 30VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage: 500VDC (450V for parallel)
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 5000W
Maximum Solar Charge Current: 100A
Maximum AC Charge Current: 80A
Maximum Charge Current: 100A
Dimensions (WxHxD): 322x486x134mm
2 Years Warranty
