Description
Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.

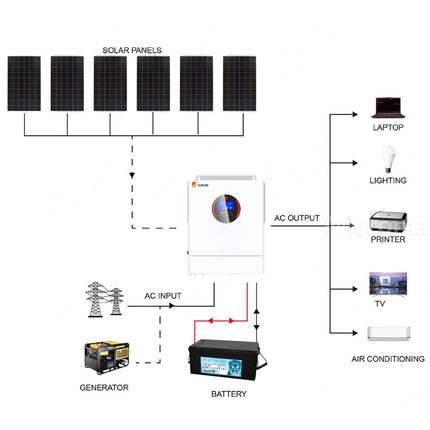

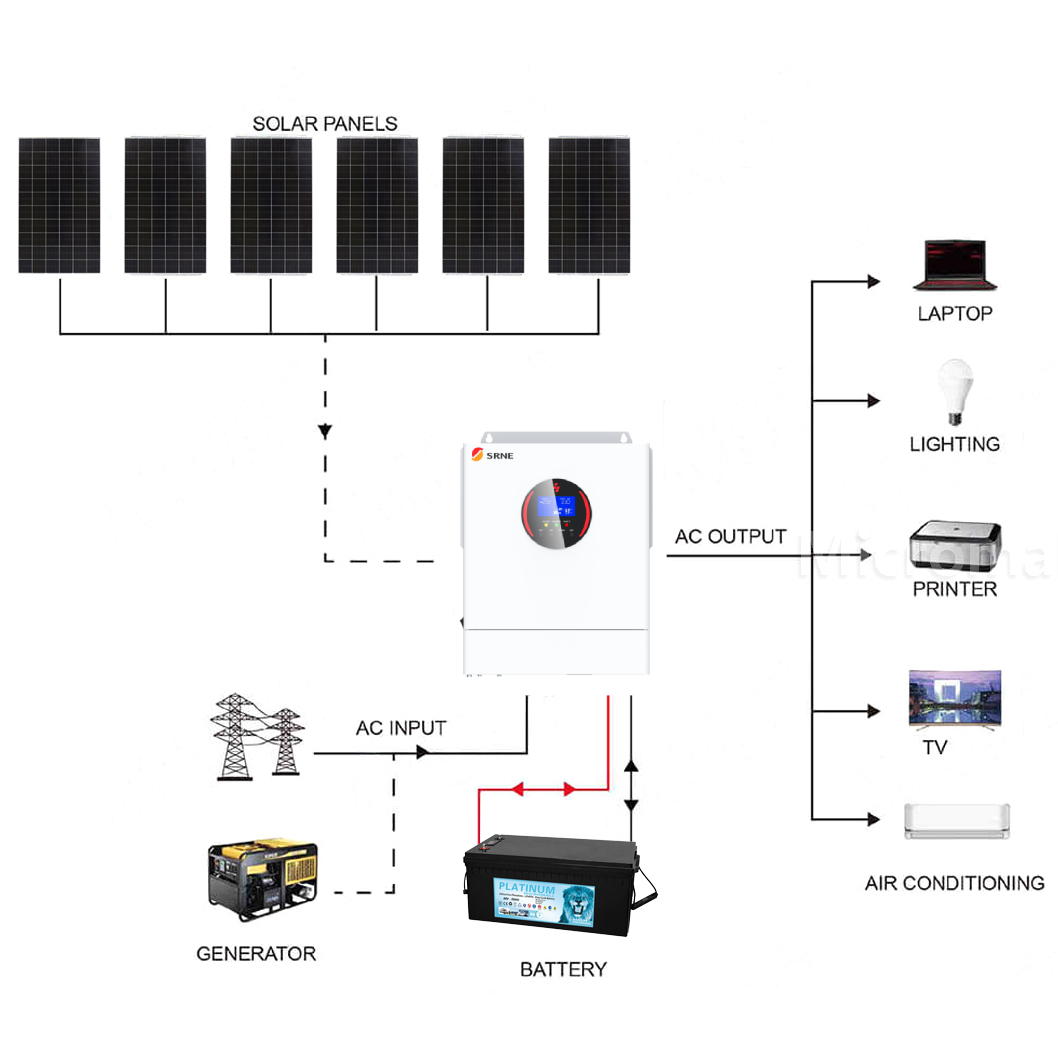

Package includes
6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

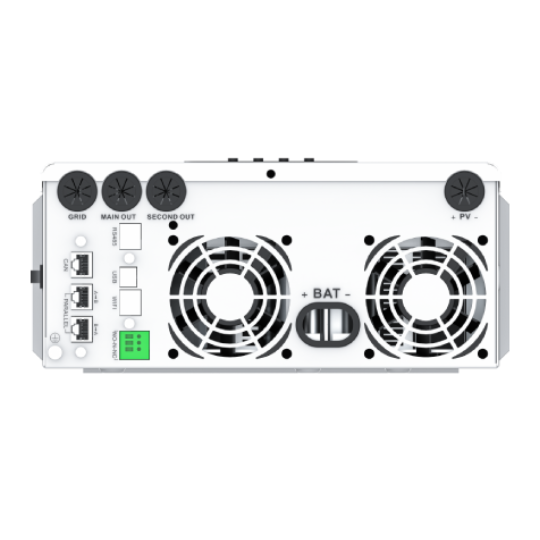

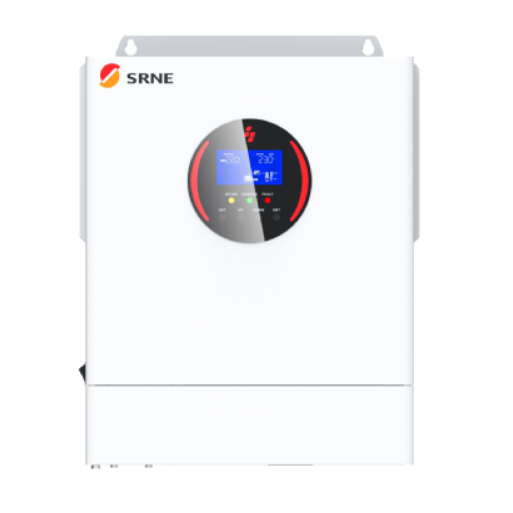

1 x 5000W SRNE Single Phase Off-Grid Solar Storage Inverter AFP4850S100-H (2 years warranty)

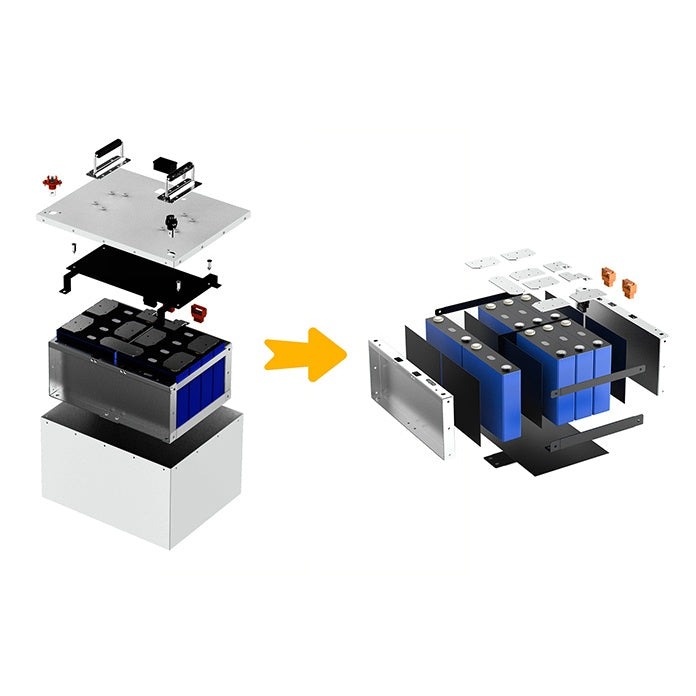

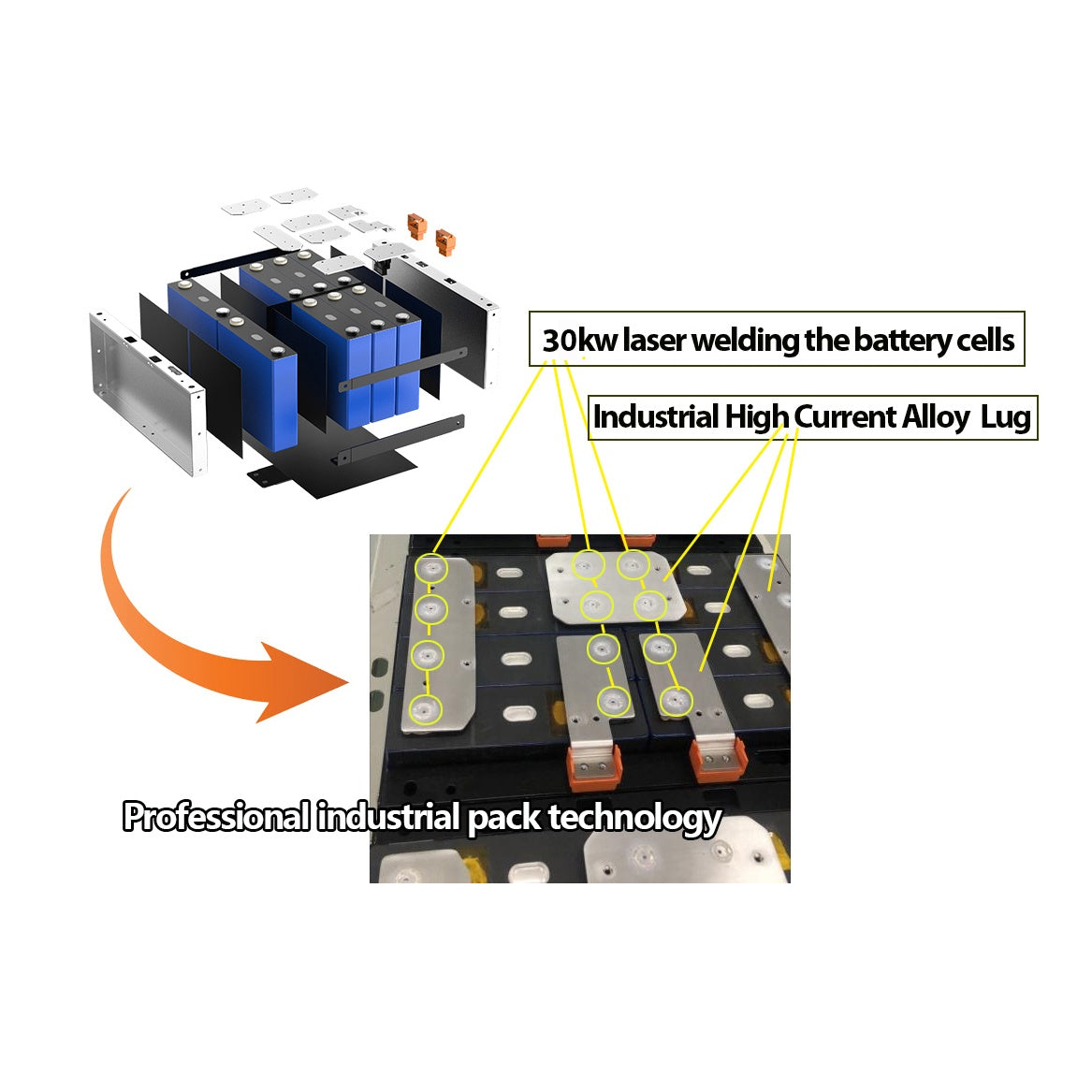

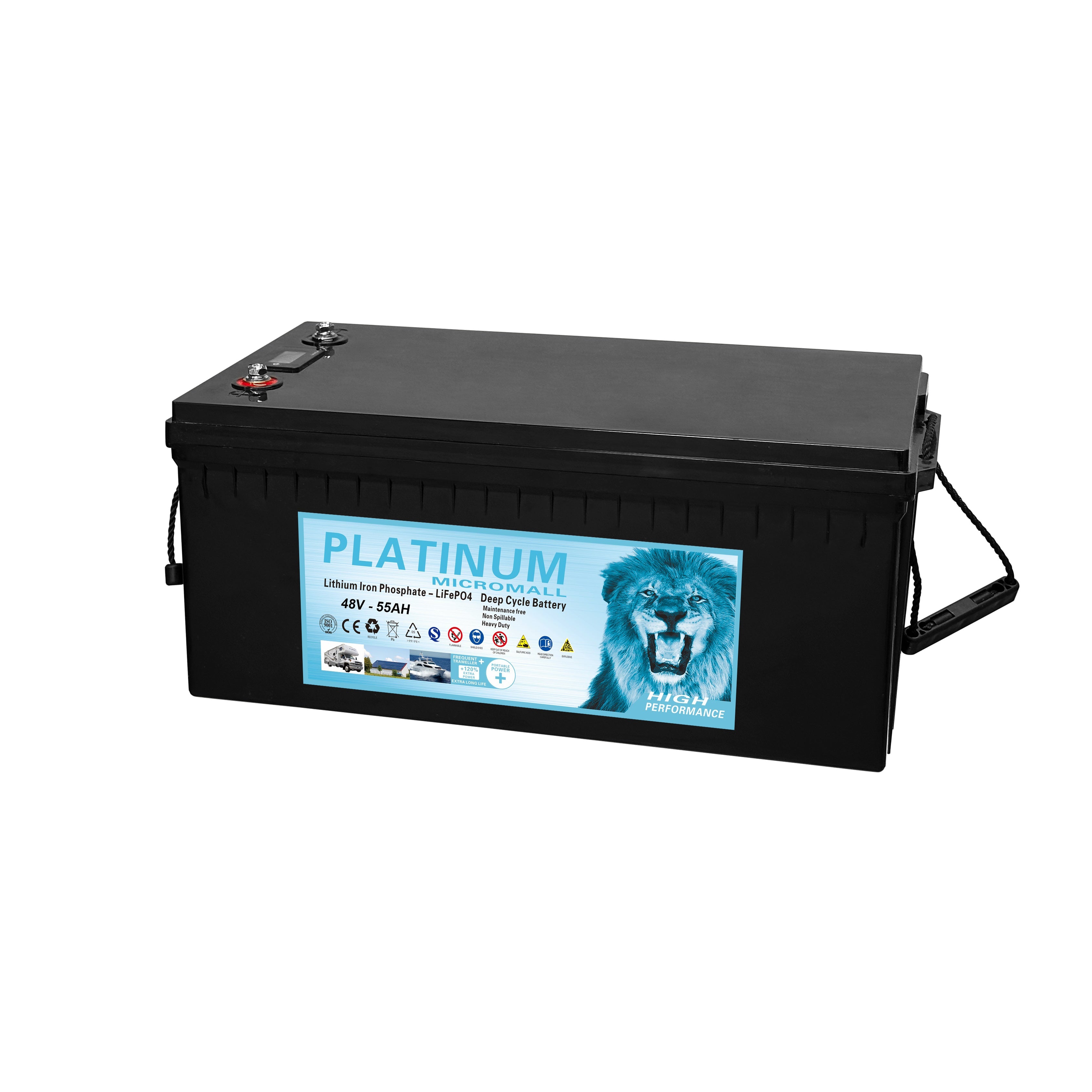

1 x 2024 Latest 48V 55Ah LiFePO4 Solar Battery with 3500 Cycle Times (15-year warranty, 30-year run life)
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV Safety System with Fuse Box(30a fuse*2,32a 160v breaker,600v surge,9 way box)

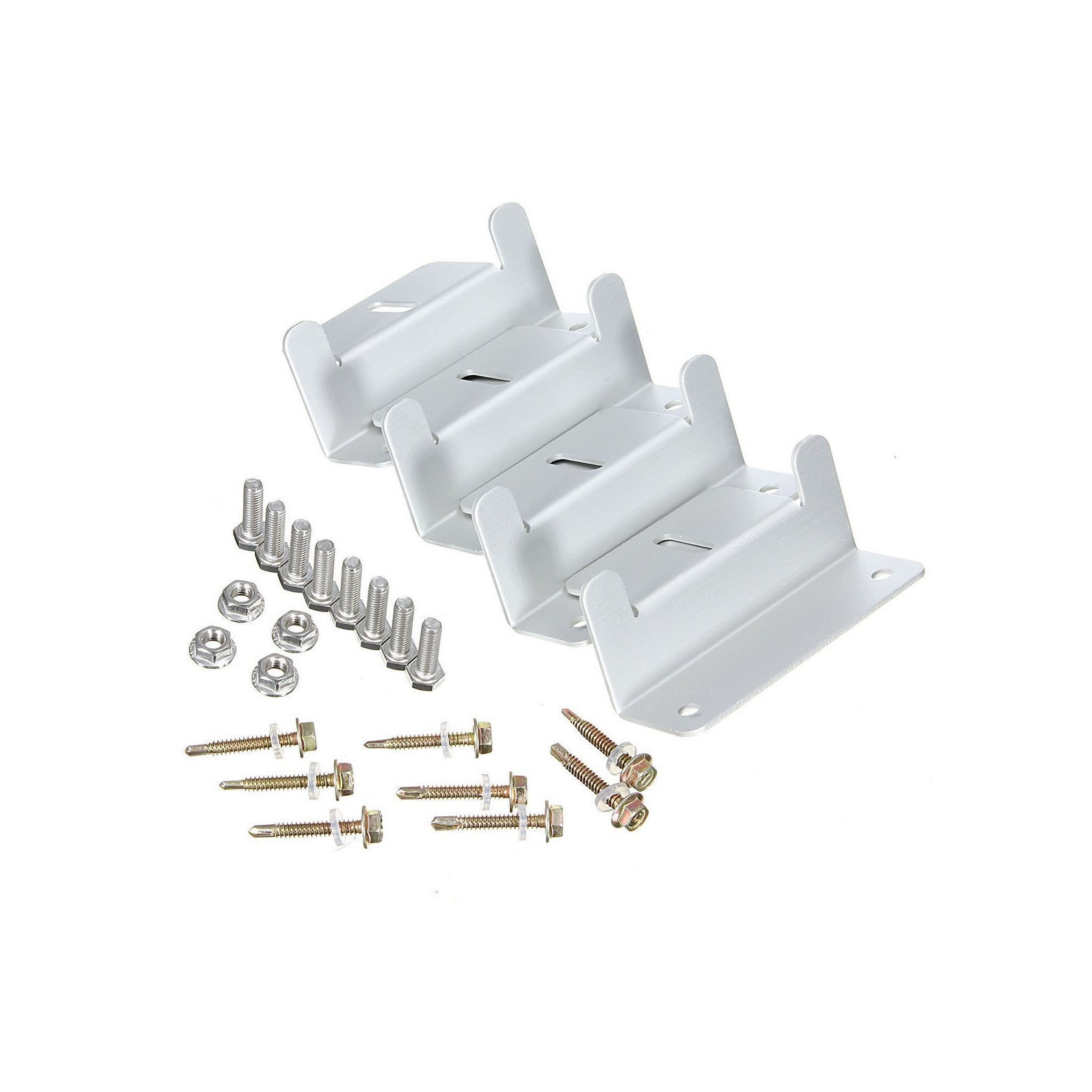

6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $145. If you wish to upgrade, please contact us.**
Features
Compatible with 48V storage batteries.
Multiple charging and on-load modes to maximise energy use.
Efficient heat dissipation, prolonging system life.

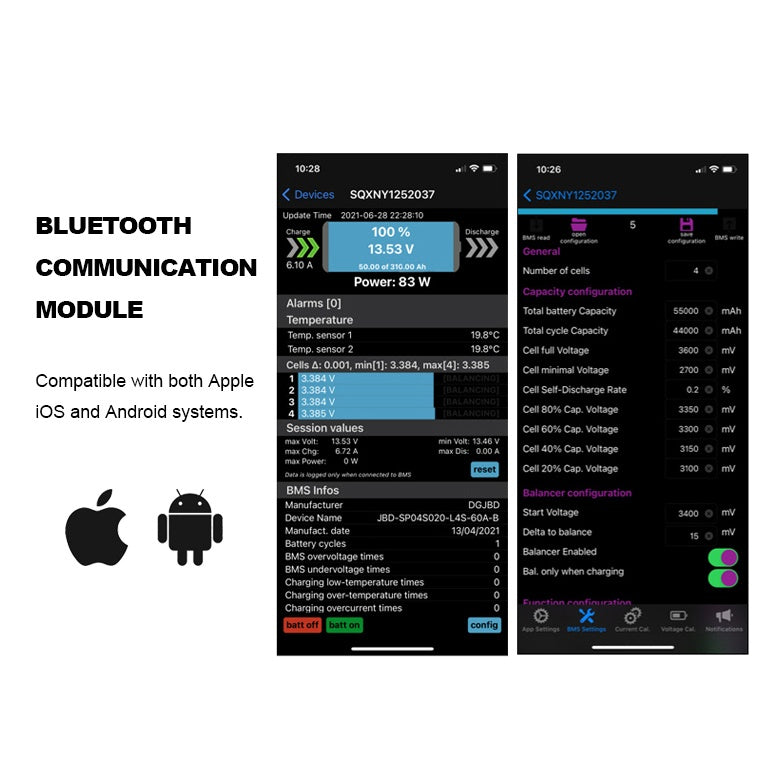

Support remote monitoring of equipment operating parameters.
Equipped with unique functions such as dual activation for lithium batteries.

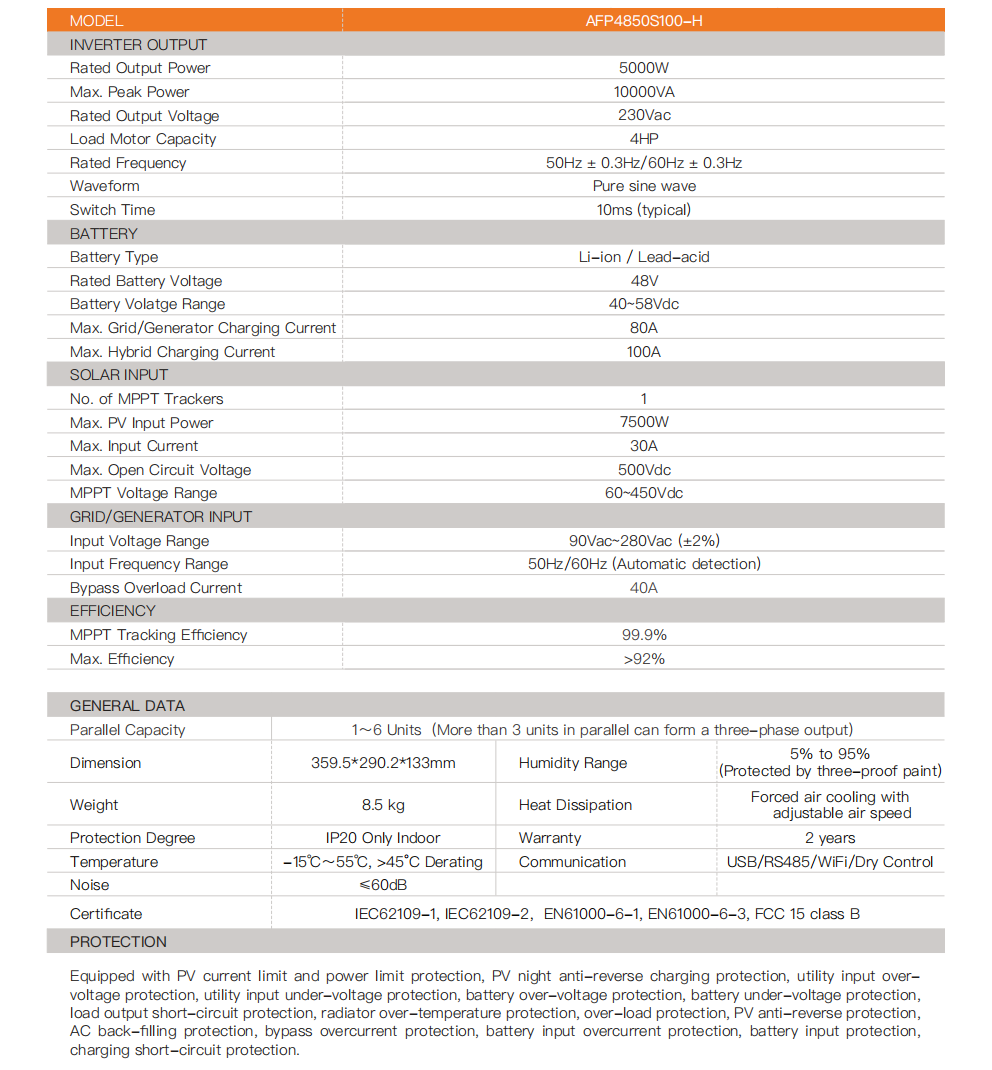

Specifications
- Rated Output Power: 5000W
- Max.Peak Power: 10000VA
- Rated Output Voltage: 230Vac
- Load Motor Capacity: 4HP
- Rated Frequency: 50Hz ± 0.3Hz/60Hz ± 0.3Hz
- Waveform: Pure sine wave
- Switch Time: 10ms（typical）
- Weight: 8.5kg
- Dimension: 359.5*290.2*133mm
- Protection Degree: IP20 Only Indoor
- Temperature: -15℃-55℃, >45°C Derating
- Humidity Range: 5% to 95%(Protected by three-proof paint)
- Heat Dissipation: Forced air cooling with adjustable air speed
This product is equipped with PV current limit and power limit protection, PV night anti-reverse charging protection, utility input over-voltage protection, utility input under-voltage protection, battery over-voltage protection and so on.
