Description

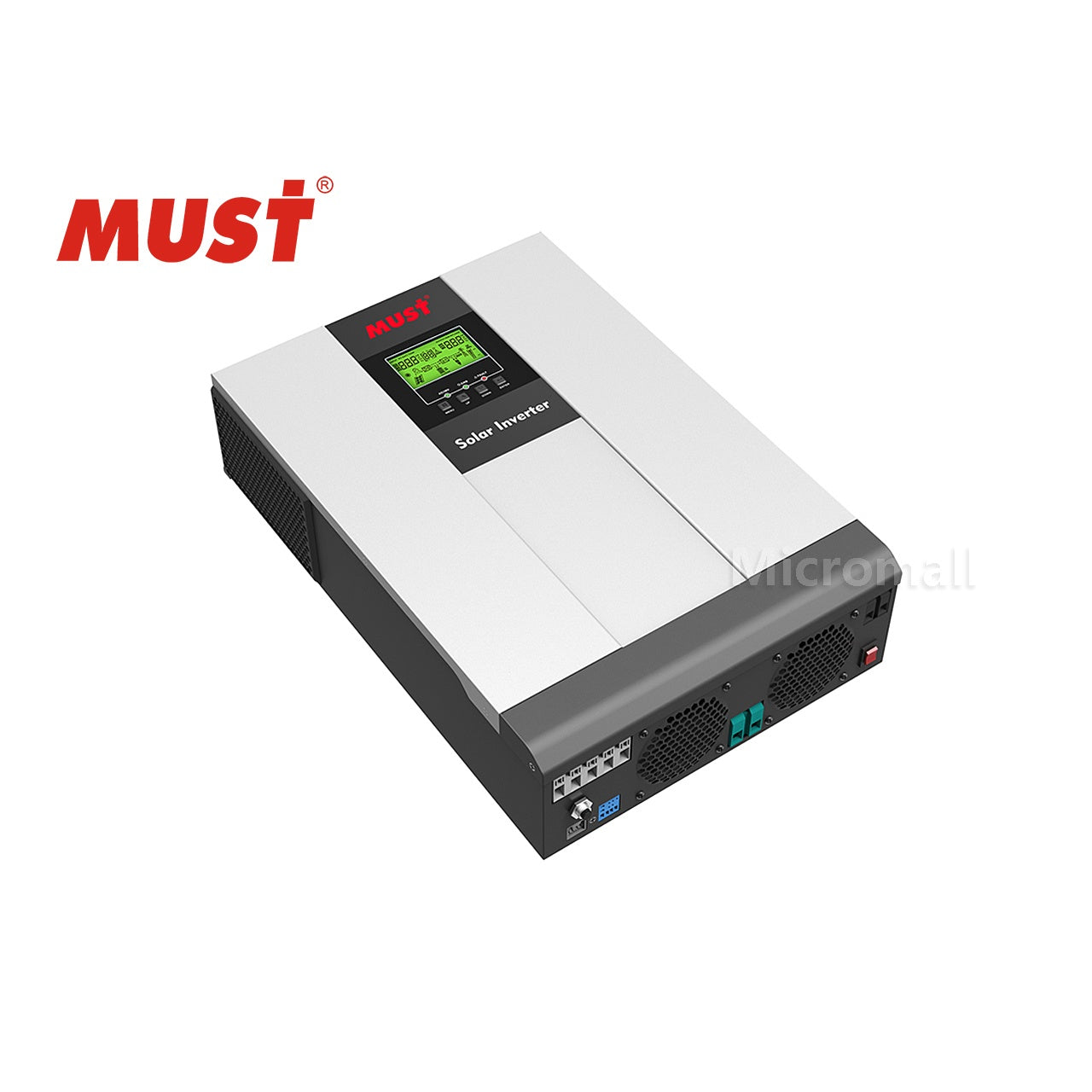

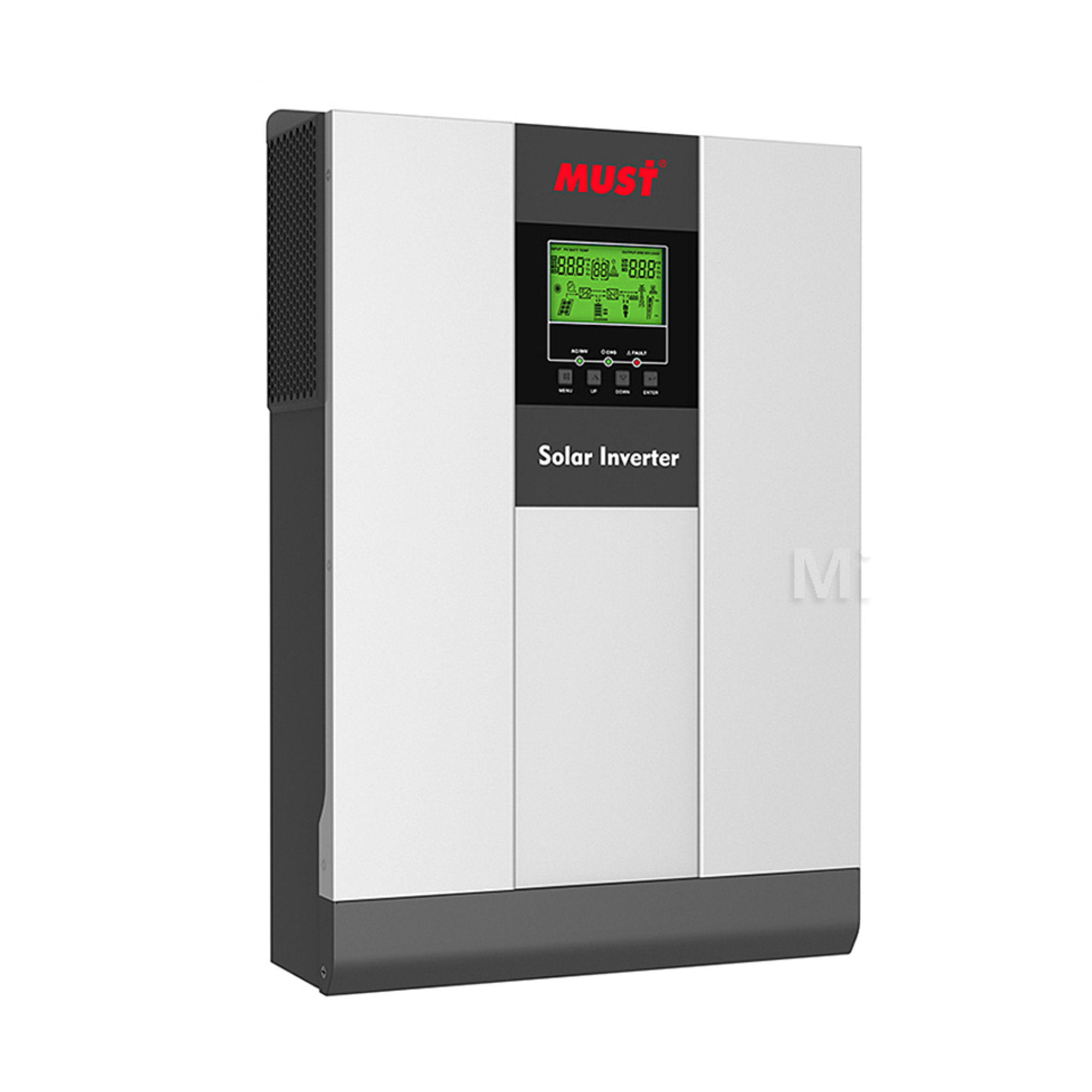

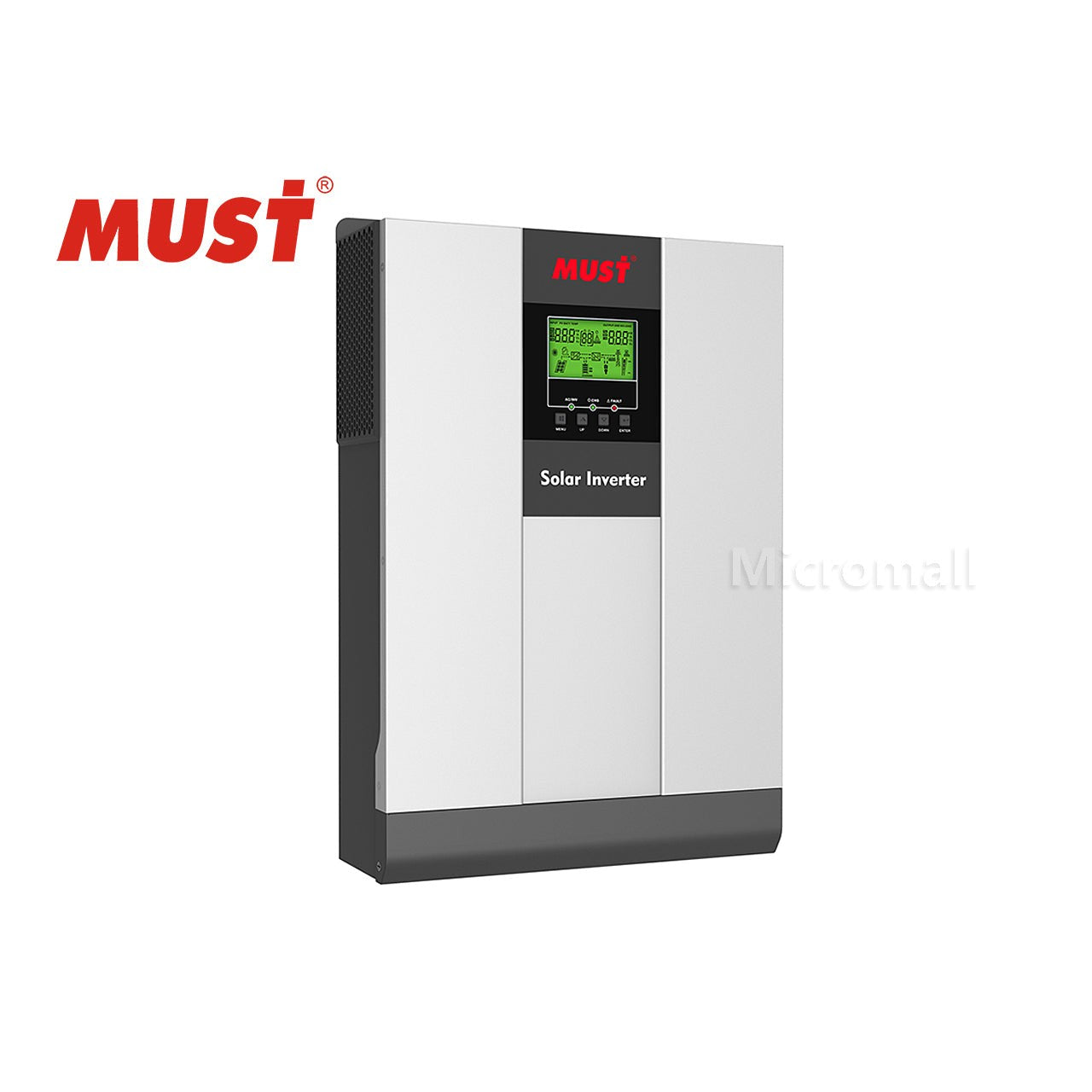

Introducing the MUSTPOWER High Frequency 5000W Off-Grid Solar Inverter PV18-5048 VHM with a 2-year warranty.
Key Features:
Pure sine wave solar inverter
Output power factor 1
High PV input voltage range
Built-in 80A MPPT solar charger
Battery equalization function to optimize battery performance and extend lifecycle
Built-in anti-dusk kit for harsh environments
Model: PV18-5048 VHM
Nominal Battery System Voltage: 48VDC
Inverter Output:
Rated Power: 5000W
Surge Power: 10000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC ~ 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184~253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto-sensing)
Battery:
Normal Voltage: 48VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 60VDC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array MPPT Voltage: 64~130VDC
PV Input Power: 2880W/3840W
Maximum Solar Charge Current: 60/80A
Maximum Efficiency: 98%
Maximum AC Charge Current: 60A
Maximum Charge Current: 120/140A
Physical Specifications:
Dimensions (WHD)(mm): 297.5x468x125
Net Weight(kg): 13.3
The MUSTPOWER PV18-5048 VHM is a versatile and reliable solution for off-grid power needs, combining inverter, solar charger, and battery charger functions in a portable package. With its comprehensive LCD display and user-configurable settings, it ensures uninterrupted power support for various applications.
