Description

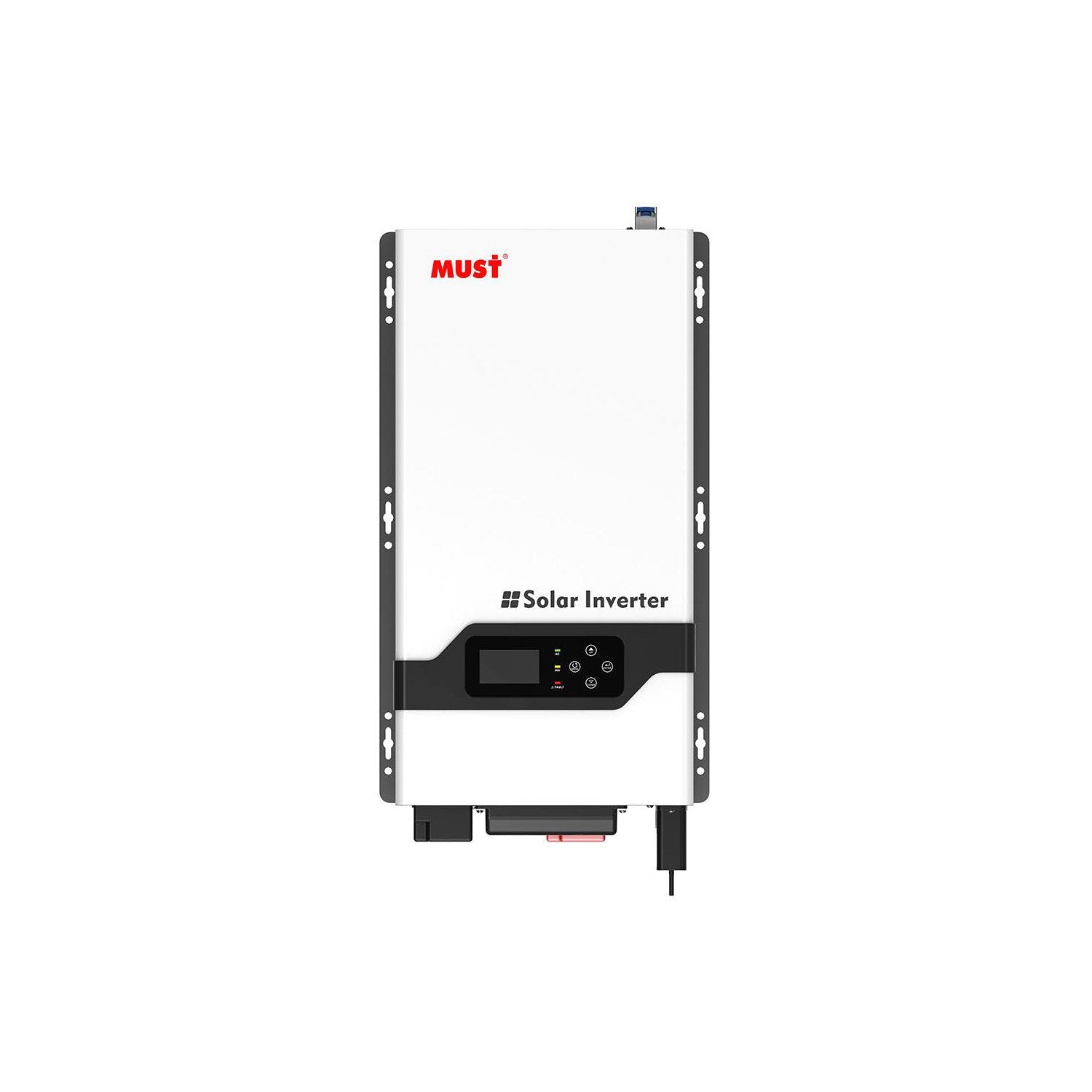

Mustpower PV3000 VHM series is very economical pure sine wave solar inverter, Inbuilt with 80A MPPT charger; Solar/AC priority is configurable, when setting solar priority, solar will charge batteries as first priority, and AC can also charge batteries when solar charger current is too lower, in this way system charge is optimazed best. it enables inverter to operate with all kinds of home appliances.
3 Steps charging
Overload and short-circuit protection
Set charging voltage/charging current
Battery low voltage shutdown point can be set to 10/10.5/11/11.5/12V
Power-save mode
Set utility priority /battery priority
Set utility input wide/narrow voltage range
Inverter voltage can be set to 220V/230V/240V
Inverter frequency can be set to 50Hz/60Hz
Set utility charging on/off switch
Inbuilt 80A MPPT Solar Charge Controller
Acid or Lithium Select
WIFI remote monitoring (optional)
With BMS lithium battery communication function (CAN port)
Model: PV30-6048 VHM
Nominal Battery System Voltage: 48VDC
INVERTER OUTPUT
Rated Power: 6 KW
Surge Rating: 18000VA
Waveform: Pure sine wave / same as input (bypass mode)
Nominal Output Voltage RMS: 220V / 230V / 240VAC (±10% RMS)
Output Frequency: 50Hz / 60Hz ±0.3Hz
AC INPUT
Voltage: 230VAC
Selectable Voltage Range: 155 - 265VAC(For personal computers)
Frequency Range: 50Hz / 60Hz(Auto sensing) 40 - 80Hz
CHARGER
Maximum Charge Current: 40A
SOLAR CHARGER
Maximum PV Array Power: 5000W
Maximum PV Charge Current: 80A±4A
DC Voltage: 24V/ 48V auto work
MPPT Range @ Operating Voltage: 30 - 230VDC @ 24V/ 60 - 230VDC @ 48V
Maximum PV Array Open Circuit Voltage: 245VDC
Dimensions (WxHxD): 531x305x202mm
Package Dimensions (WxHxD): 686x400x319mm
2 Years Warranty
