Description

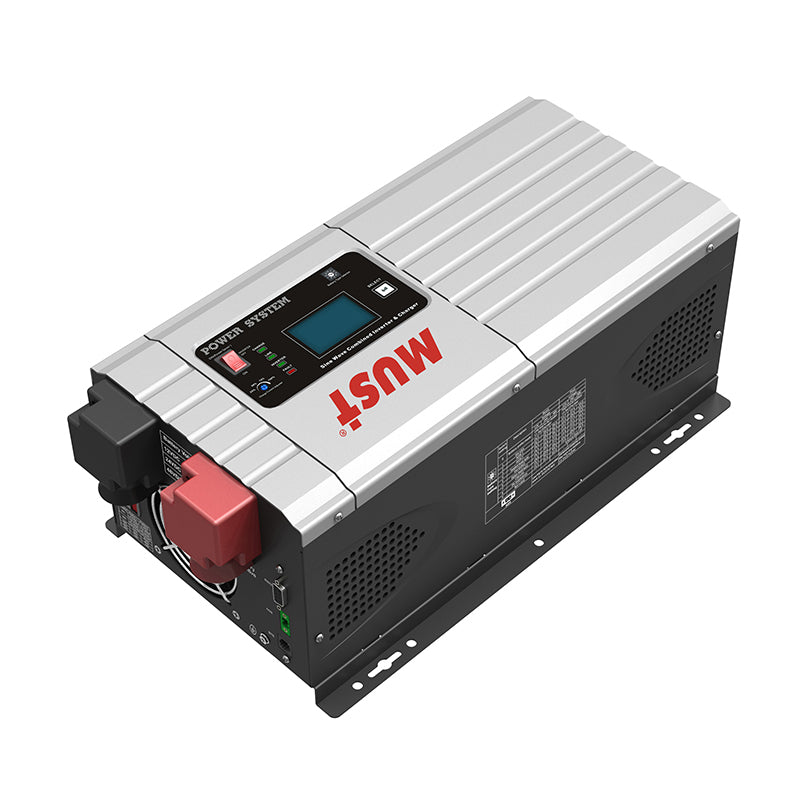

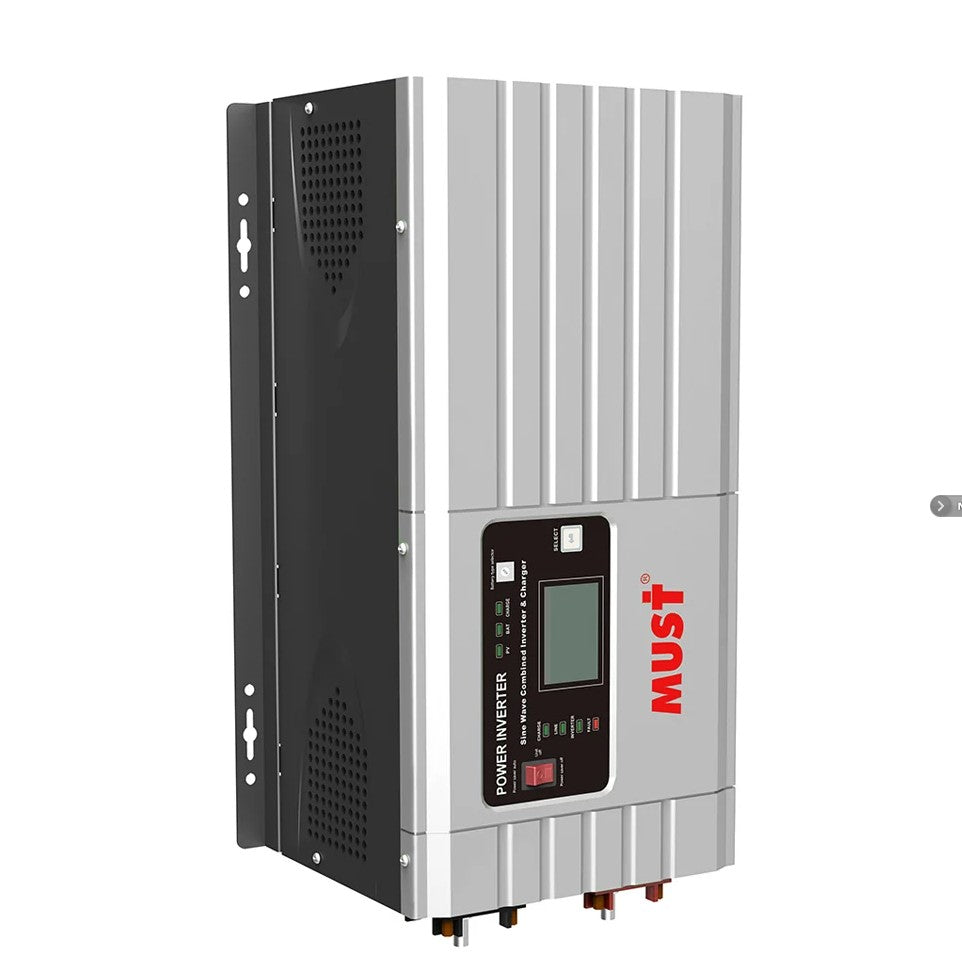

Mustpower EP3000 Pro Series Low Frequency Power Inverter/Charger
Features

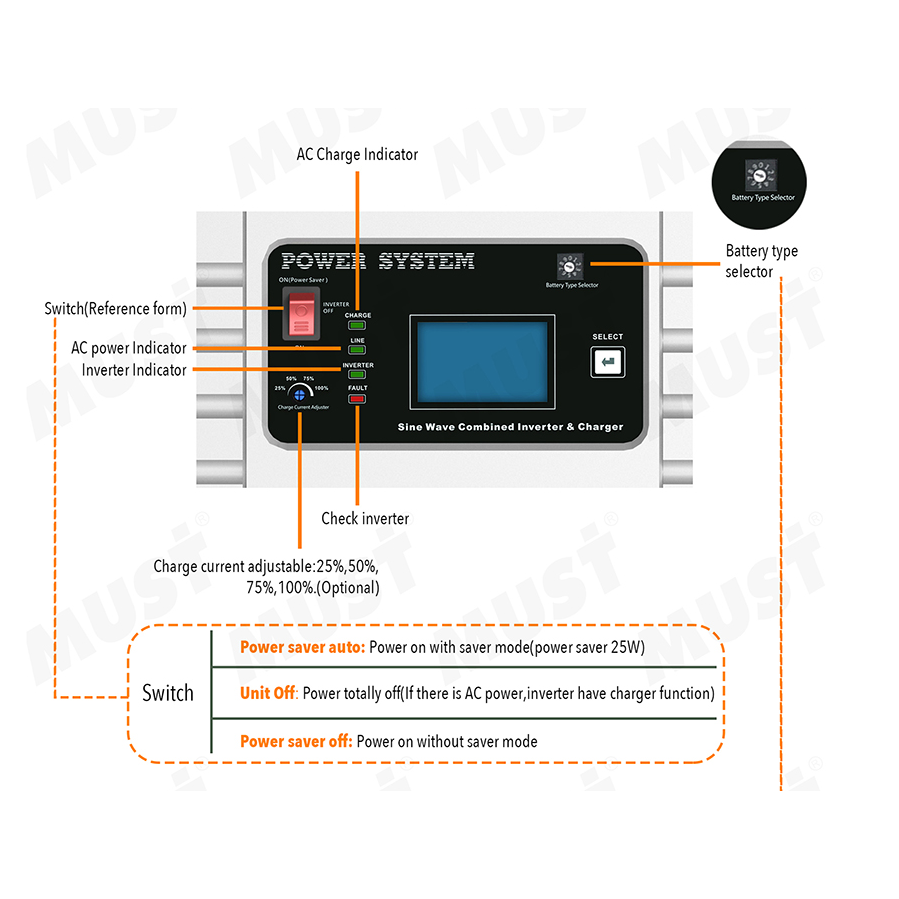

LCD display

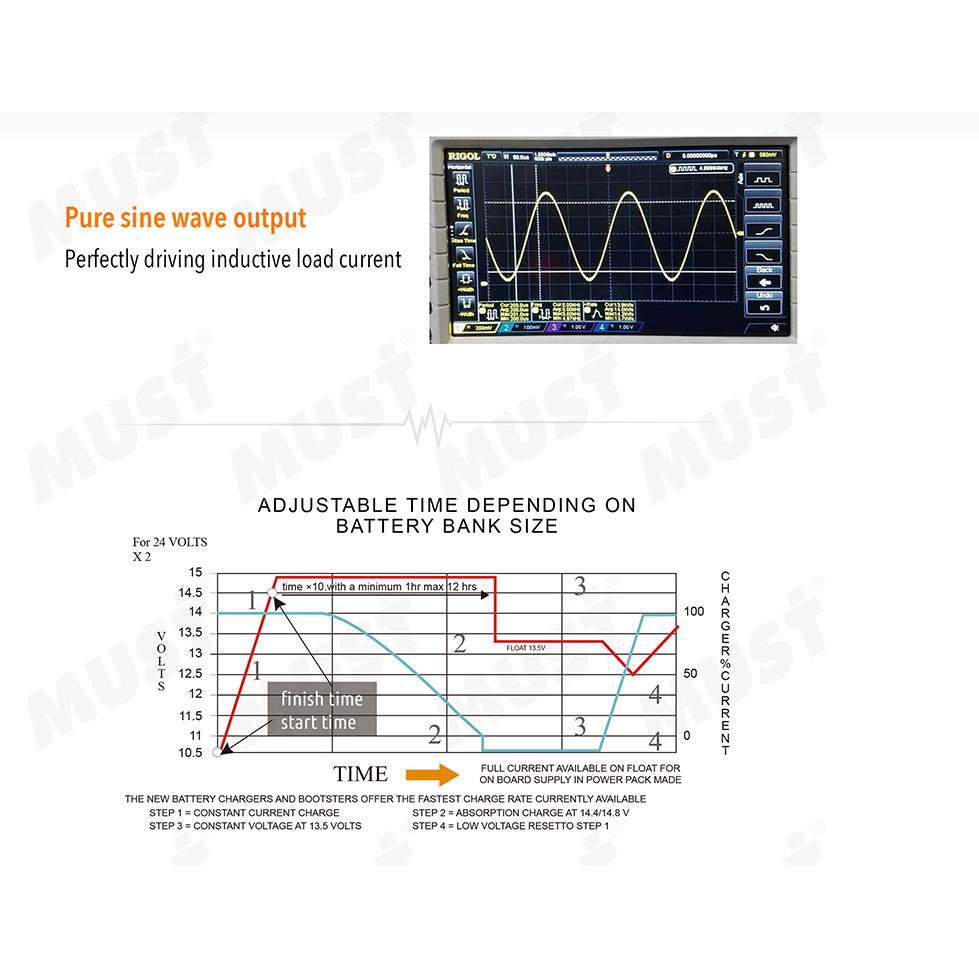

Pure Sine Wave Output
Support Remote Control Box(optional)
Compatible to generator
5-levels DIP switch, offering customized performance
9-levels battery selector, Enable to charge Gel, lead-acid battery
DC(Solar)/AC priority optional
4 levels charge current adjustable
With RS232 communication port
With BTS & AGS, optimazing battery performance & start generator automatically
Power saver Switch, Enable to minimize standby consumption
MODEL: EP30-3KW PRO
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated Power: 3KW
Surge Rating(20ms): 9.0KW
Capable Of Starting Electric Motor: 2HP
Waveform: Pure sine wave / same as input (bypass mode)
Nominal Output Voltage RMS: 110V/120V / 220V / 230V / 240V (±10% RMS)
Output Frequency: 50Hz / 60Hz ±0.3Hz

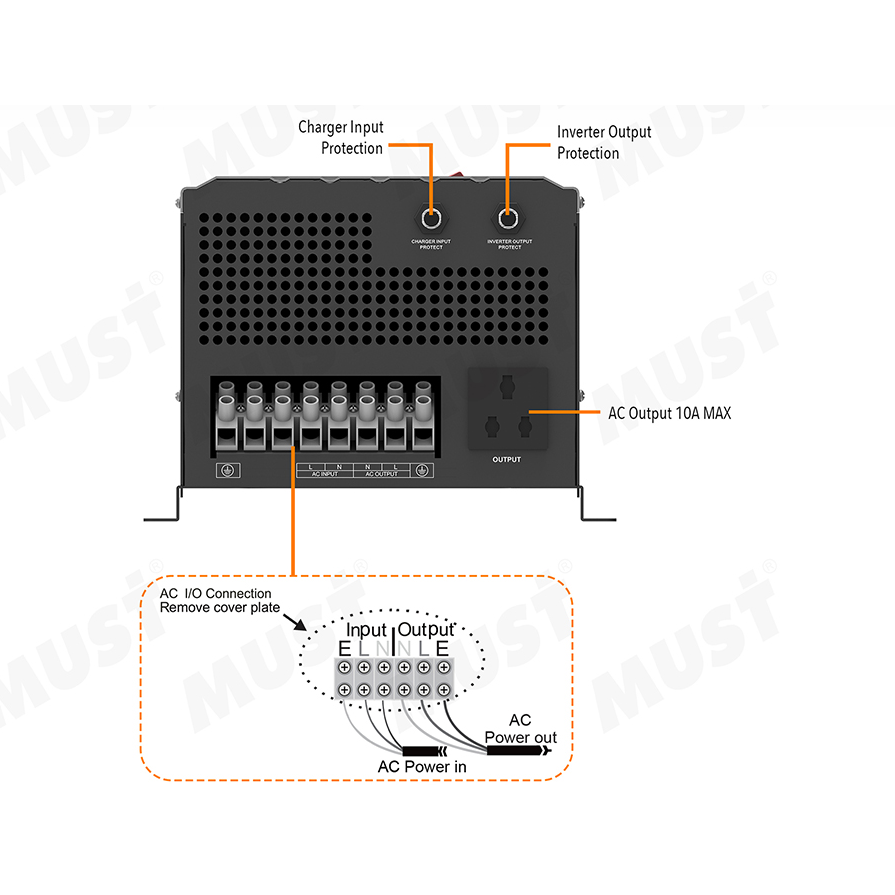

AC INPUT
Voltage: 230VAC
Selectable Voltage Range: 96~132VAC 155~280VAC(For personal computers)
Frequency Range: 50Hz / 60Hz(Auto sensing) 40~80Hz
MECHANICAL SPECIFICATIONS
Dimensions (W*H*D): 426 x 206 x 178mm
Net Weight (Solar CHG)(kg): 24.5
