Description
Introducing the Mustpower PH10-5048A High Frequency Hybrid Solar Inverter
Series: PH1000, 5KW
Key Features:
Wide MPPT voltage range: 120-550V

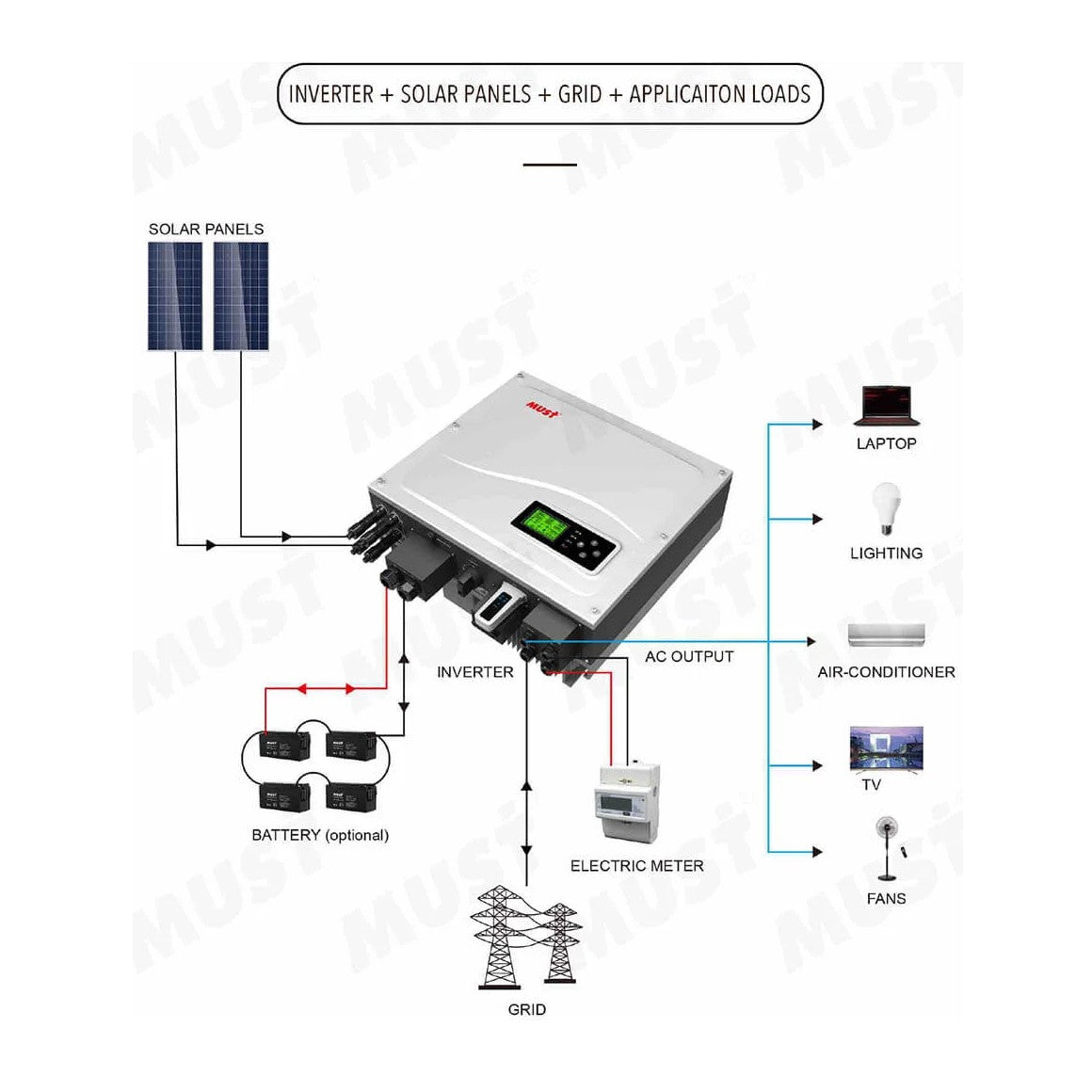

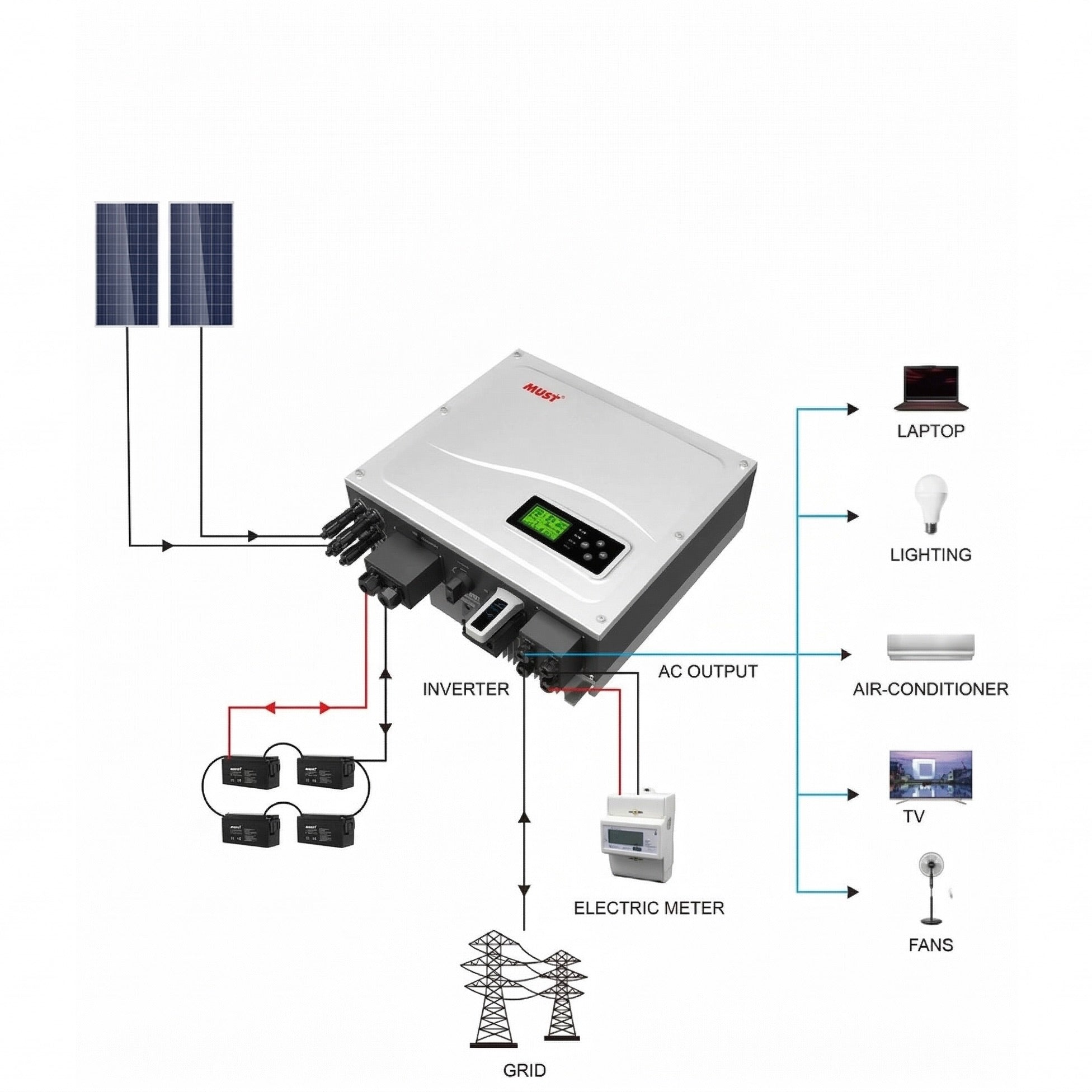

Multiple modes: Grid-tie, off-grid, grid-tie with backup

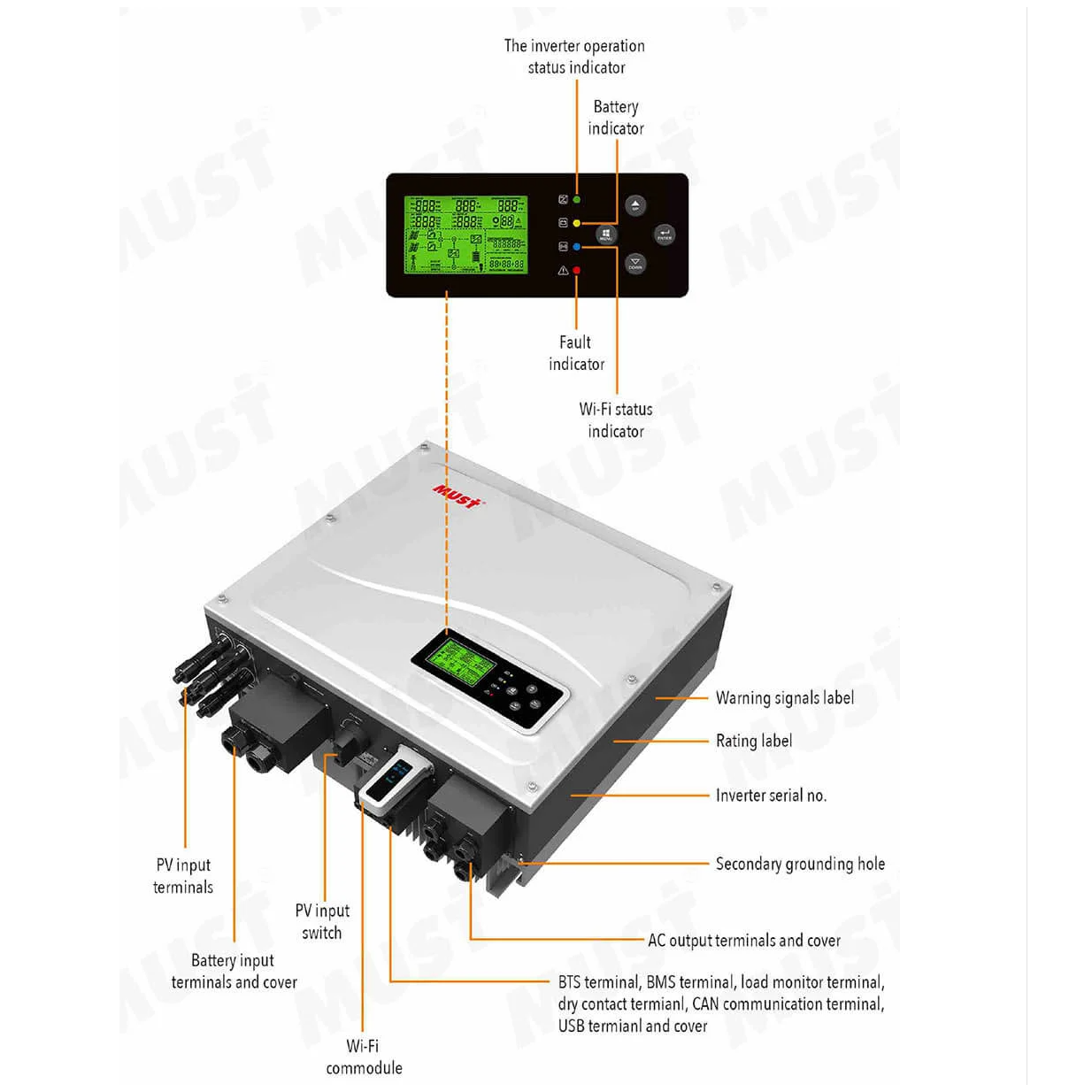

LCD display & Smart LCD settings

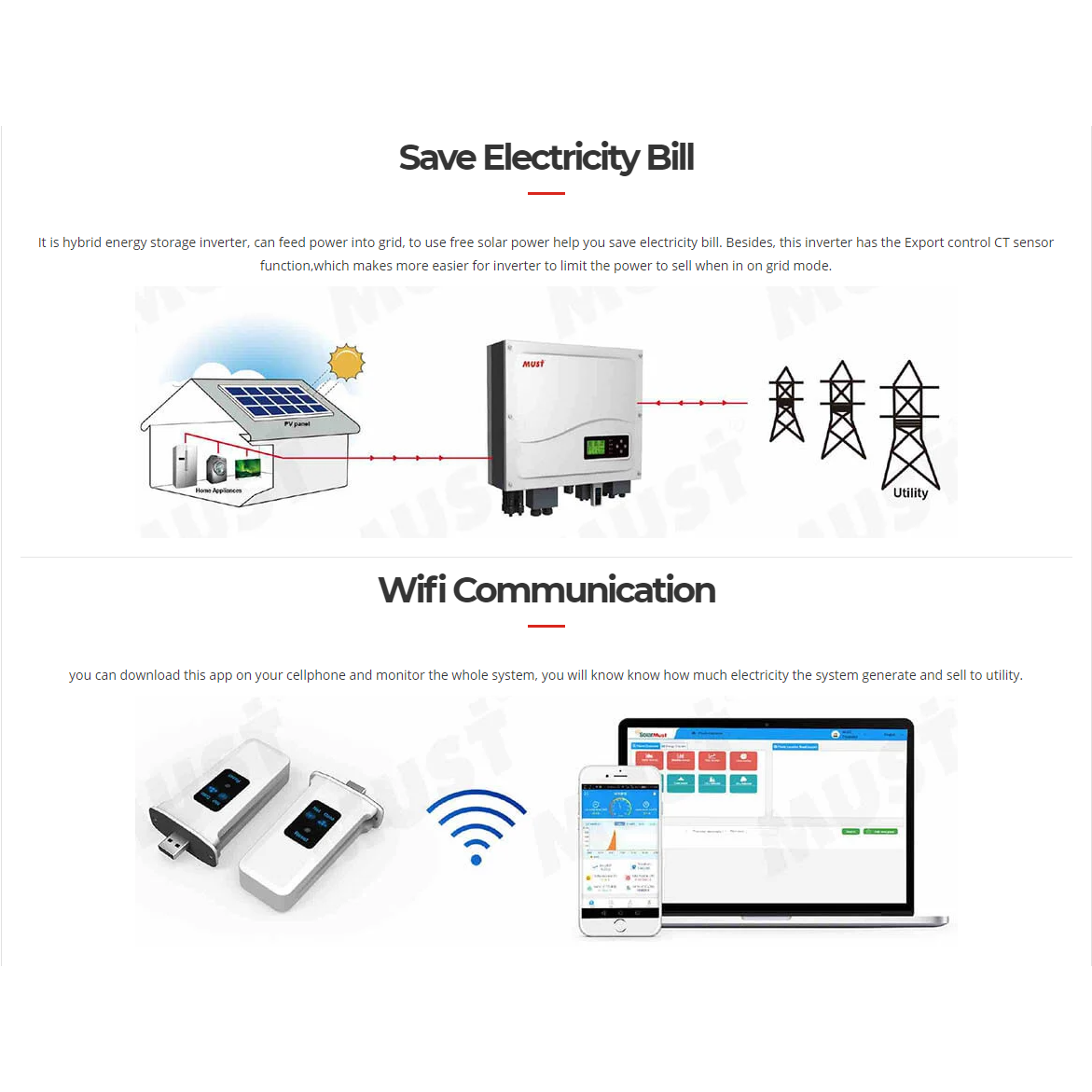

Export Power Manager
Multiple communication options: USB, RS485, GPRS, WiFi
Remote monitoring via computer or mobile phone
Full protection: Over-voltage, over-frequency, over-current, over-temperature, AC short-circuit
Intelligent BMS battery management
Fanless, low-noise design
IP65 Dust-proof and waterproof
Specifications:
Model: PH10-5048A
Rated Power: 5000W
Nominal Battery System Voltage: 48V
PV Input (DC):
Max recommended DC power: 5750W
Nominal DC operating voltage: 360V
Max DC voltage: 580V
MPPT voltage range: 120~550V
Max input current: 11/11A
Max short circuit current: 15/15A
2 MPP trackers, 1 string per tracker
Inverter Output (AC):
Nominal AC output power: 5000W
Nominal output voltage; range: 220/230/240V; 180-280V
Nominal output current: 21.8A
Max output current: 22.8A
Battery & Charger:
Compatible with Lead-acid and Lithium batteries
Battery voltage: 48V
Battery voltage range: 40~60V
Max charging/discharging power: 2500/2500W
Max charging/discharging current: 50/50A
Dimensions & Weight:
480 x 420 x 215 mm
Net weight: 27 kg
