Description

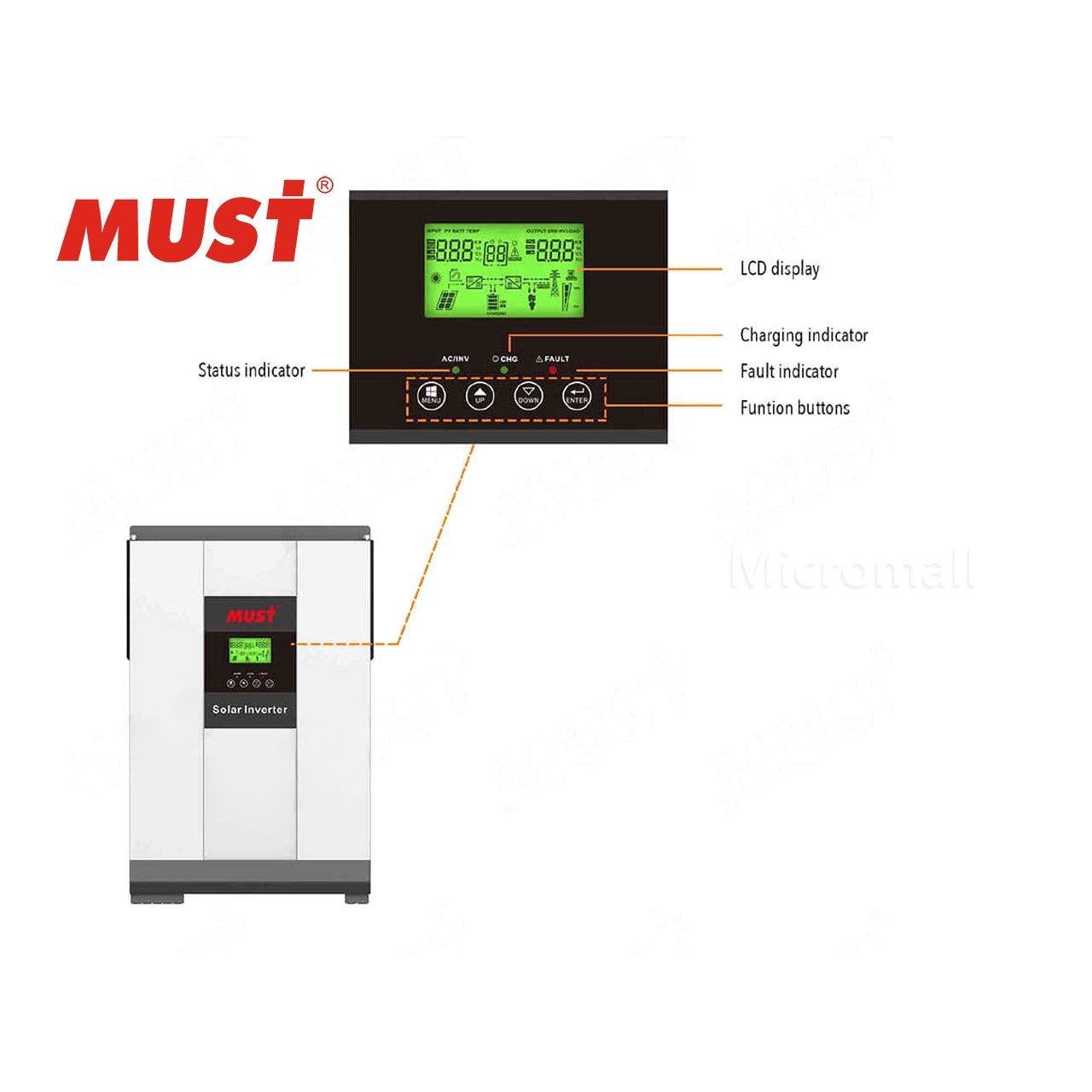

The MUSTPOWER High Frequency 3000W Off Grid Solar Inverter PV18-3024 VHM PLUS is a versatile and compact solution for uninterrupted power supply. This inverter combines the functions of an inverter, solar charger, and battery charger to provide reliable power in a portable package. With a user-friendly LCD display and intuitive button controls, it offers customization options such as battery charging current, AC/solar charger priority, and acceptable input voltage for various applications.
Key Features:
Pure sine wave solar inverter
Output power factor 1 for efficient performance
High PV input voltage range
Built-in 80A MPPT solar charger for maximum efficiency
Battery equalization function to optimize battery performance and lifespan
Integrated anti-dusk kit for use in harsh environments
Generator support for battery charging
Specifications:
Model: PV18-3024 VHM PLUS
Nominal Battery System Voltage: 24VDC
Inverter Output:
Rated Power: 3000W
Surge Power: 6000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC - 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184 - 253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto sensing)
Battery:
Normal Voltage: 24VDC
Floating Charge Voltage: 27VDC
Overcharge Protection: 31VDC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array MPPT Voltage: 30~130VDC
PV Input Power: 1920W
Maximum Solar Charge Current: 80A
Maximum Efficiency: 98%
Maximum Charge Current: 80A
Dimensions (WHD)(mm): 272355100
Net Weight(kg): 11
Warranty: 2 YEARS WARRANTY
SAA NZ Certificated Inverter
This MUSTPOWER inverter is a reliable and efficient choice for off-grid solar power systems, offering a range of features and a 2-year warranty for added peace of mind.
