Description

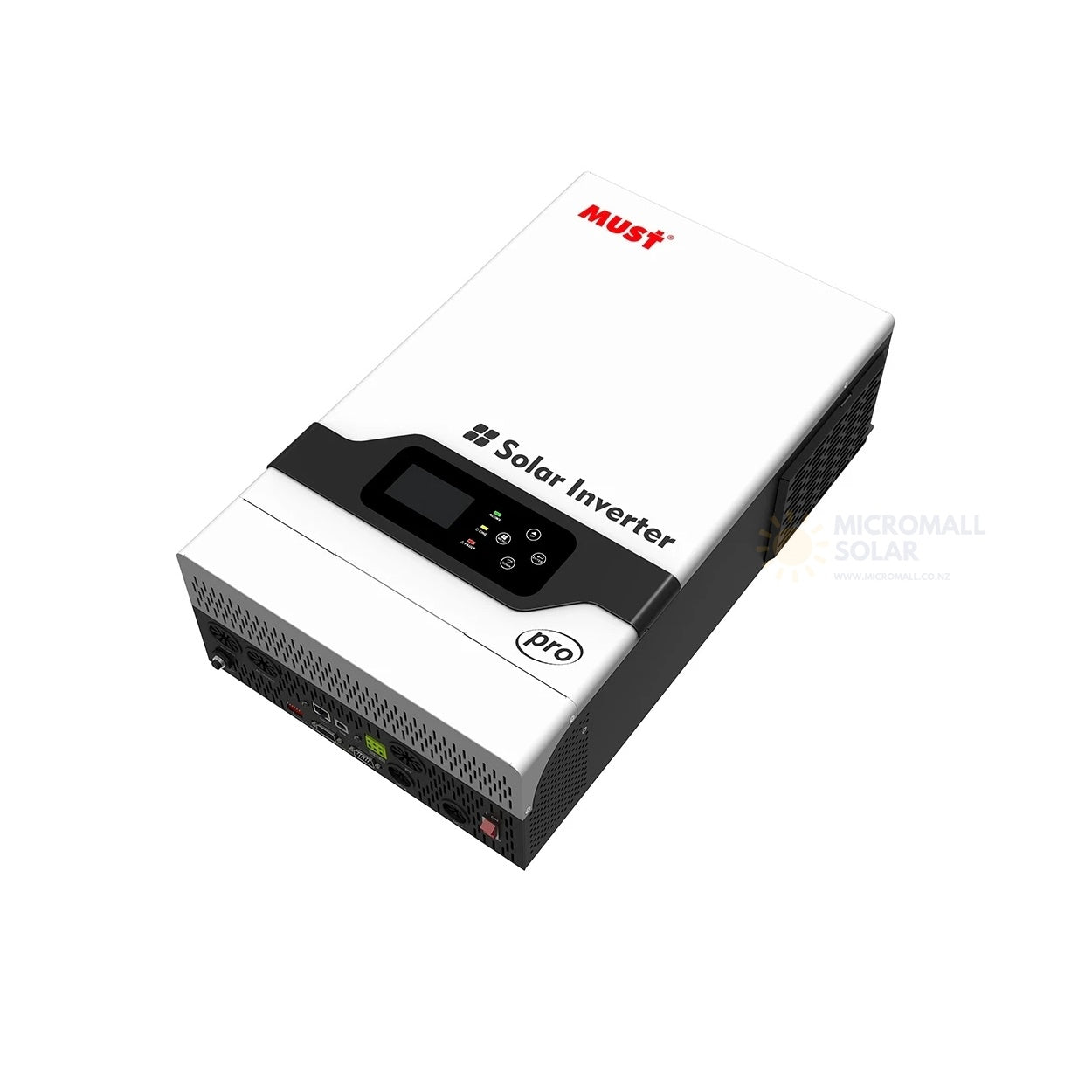

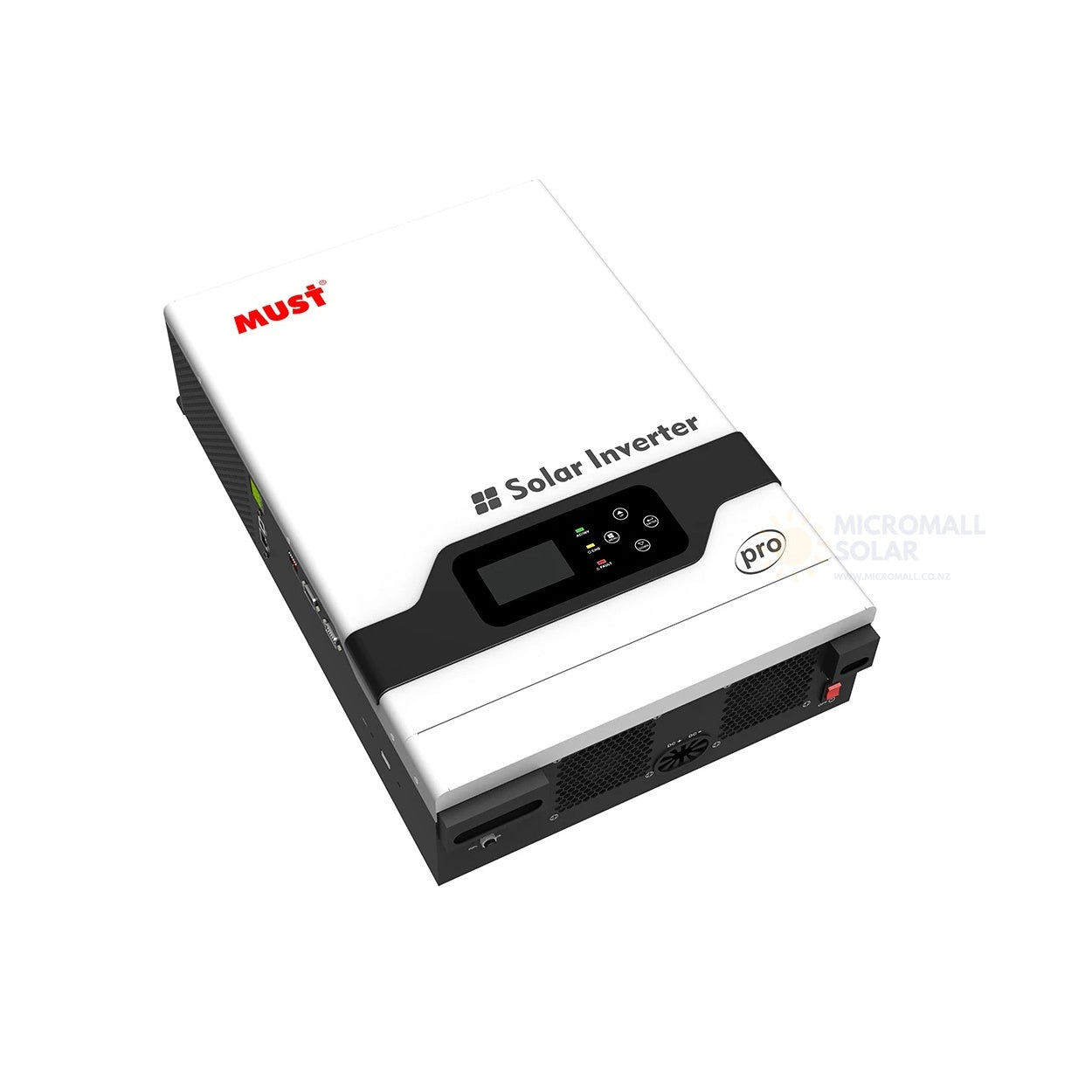

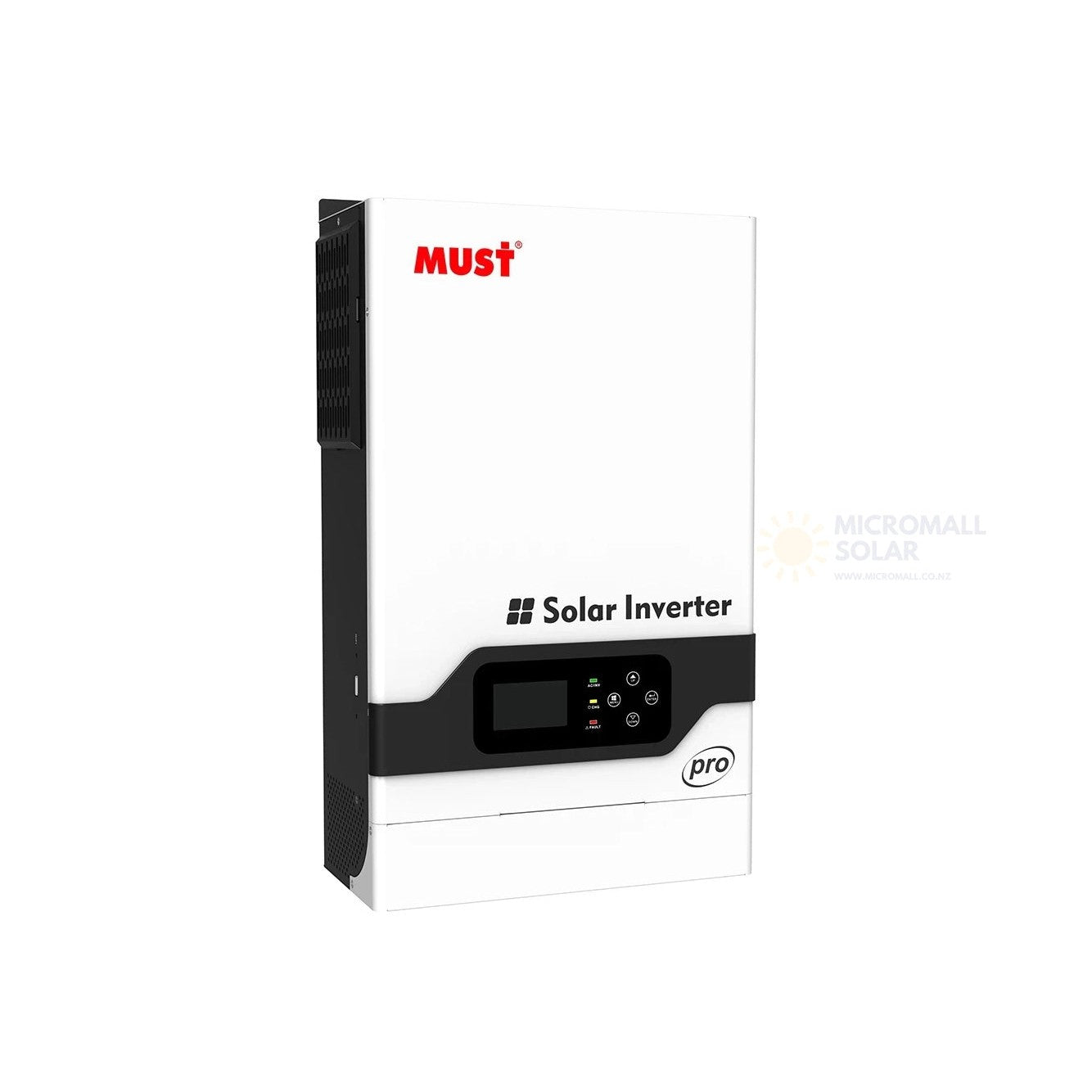

PV1800 PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which Can help customers make full use of solar energy.
Features:

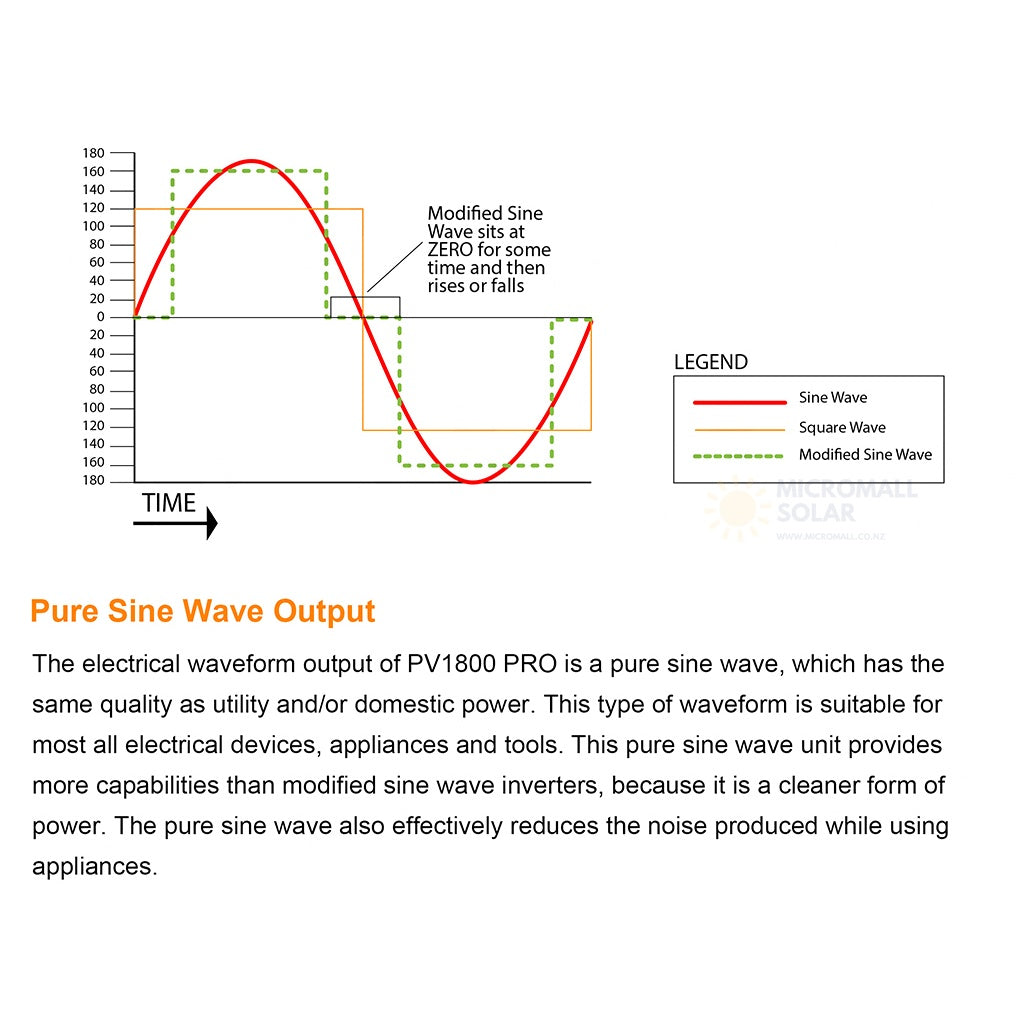

Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller

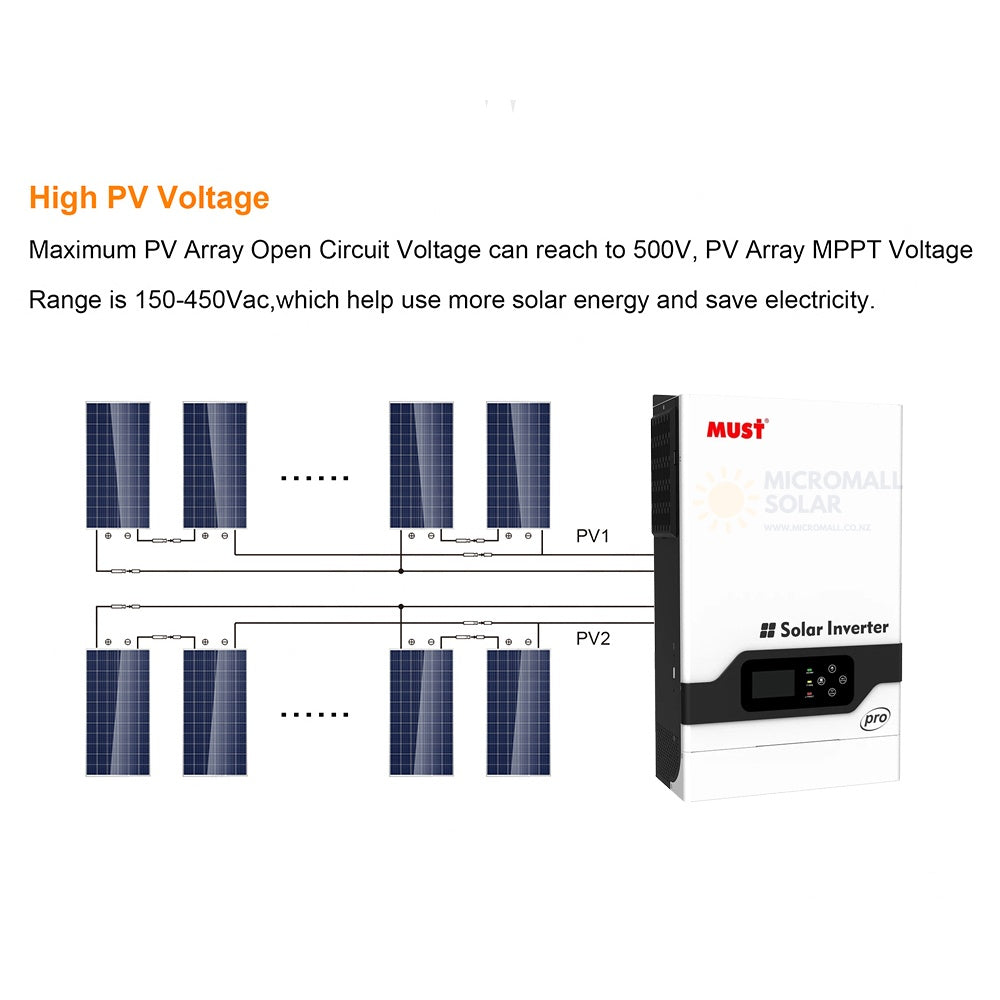

MAX PV Array Open Circuit Voltage: 450V
Can provide the power to the load without battery

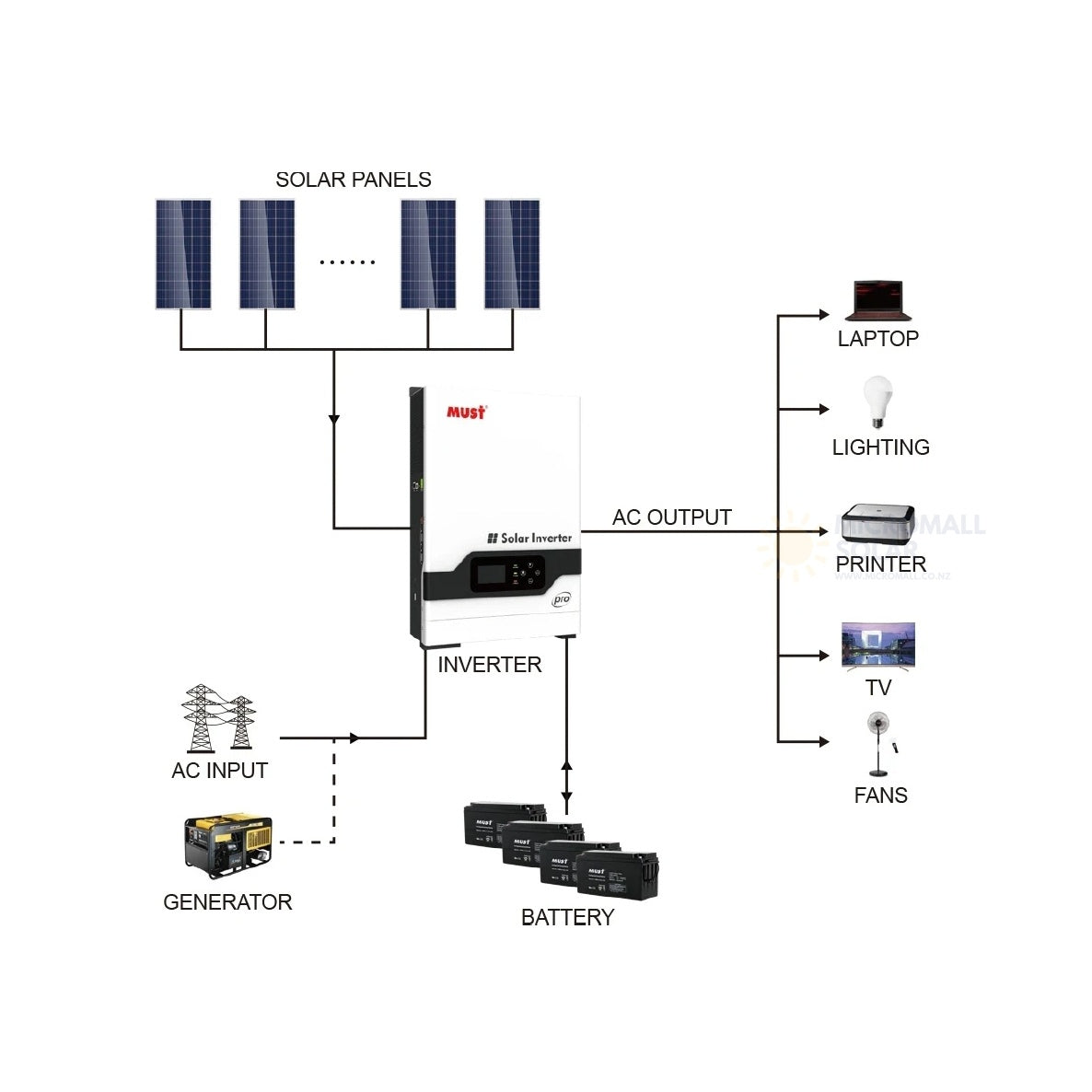

Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function

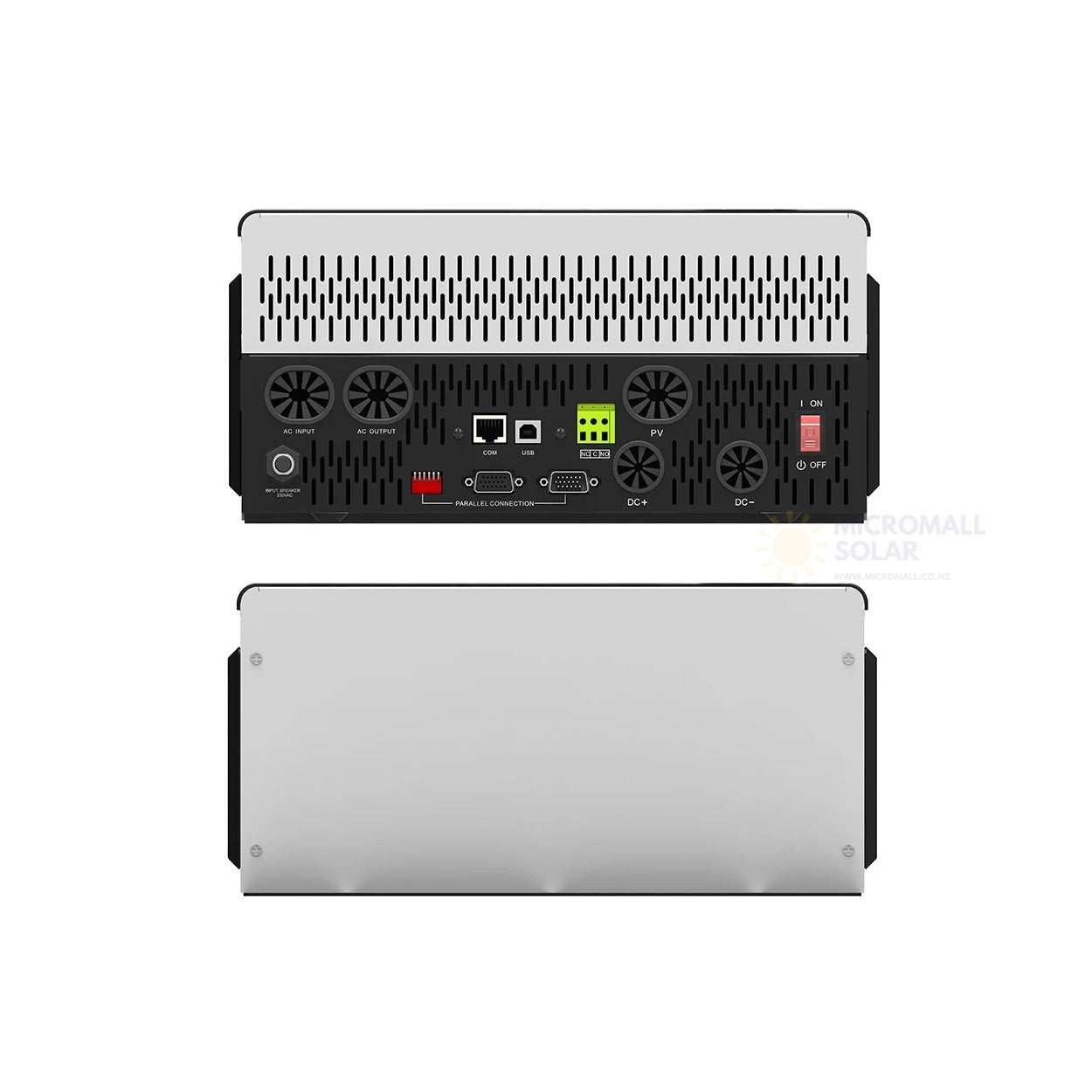

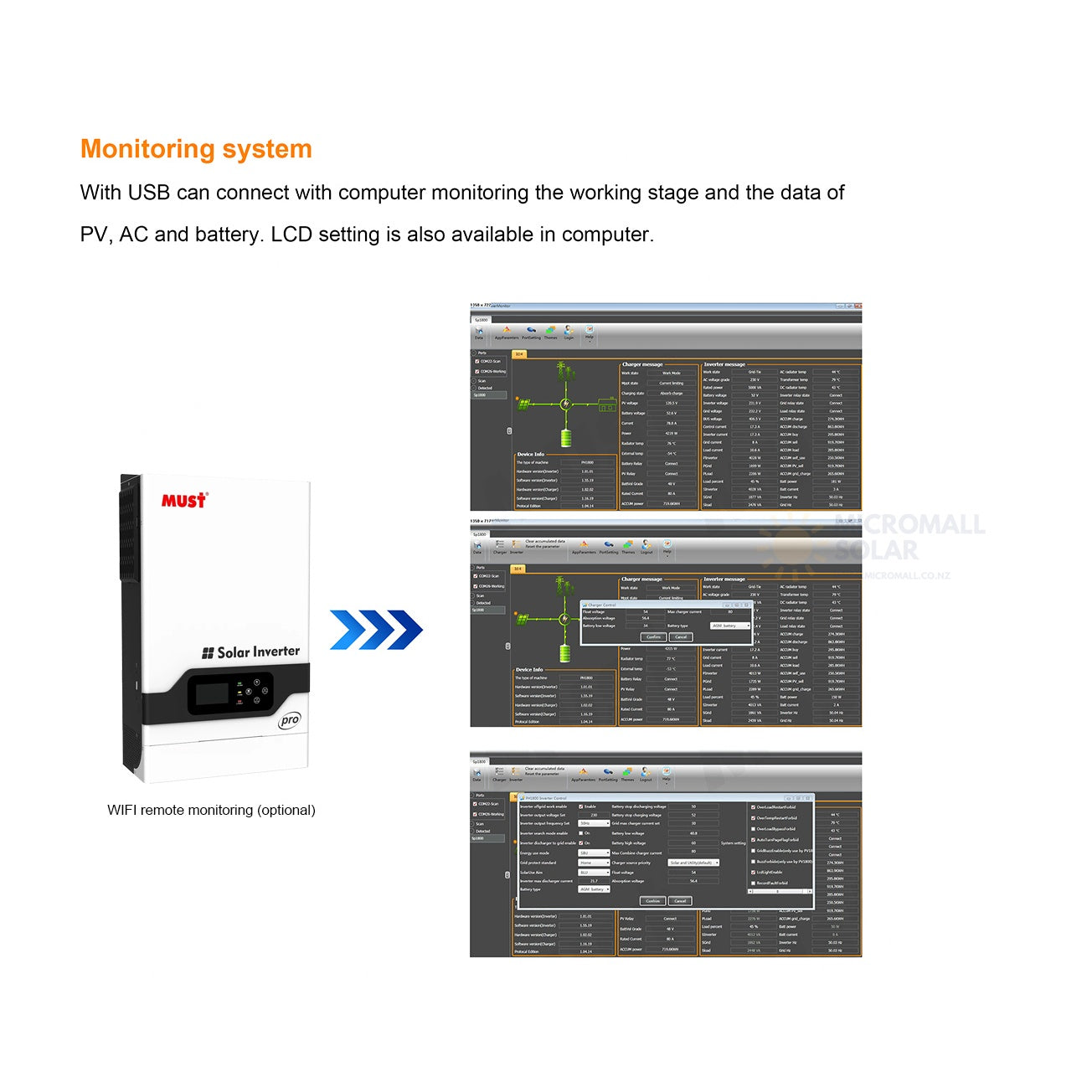

Support USB, RS485 monitoring function
Parallel operation with up to 3 units
WIFI remote monitoring (optional)
MODEL: PV18-5248 PRO
Nominal Battery System Voltage: 48VDC
INVERTER OUTPUT
Rated Power: 5200VA / 5200W
Surge Power: 10400W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): 230VAC±5%(Setting)
Inverter Efficiency(Peak): 90%
Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage: 230VAC±5%
Selectable Voltage Range: 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range: 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage: 48VDC
Floating Charge Voltage: 54.8VDC
Overcharge Protection: 60VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage: 450VDC
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 5000W/6000W
PV Array MPPT Voltage Range: 150~430 VDC
Maximum Solar Charge Current: 80A/100A
Maximum AC Charge Current: 60A/80A
Maximum Charge Current: 80A/100A

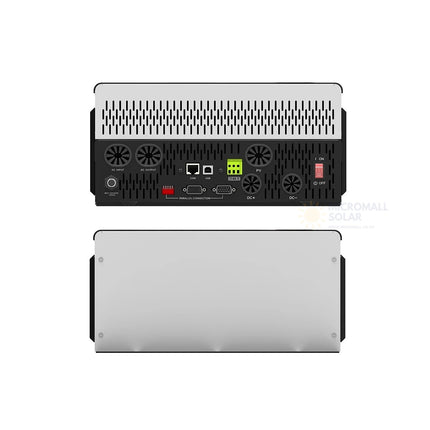

MECHANICAL SPECIFICATIONS
Machine Dimensions: 309 x 505 x 147mm
Package Dimensions: 375 x 655 x 269mm
Net Weight: 14kg
Gross Weight: 16.4kg
2 Years Warranty
