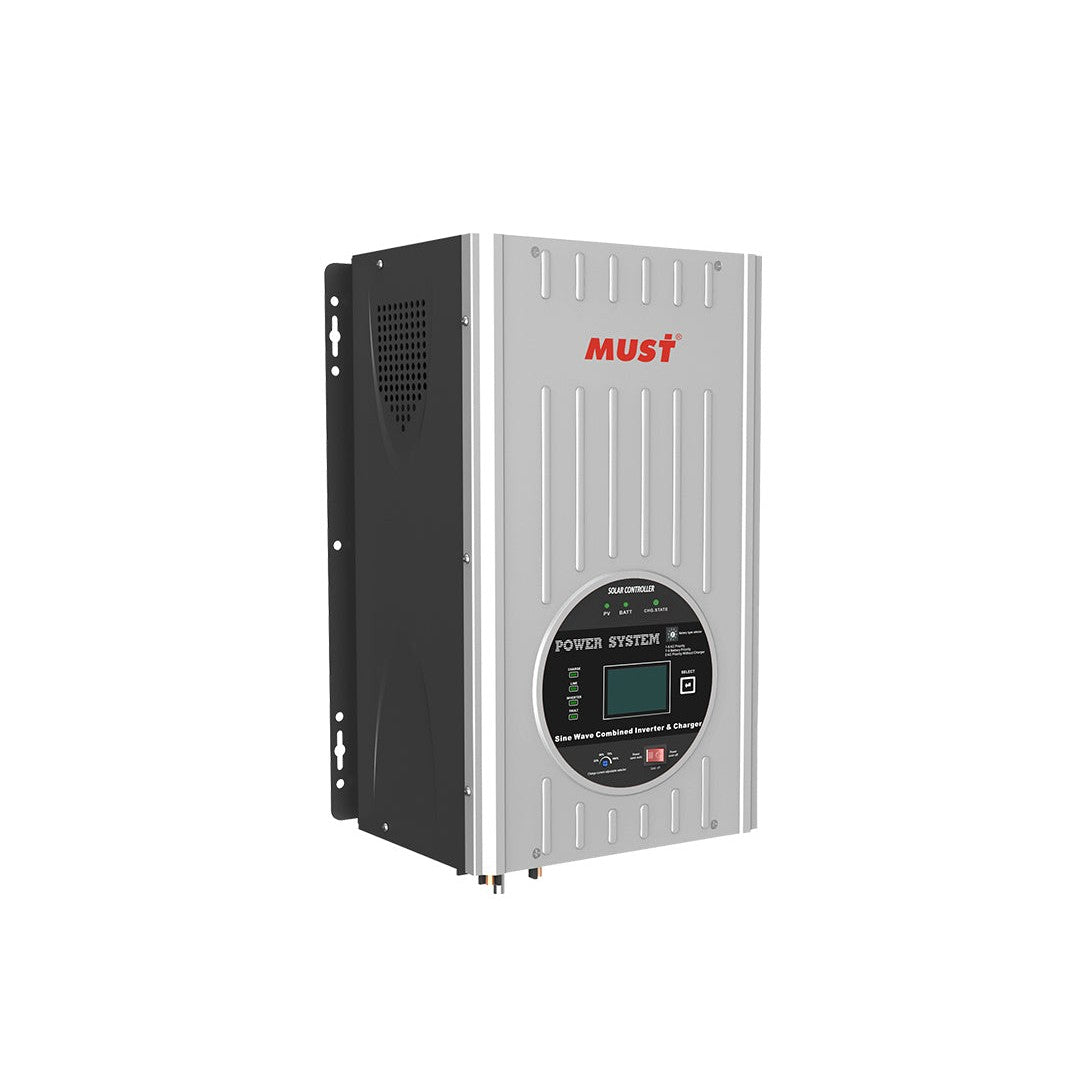

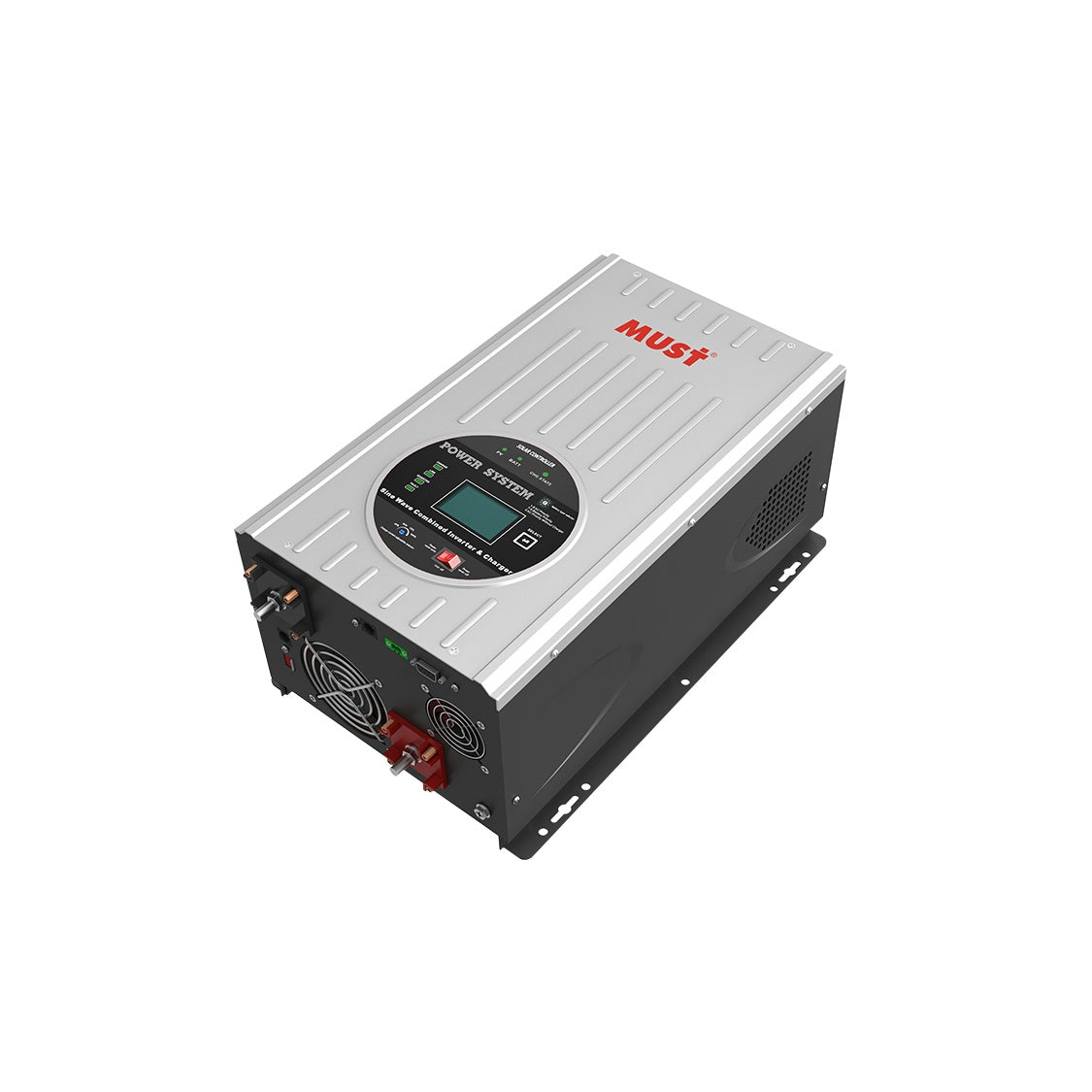

Introducing the Mustpower INVERTER PV30-3024PRO!
The Mustpower PV30-3024 PRO is an off-grid hybrid inverter designed for versatile usage. It features an 80A MPPT controller, a 3000W low-frequency inverter (with a peak power of 9000W), and is compatible with off-grid systems and generators.
Key Features:
Pure sine-wave output, suitable for various domestic appliances such as TVs, refrigerators, fans, air conditioners, induction cookers, and microwave ovens.
Superior performance thanks to CPU control technology.
Wide input voltage range with accurate output and AVR (Automatic Voltage Regulation) function.
Equipped with internal protection against overloads, short circuits, over-voltage, low-voltage, and over-heating.
Easy monitoring of inverter status with LED indication (upgradeable to LCD display).
Compatible with generators and allows for external battery connection.
Intelligent battery management system with protection against overcharging and over-discharging, among others.
Generator compatible.
Specifications:
Model Name: PV3000
Model Designation: PV30-3024PRO
Operating Temperature: 0°C to 40°C
Protection Degree: IP 20
Rated Power: 3000W
DC Input: 24VDC
AC Output: 230VAC 50/60Hz
AC Input: 230VAC 50/60Hz
Rated Current: 80A
System Voltage: 24VDC
MPPT Voltage Range: 30-130VDC
Maximum Solar Voltage (VOC): 145VDC
Maximum Charge Current: 80A
Dimensions (W*H*D): 423*247*197mm
Storage Temperature: -15°C to 60°C
Audible Noise: 60dB MAX
Display: LED+LCD
Standard Warranty: 1 year
This inverter fully complies with AS/NZS4777 and the new AS/NZS5033+ IEC 62109-1 & IEC 62109-2 + AS/NZS 5033:2014 Compliance, meeting the latest NZ 2015 specification requirements.
