Description
The Narada REXC-1000 is a high-capacity 2V four-terminal lead carbon deep-cycle battery designed for solar energy storage, off-grid systems, hybrid power systems and other demanding energy storage applications.
This listing is for ONE 2V battery cell only.
The four-terminal design uses four M8 embedded copper terminals, providing flexible connection options when building higher-voltage battery banks.
Specifications
- Model: REXC-1000
- SKU: BTN-2V1000-P
- Battery Type: Lead Carbon VRLA Deep Cycle Battery
- Nominal Voltage: 2V
- Capacity: 1000Ah (10hr to 1.80V/cell at 25°C); 1200Ah (120hr to 1.85V/cell at 25°C)
- Typical Weight: 76kg
- Internal Resistance: Approx. 0.15mΩ
- Short-Circuit Current: 12,835A
- Maximum Charging Current: 250A
- Float Charge Voltage: 2.23V at 25°C
- Equalising / Cycle Charge Voltage: 2.30V at 25°C
- Self-Discharge: More than 90% residual capacity after 90 days at 25°C
- Recommended Operating Temperature: 15°C to 25°C
- Maximum Operating Temperature Range: -40°C to 50°C
- Terminals: Four M8 embedded copper terminals
- Terminal Hardware Torque: 12-15N·m

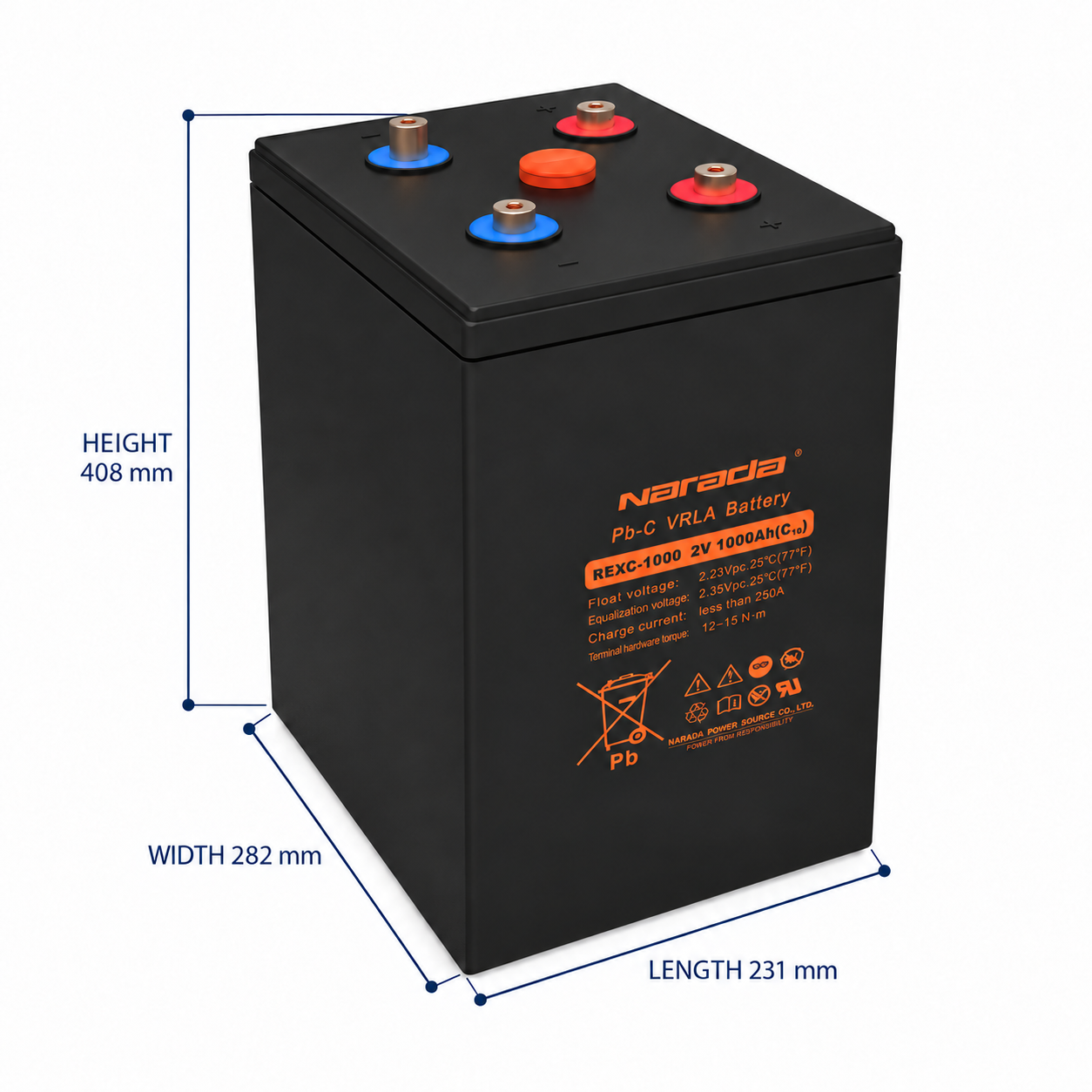

- Dimensions: 231mm L × 282mm W × 396mm body height (408mm total height)
- Design Life: Up to 20 years under specified conditions
- Standards: IEC 60896 and IEC 61427
Key Features
- Four-terminal configuration
- High-power rapid charge and discharge capability
- Excellent recharge acceptance and reduced negative-plate sulfation
- Suitable for frequent Partial State of Charge (PSOC) operation
- Waterproof, anti-salt-treatment and shock-resistant module design
- Long service life for renewable-energy storage
Building a Battery Bank
These batteries can be connected in series to build higher-voltage systems:
- 12V System: 6 × 2V batteries
- 24V System: 12 × 2V batteries
- 48V System: 24 × 2V batteries
Important Battery Installation Notice
Do not mix new and old batteries in the same battery bank.
For best performance, batteries connected in the same bank should be of the same model, capacity, age and condition. Please contact us if you require assistance designing a complete battery bank.
Applications
- Off-grid solar systems
- Residential and commercial energy storage
- Smart grids and microgrids
- Hybrid solar and wind energy systems
- Home energy storage and backup power
- Emergency lighting and generator-battery hybrid systems
