Description

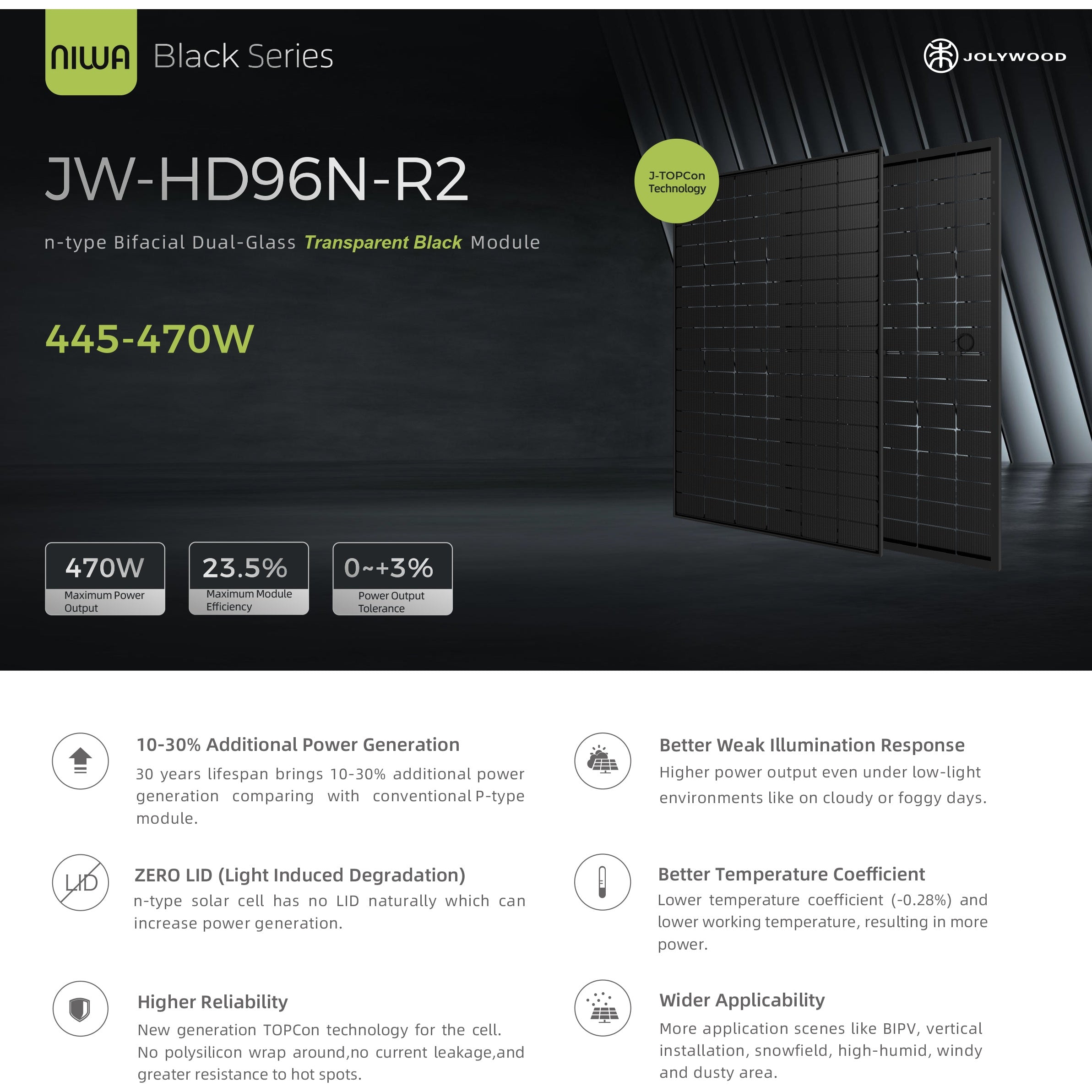

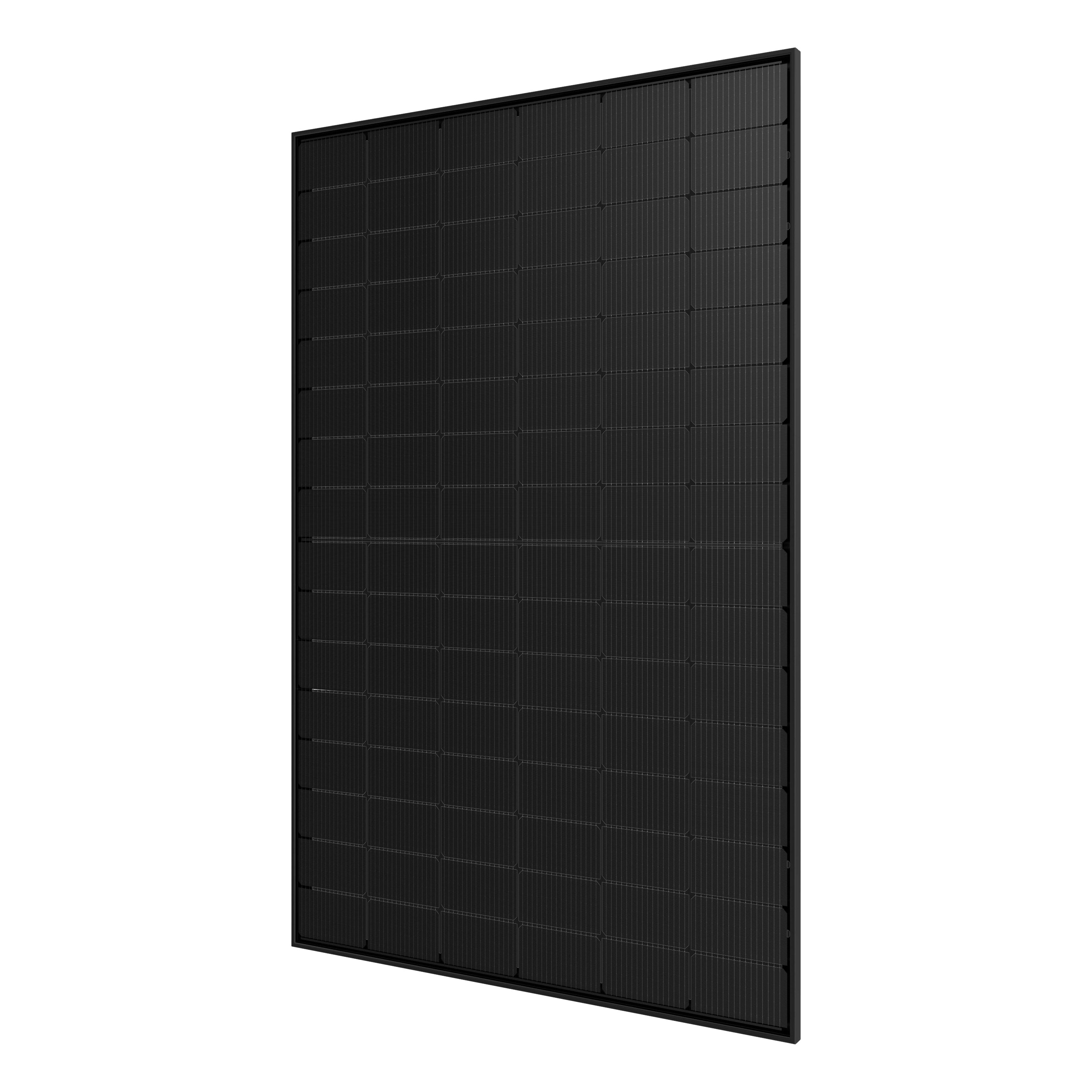

NIWA Black Series JW-HD96N-R2 – N-Type Bifacial Dual Glass Transparent Black Module

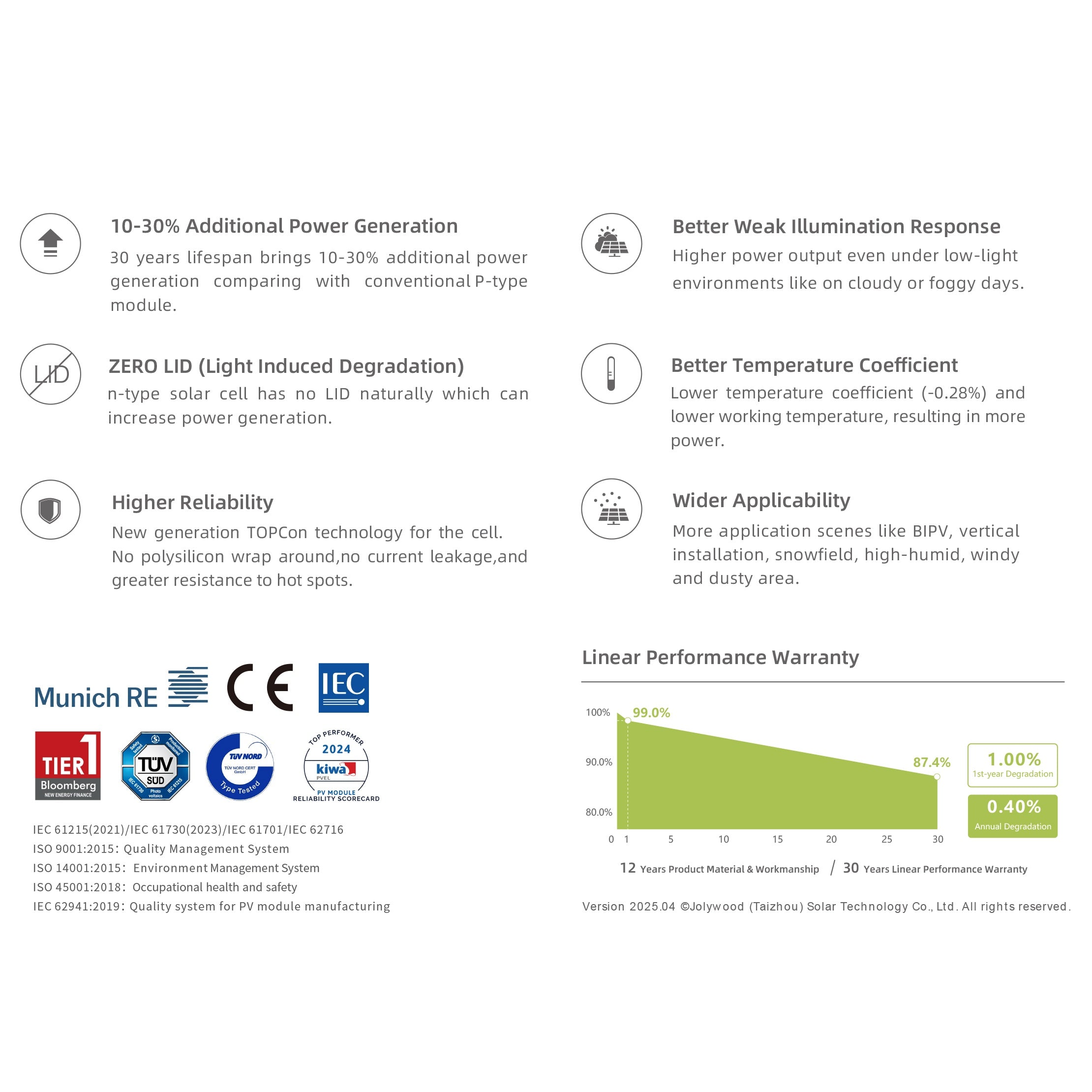

The NIWA Black Series JW-HD96N-R2 is a high-performance N-Type bifacial dual glass solar module designed for maximum energy generation and long-term reliability. With a 30-year lifespan, it delivers 10 to 30 percent more power compared to conventional P-Type modules.
Zero Light Induced Degradation
The N-Type solar cells naturally eliminate LID, maintaining high power output throughout the module’s lifetime.
Excellent Low-Light Performance
The module provides superior energy production even in low-light conditions such as cloudy or foggy days.
Wide Applicability
It is suitable for diverse installation scenarios, including BIPV, vertical installations, snowy areas, high-humidity regions, windy locations, and dusty environments.
Better Temperature Performance
With a low temperature coefficient of minus 0.28 percent and lower operating temperatures, the module delivers more reliable power under heat.
High Reliability
Equipped with next-generation TOPCon technology, the cells have no polysilicon wrap-around, no current leakage, and enhanced resistance to hot spots, ensuring long-term stable performance.
12 Years Product Material & Workmanship
30 Years Linear Performance Warranty
Model: JW-HD96N-R2

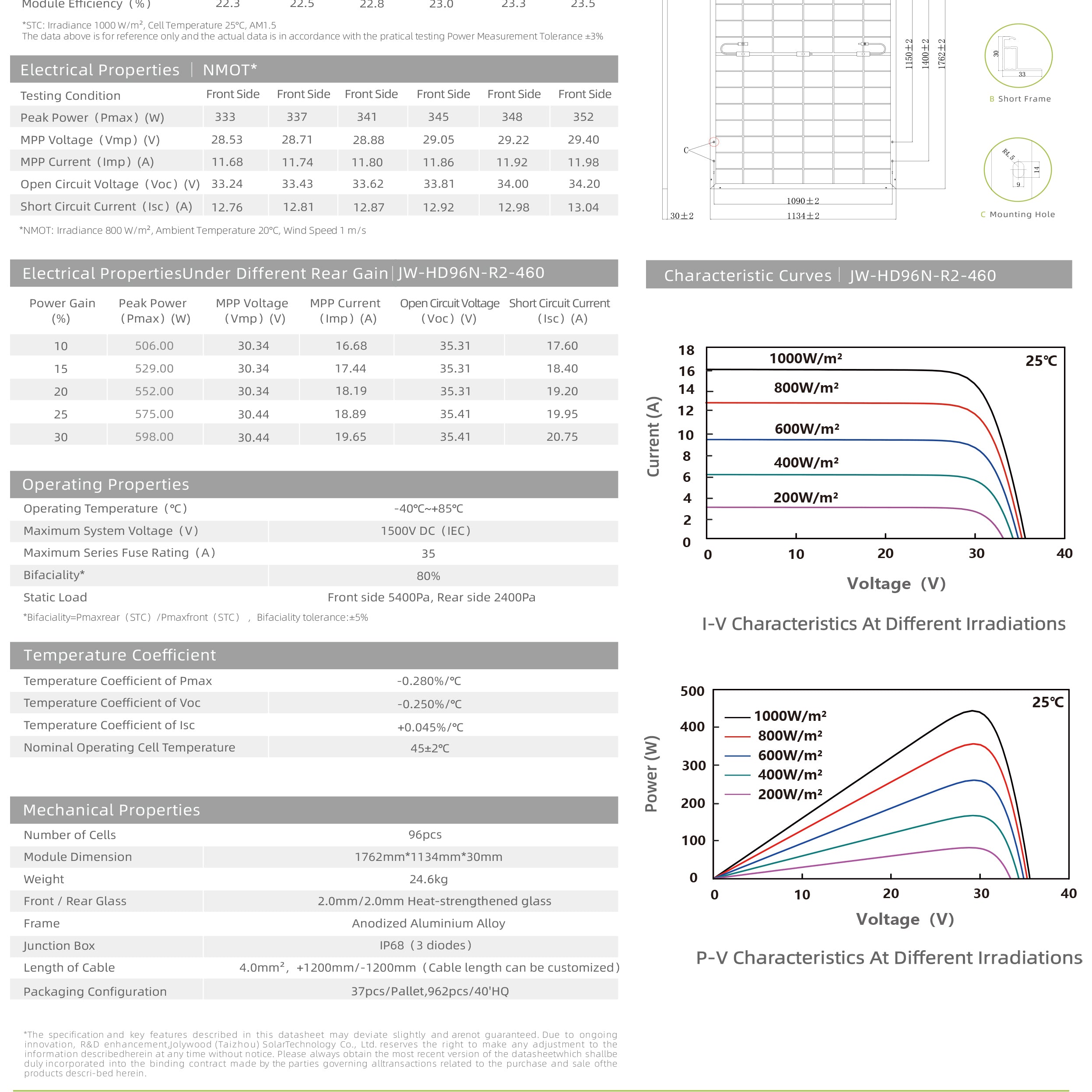

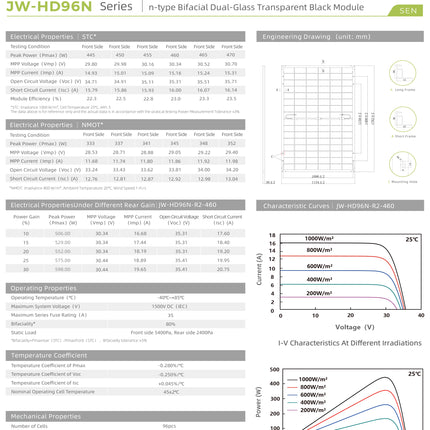

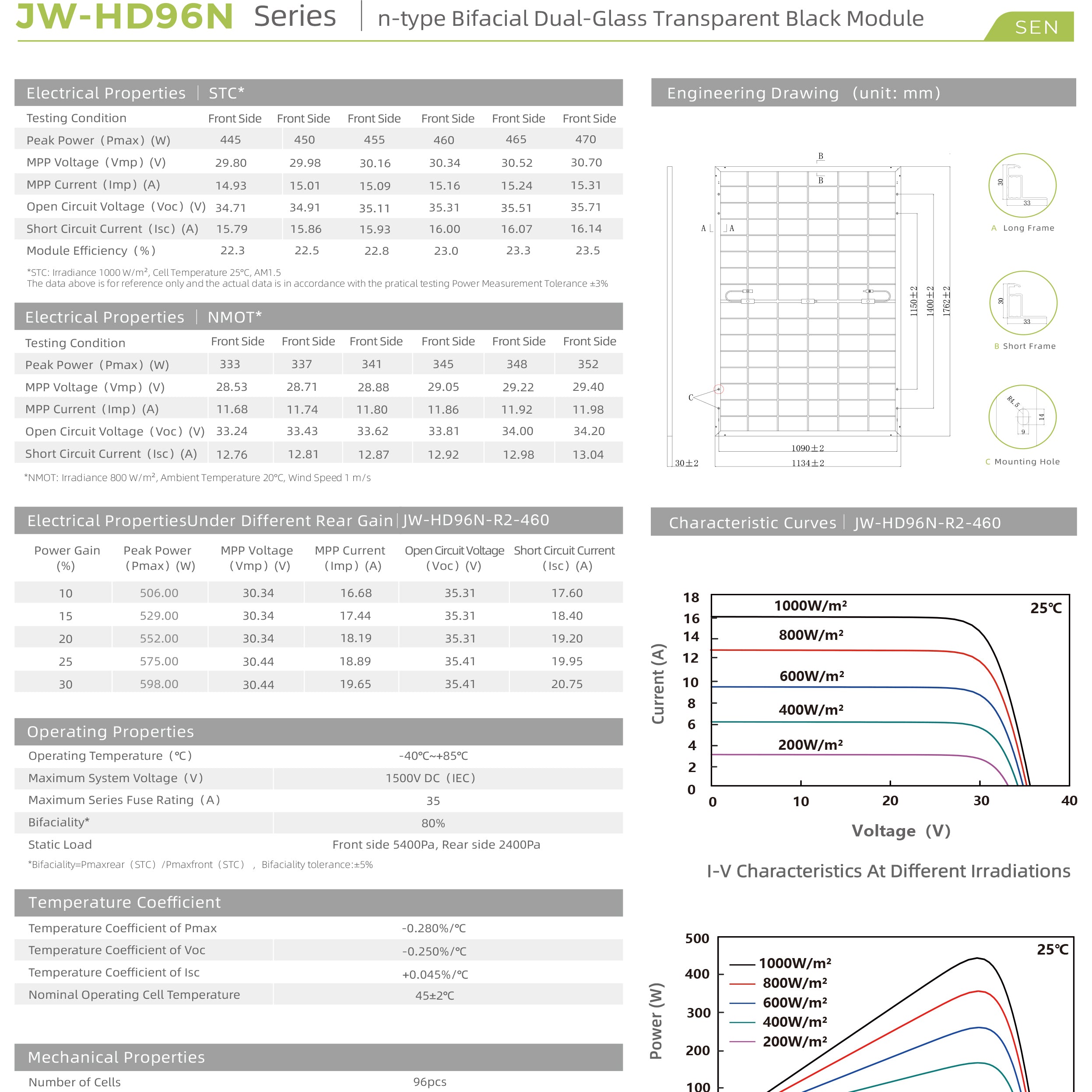

Electrical Properties (STC)
Peak Power (Pmax): 450 W
MPP Voltage (Vmp): 29.98 V
MPP Current (Imp): 15.01 A
Open Circuit Voltage (Voc): 34.91 V
Short Circuit Current (Isc): 15.86 A
Module Efficiency: 22.5%
Mechanical Properties
Number of Cells: 96 pcs
Dimensions: 1762 × 1134 × 30 mm
Weight: 24.6 kg
Front / Rear Glass: 2.0 mm / 2.0 mm heat-strengthened glass
Frame: Anodized aluminium alloy
Junction Box: IP68, 3 diodes
Cable: 4.0 mm², length ±1200 mm
The NIWA JW-HD96N-R2 is ideal for users seeking reliable, high-performance solar panels with modern aesthetics, long lifespan, and superior energy yield in diverse conditions.
