Description

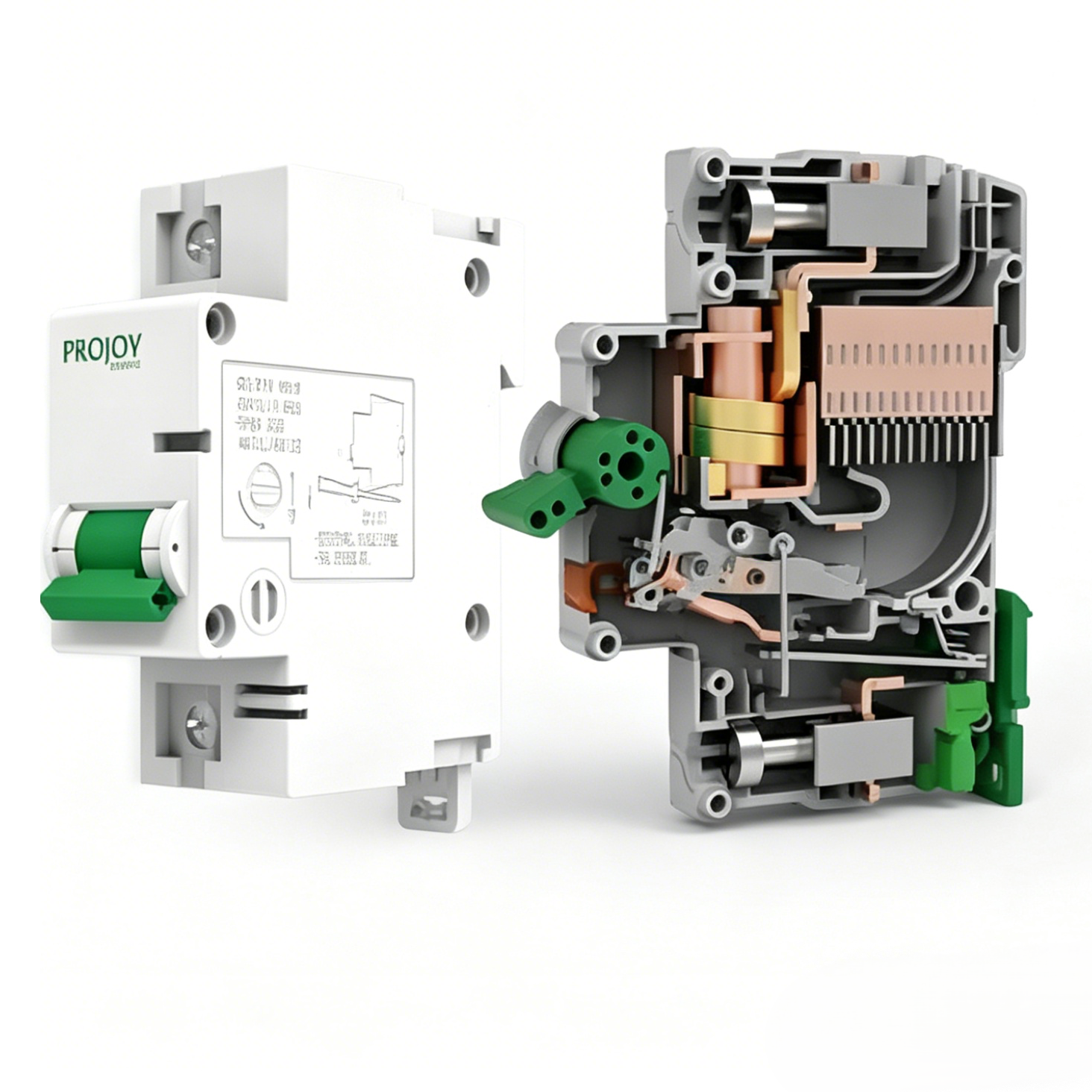

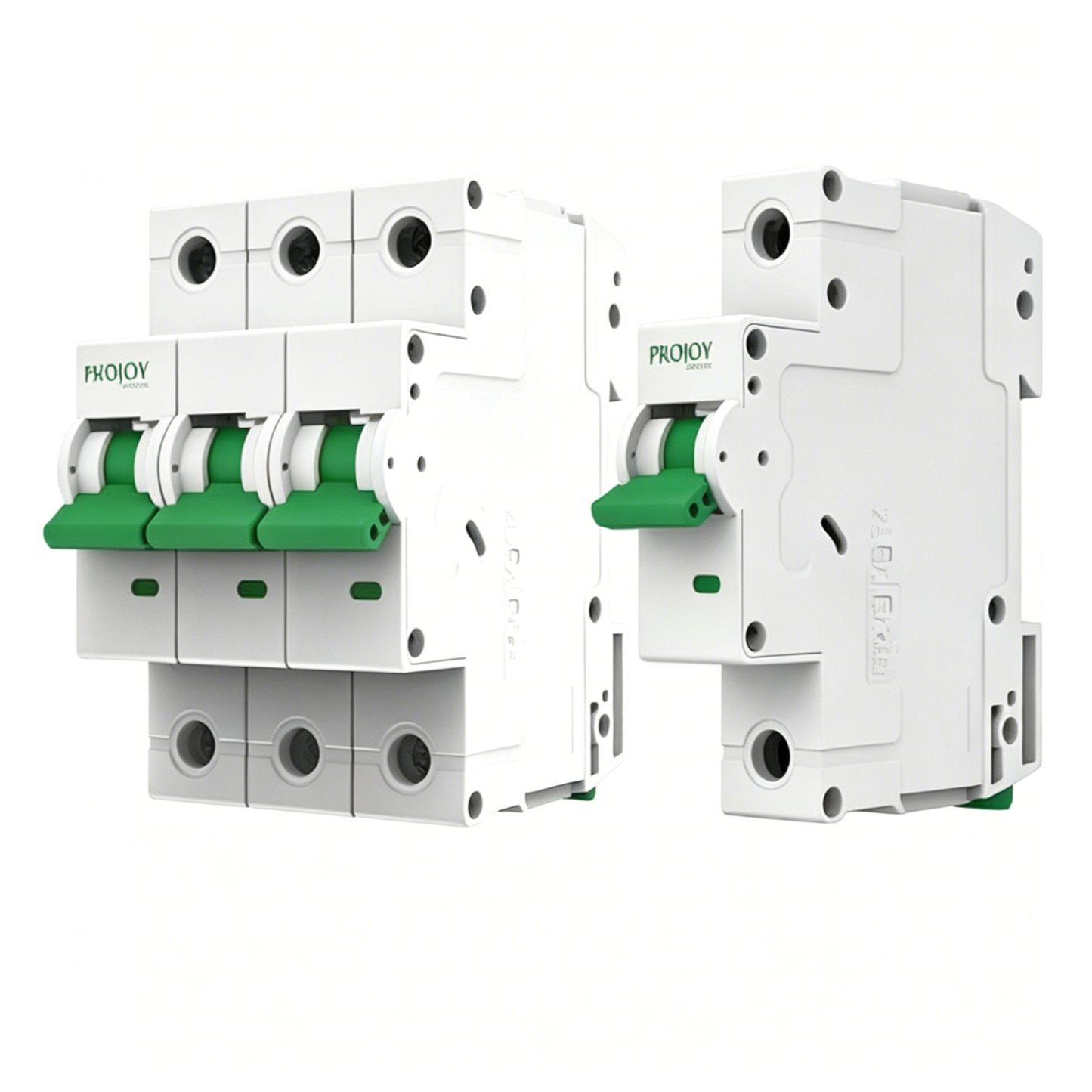

PROJOY DC Miniature Circuit Breaker PEBS-L-63 Series 16A 2P 160V
***SAA NZ Certificated***
High standards:
Small Volume
Short circuit Protection
Overload Protection
Flame Retardant
High Breaking Capability
Arcing Short
Complete Accessories
Multiple Wiring

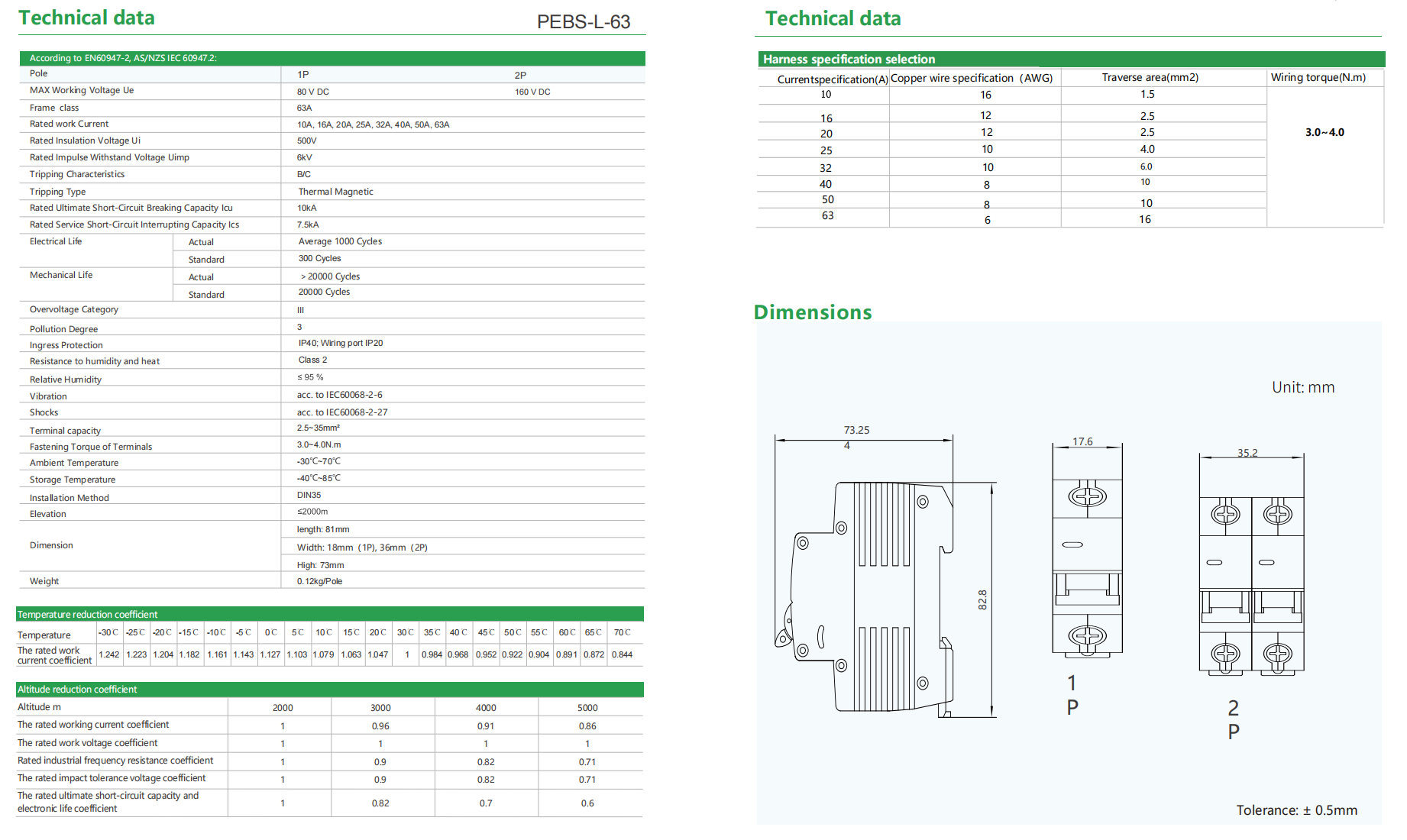

Technical data:
- Pole: 2P
- MAX Working Voltage Ue: 160 V DC
- Frame class: 63A
- Rated work Current: 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
- Rated Insulation Voltage Ui: 500V
- Rated Impulse Withstand Voltage Uimp: 6kV

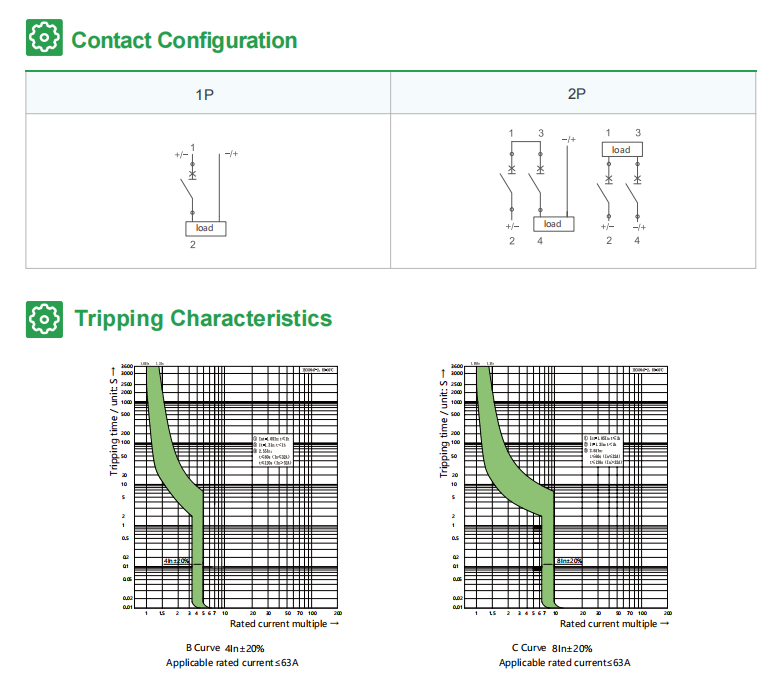

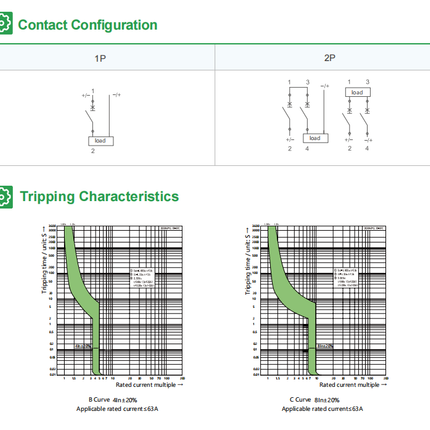

- Tripping Characteristics: B/C
- Tripping Type: Thermal Magnetic
- Rated Ultimate Short-Circuit Breaking Capacity Icu: 10kA
- Rated Service Short-Circuit Interrupting Capacity Ics: 7.5kA
- Ingress Protection: IP40; Wiring port IP20
- Relative Humidity: ≤95%
- Storage Temperature: -40℃~85℃
- Weight: 0.12kg/Pole
- length: 81mm
- Width: 36mm(2P)
- High: 73mm
