Description

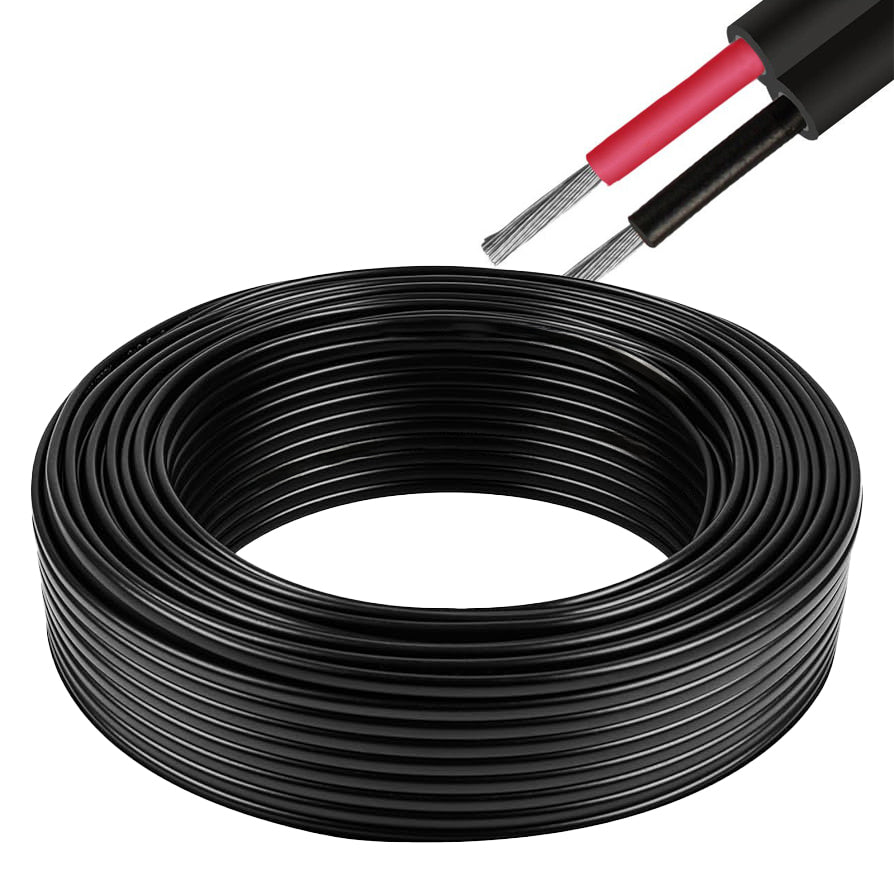

High-Quality, Flexible 30m 6.00mm² Solar Extension Cable with MC4 Connectors and 25-Year Warranty

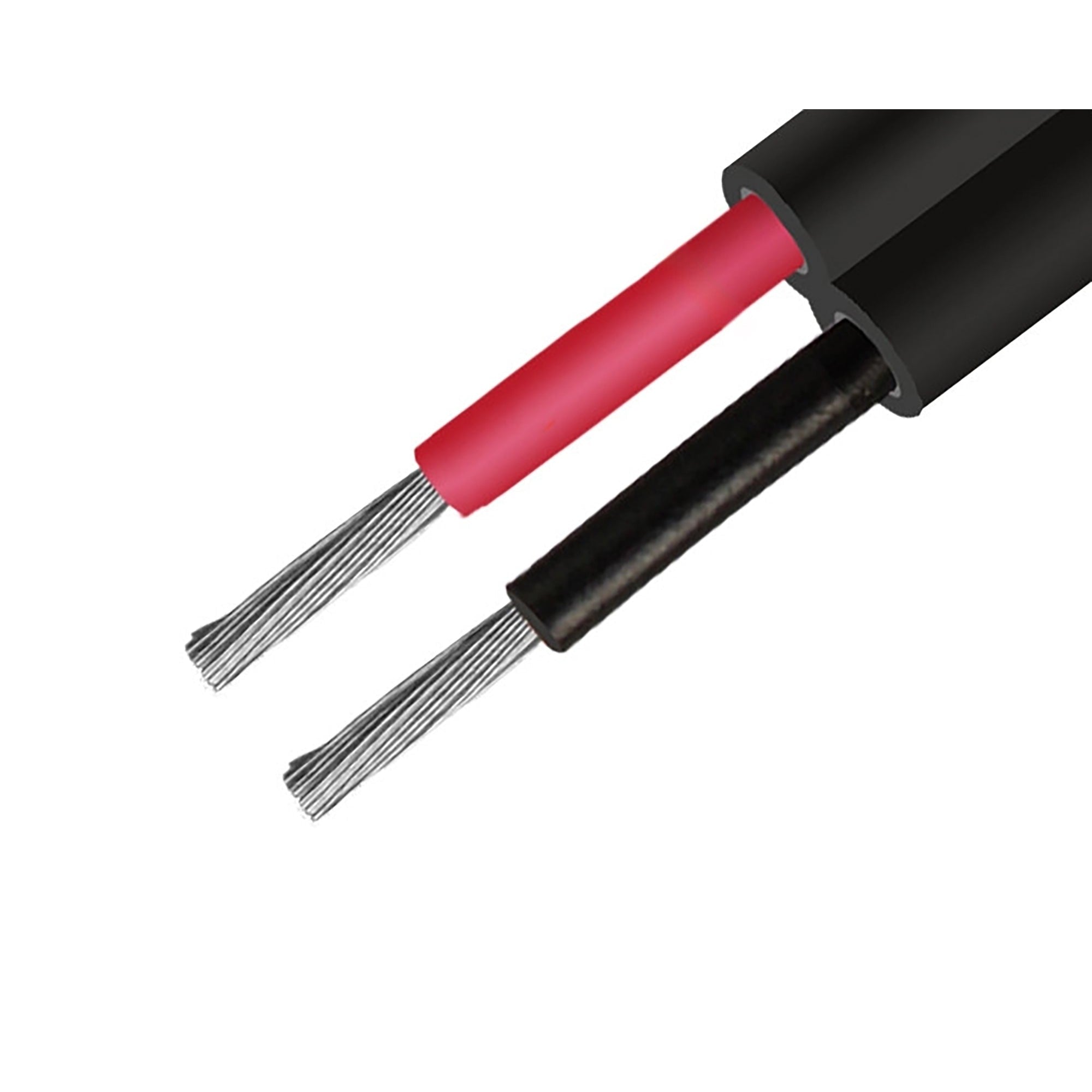

**Twin Core Cable**
Introducing our premium 30m solar extension cable, featuring a 6.00mm² cross-sectional area and equipped with 2 MC4 connectors, designed for seamless connectivity in your solar power stations, PV connectors, and PV junction boxes.
Key Features:
Flexibility & Ease: User-friendly flexibility and easy stripping capabilities.
Extended Warranty: Enjoy peace of mind with a generous 25-year warranty.
All-Weather Durability: Double insulation jackets ensure adaptability and functionality in all weather conditions.
Optimal Performance: Exemplary abrasion resistance, softness, stripping, and high current carrying capacity.
Broad Applicability: Suitable for various solar-related applications and installations.
MC4 Connector Specifications:
Maximum Working Current: 25A (6mm²)
Maximum Working Voltage: DC1000V
Contact Resistance: ≤0.5mΩ
Insulation Resistance: <500MΩ
Single-Core Cable Cross-Section: 6mm²
Ambient Temperature: -40℃ ~ +105℃
Protection Class: IP67
Safety Class: II
Operating Temperature: -40℃ ~ +85℃
Insertion/Withdrawal Force: ≤50N/≥50N
Insulation Material: PC (Black)
Contact Material: Copper CN, Sn Nickel
Flammability Rating: UL94-VO
Terminal Connection: Crimp
Cable Attributes:
Rated Voltage: 600V/1800V (AC/DC)
Ambient Temperature Range: -40℃ ~ +125℃
Strand Design: 84/0.30
Available Cable Length: 30M
Package Includes:
1 x 12 AWG Solar Extension Cable with Male and Female MC4 Connectors
Note: Please be aware that light shooting and various displays may slightly alter the item’s color compared to photos. Allow for a measurement error of +/-1-3cm."
