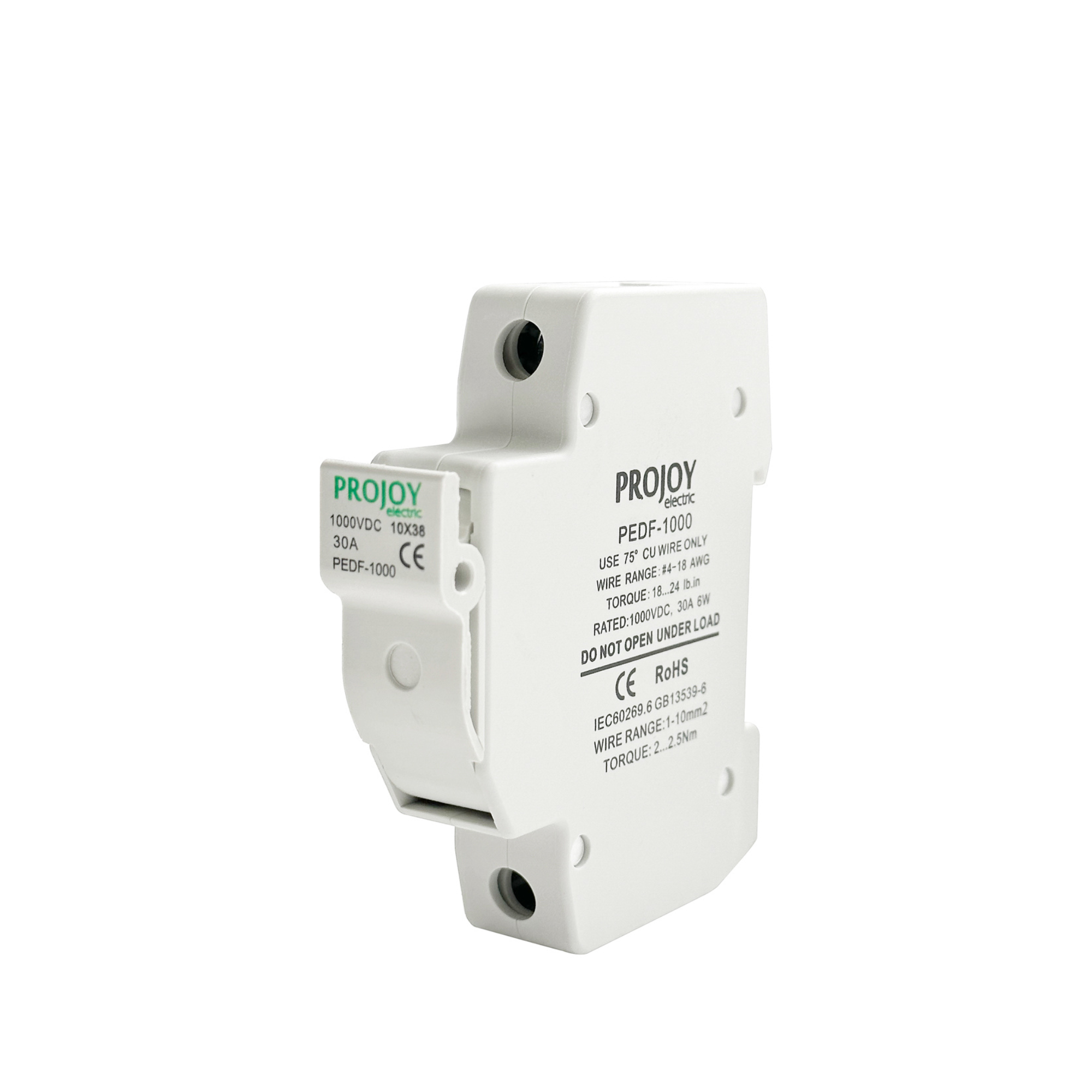

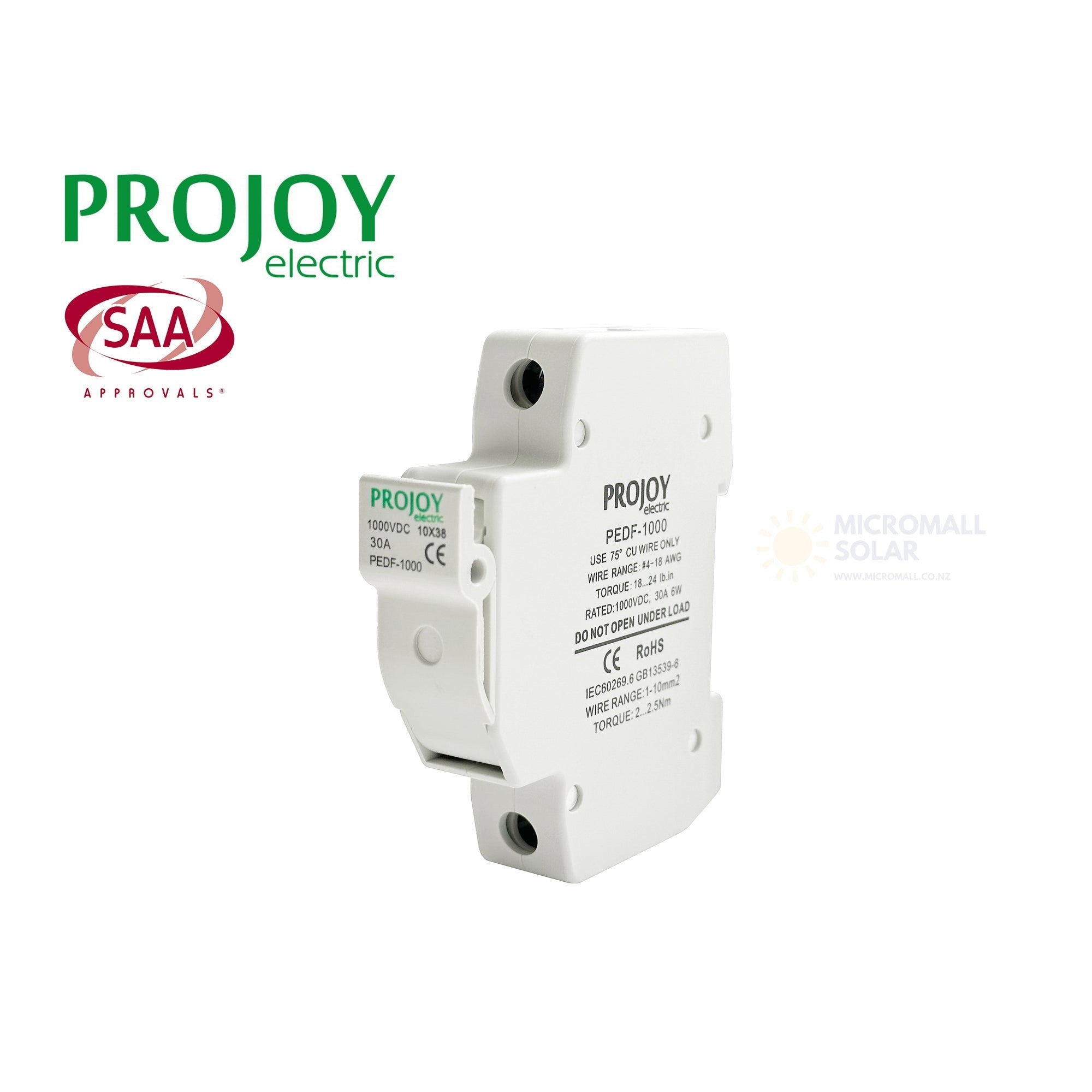

PROJOY DC FUSE PEDF-1000 1000V DC 30A

Description

PROJOY DC FUSE PEDF-1000 1000V DC 30A

***SAA NZ Certificated***

Projoy PEDF series DC Fuse is suitable for short-circuit overload protection in distribution lines with rated voltage not exceeding DC1500V, rated current not exceeding 50A, and rated short-circuit capacity not exceeding 20kA. Mainly used in energy storage systems, solar photovoltaic combiner boxes.

Good sealing
High flame retardant performance
Made of sterling silver core
Strong breaking ability
Replaceable fuse
Indicator base is optional

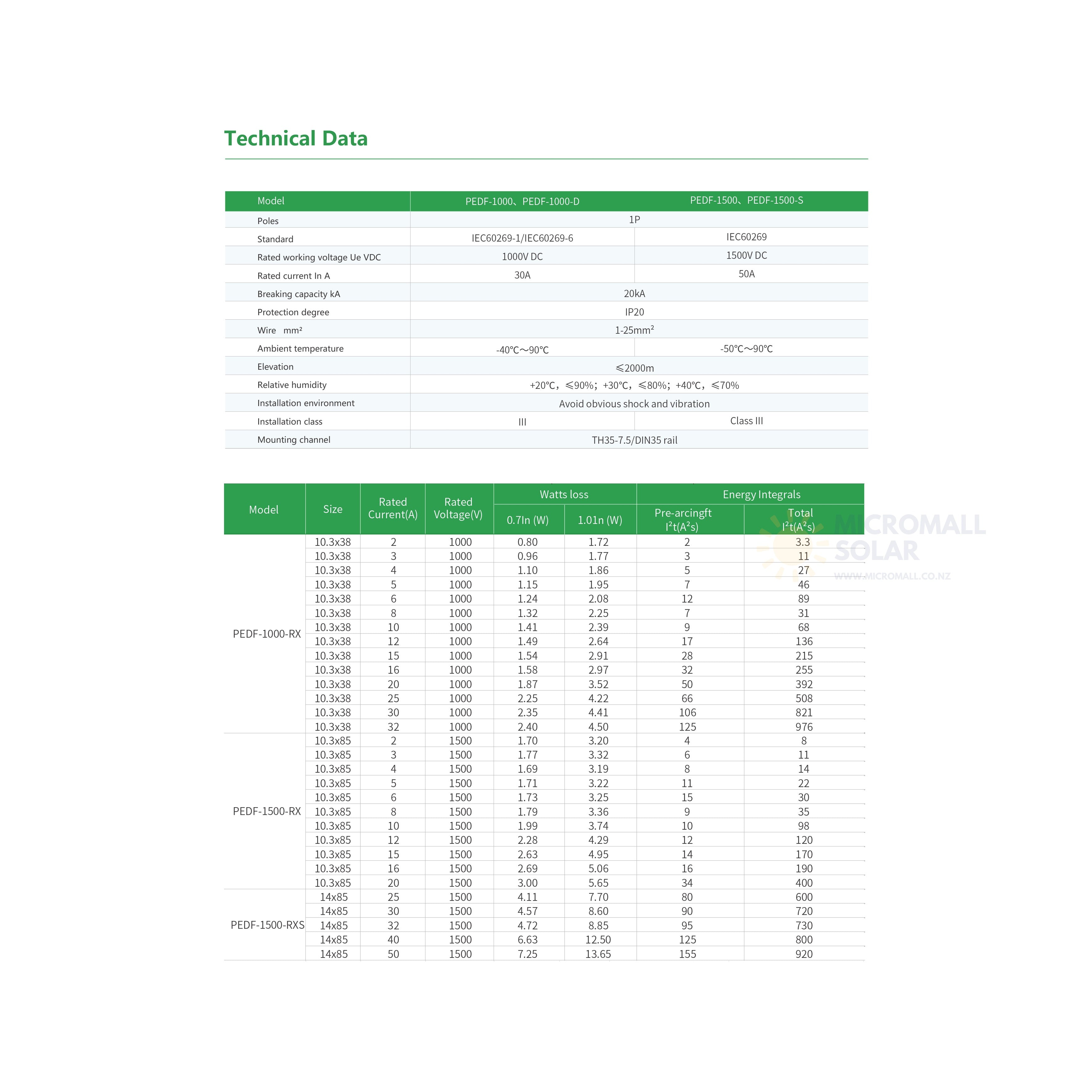

Technical data
Model: PEDF-1000
Pole: 1P
Standard: IEC60269-1/IEC60269-6
Rated working voltage Ue VDC: 1000V DC
Rated current In A: 30A
Breaking capacity kA: 20kA
Protection degree: IP20
Wire mm2: 1-25mm2
Ambient temperature: -40°C ～ 90°C
Elevation: ≤2000m
Relative humidity: +20°C，≤90%；+30°C，≤80%；+40°C，≤70%
Installation environment: Avoid obvious shock and vibration
Installation class: III
Mounting channel: TH35-7.5/DIN35 rail

PROJOY DC FUSE PEDF-1000 1000V DC 30A

Product form

SKU: PEDF-1000

$6.99

Or 4 payments of $1.74 fortnightly with Afterpay

Free pickup in our shop(s)

    • Advanced, Patented Solar Technology
    • No Middlemen - Directly Savings to You
    • Professional Installation & Ongoing Support

    Description

    PROJOY DC FUSE PEDF-1000 1000V DC 30A

    ***SAA NZ Certificated***

    Projoy PEDF series DC Fuse is suitable for short-circuit overload protection in distribution lines with rated voltage not exceeding DC1500V, rated current not exceeding 50A, and rated short-circuit capacity not exceeding 20kA. Mainly used in energy storage systems, solar photovoltaic combiner boxes.

    Good sealing
    High flame retardant performance
    Made of sterling silver core
    Strong breaking ability
    Replaceable fuse
    Indicator base is optional

    Technical data
    Model: PEDF-1000
    Pole: 1P
    Standard: IEC60269-1/IEC60269-6
    Rated working voltage Ue VDC: 1000V DC
    Rated current In A: 30A
    Breaking capacity kA: 20kA
    Protection degree: IP20
    Wire mm2: 1-25mm2
    Ambient temperature: -40°C ～ 90°C
    Elevation: ≤2000m
    Relative humidity: +20°C，≤90%；+30°C，≤80%；+40°C，≤70%
    Installation environment: Avoid obvious shock and vibration
    Installation class: III
    Mounting channel: TH35-7.5/DIN35 rail
