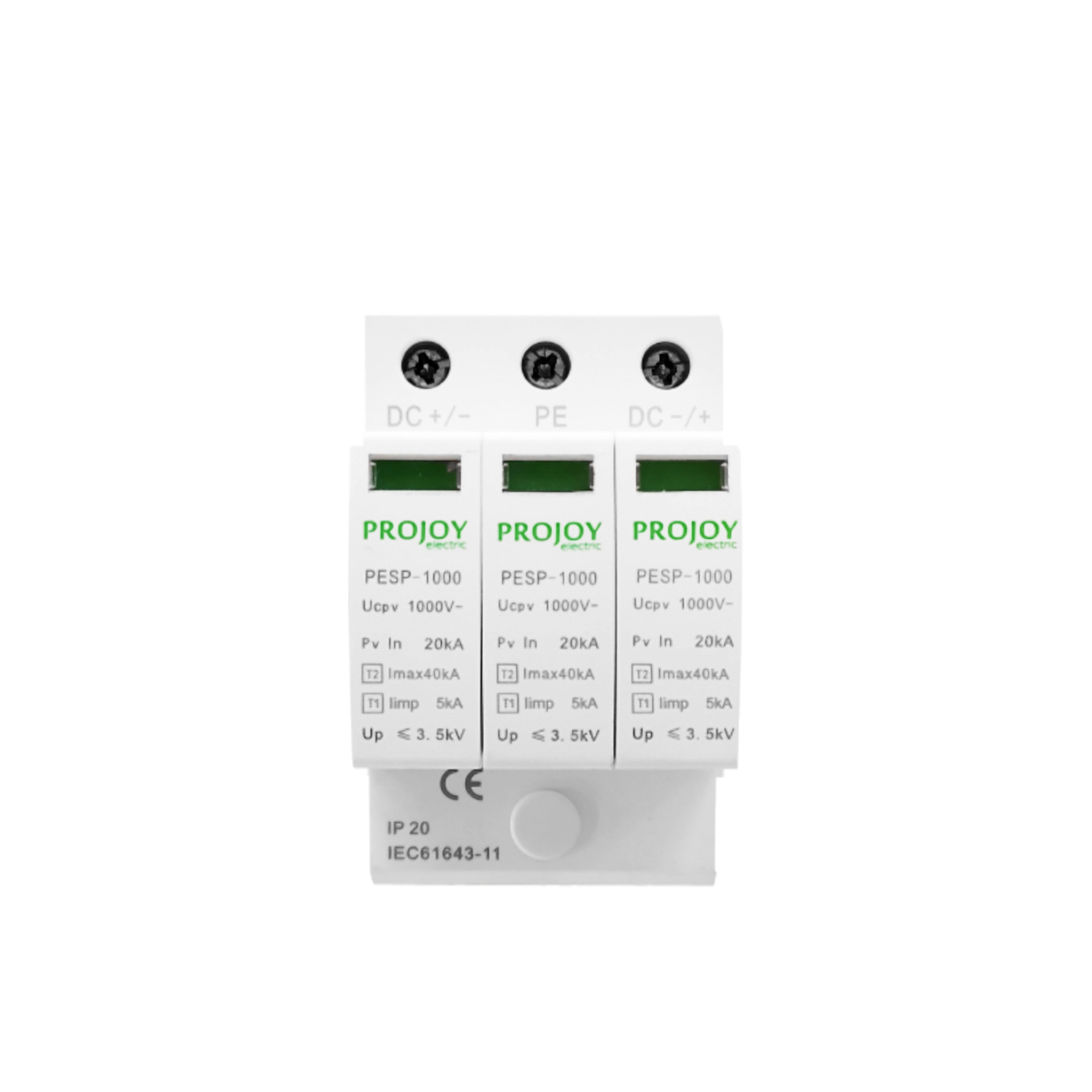

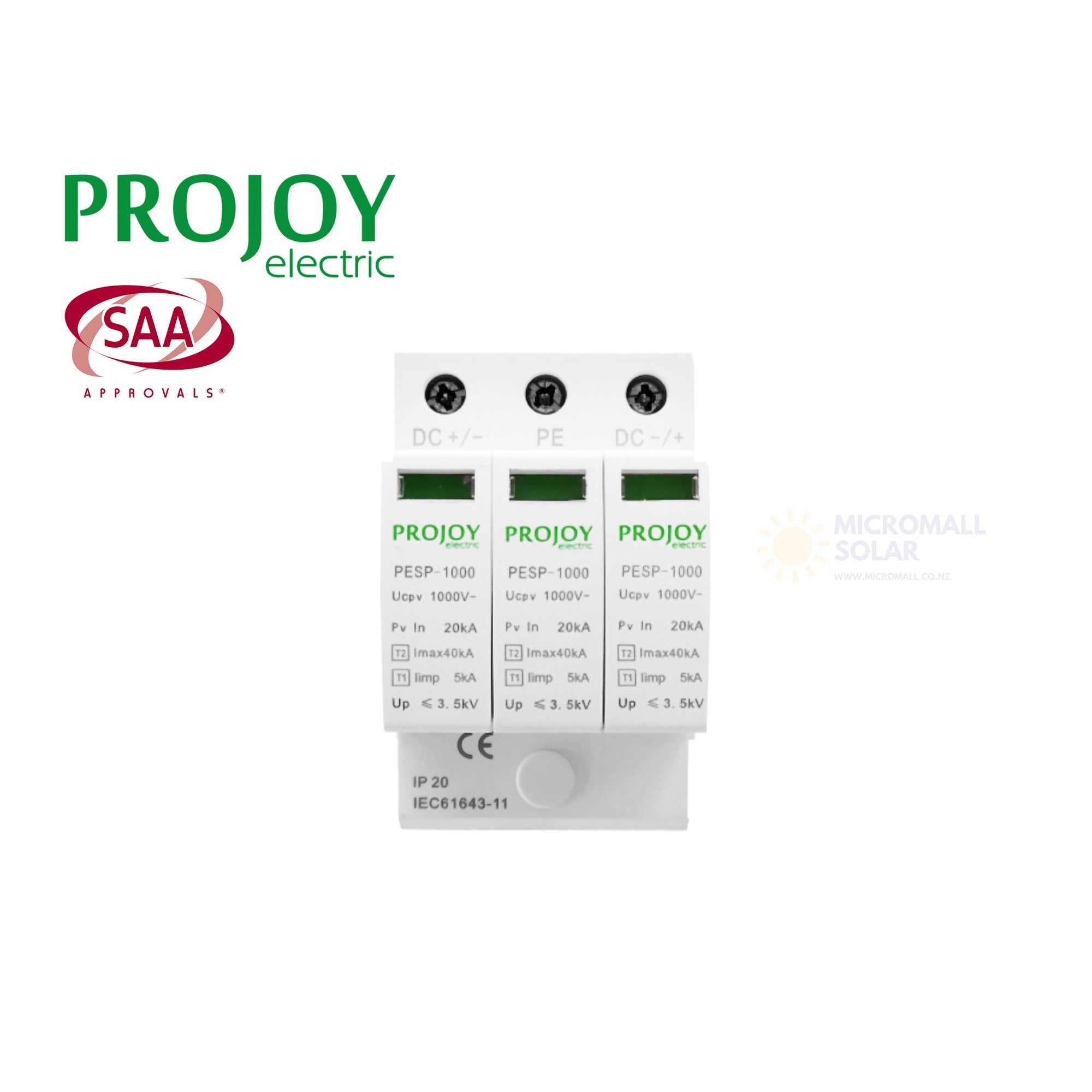

PROJOY PESP-1000 1000V DC Surge Protector for PV

Description

PROJOY PESP-1000 1000V DC Surge Protector for PV

***SAA NZ Certificated***

Projoy PESP series is a special surge protector for the DC side of photovoltaic system. It is widely used in photovoltaic power generation systems, such as various junction box, inverters, DC cabinets, DC pannels and other important and vulnerable DC equipment, to protect the equipment from the impact of transient surge voltage,limiting transient overvoltage and discharging surge current caused by lightning or switching operation.

Imported chips with reliable quality
Nanoscale response
Plug-in structure
Status indicator
Standard installation of 35mm rail

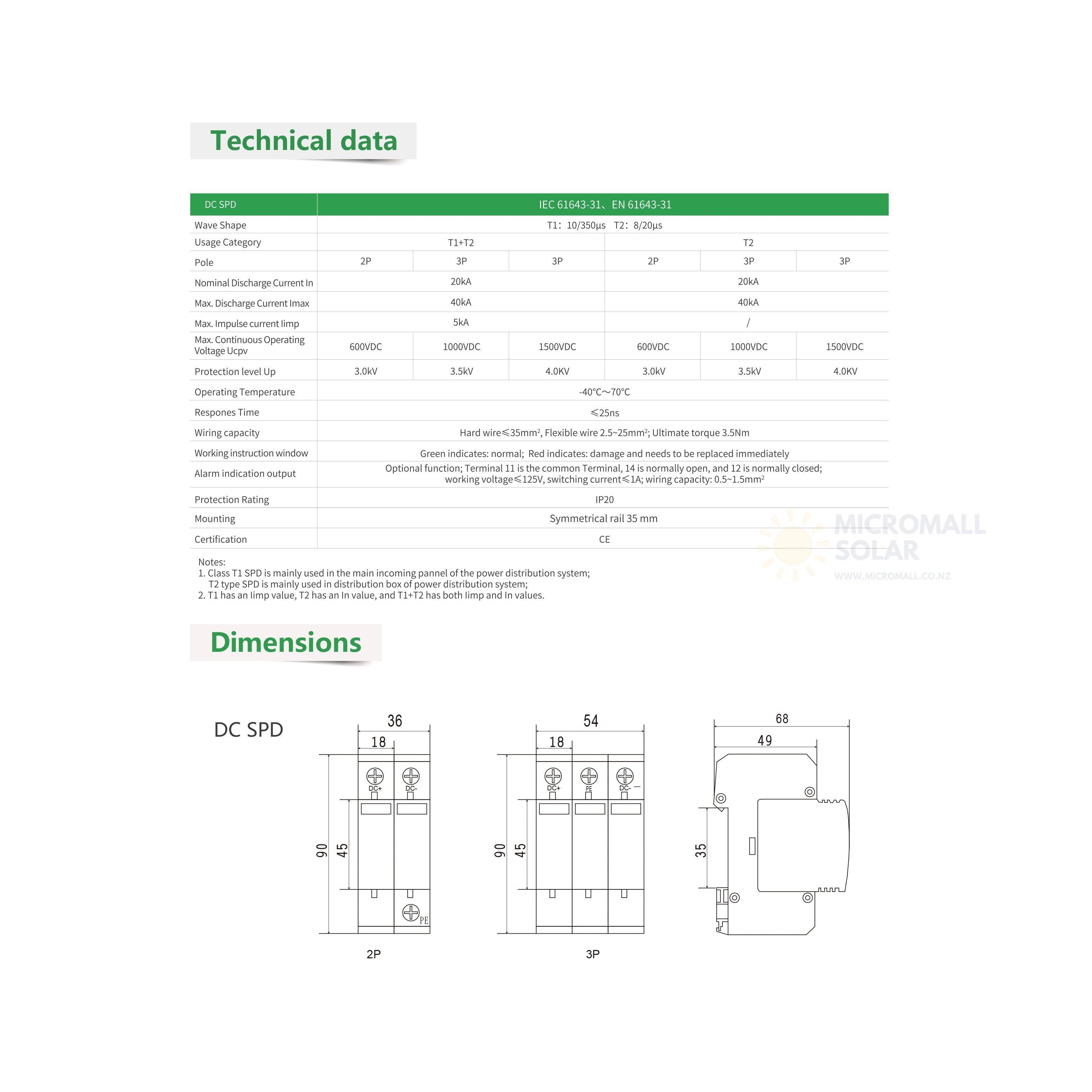

TECHNICAL PARAMETER
SPD Type: T2
Maximum continuous working voltage Ucpv: DC 1000V/DC
Maximum discharge current Imax: 40kA
Nominal discharge current In: 20kA
Poles: 3P
Degree of Protection: IP20

PROJOY PESP-1000 1000V DC Surge Protector for PV

Product form

SKU: SURGE-1000DC

$42.99

Or 4 payments of $10.74 fortnightly with Afterpay

Free pickup in our shop(s)

    • Advanced, Patented Solar Technology
    • No Middlemen - Directly Savings to You
    • Professional Installation & Ongoing Support

    Description

    PROJOY PESP-1000 1000V DC Surge Protector for PV

    ***SAA NZ Certificated***

    Projoy PESP series is a special surge protector for the DC side of photovoltaic system. It is widely used in photovoltaic power generation systems, such as various junction box, inverters, DC cabinets, DC pannels and other important and vulnerable DC equipment, to protect the equipment from the impact of transient surge voltage,limiting transient overvoltage and discharging surge current caused by lightning or switching operation.

    Imported chips with reliable quality
    Nanoscale response
    Plug-in structure
    Status indicator
    Standard installation of 35mm rail

    TECHNICAL PARAMETER
    SPD Type: T2
    Maximum continuous working voltage Ucpv: DC 1000V/DC
    Maximum discharge current Imax: 40kA
    Nominal discharge current In: 20kA
    Poles: 3P
    Degree of Protection: IP20
