Description

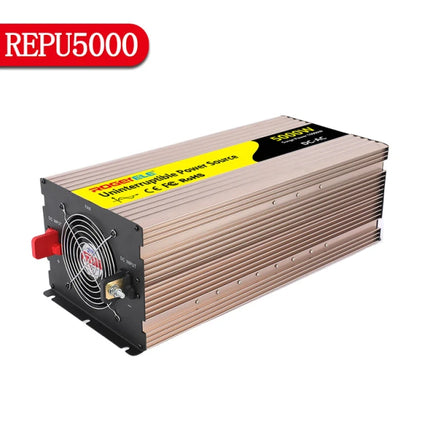

Reliable high-power backup for 24V battery systems. The REPU-24V5000W combines a 5000W pure sine wave inverter, a built-in 20A AC battery charger and UPS functionality in one robust unit. It converts 24V DC battery power to stable 230V AC, making it suitable for homes, workshops, motorhomes, marine systems and off-grid installations.
Key benefits
- 5000W rated output with up to 10000W peak power for demanding start-up loads
- Pure sine wave output with less than 3% THD for sensitive electronics and appliances
- Built-in 20A AC charger for convenient battery charging
- UPS function for backup-power applications
- Up to 92% efficiency on the 24V model

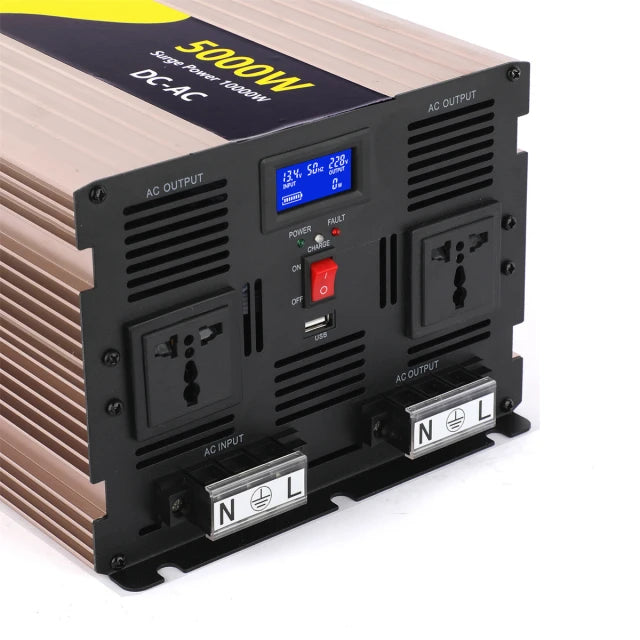

- Clear LCD status display, dual AC outlets and intelligent air cooling
- Protection against low voltage, over voltage, overload, over temperature, short circuit and reverse polarity
Technical specifications — 24V model
| Model / SKU |
REPU-5000 / REPU-24V5000W |
| Rated power |
5000W |
| Peak power |
10000W |
| DC input |
24V nominal |
| DC input range |
20–31V |
| AC output |
230V AC ±5% |
| Frequency |
50Hz ±0.5Hz |
| Output waveform |
Pure sine wave |
| Waveform distortion |
THD <3% with linear load |
| Maximum efficiency |
92% |
| No-load current |
Less than 0.8A |
| AC charge current |
20A |
| Low-voltage alarm |
21V ±0.5V |
| Low-voltage protection |
20V ±0.5V |
| Over-voltage protection |
31V ±0.5V |
| Low / over-voltage recovery |
24V ±0.5V / 29.5V ±0.5V |
| Cooling |
Intelligent air cooling |
| Operating temperature |
-10°C to +50°C |
| Storage temperature |
-30°C to +70°C |
Dimensions and weight
- Product size: 475 × 205 × 152mm
- Package size: 565 × 302 × 240mm
- Net weight: 9.04kg
- Gross weight: 11.5kg
Installation note: High-power 24V inverters draw substantial DC current. Use correctly sized battery cables, fusing and professional installation appropriate to the application.
2-year warranty
