Description
Efficient | Intelligent | Reliable | Bluetooth Enabled
The Shiner Series MPPT Solar Charge Controller is engineered for off-grid solar systems, delivering high efficiency, advanced protection, and smart, user-friendly operation. Now with Bluetooth functionality for seamless mobile monitoring and control.
Key Features
High MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.
Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.
Smart Connectivity – RS485 and CAN communication, plus Bluetooth support with mobile app for real-time monitoring and configuration.
Multiple Load Control Modes – Light control, time control, manual control, and more.
Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.
Compact & Quiet – Natural cooling design, saving space and reducing noise.

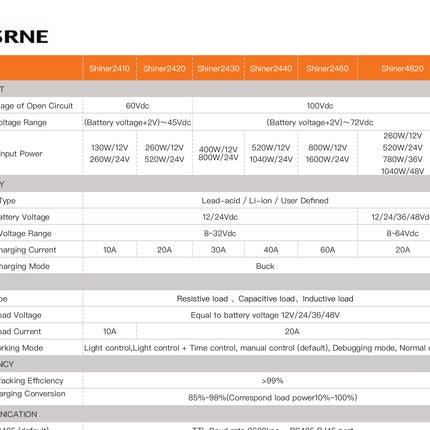

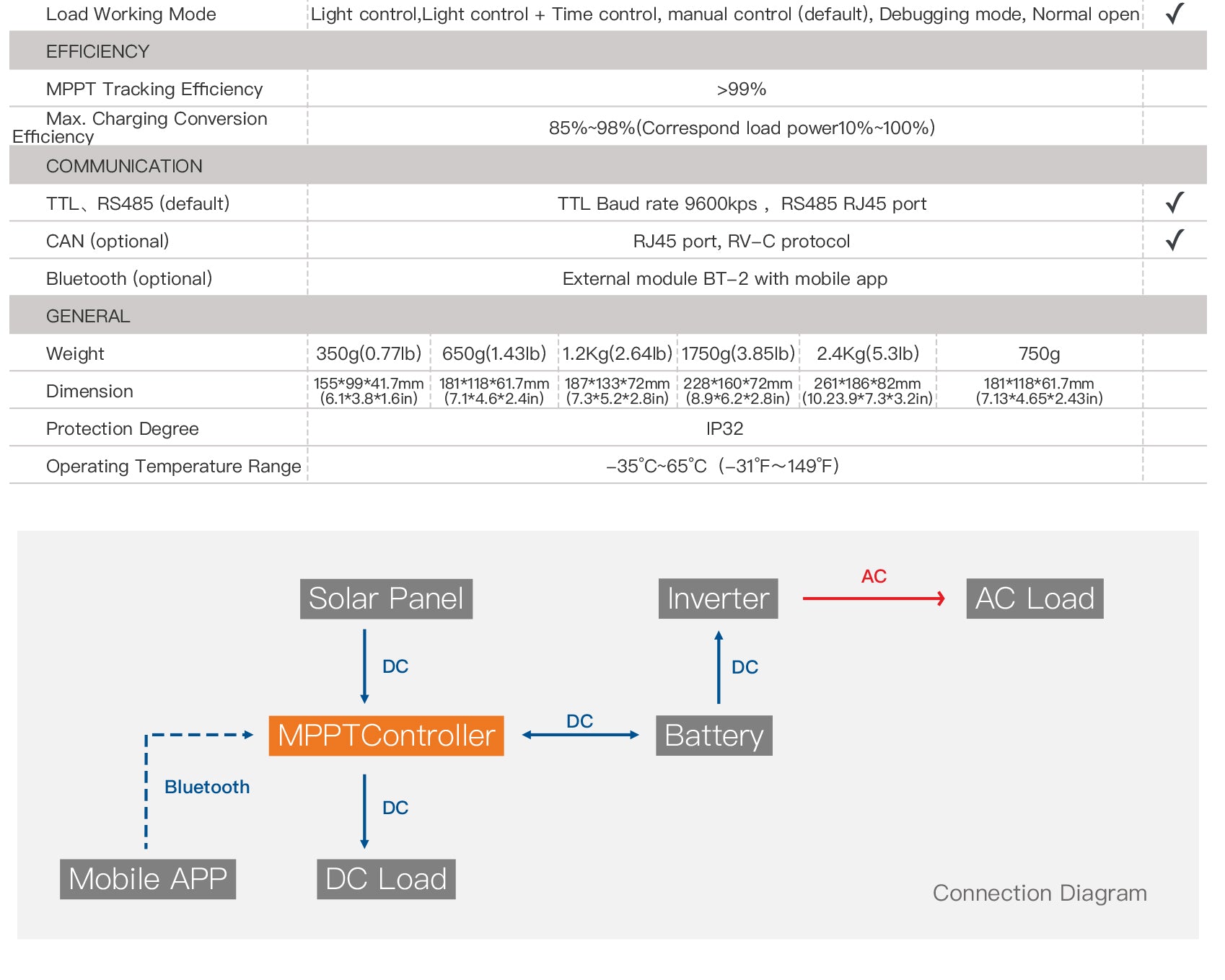

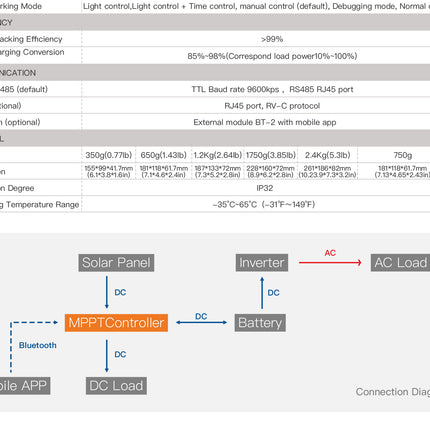

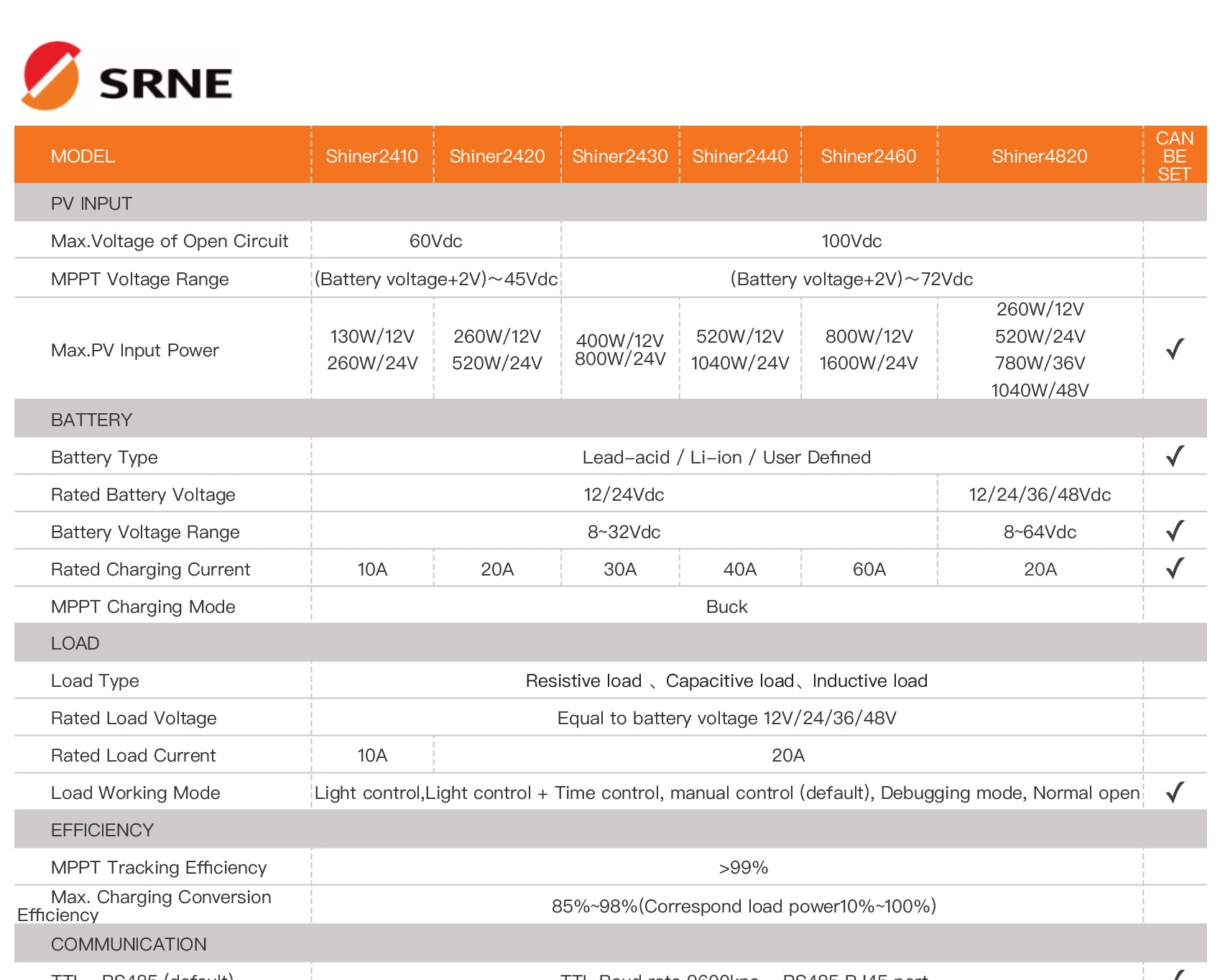

Shiner2410B Specifications:
- MPPT Efficiency: >99%
- Max Open Circuit Voltage: 60VDC
- MPPT Voltage Range: Battery voltage +2V to 45VDC
- Max PV Input Power: 130W (12V), 260W (24V)
- Battery Voltage: 12/24VDC
- Battery Type: Lead-acid / Lithium / User-defined
- Rated Charging Current: 10A
- Load Type: Resistive, Capacitive, Inductive
- Load Voltage: Equal to battery voltage
- Communication: RS485 (default), CAN (optional), Bluetooth (optional)
- Protection Level: IP32
- Operating Temperature: -35°C to 65°C
- Dimensions: 155 × 99 × 41.7 mm
- Weight: 350g
Ideal for off-grid solar systems, caravans, and remote applications, the Shiner Series provides stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.
