Description
Efficient | Intelligent | Reliable | Bluetooth Enabled

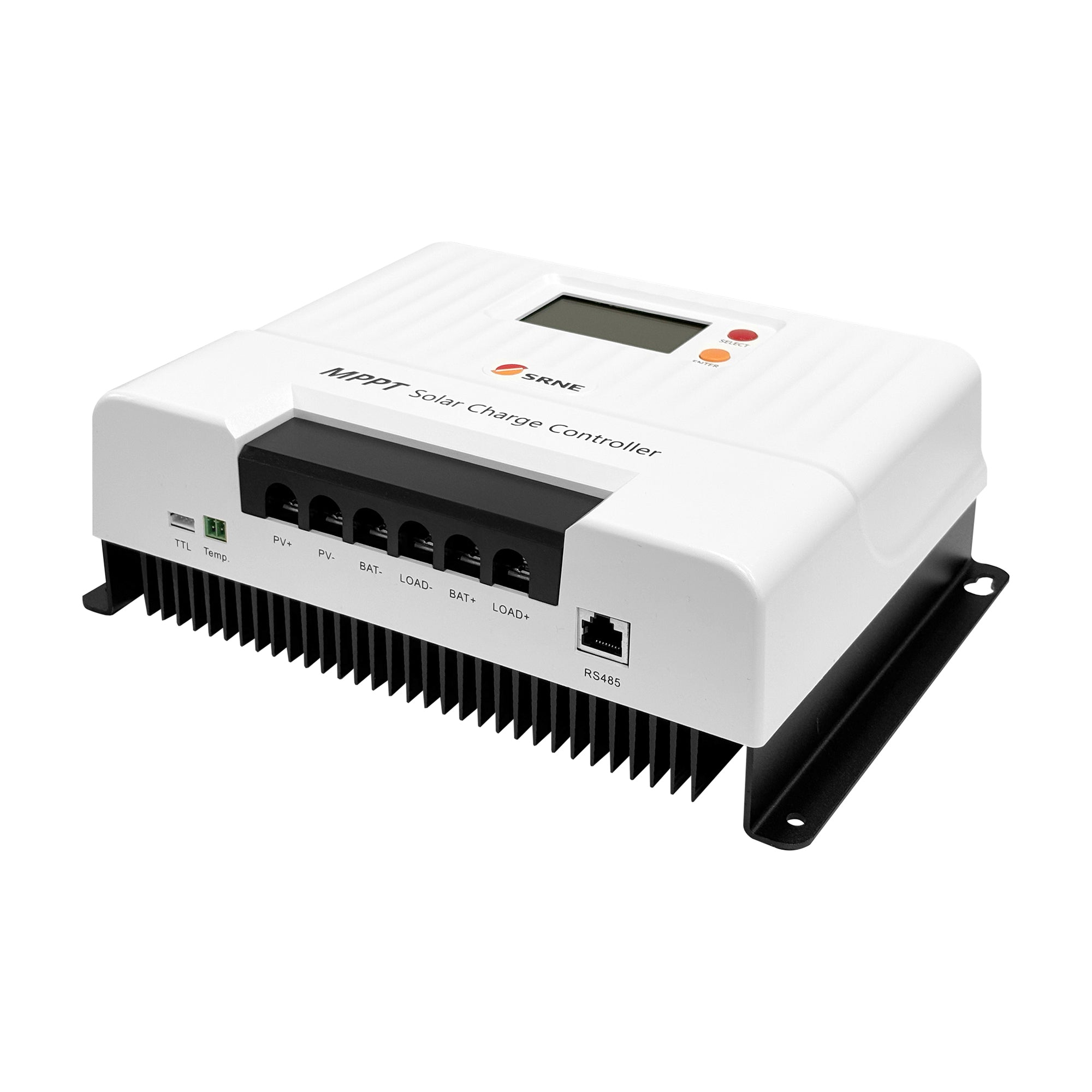

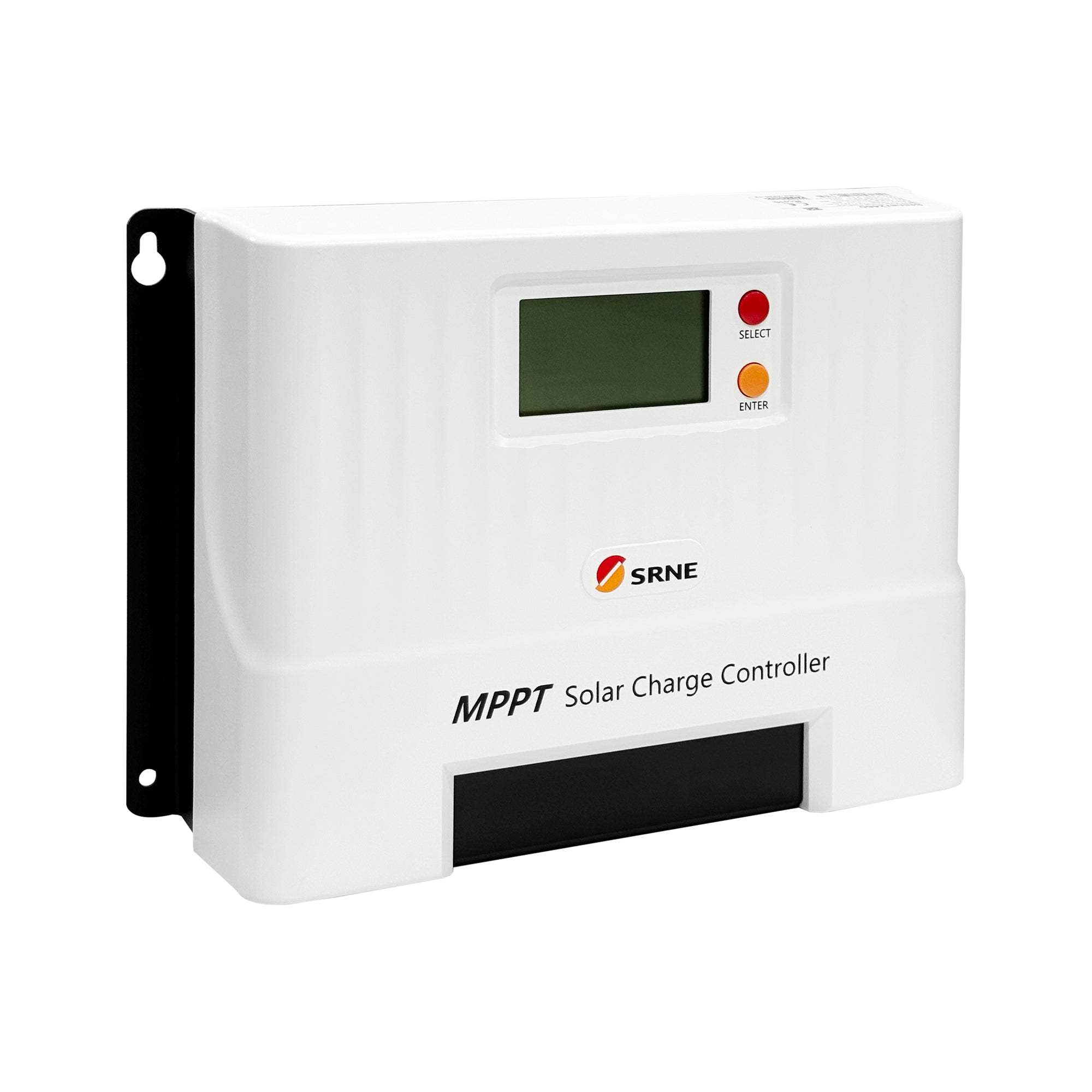

The Shiner Series MPPT Solar Charge Controller is designed for off-grid solar applications, offering high efficiency, advanced protection, and user-friendly operation. Now featuring Bluetooth connectivity for convenient mobile monitoring and control.
Key Features
High MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.
Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.
Smart Connectivity – RS485 and CAN communication, plus Bluetooth support with mobile app for real-time monitoring and configuration.
Multiple Load Control Modes – Light control, time control, manual control, and more.
Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.
Compact & Quiet – Natural cooling design saves space and reduces noise.

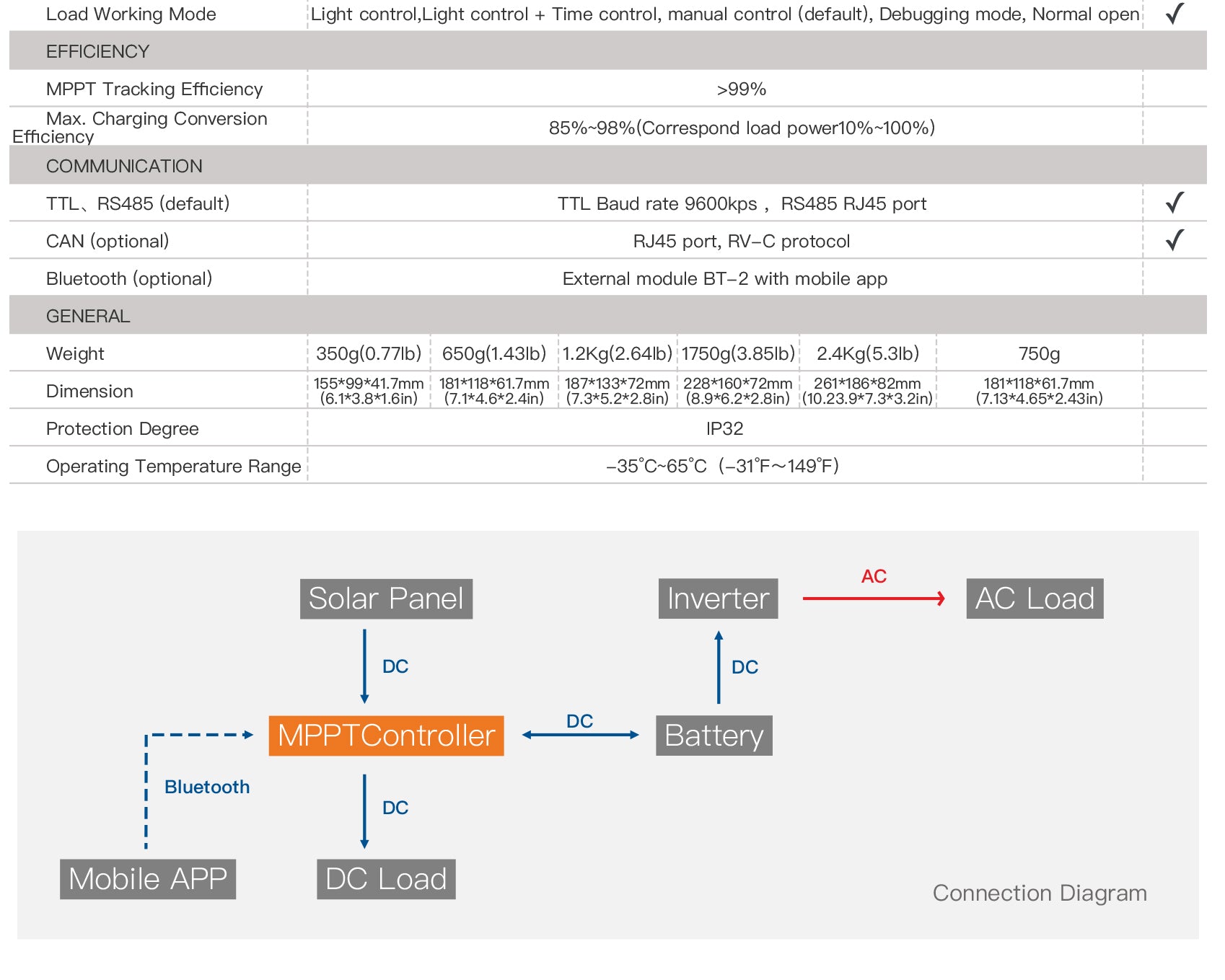

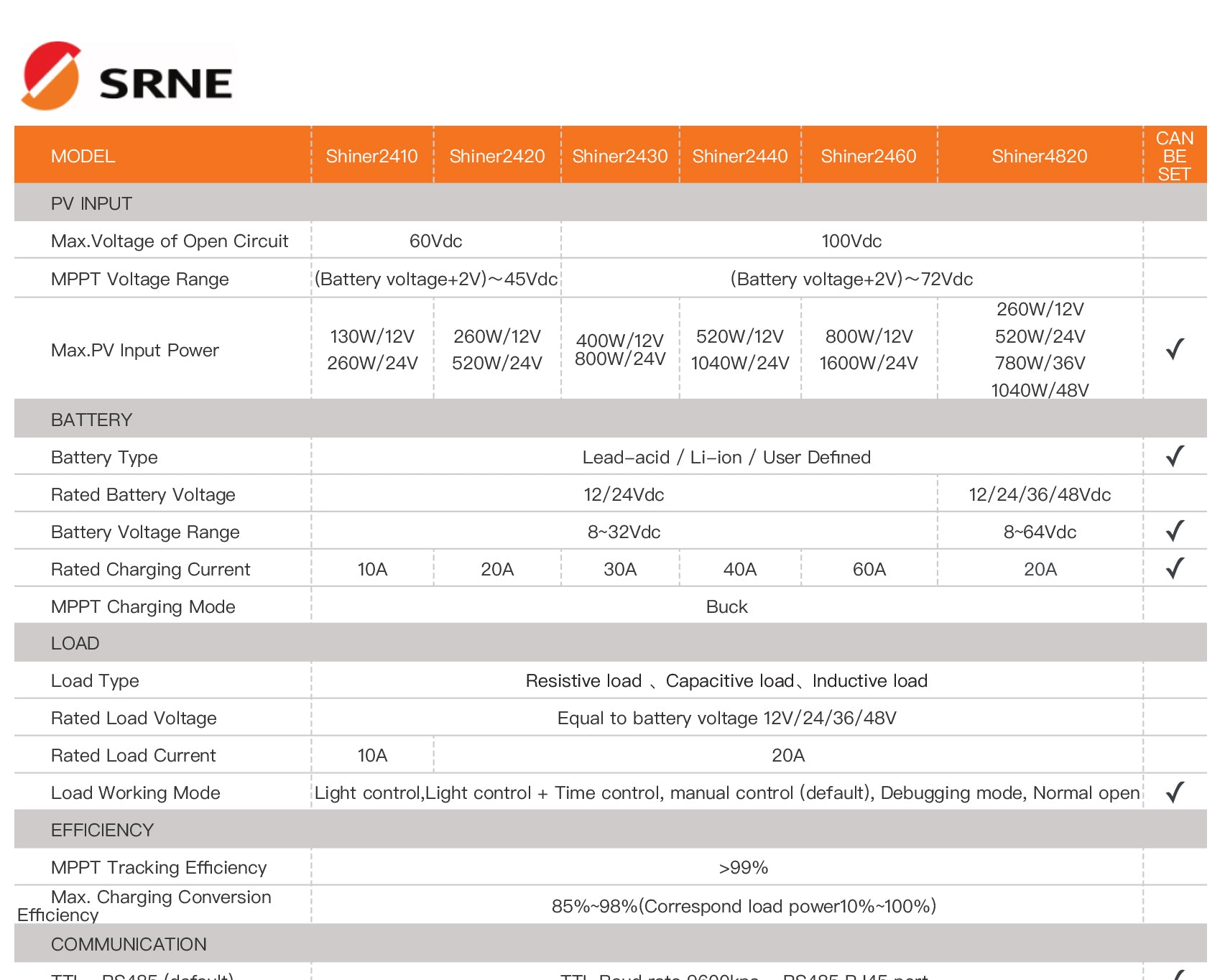

Shiner2460B Specifications:
- MPPT Efficiency: >99%
- Max Open Circuit Voltage: 100VDC
- MPPT Voltage Range: Battery voltage +2V to 72VDC
- Max PV Input Power: 800W (12V) / 1600W (24V)
- Battery Voltage: 12/24VDC
- Battery Type: Lead-acid / Lithium / User-defined
- Rated Charging Current: 60A
- Load Type: Resistive, Capacitive, Inductive
- Load Voltage: Equal to battery voltage
- Communication: RS485 (default), CAN (optional), Bluetooth (optional)
- Protection Level: IP32
- Operating Temperature: -35°C to 65°C
- Dimensions: 261 × 186 × 82 mm
- Weight: 2.4 kg
Ideal for off-grid solar systems, caravans, cabins, and remote applications, the Shiner Series delivers stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.
