Description

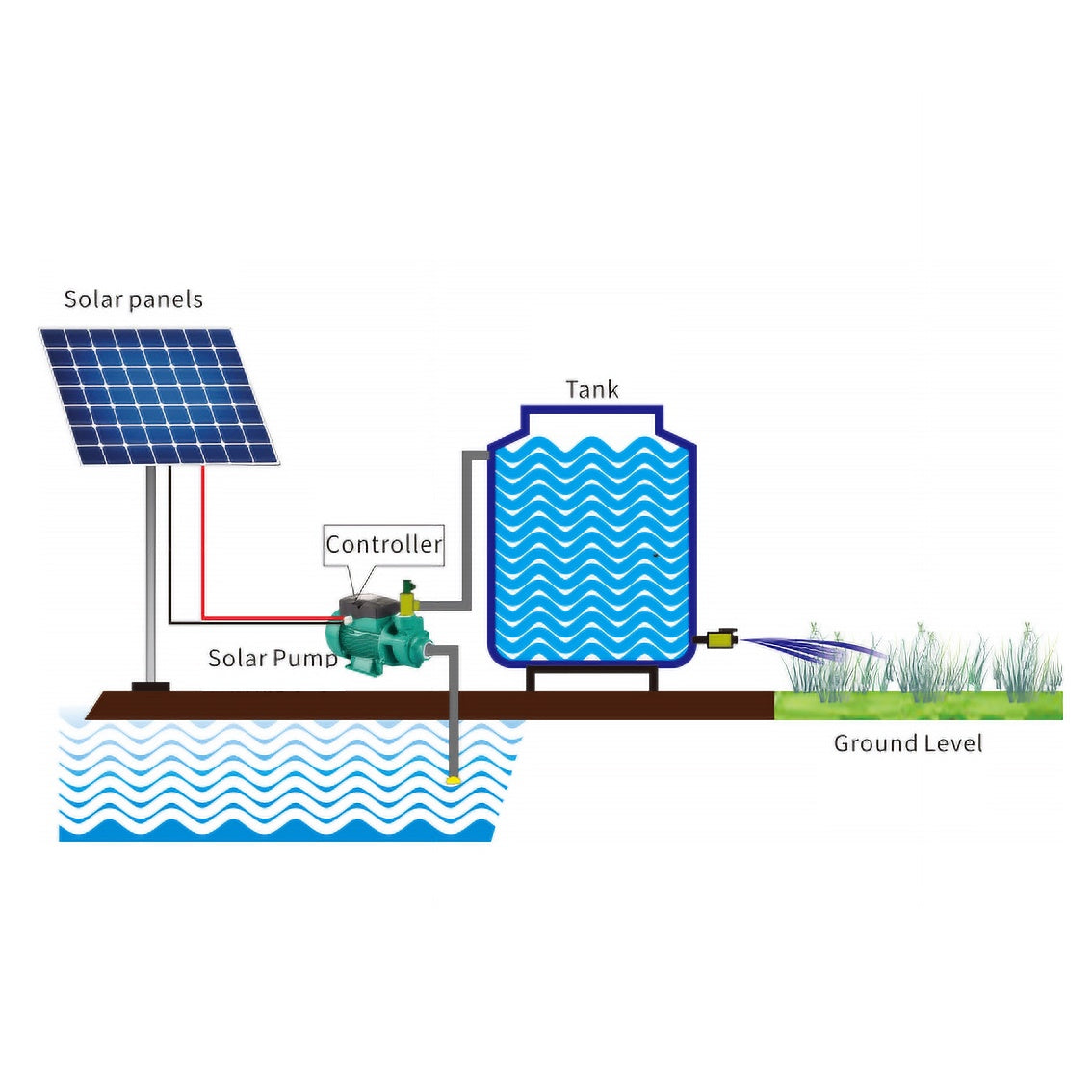

The Solar Pumping System is designed for remote areas with unreliable or no access to electrical grid power. It utilizes a BLDC solar pump controller to directly harness DC power from the PV array, driving brushless DC pumps. On sunny days, it continuously pumps water without the need for batteries or energy storage devices. It's recommended to pump water into a reservoir for storage.

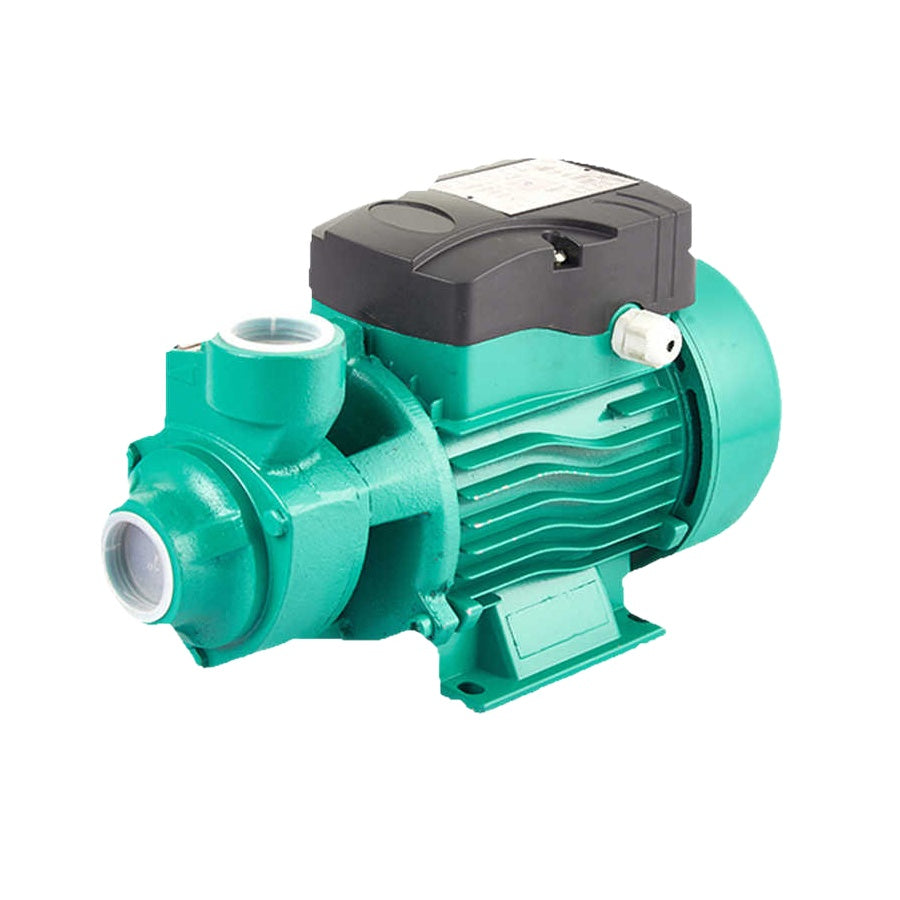

The portable QB pump includes a built-in controller with highly efficient MPPT functionality, eliminating the need for a separate controller installation. Simply connect the panels to the pump wires, and it operates directly and consistently during daylight hours, even on cloudy days.
Key Features:
MPPT controller build-in
Comes with a 1-year warranty
***Maximum pumping distance of 50 meters***
Max head: 50 meters
Power: 500 watts
Designed with reliability in mind, the controller ensures water delivery under adverse conditions by reducing output to protect system components, only shutting down in extreme cases. Normal operation is automatically restored when conditions improve.
Material:
MOTOR: Full Oil Permanent Magnet, Brushless DC Motor (Hall-free)

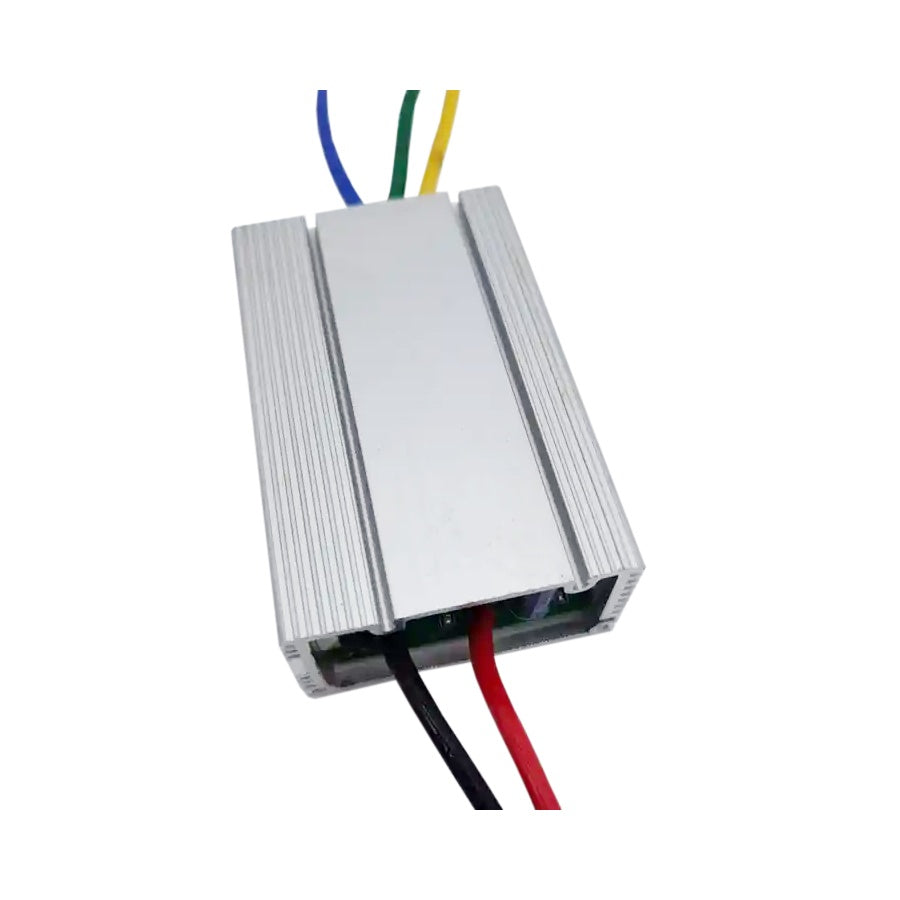

CONTROLLER: 32bit MCU / FOC / Sine Wave Current / MPPT

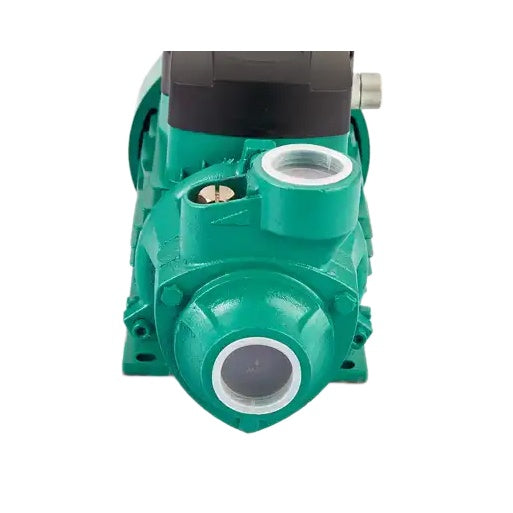

Pump Body/OUTLET/INLET: Cast Iron
MOTOR BODY: Die-cast Aluminium
IMPELLER: Brass
SCREW: 304 Stainless Steel
Technical Parameters:
Max head: 50 meters
Pipe diameter: 25mm
Rated Voltage: 48 VDC (30 - 80 VDC)
Max Flow: 2100L/HR
Max Suction: 8 meters
Packing Size: 29x16x24 CM
Gross Weight: 5 KGS

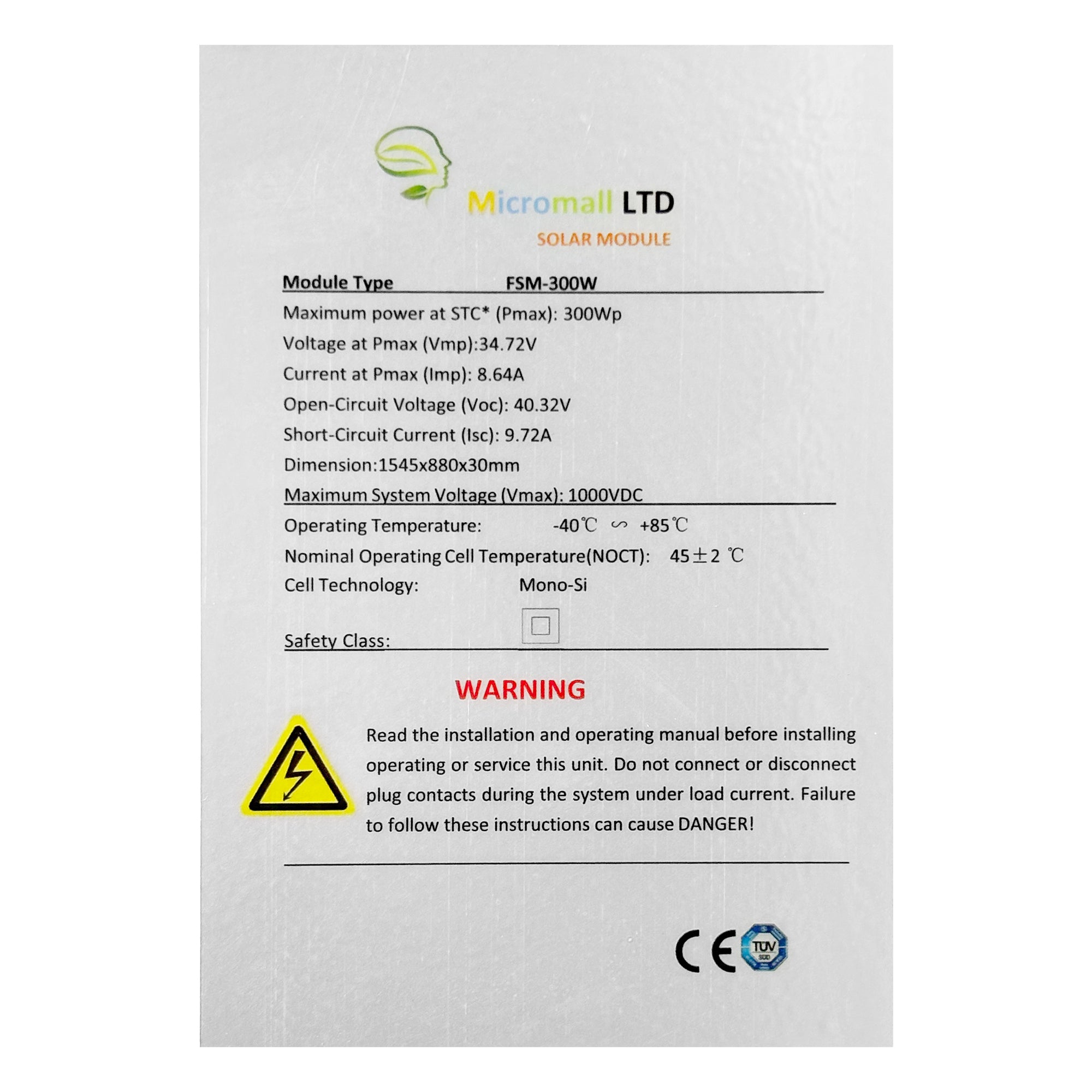

Maximum power at STC(Pmax): 300Wp
Voltage at Pmax(Vmp): 34.72V
Current at Pmax(Imp): 8.64A
Open-Circuit Voltage(Voc): 40.32V
Short-Circuit Current(Isc): 9.72A
Normal Operating Cell Temp(NOCT): 45 + 2°C
Maximum System Voltage: 1000V
Operating Temperature: -40°C to + 85°C
Application Class: Class A
Weight: 16kg
Dimension: 1545 x 880 x 30mm

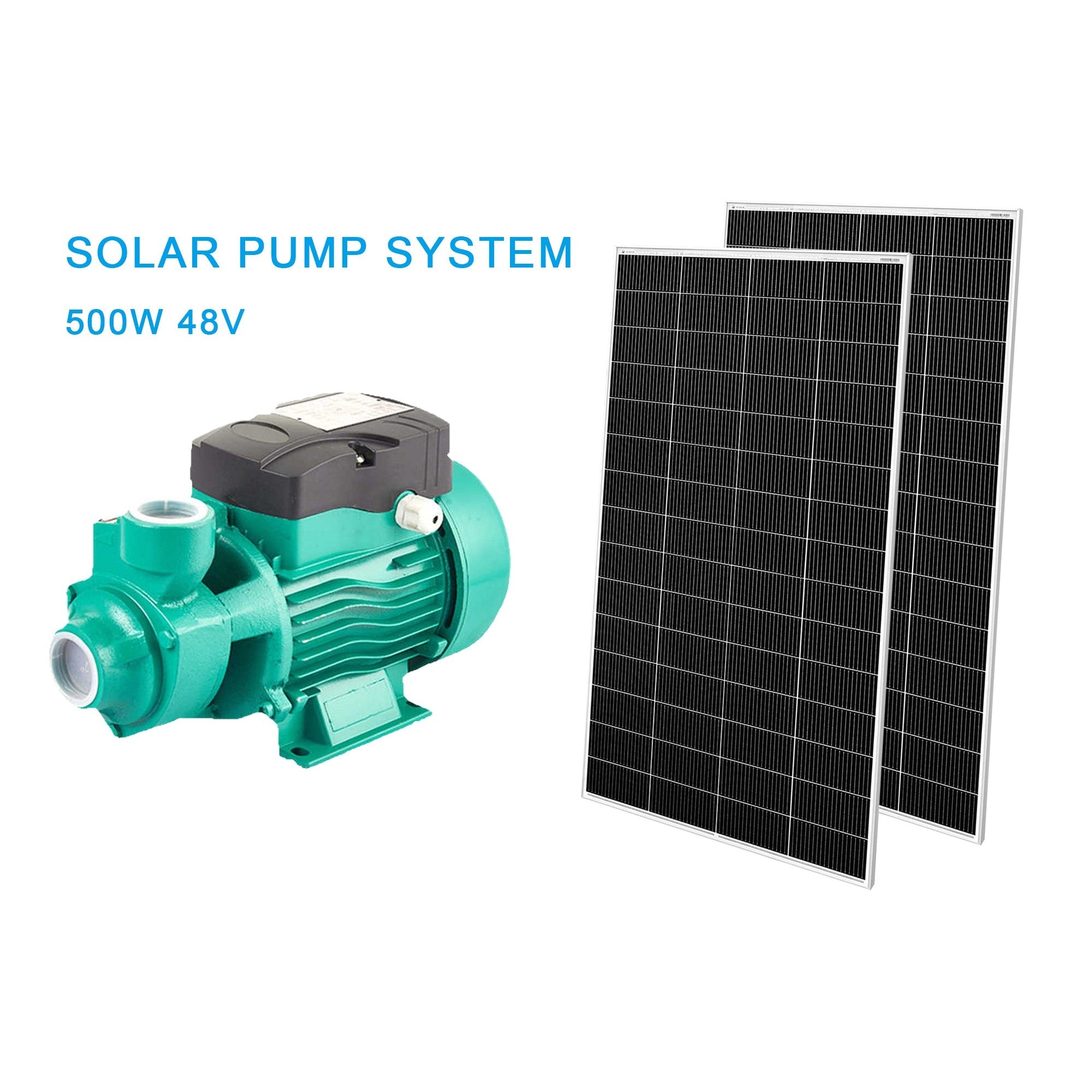

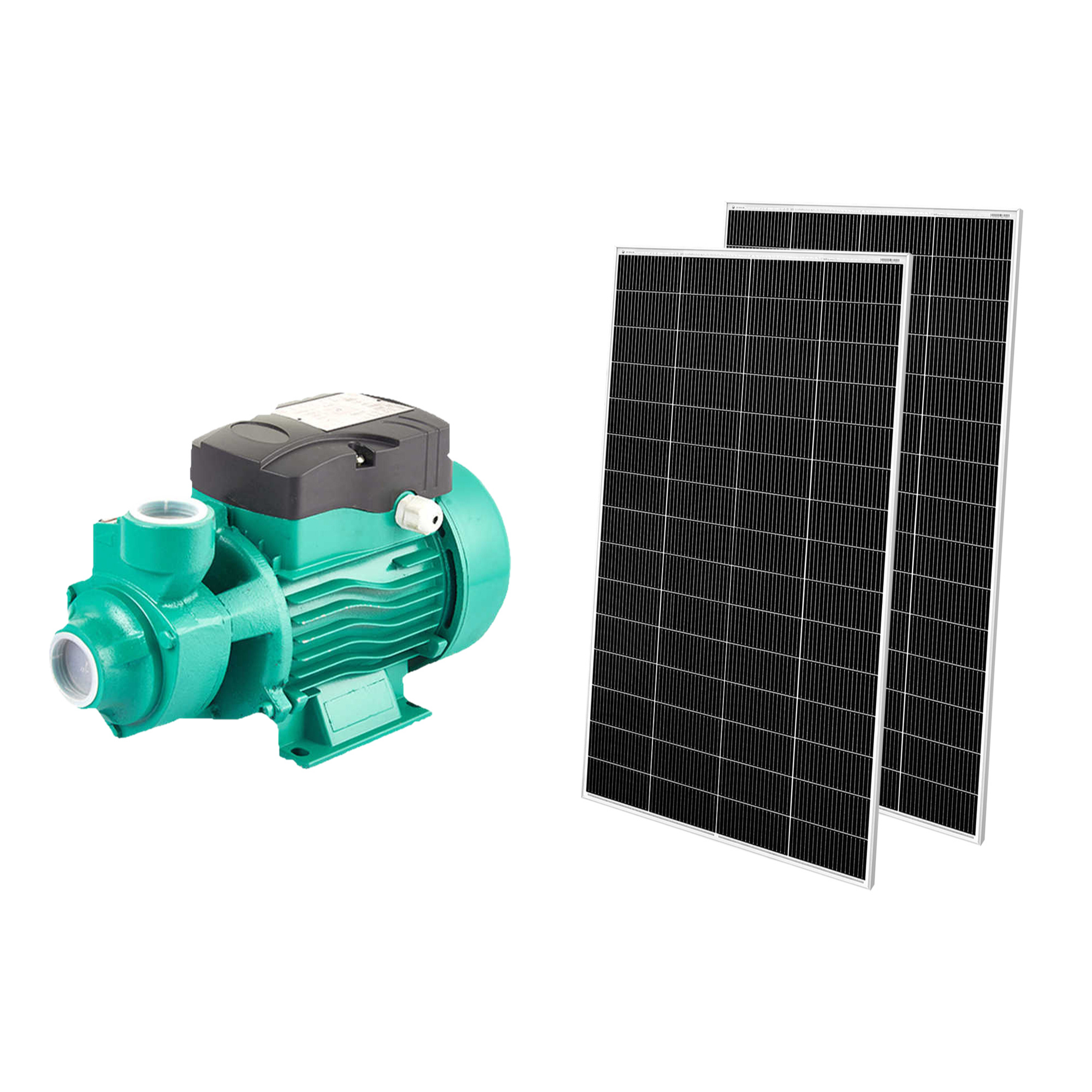

Package Included:
1X Solar Pump (MPPT controller included)

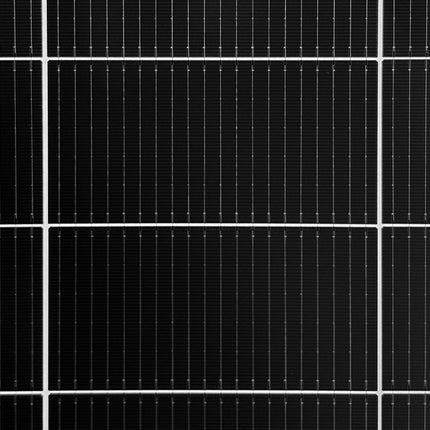

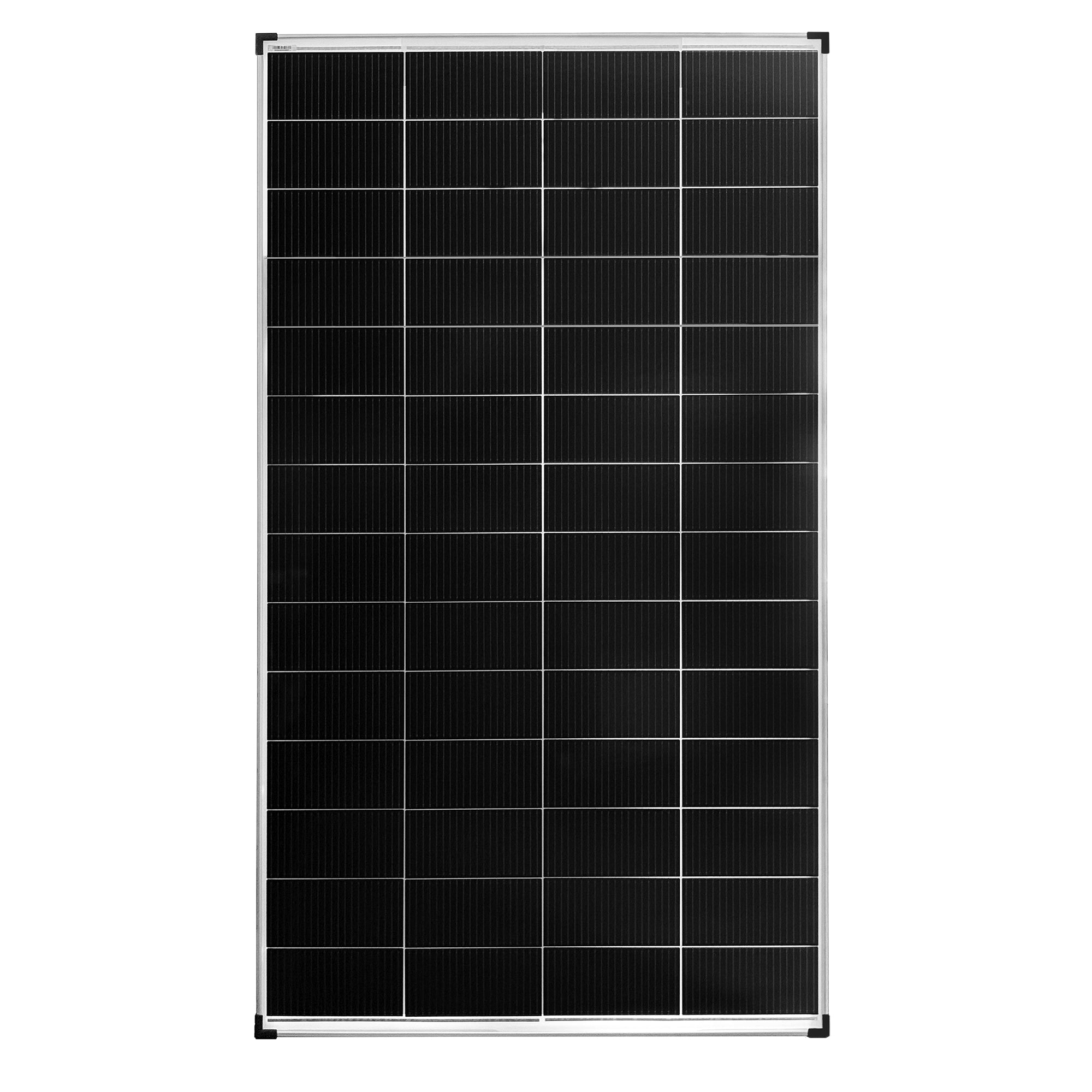

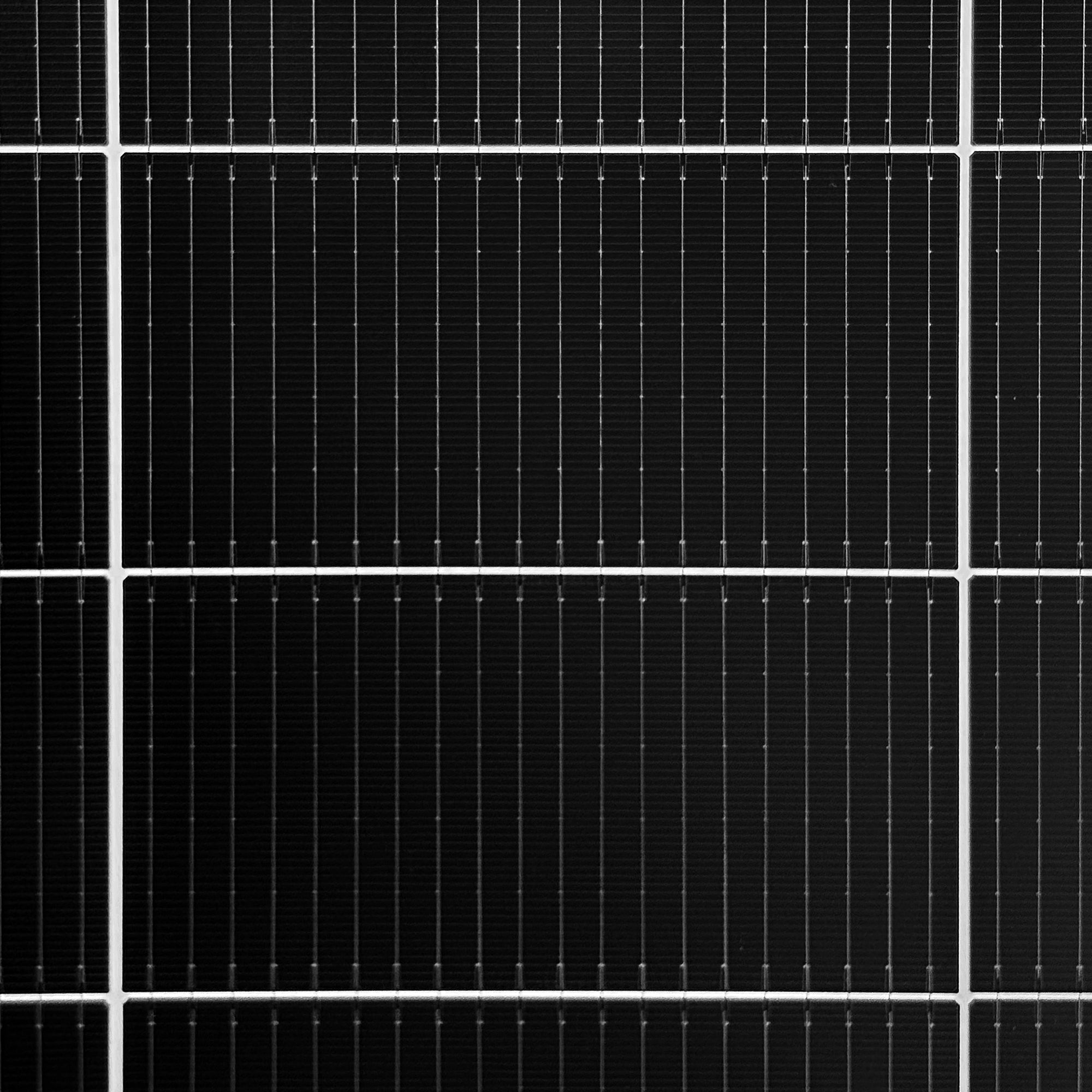

2X Premium Quality Grade A+ 300w 12V/24V/31.5V Mono Solar Panel
1x 5m Twin Core Solar Cable
