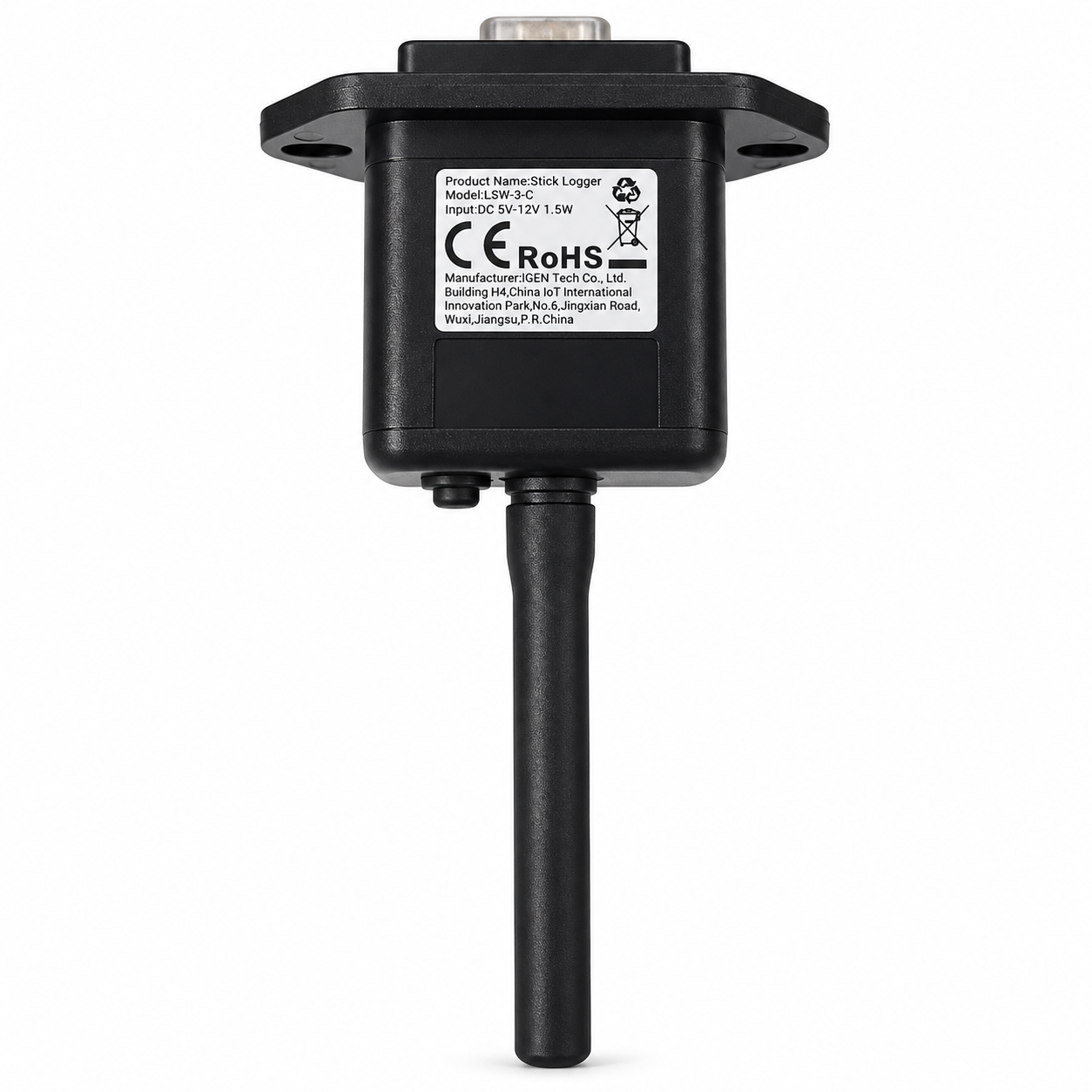

SOLARMAN LSW-3-C WiFi Stick Logger
The LSW-3-C is a compact WiFi data logger manufactured by IGEN Tech Co., Ltd. for compatible solar inverters. It collects inverter operating data and uploads it to the SOLARMAN platform, allowing convenient remote monitoring of system performance and energy production.
Key Features
- 2.4 GHz WiFi communication with an external antenna.
- Remote monitoring through the SOLARMAN Smart app and web platform.
- DB9 external interface with RS232 data communication.
- IP65 weather-resistant enclosure for outdoor installation.
- Local web and remote configuration, with local or remote firmware upgrades.
- Real-time control and data resuming functions.
Specifications
-
Model: LSW-3-C
-
Manufacturer: IGEN Tech Co., Ltd.
-
Remote communication: 2.4 GHz WiFi
-
Antenna: External antenna
-
Data interface: RS232
-
External interface: DB9
-
Working voltage: DC 5-12 V
-
Maximum working voltage: DC 15 V
-
Working power: 1.5 W
-
Data storage: 2 MB flash (default)
-
Serial communication rate: 9600 bps default; 1200-115200 bps optional
-
Data transmission interval: 5 minutes default; 1-15 minutes optional
-
Working mode: AP + STA
-
Operating temperature: -30°C to +70°C
-
Working humidity: 10%-90% RH, non-condensing
-
IP rating: IP65
Package Contents
1 × SOLARMAN LSW-3-C WiFi Stick Logger
Compatibility notice: This logger must be used with a compatible inverter, communication interface and protocol. Please confirm compatibility before purchase. Power off the inverter before installing or removing the logger.
