Description

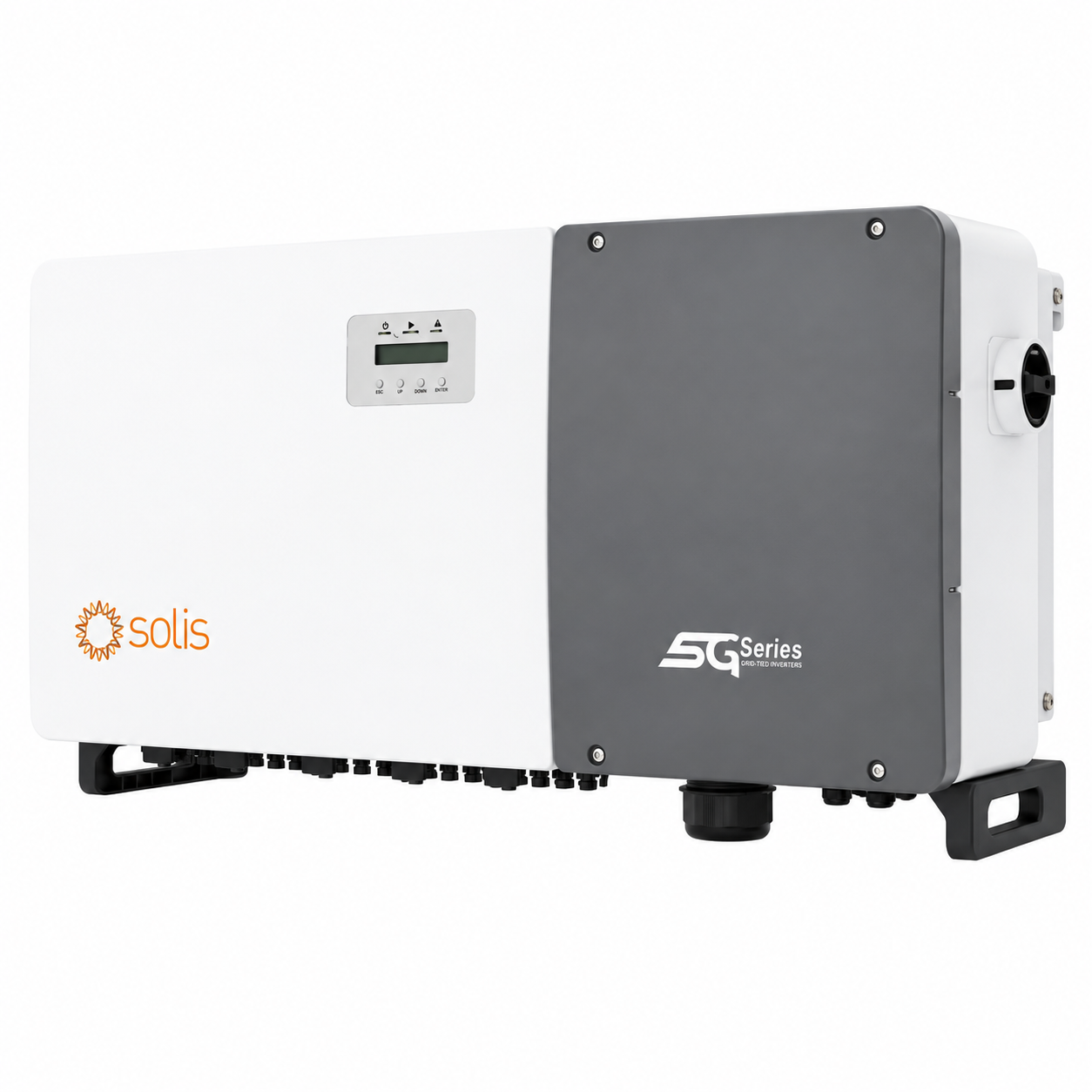

The Solis S5-GC110K-AU is a 110kW three-phase grid-tied string inverter for commercial solar PV systems. It supports 10 MPPTs and up to 20 input strings, with IP66 protection and intelligent fan cooling. This listing is for one inverter; solar panels and batteries are not included.
Key features
- 10 MPPTs with up to 32 A input current per MPPT
- Integrated DC switch; optional AC switch
- String monitoring and smart I-V curve scanning
- Night SVG function and remote firmware upgrades
- Optional AFCI 2.0, PID recovery and PLC communication
- RS485 communication; optional Wi-Fi and GPRS

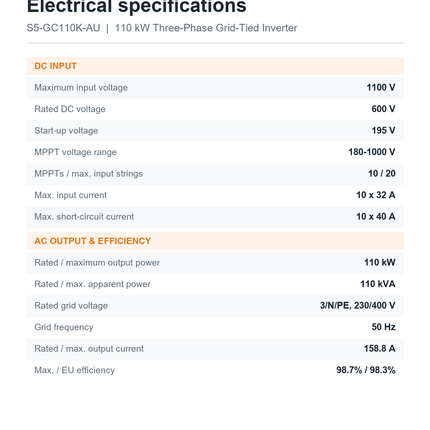

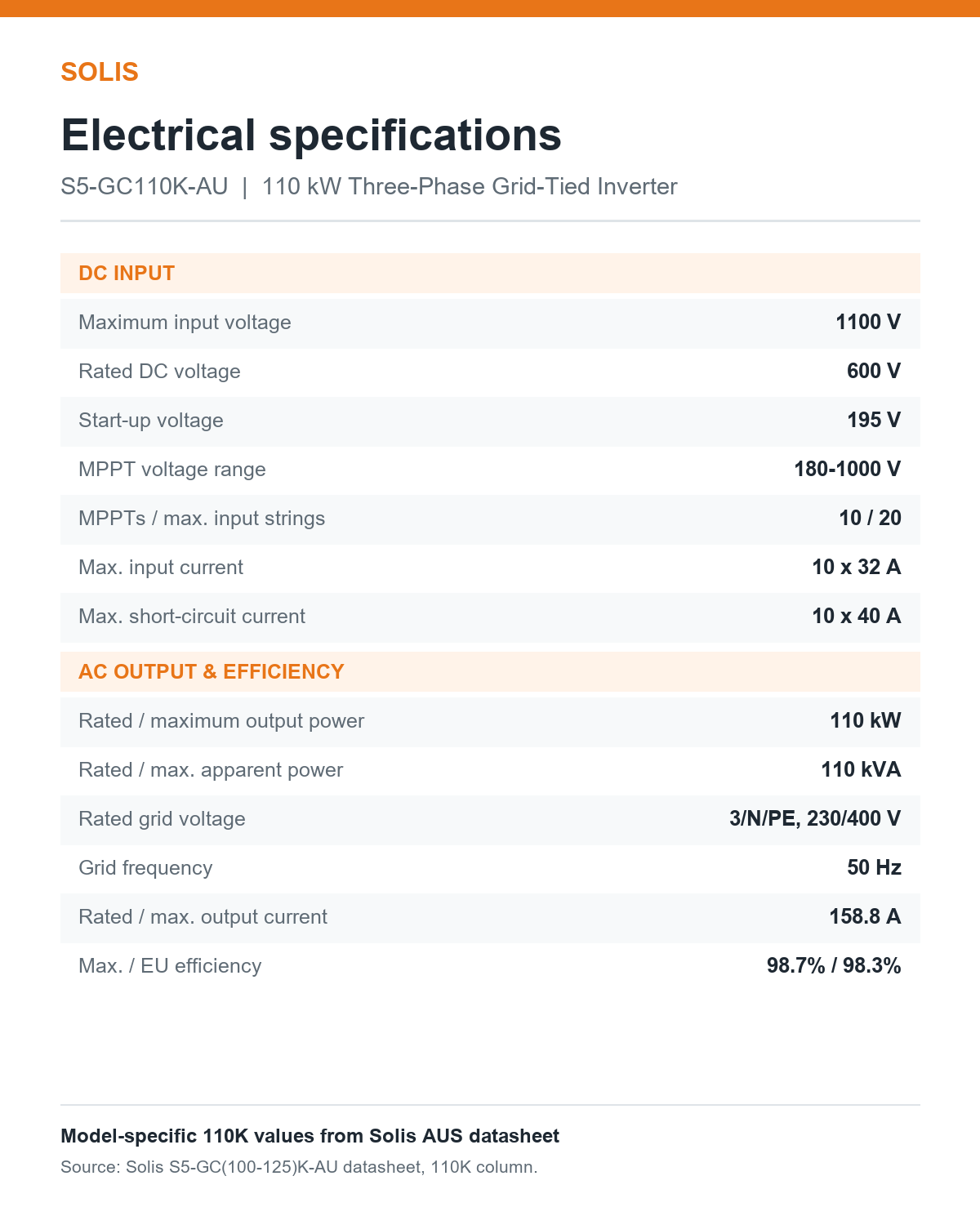

Technical specifications
-
Model: S5-GC110K-AU
-
Rated AC output: 110 kW / 110 kVA, three-phase 230/400 V, 50 Hz
-
Rated grid output current: 158.8 A
-
Maximum DC input voltage: 1100 V
-
MPPT voltage range: 180-1000 V
-
MPPTs / maximum input strings: 10 / 20
-
Maximum input current: 10 x 32 A
-
Maximum efficiency: 98.7%
-

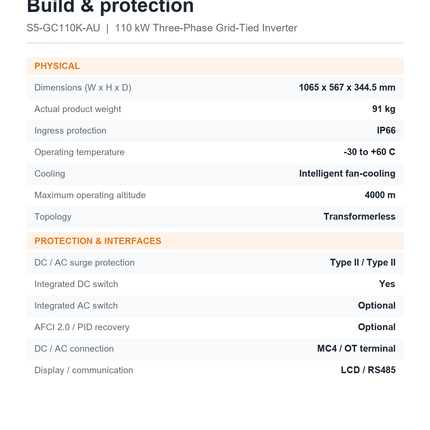

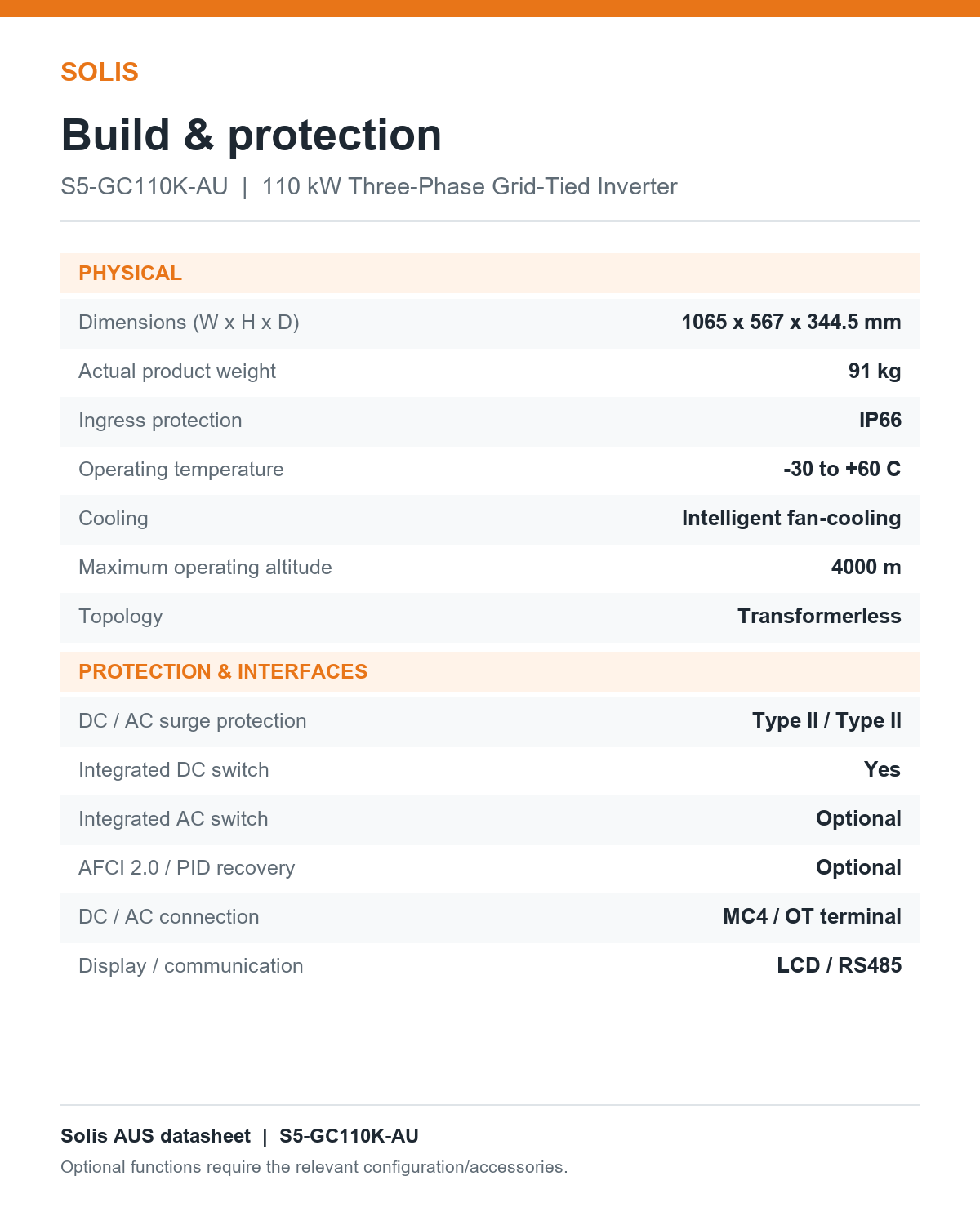

Ingress protection: IP66
-
Dimensions (W x H x D): 1065 x 567 x 344.5 mm
-
Actual weight: 91 kg
Installation and grid connection must follow the manufacturer's manual and applicable local requirements. Optional functions and accessories are not included unless separately specified.
Downloads
Download Solis S5-GC110K-AU Datasheet (PDF)
Download Solis S5-GC110K-AU User Manual (PDF)
Certificates
Download S5-GC110K-AU Certificate of Conformity / Approval (PDF)
Download S5-GC110K-AU Certificate of Suitability (PDF)
