Description
10 Years Warranty

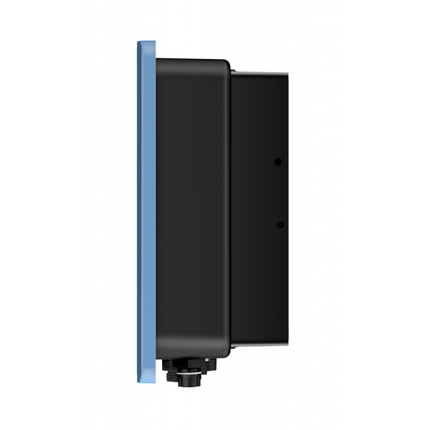

Enhanced Solar Inverter for Reliable Home Energy

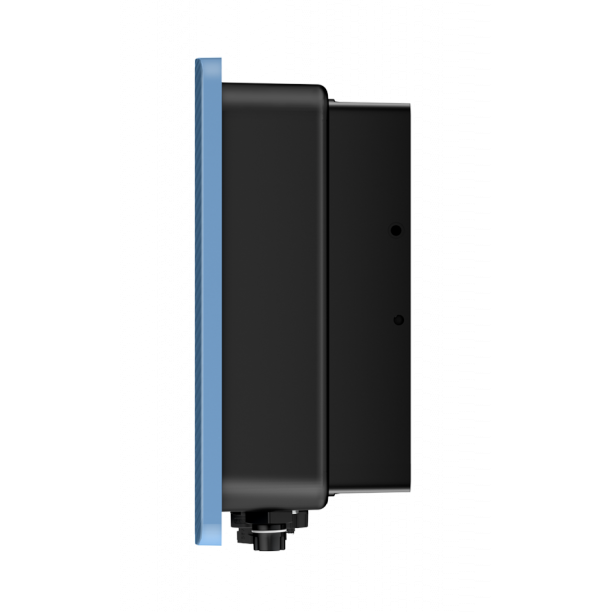

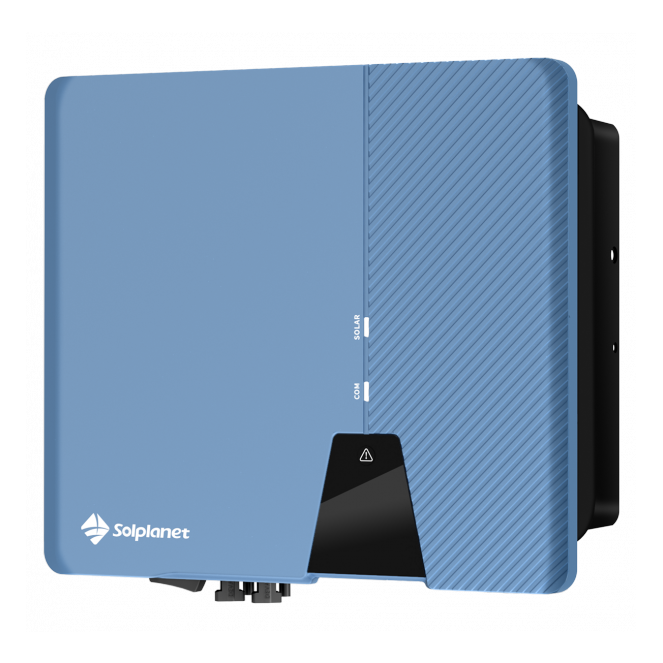

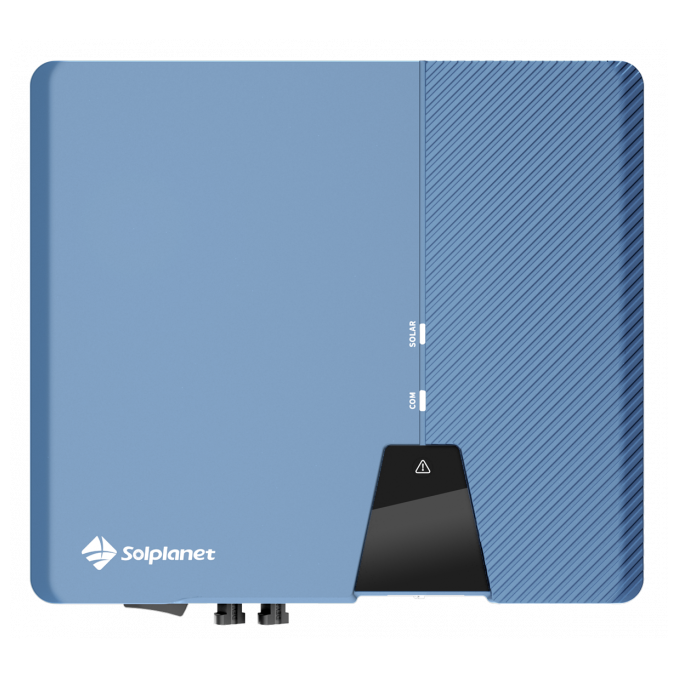

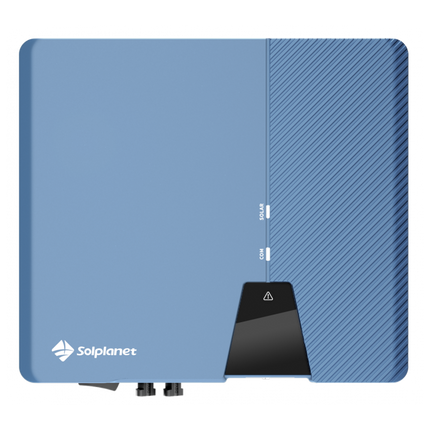

The Solplanet 3–6K-S-G2 series is an upgraded, single-phase inverter range engineered for dependable residential solar energy. Designed to pair seamlessly with the latest PV modules, these inverters are compact, wall-mountable, and IP66 rated — ensuring protection against dust and water in all weather conditions. Their discreet, low-noise operation makes them a natural fit for any home.
With advanced ShadeSol shadow management technology, the Solplanet 3–6K-S-G2 series maximises energy generation even in partially shaded or low-light environments. Enhanced system safety features include optional 24/7 monitoring via a user-friendly mobile app, allowing you to identify and address issues proactively.

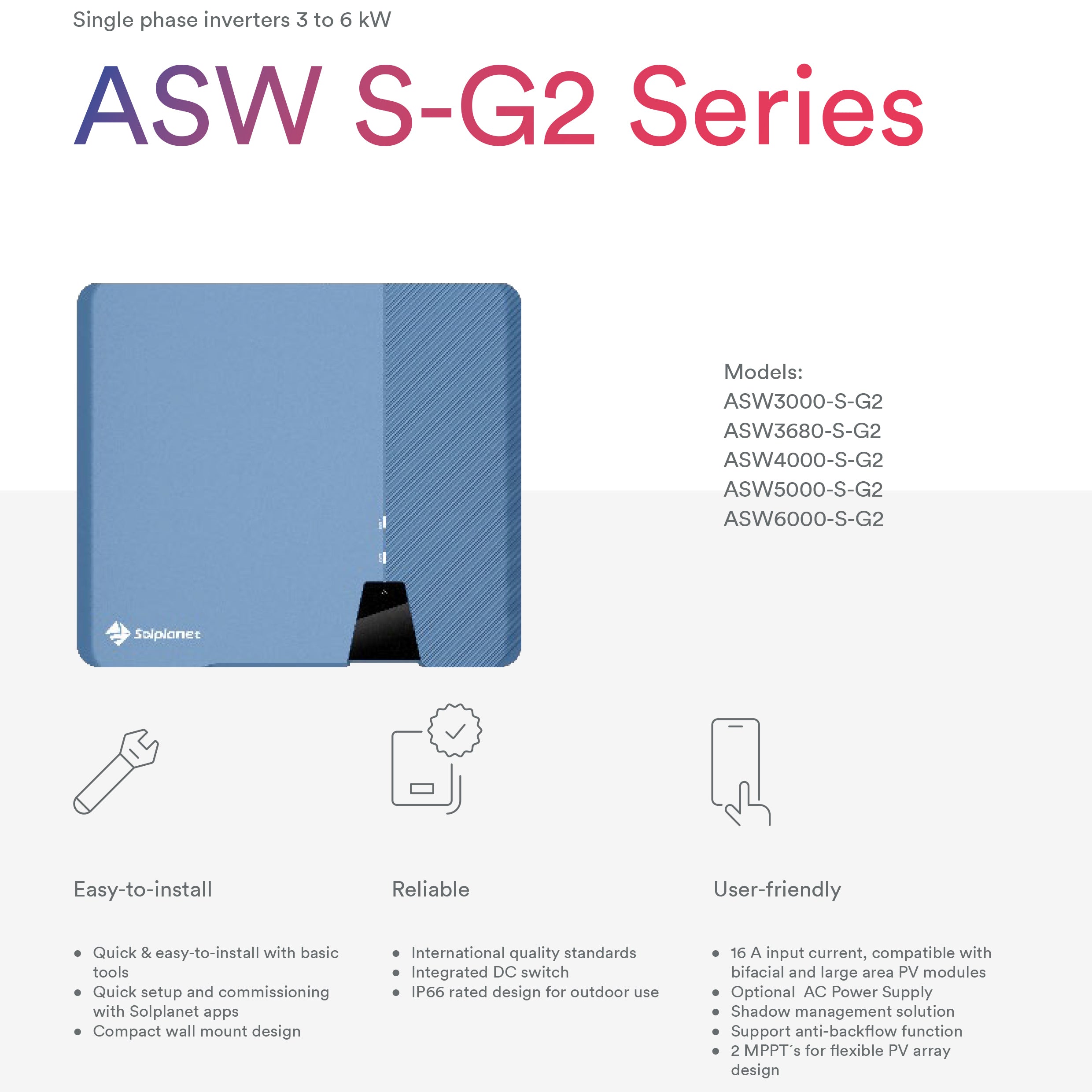

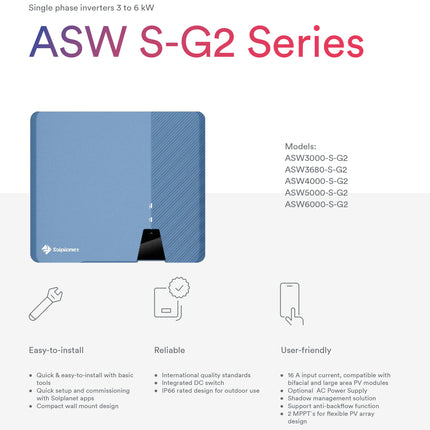

Key Features
Reliable by Design
Built to meet international quality and safety standards, these inverters are made for long-term, trouble-free performance. IP66 protection ensures durability in harsh environments, while DC reverse polarity protection and AC-sensitive residual current monitoring deliver safe, consistent operation.
Optimised Performance
A wide MPPT voltage range and a low 60V DC input allow for highly efficient energy conversion. The system supports up to 150% PV array oversizing, making it ideal for rooftop installations of various sizes and configurations.
Fast, Flexible Installation

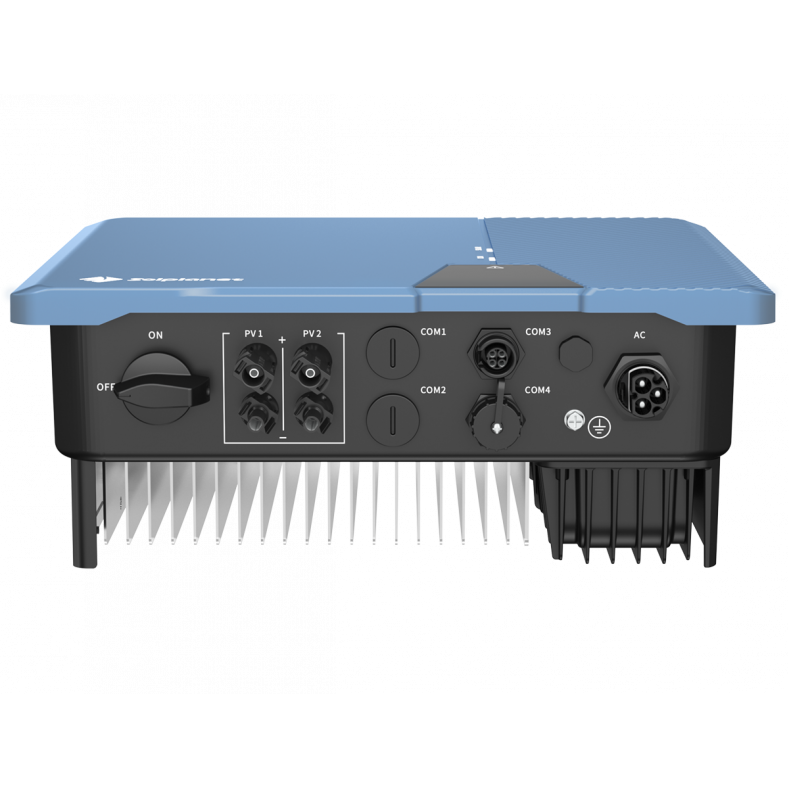

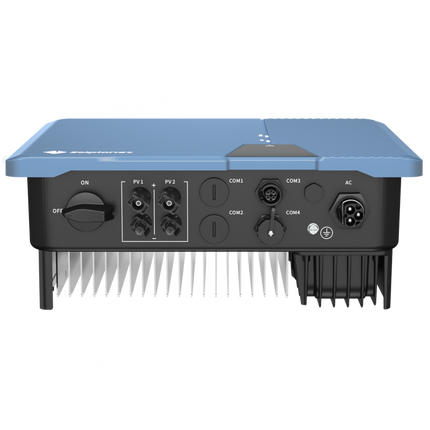

Installation is simple with standard tools and Phoenix Contact connectors for broad compatibility. Optional Plug & Play and 4G dongles allow internet connectivity and monitoring for up to five inverters via the Solplanet app. Users can track performance, adjust settings, and receive alerts — all from their smartphone.

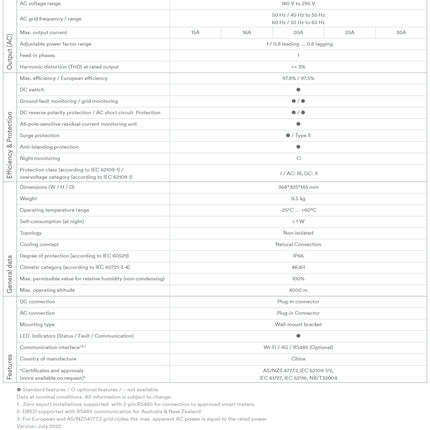

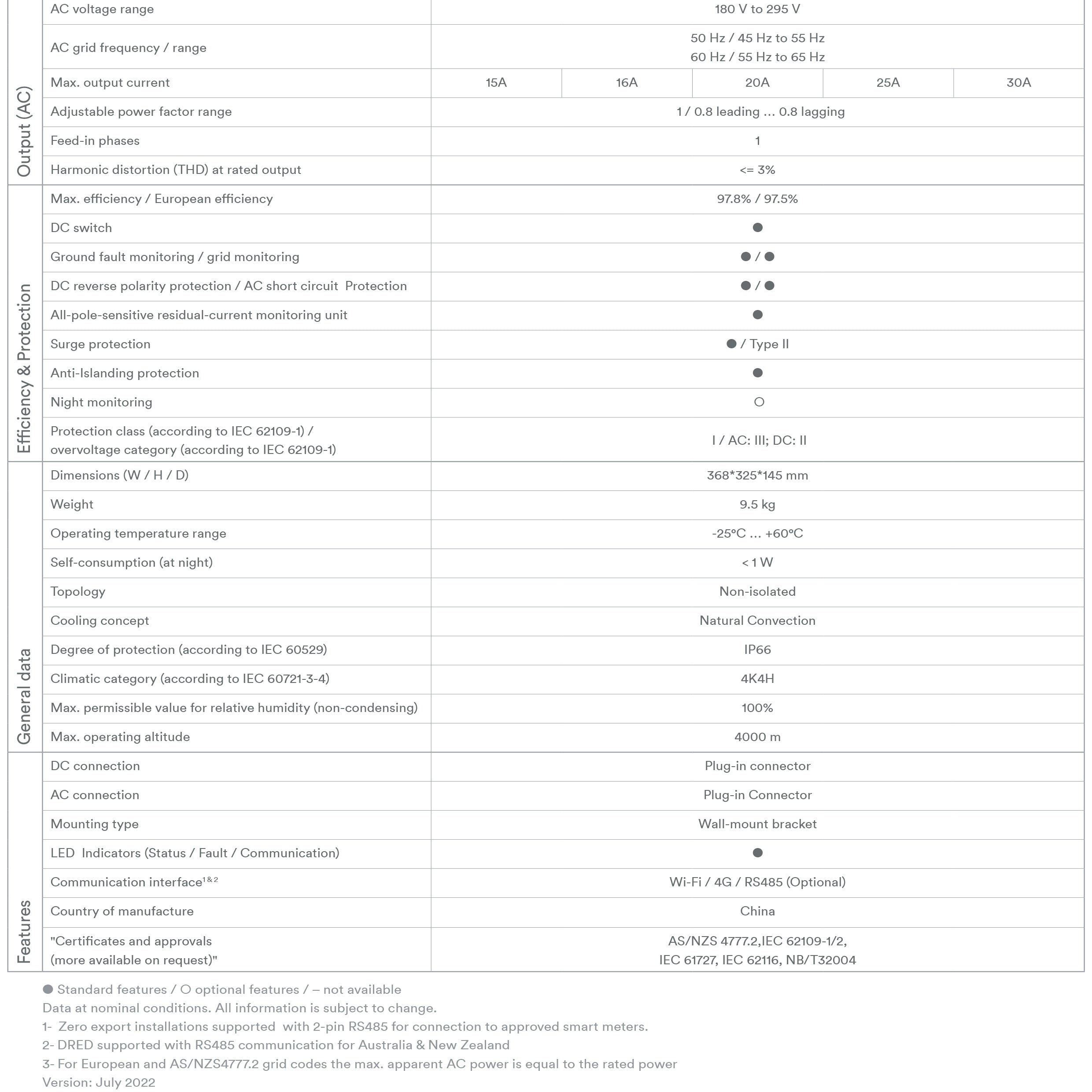

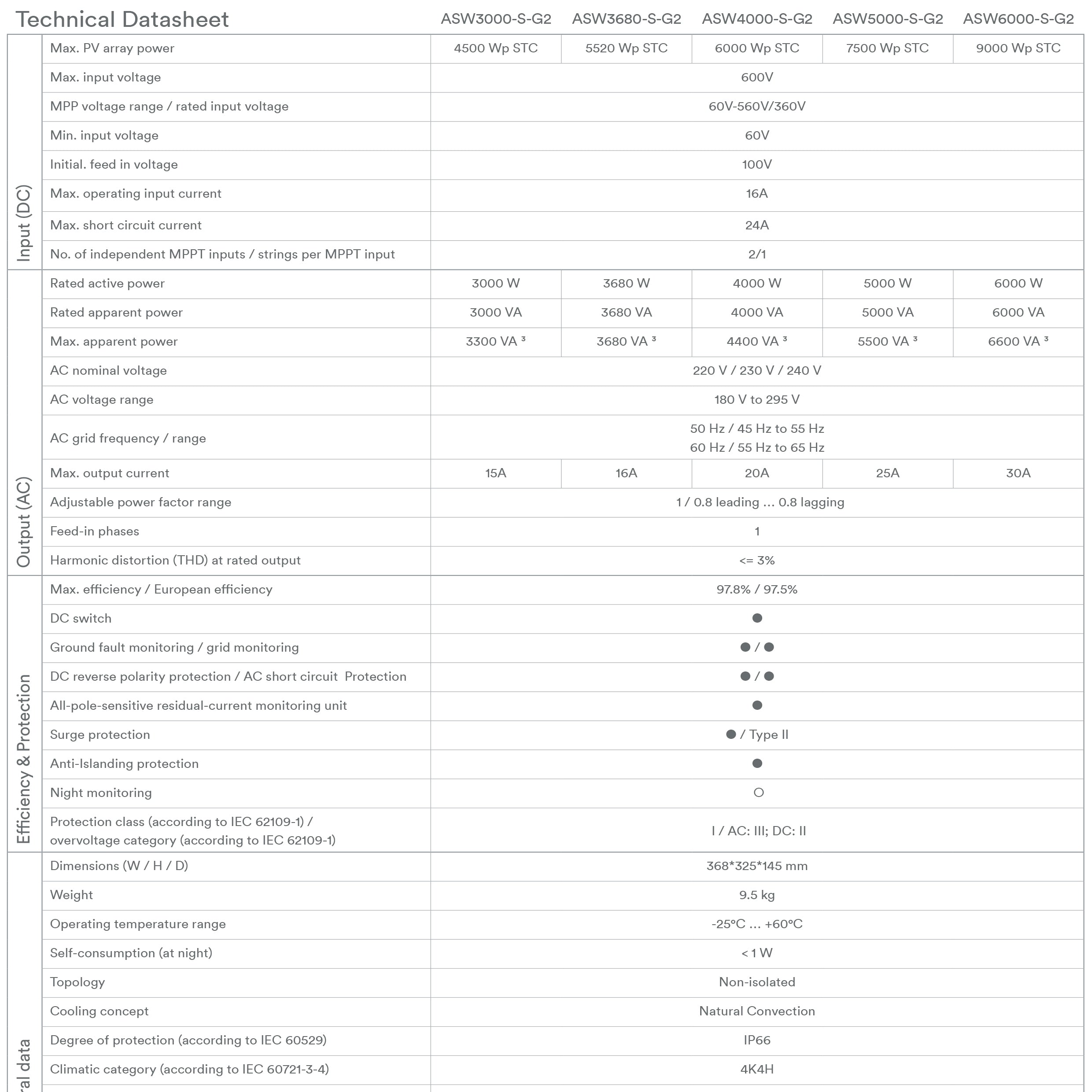

Technical Highlights – ASW3000-S-G2
Max. PV array power: 4500 Wp STC
MPPT voltage range: 60V – 560V
Max. input voltage: 600V
Max. input current: 16A
Rated power output: 3000W
AC voltage range: 180 – 295V
Dimensions: 368 × 325 × 145 mm
Weight: 9.5 kg
Protection level: IP66
