Description
**Vector Approved Inverter**
**10-Year Warranty**

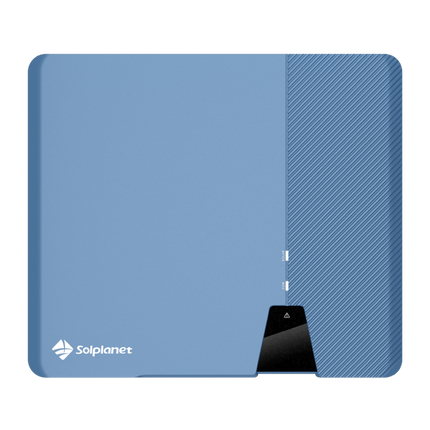

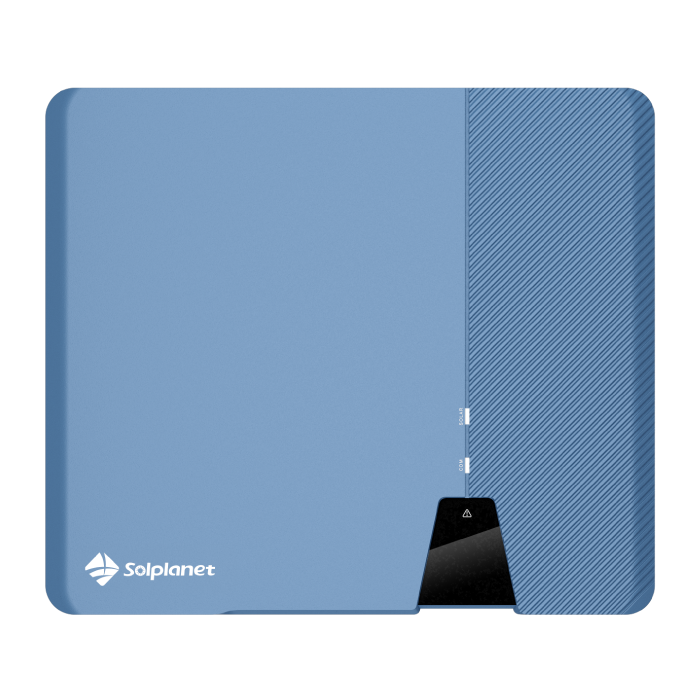

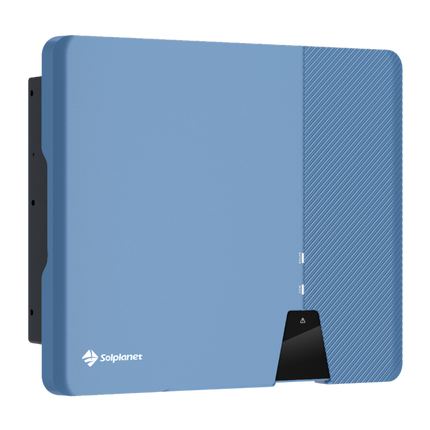

ASW10000-S-A | 10kW | Single Phase | 3 MPPT | string Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
Easy-to-install
Quick and easy to install with basic tools, featuring a compact wall-mount design and fast setup and commissioning via Solplanet apps.
Reliable
Built to international quality standards, featuring an integrated DC switch and an IP66-rated design for reliable outdoor performance.
User-friendly
Supports 16 A input current—ideal for bifacial and large-area PV modules—with 3 MPPTs for flexible array design and ShadeSol technology for enhanced performance in shaded conditions.

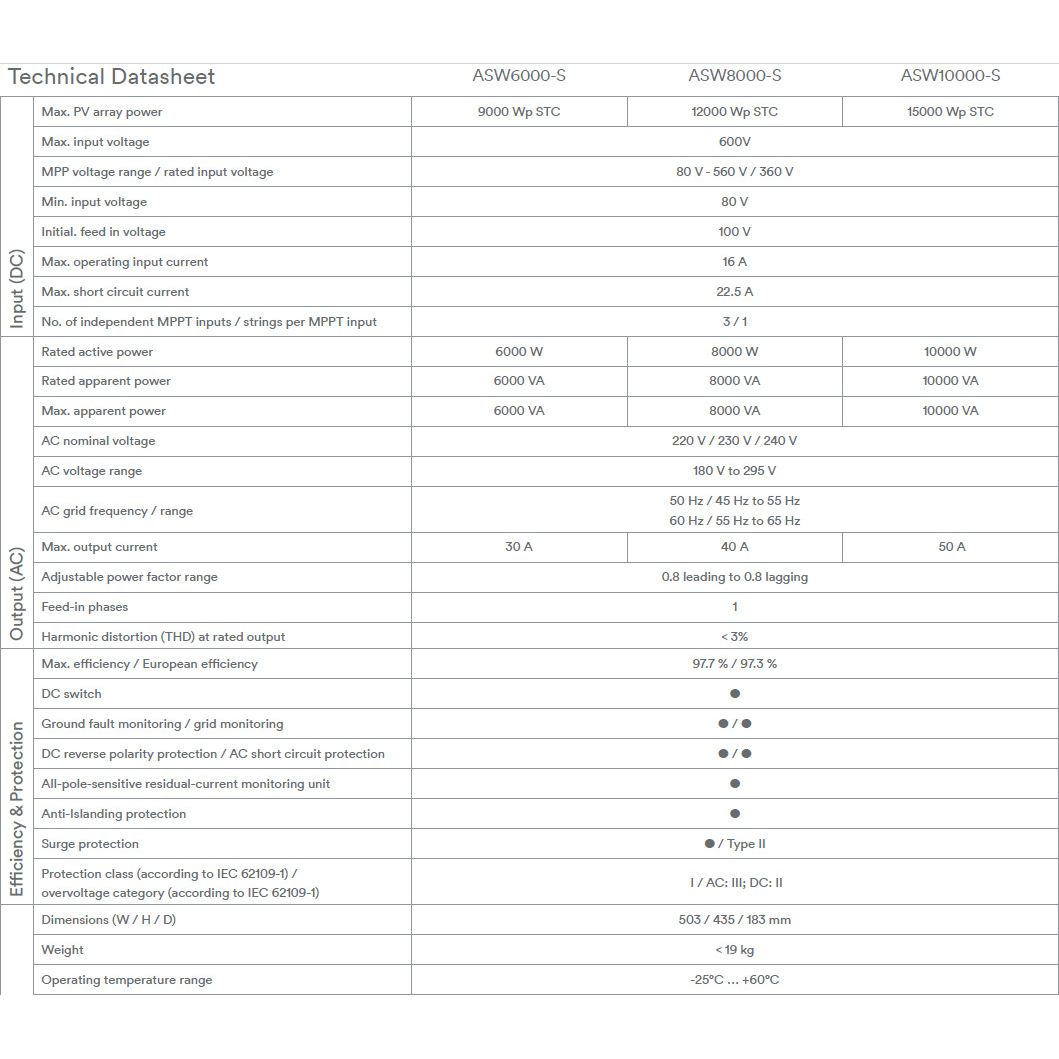

Technical Datasheet
Input (DC)
Max. PV array power: 15000 Wp STC
Max. input voltage: 600V
MPP voltage range / rated input voltage: 80 V - 560 V / 360 V
Min. input voltage: 80 V
Initial. feed in voltage: 100 V
Max. operating input current: 16A
Max. short circuit current: 22.5A
No. of independent MPPT inputs / strings per MPPT input: 3/1
Output (AC)
Rated active power: 10000W
Rated apparent power: 10000VA
Max. apparent power: 10000VA
AC nominal voltage: 220V/230V/240V
AC voltage range: 180V to 295V
AC grid frequency / range: 50 Hz / 45 Hz to 55 Hz, 60 Hz / 55 Hz to 65 Hz
Max. output current: 50A
Adjustable power factor range: 0.8 leading to 0.8 lagging
Feed-in phases: 1
Harmonic distortion (THD) at rated output: < 3%

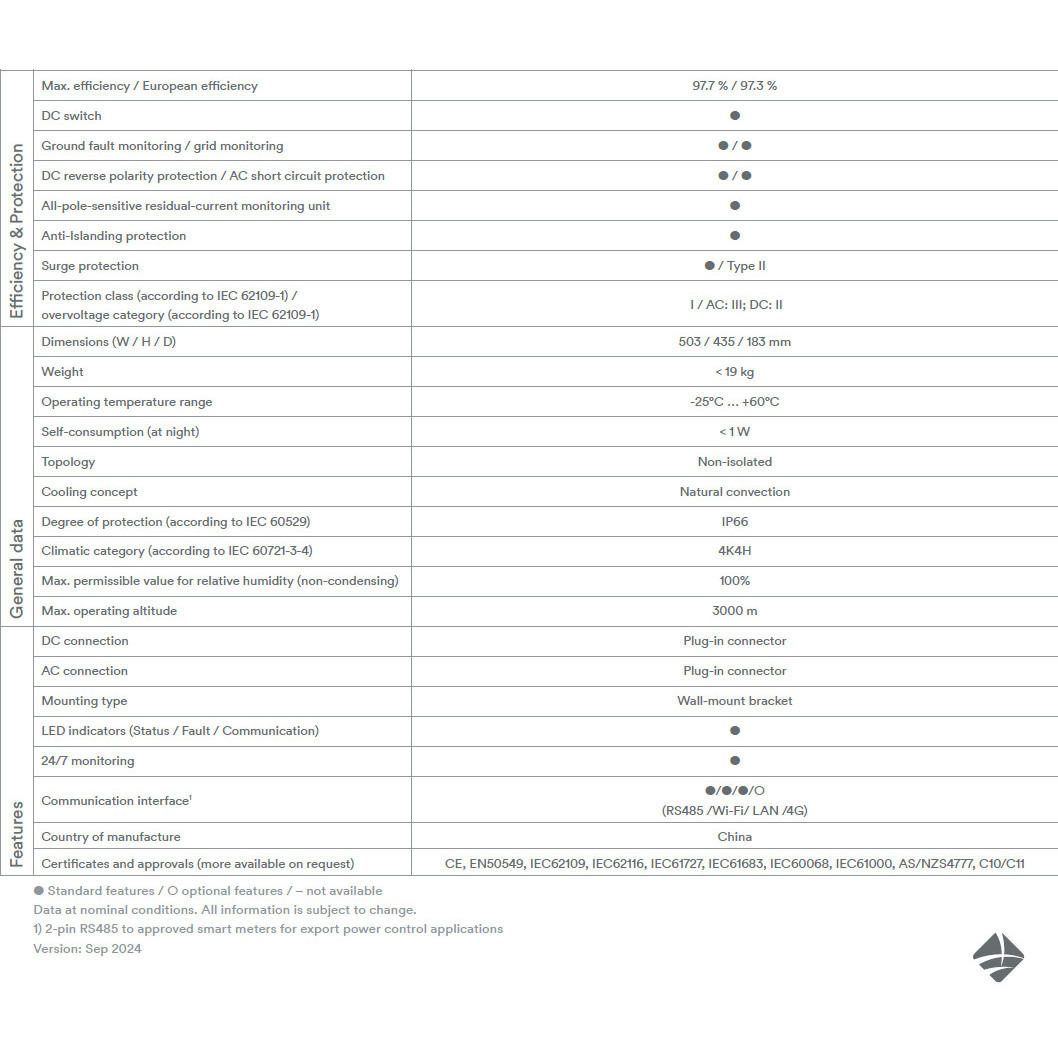

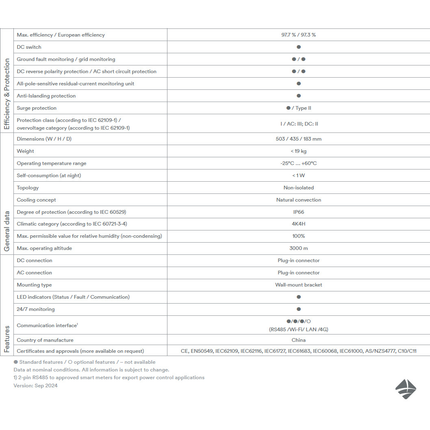

General data
Dimensions (W / H / D): 503 / 435 / 183 mm
Weight:
