**Vector Approved Inverter**
**10-Year Warranty**

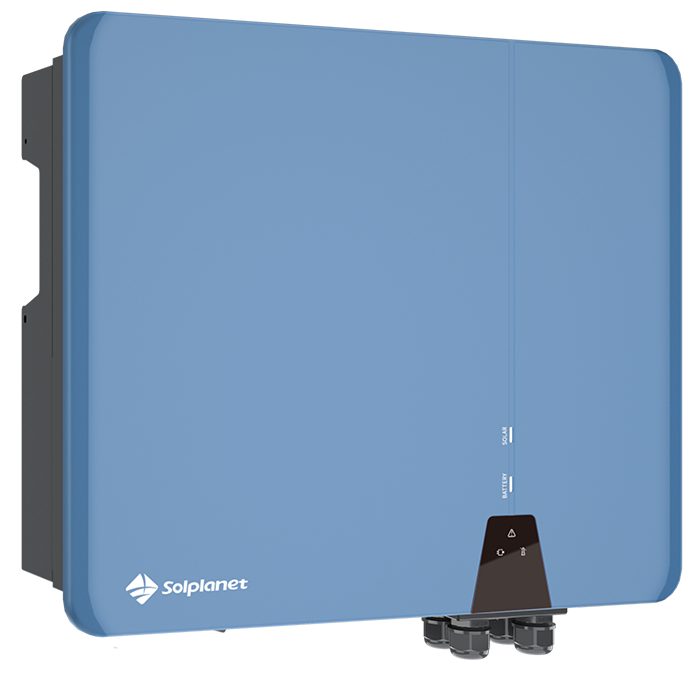

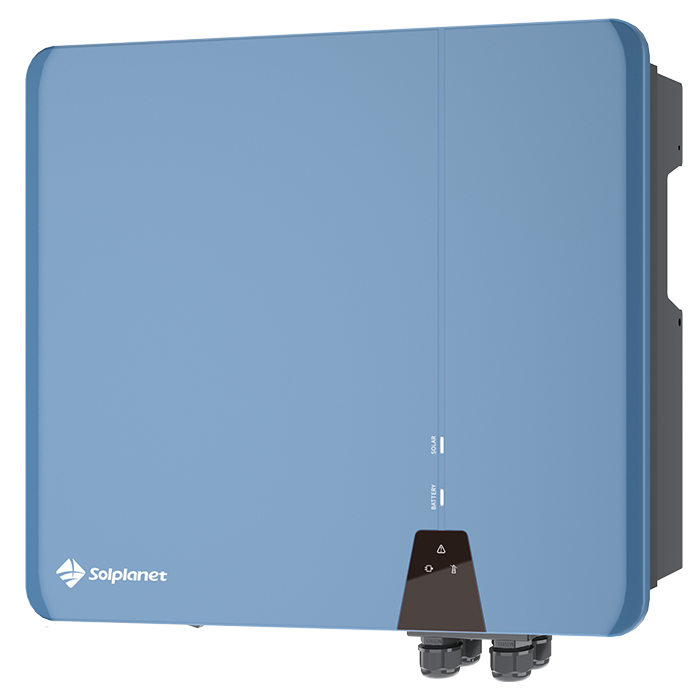

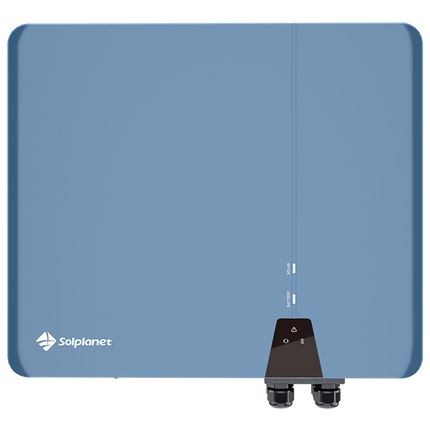

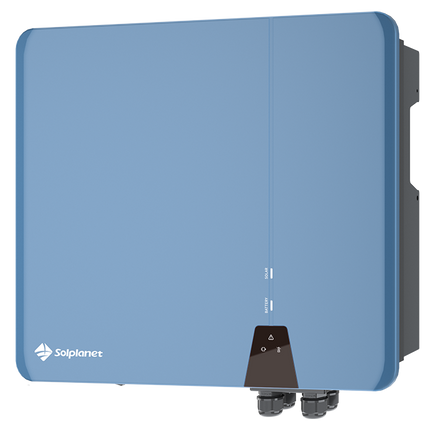

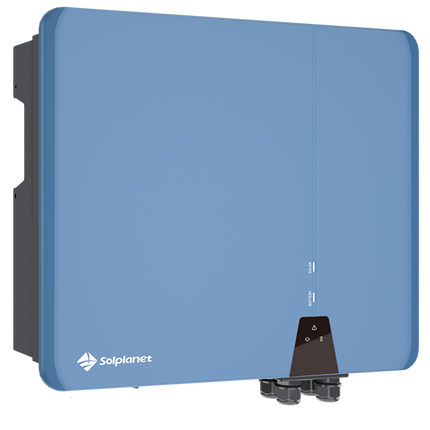

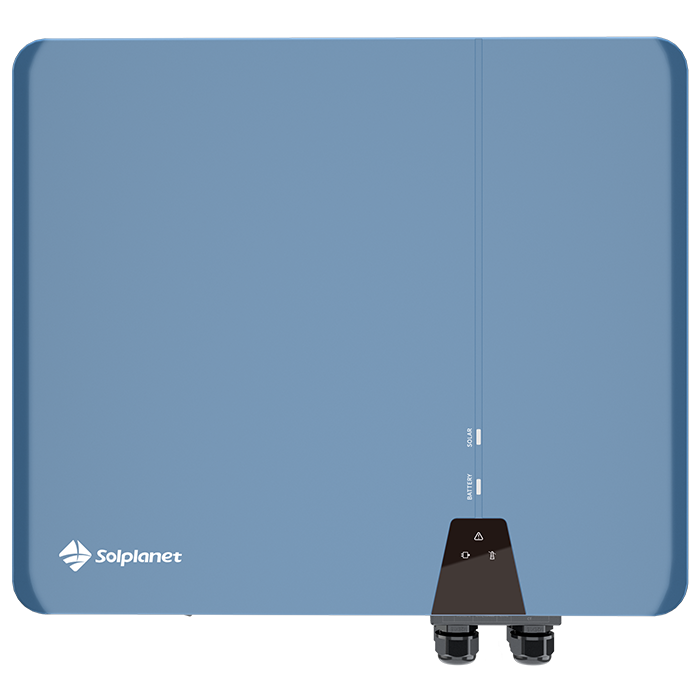

ASW10KH-T3 | 10kW | Three Phase | 3 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
Easy-to-install
Quick and easy to install using basic tools, the compact wall-mount design features simple battery and smart meter interfaces for faster installation.
Reliable
Designed for maximum performance, it supports up to 150% PV array oversizing for higher yields, delivers 100% unbalanced three-phase AC output, ensures UPS-level switching times of under 10 ms, and features an IP66-rated enclosure for reliable outdoor use.
User-friendly
With 3 independent MPPTs for flexible, high-kWp PV design, the system supports easy setup and monitoring via the Solplanet app. Intelligent modes and customizable battery management (DOD, Time of Use, Power Settings) optimize energy use. Supports up to 16 A input—ideal for bifacial and large PV modules.

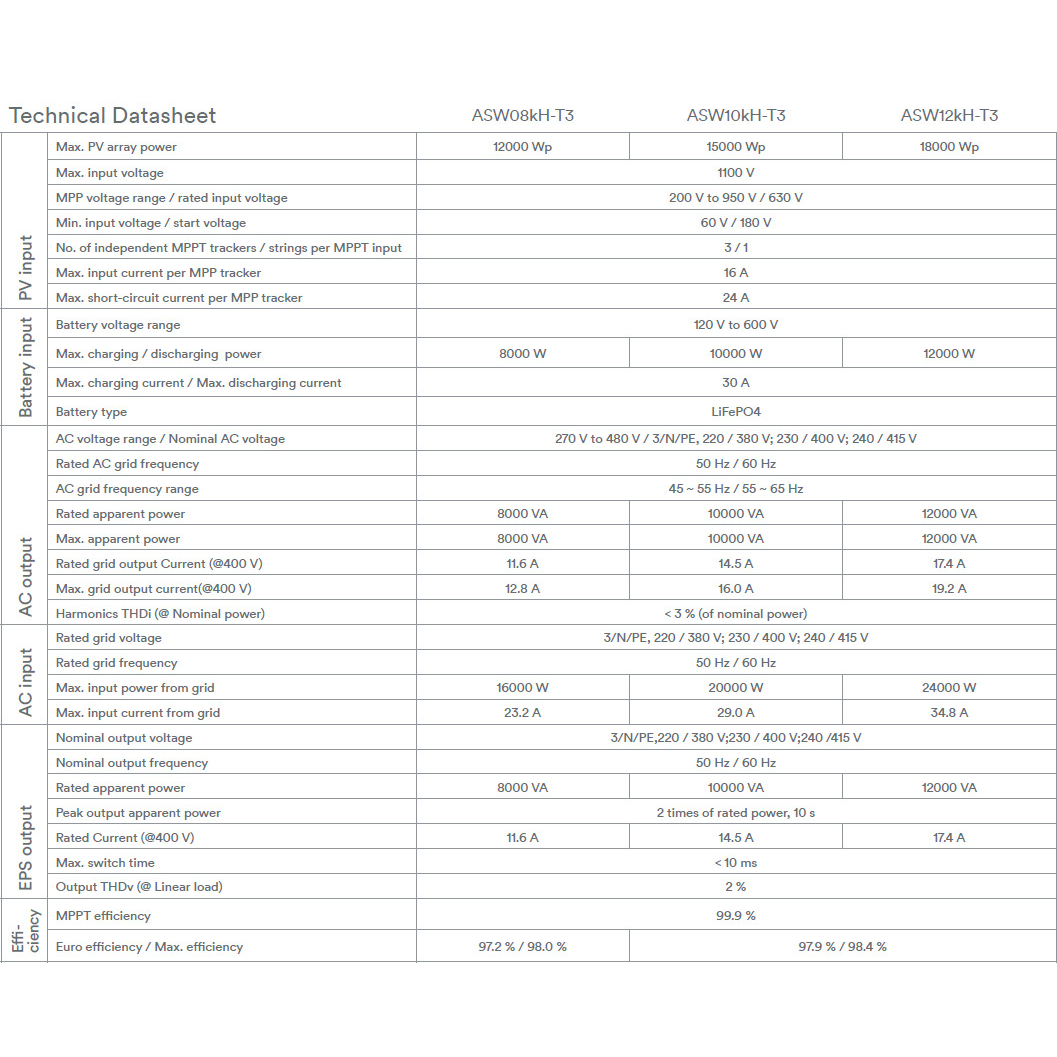

PV input
Max. PV array power: 1500Wp
Max. input voltage: 1100V
MPP voltage range / rated input voltage: 200 V to 950 V / 630 V
Min. input voltage / start voltage: 60V/180V
No. of independent MPPT trackers /strings per MPPT input: 3/1
Max. input current per MPP tracker: 16A
Max. short-circuit current per MPP tracker: 24A
Battery input
Battery voltage range: 120V to 600V
Max. charging / discharging power: 10000W
Max. charging current / Max. discharging current: 30A
Battery type: LiFePO4
AC output
AC voltage range / nominal AC voltage: 270 V to 480 V / 3/N/PE, 220 / 380 V; 230 / 400 V; 240 / 415 V
Rated AC grid frequency: 50 Hz / 60 Hz
AC grid frequency range: 45 ~ 55 Hz / 55 ~ 65 Hz
Rated apparent power: 10000VA
Max. apparent power: 10000VA
Rated grid output current (@400 V): 14.5A
Max. grid output current (@400 V): 16.0A

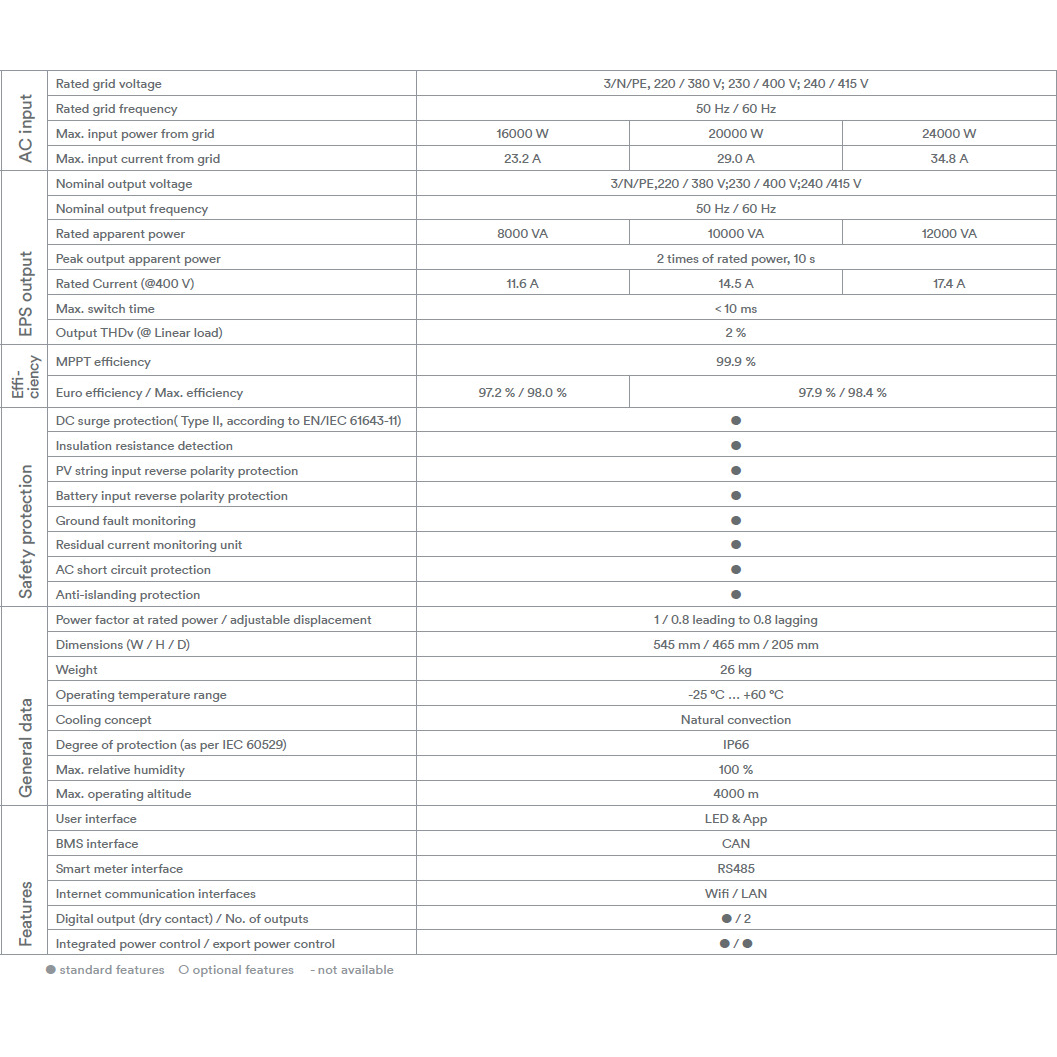

General data
Dimensions (W / H / D): 545 mm / 465 mm / 205 mm
Weight: 26kg
Degree of protection (as per IEC 60529): IP66
