Description

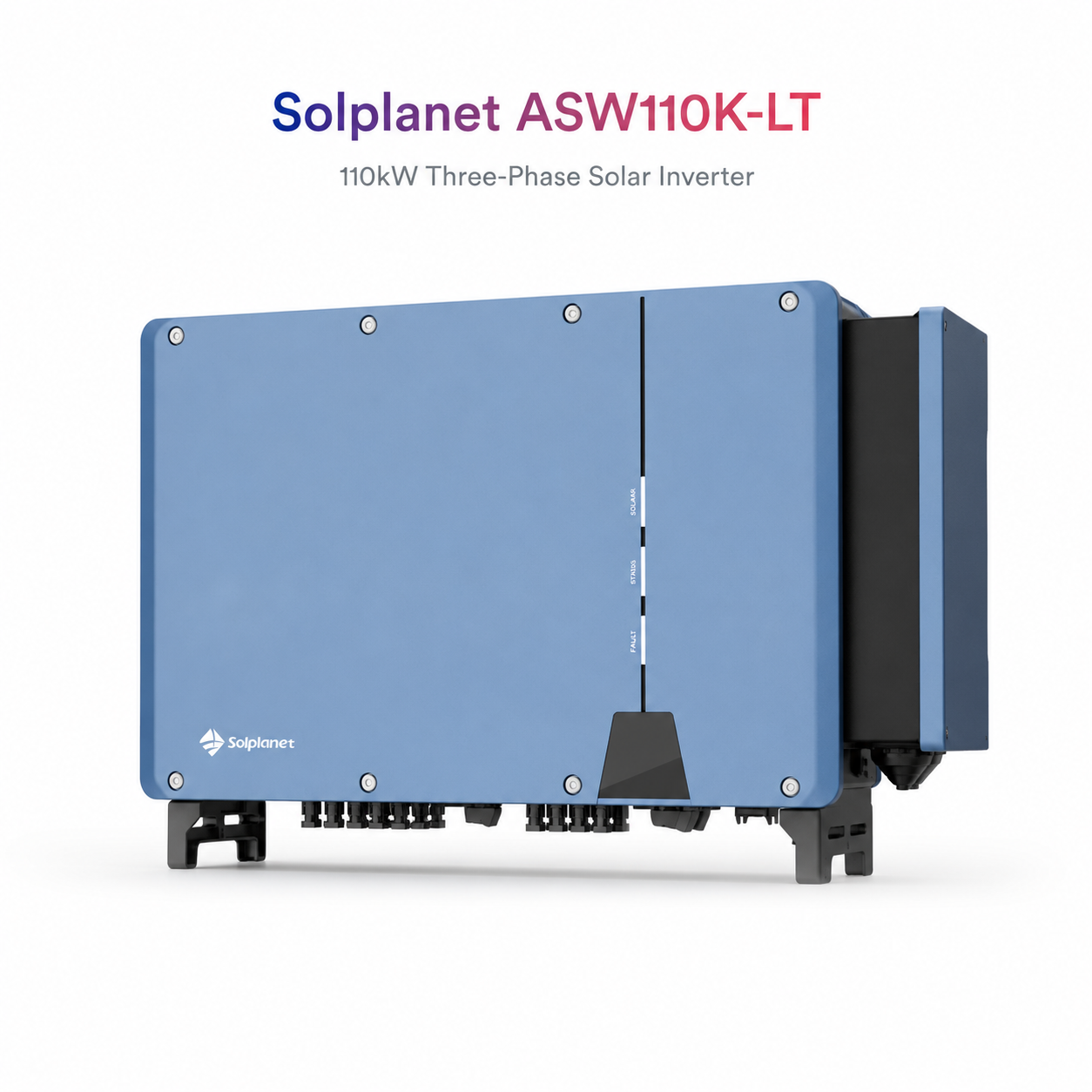

The Solplanet ASW110K-LT is a high-performance 110kW three-phase solar inverter designed for commercial and large-scale photovoltaic installations.
Featuring 10 independent MPPT inputs with two strings per MPPT, the ASW110K-LT provides flexible PV array design and improved energy yield. Each MPPT supports up to 32A operating input current, making the inverter suitable for modern high-current, bifacial and large-area PV modules.
With a maximum efficiency of 98.6%, IP66 protection and integrated Type II AC and DC surge protection, the ASW110K-LT is designed for reliable indoor and outdoor operation.
Key Features
- 110kW rated three-phase AC output
- Maximum PV array power up to 165kWp
- 10 independent MPPTs with 2 strings per MPPT
- 32A maximum operating input current per MPPT
- Maximum efficiency up to 98.6%
- European efficiency up to 98.4%
- ShadeSol technology for improved generation under non-ideal conditions
- IP66 protection for indoor and outdoor installation
- Type II AC and DC surge protection
- Fuse-free design
- 24/7 system monitoring
- Smart setup, commissioning and monitoring via Solplanet App
- String-level management
- RS485, Wi-Fi and LAN communication
- Optional 4G communication
- Modbus-SunSpec protocol support
- 10-Year Warranty

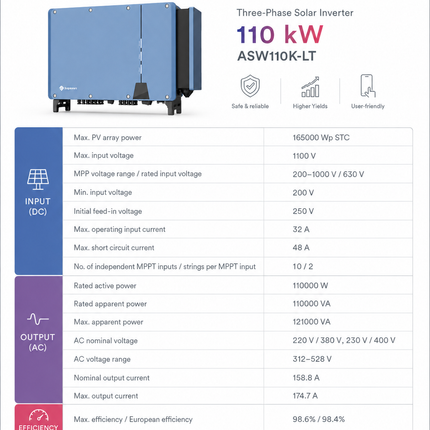

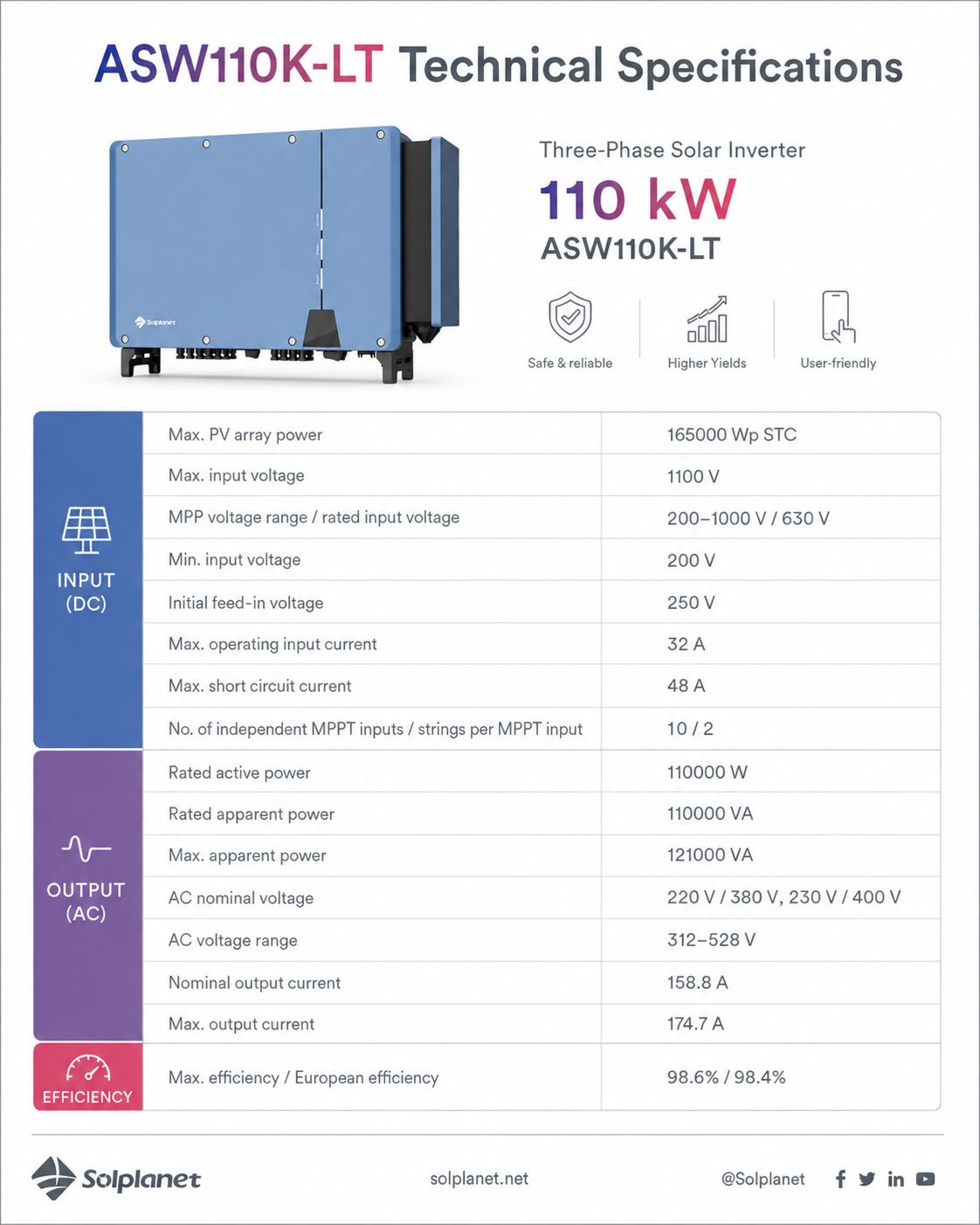

Specifications
Model: ASW110K-LT
Rated Active Power: 110,000W
Rated Apparent Power: 110,000VA
Maximum Apparent Power: 121,000VA
DC Input
Maximum PV Array Power: 165,000Wp STC
Maximum DC Input Voltage: 1100V
MPP Voltage Range: 200–1000V
Rated Input Voltage: 630V
Minimum Input Voltage: 200V
Initial Feed-in Voltage: 250V
Maximum Operating Input Current: 32A per MPPT
Maximum Short-Circuit Current: 48A
MPPTs / Strings per MPPT: 10 / 2
AC Output
AC Nominal Voltage: 220V / 380V, 230V / 400V
AC Voltage Range: 312–528V
Grid Frequency: 50Hz / 60Hz
50Hz Operating Range: 45–55Hz
60Hz Operating Range: 55–65Hz
Nominal Output Current: 158.8A
Maximum Output Current: 174.7A
Power Factor Range: 0.8 Leading to 0.8 Lagging
Feed-in Phases: 3 / 3-N-PE
THD at Rated Output: <3%
Efficiency
Maximum Efficiency: 98.6%
European Efficiency: 98.4%
Protection
DC Surge Protection: Type II
AC Surge Protection: Type II
Anti-Islanding Protection: Yes
DC Reverse Polarity Protection: Yes
AC Short-Circuit Protection: Yes
AC Overcurrent Protection: Yes
Residual Current Monitoring: Yes
AFCI: Optional
General Data

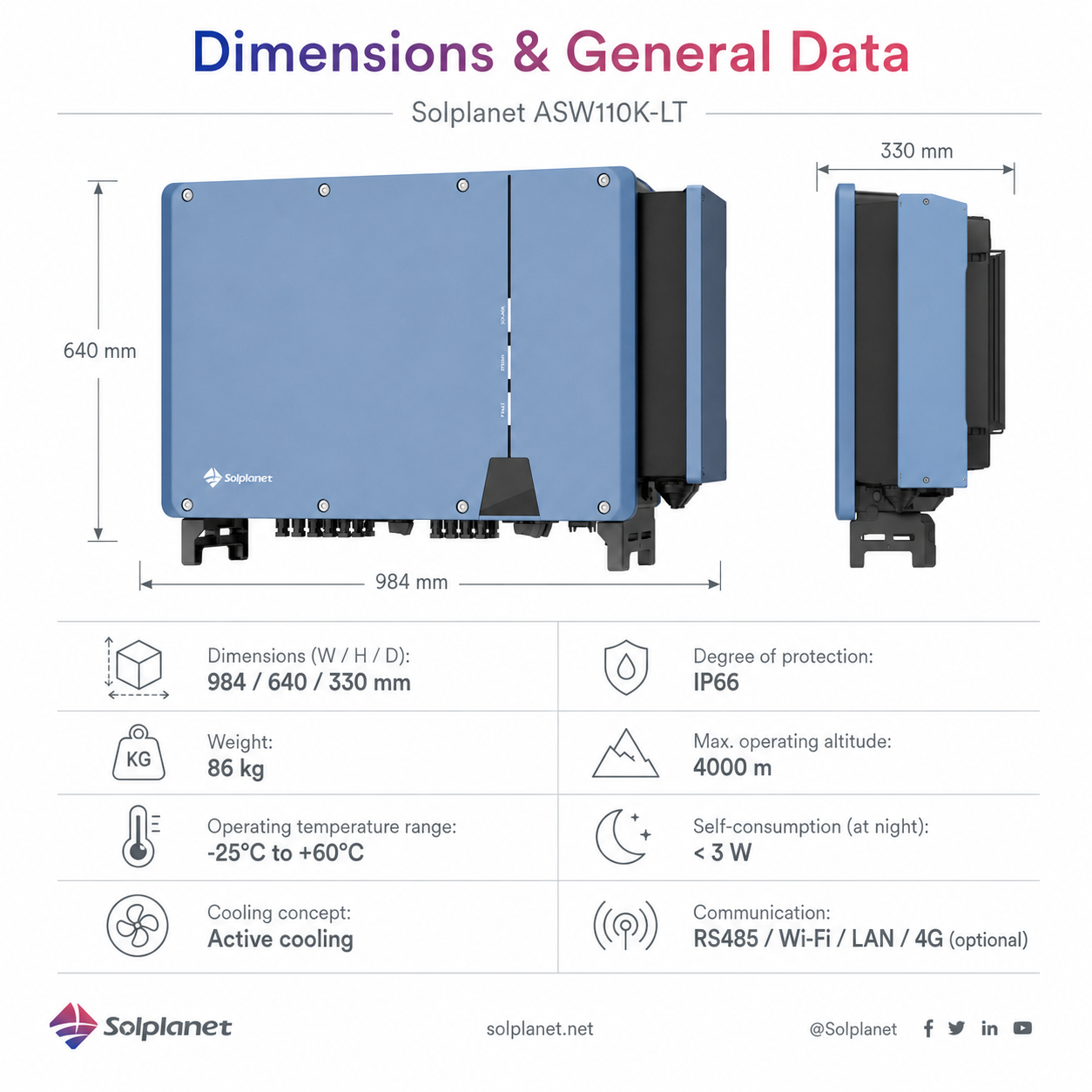

Dimensions (W × H × D): 984 × 640 × 330mm
Weight: 86kg
Operating Temperature: -25°C to +60°C
Night Self-Consumption: <3W
Cooling: Active Cooling
Protection Rating: IP66
Maximum Operating Altitude: 4000m
Maximum Relative Humidity: 100% Non-condensing
Communication
Communication: RS485 / Wi-Fi / LAN / Optional 4G
Protocol: Modbus-SunSpec
Certificates & Approvals
CE, IEC 62109-1/2, IEC 61727, IEC 62116, IEC 61683, EN50549-1/2, VDE4105
