Description
**Vector Approved Inverter**
**10-Year Warranty**

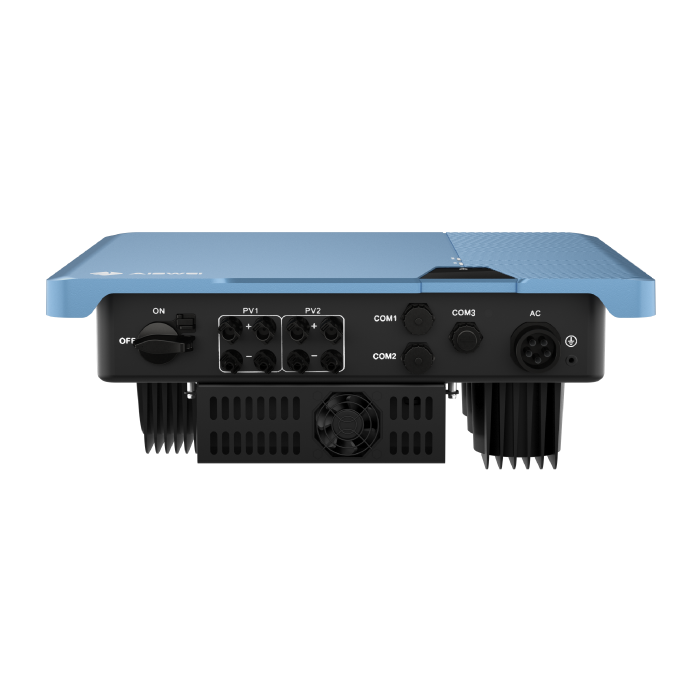

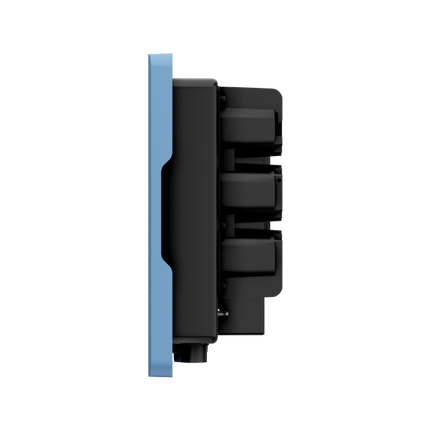

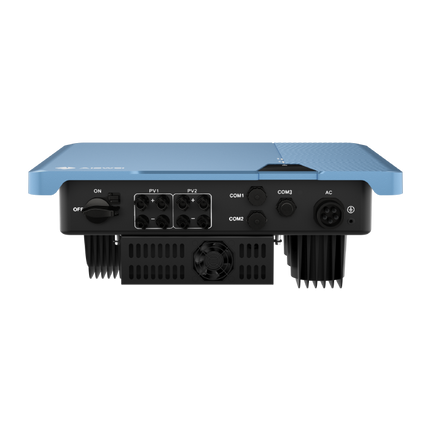

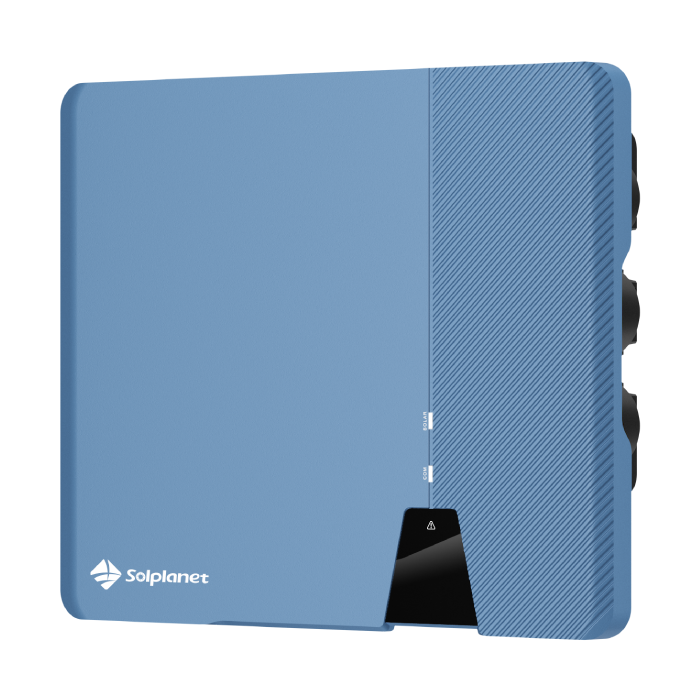

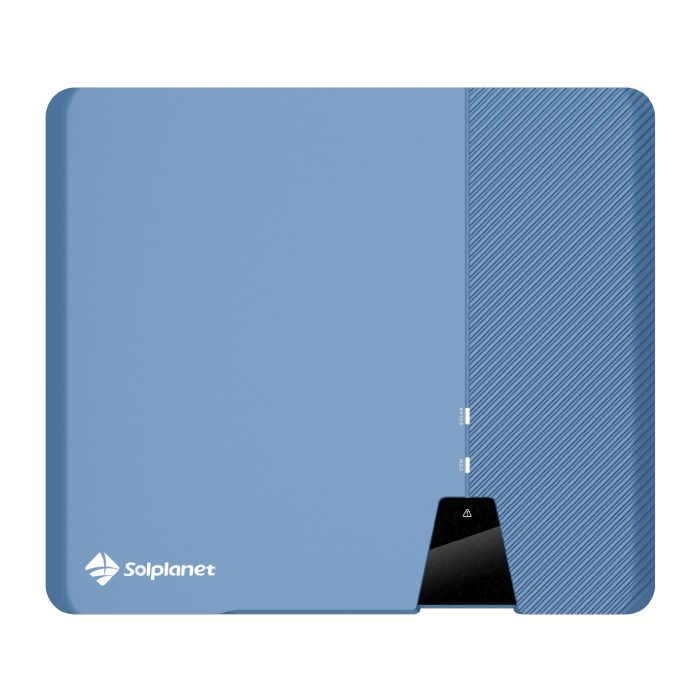

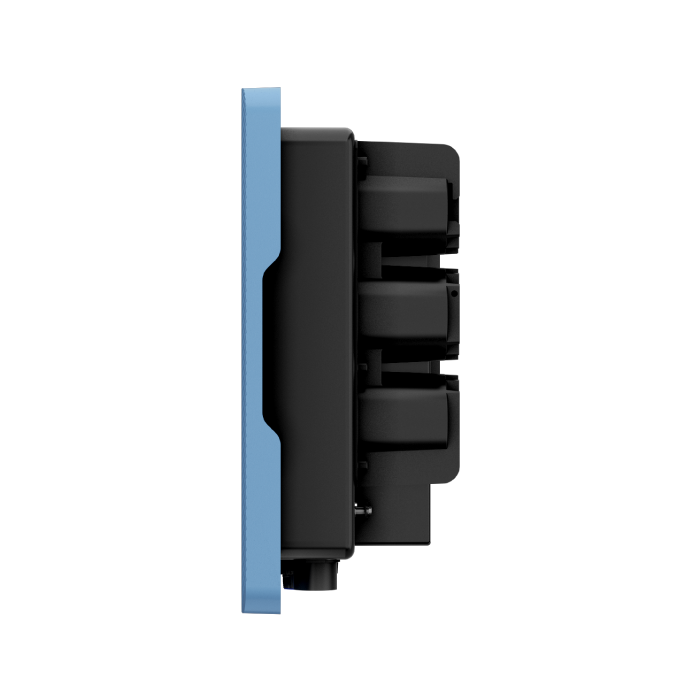

ASW15K-LTG2-A | 15kW | Three Phase | 3 MPPT | string Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
Easy-to-install
Quick to install with basic tools, featuring a compact wall-mount design and fast setup and commissioning via Solplanet apps.
Reliable
Complies with international quality standards, supports 150% PV array oversizing for higher energy yields, and features an IP66-rated design for dependable outdoor use.
User-friendly
Features a user-friendly app interface, 13 A input current—ideal for bifacial and large-area PV modules—and a wide MPP voltage range of 150V–1000V. ShadeSol technology ensures optimal performance even in shaded conditions.

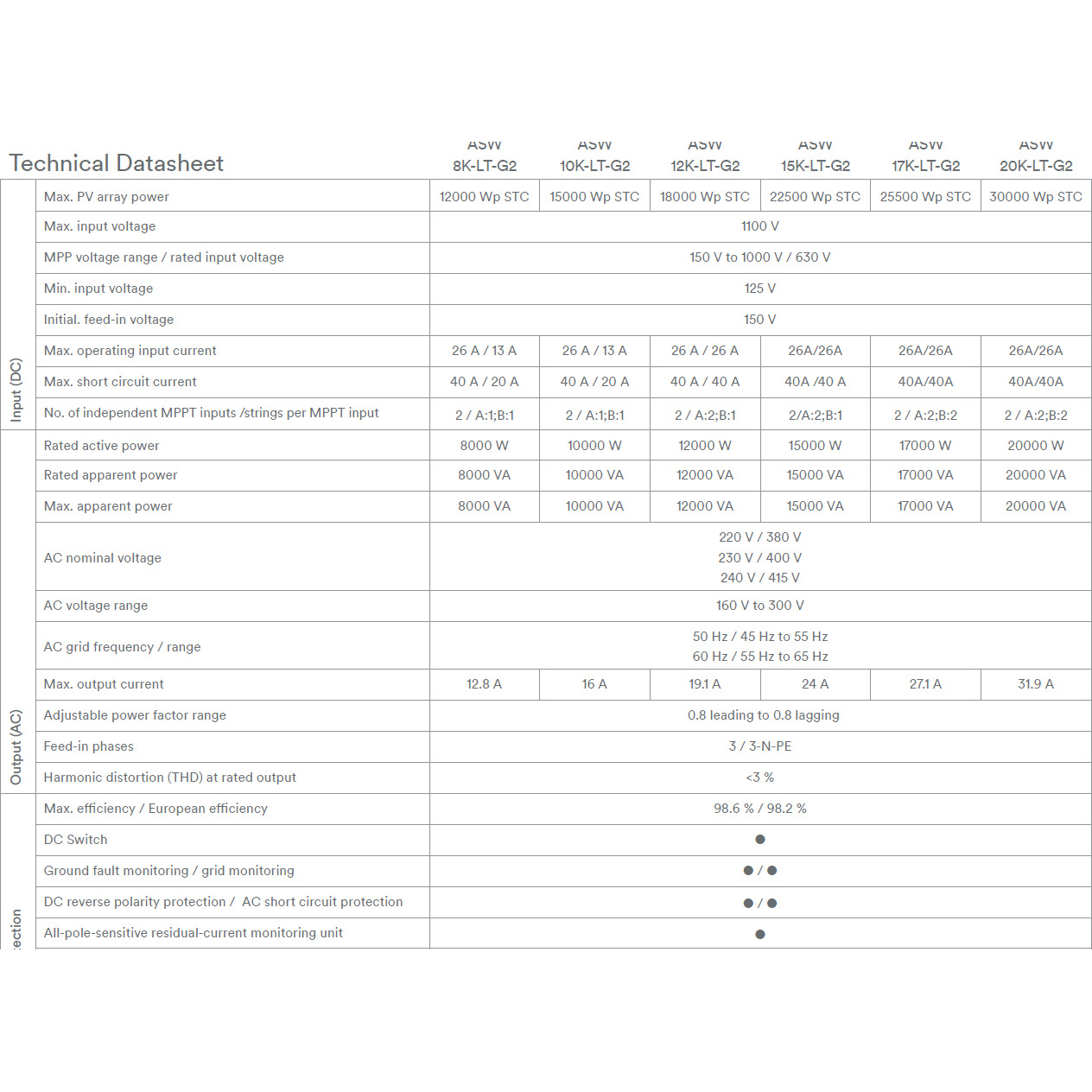

Technical Datasheet
Input (DC)
Max. PV array power: 22500 Wp STC
Max. input voltage: 1100 V
MPP voltage range / rated input voltage: 150 V to 1000 V / 630 V
Min. input voltage: 125V
Initial. feed-in voltage: 150V
Max. operating input current: 26 A / 26 A
Max. short circuit current: 40 A / 40 A
No. of independent MPPT inputs /strings per MPPT input: 2/A:2;B:1
Output (AC)
Rated active power: 15000 W
Rated apparent power: 15000 VA
Max. apparent power: 15000 VA
AC nominal voltage: 220 V / 380 V, 230 V / 400 V, 240 V / 415 V
AC voltage range: 160 V to 300 V
AC grid frequency / range: 50 Hz / 45 Hz to 55 Hz, 60 Hz / 55 Hz to 65 Hz
Max. output current: 24A
Adjustable power factor range: 0.8 leading to 0.8 lagging
Feed-in phases: 3 / 3-N-PE
Harmonic distortion (THD) at rated output: < 3 %

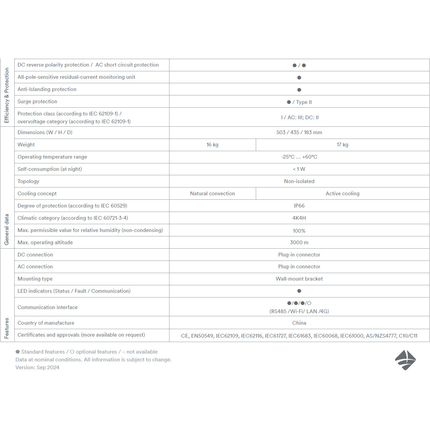

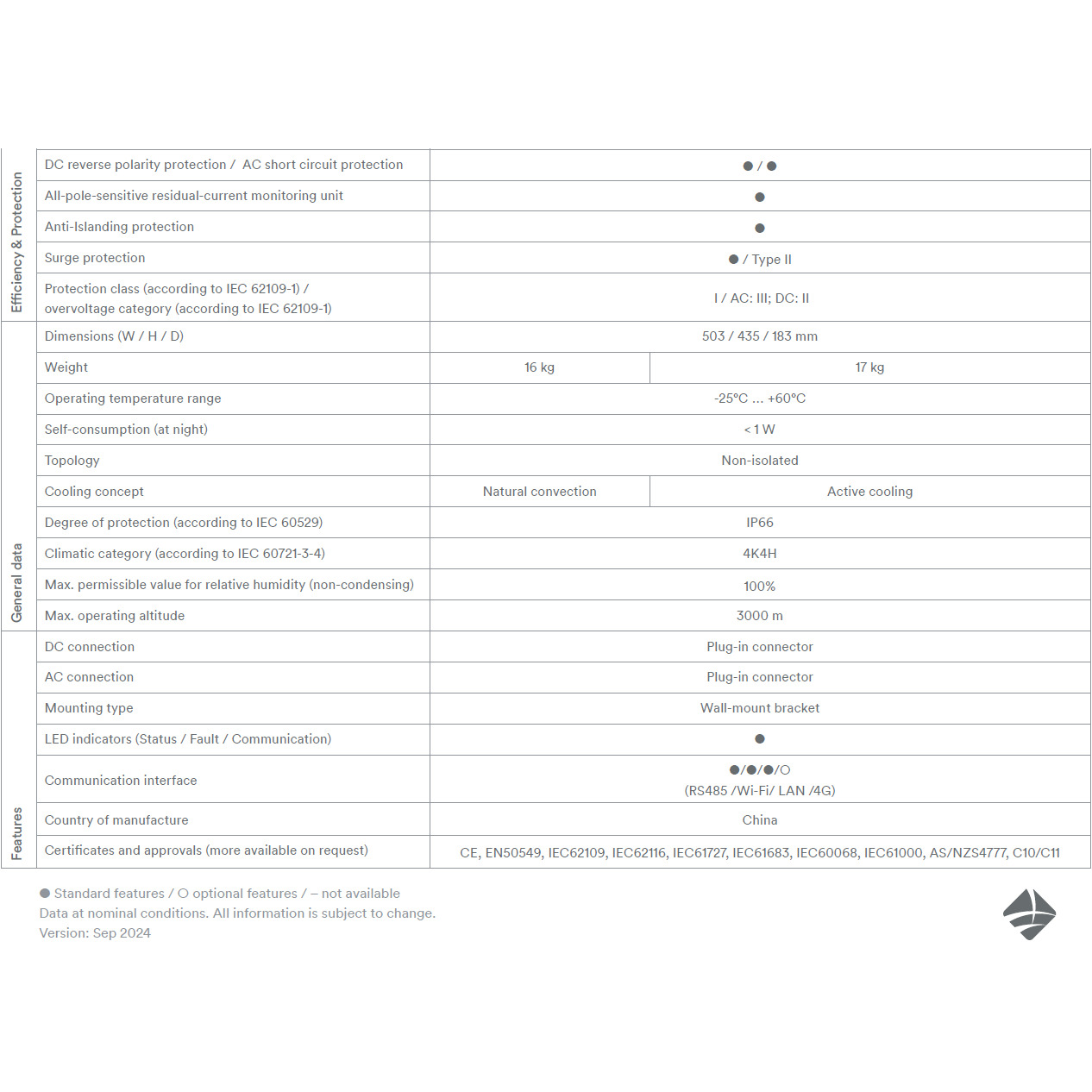

General data
Dimensions (W / H / D): 503 / 435 / 183 mm
Weight: 17kg
Self-consumption (at night): < 1 W
Topology: Non-isolated
Cooling concept: Active cooling
Degree of protection (according to IEC 60529): IP66
Climatic category (according to IEC 60721-3-4): 4K4H
Max. permissible value for relative humidity (non-condensing): 100%
Max. operating altitude: 3000m
