**Vector Approved Inverter**
**10-Year Warranty**

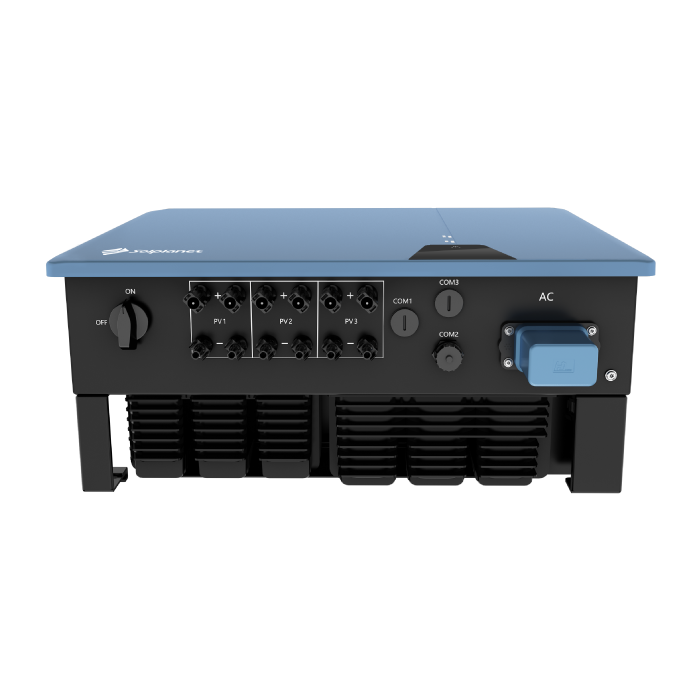

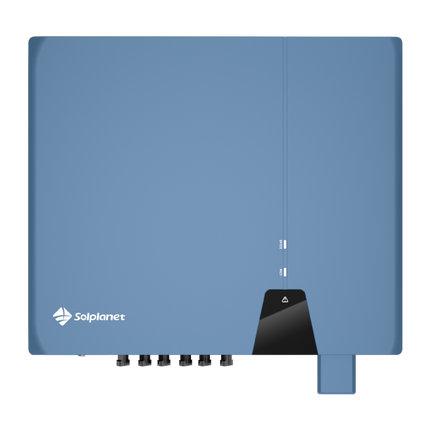

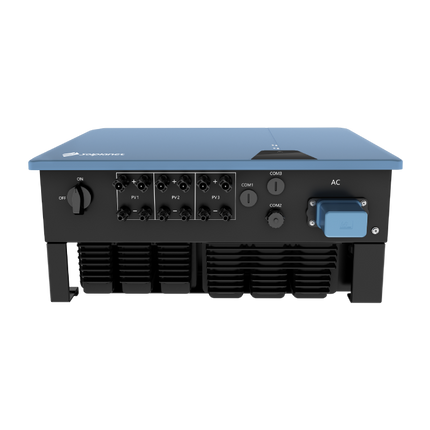

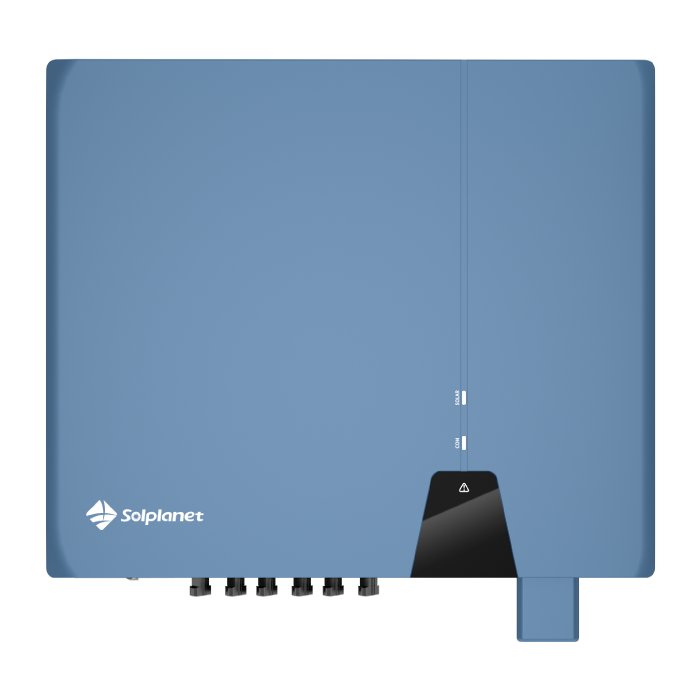

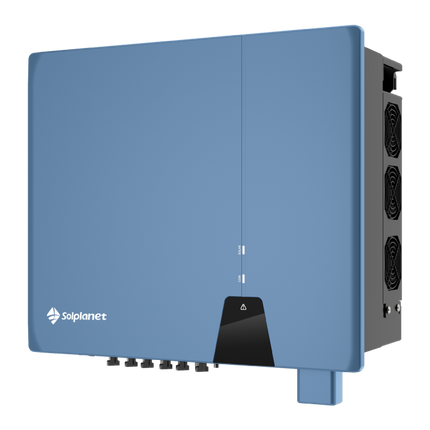

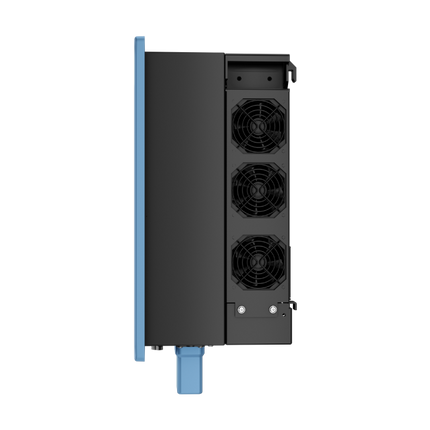

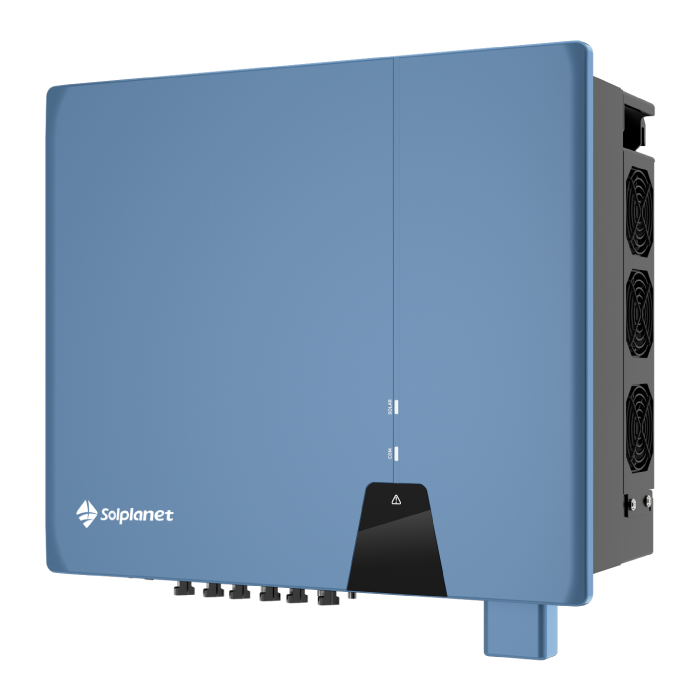

ASW30K-LT-G3 | 30kW | Three Phase | 3 MPPT | string Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
Easy-to-install
Quick to install with basic tools, featuring a compact wall-mount design and fast setup and commissioning via Solplanet apps.
Reliable
Complies with international quality standards, supports 150% PV array oversizing for higher energy yields, and features an IP66-rated design for dependable outdoor use.
User-friendly
Supports 20 A input current—ideal for bifacial and large-area PV modules—with 3 MPPTs for flexible system design. A wide MPP voltage range (180V–1000V) and ShadeSol technology ensure optimal performance, even in shaded conditions.

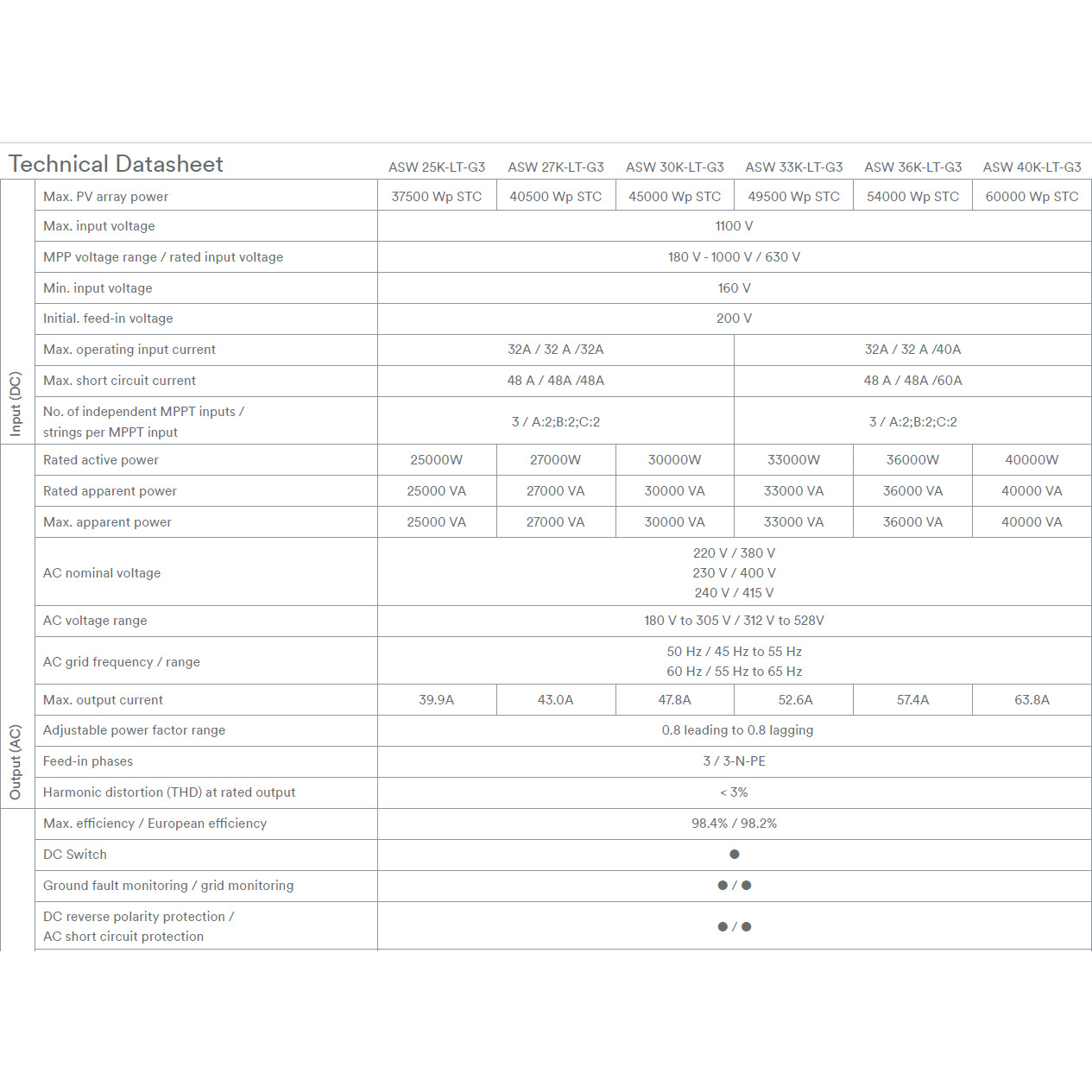

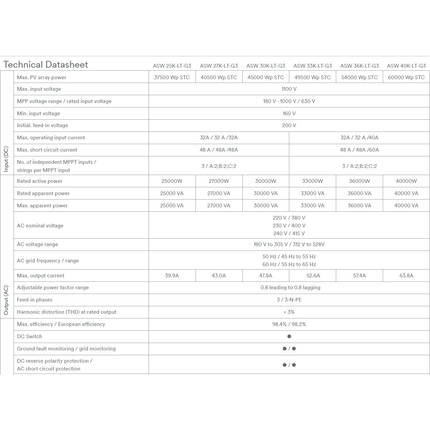

Technical Datasheet
Input (DC)
Max. PV array power: 45000 Wp STC
Max. input voltage: 1100V
MPP voltage range / rated input voltage: 180 V - 1000 V / 630 V
Min. input voltage: 160V
Initial. feed-in voltage: 200V
Max. operating input current: 32A / 32 A /32A
Max. short circuit current: 48 A / 48A /48A
No. of independent MPPT inputs / strings per MPPT input: 3 / A:2;B:2;C:2
Output (AC)
Rated active power: 30000W
Rated apparent power: 30000 VA
Max. apparent power: 30000 VA
AC nominal voltage: 220 V / 380 V, 230 V / 400 V, 240 V / 415 V
AC voltage range: 180 V to 305 V / 312 V to 528V
AC grid frequency / range: 50 Hz / 45 Hz to 55 Hz, 60 Hz / 55 Hz to 65 Hz
Max. output current: 47.8A
Adjustable power factor range: 0.8 leading to 0.8 lagging
Feed-in phases: 3 / 3-N-PE
Harmonic distortion (THD) at rated output: < 3%

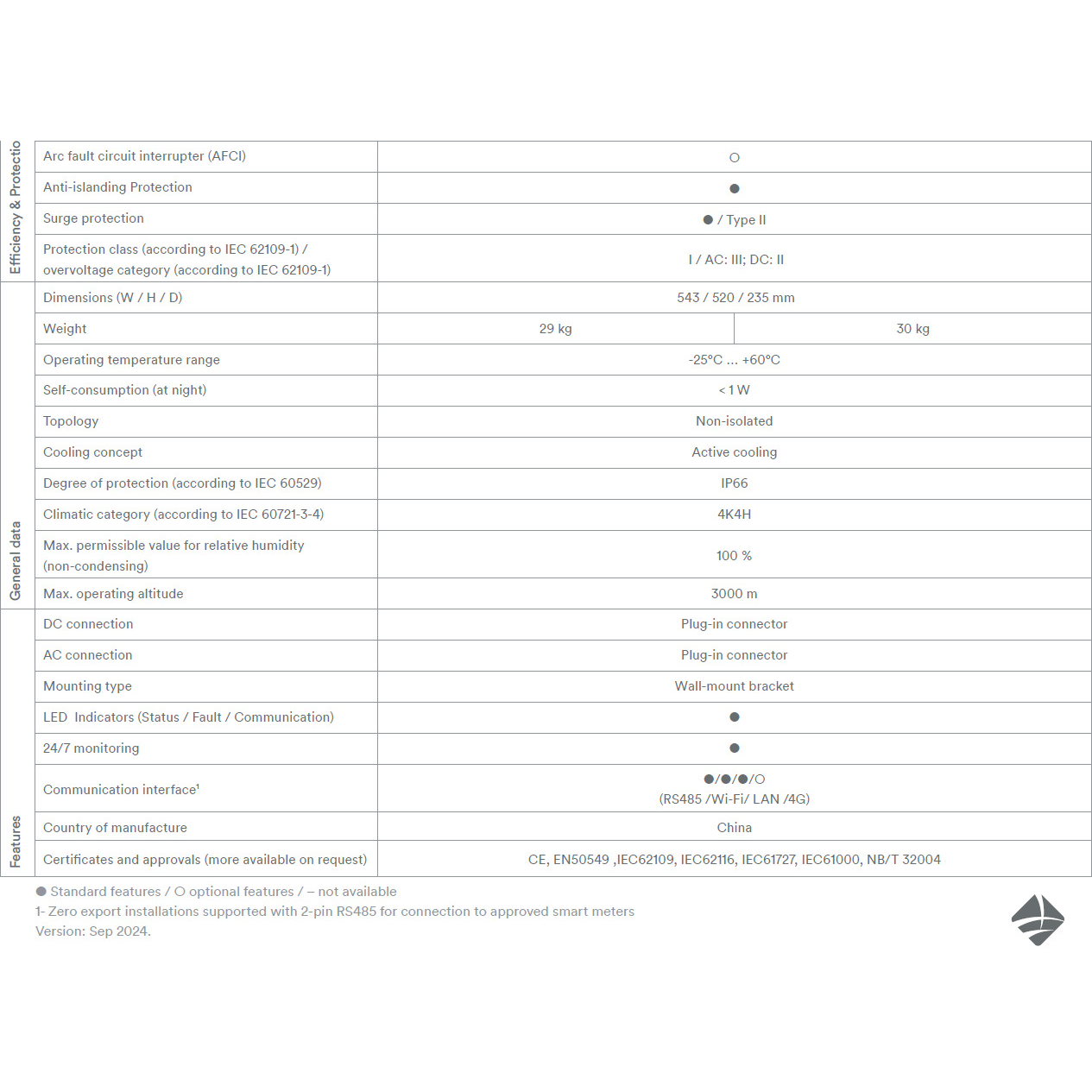

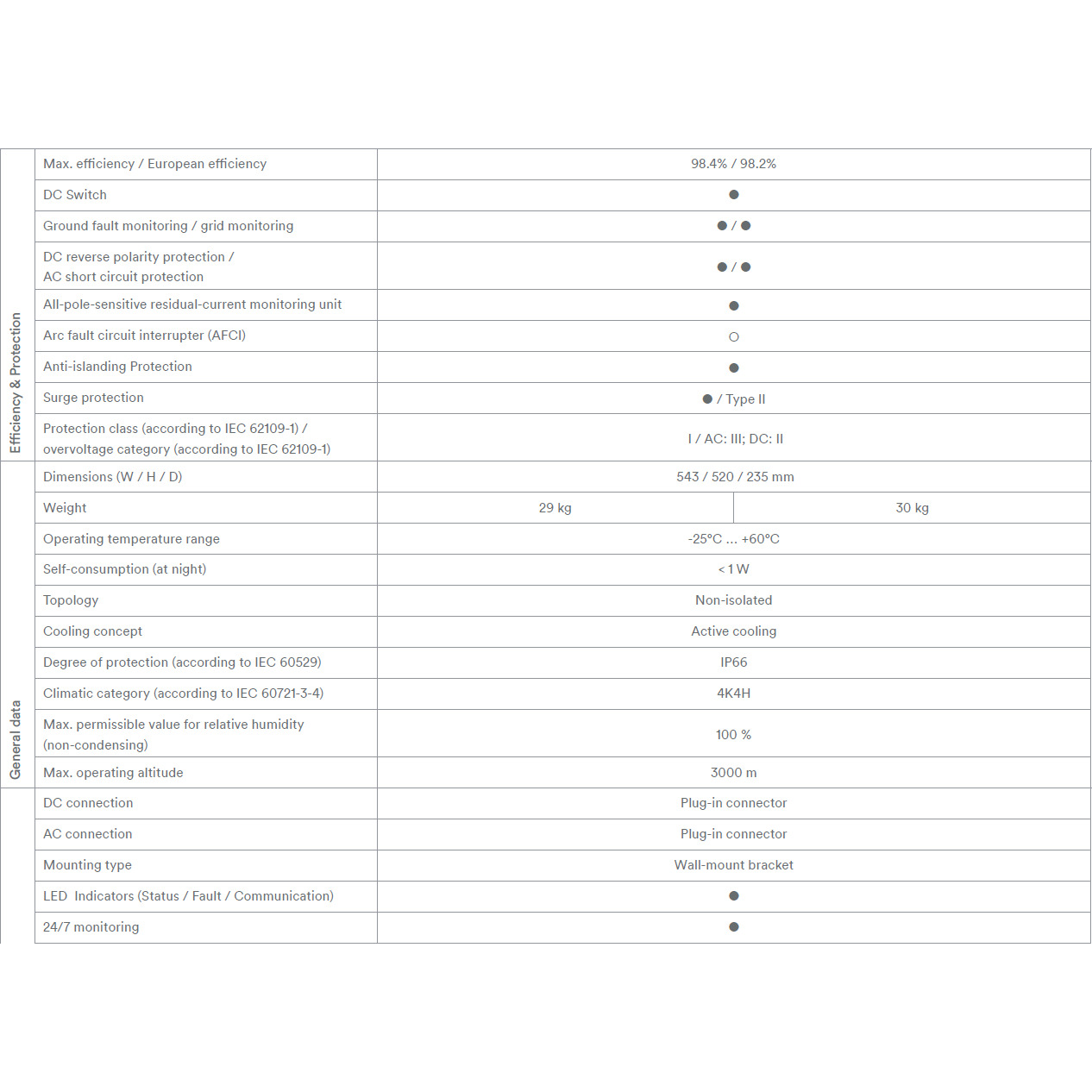

General data
Dimensions (W / H / D): 543 / 520 / 235 mm
Weight: 29kg
Self-consumption (at night): < 1 W
Topology: Non-isolated

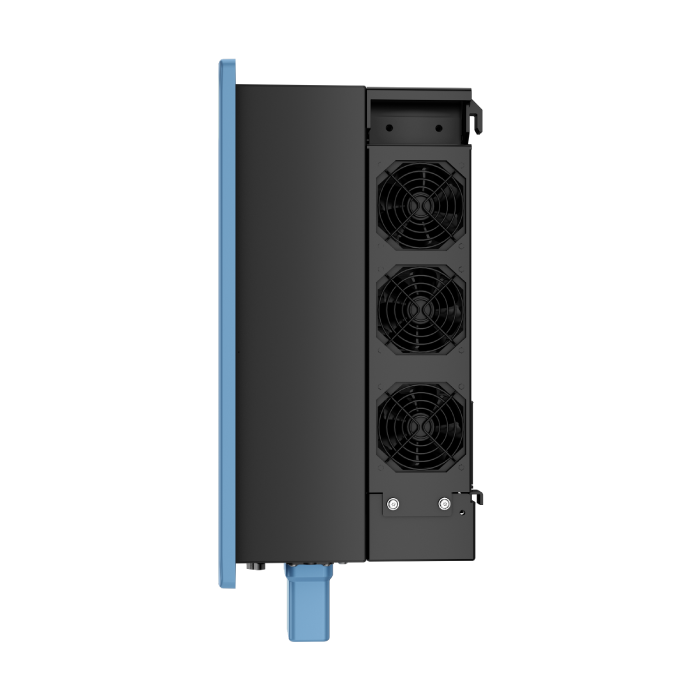

Cooling concept: Active cooling
Degree of protection (according to IEC 60529): IP66
Climatic category (according to IEC 60721-3-4): 4K4H
Max. operating altitude: 3000 m
