**Vector Approved Inverter**
**10-Year Warranty**

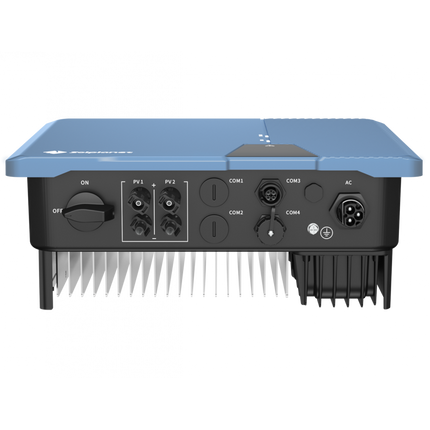

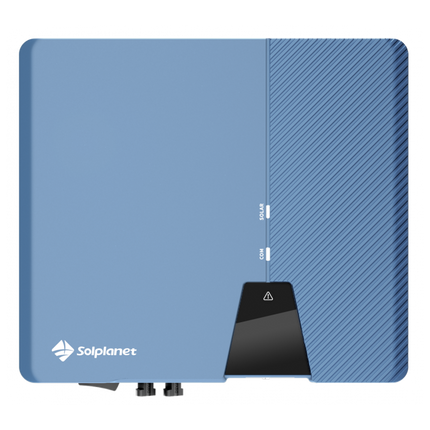

ASW5000-S-G2 | 5kW | Single Phase | 3 MPPT | string Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
Easy-to-install
Quick to install with basic tools, featuring a compact wall-mount design and fast setup and commissioning via Solplanet apps.
Reliable
Complies with international quality standards, supports 150% PV array oversizing for higher energy yields, and features an IP66-rated design for dependable outdoor use.
User-friendly
Features a user-friendly app interface, 13 A input current—ideal for bifacial and large-area PV modules—and a wide MPP voltage range of 150V–1000V. ShadeSol technology ensures optimal performance even in shaded conditions.

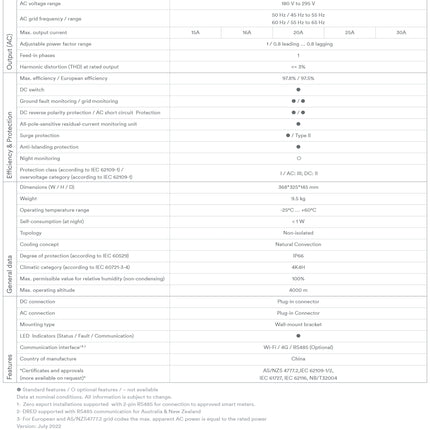

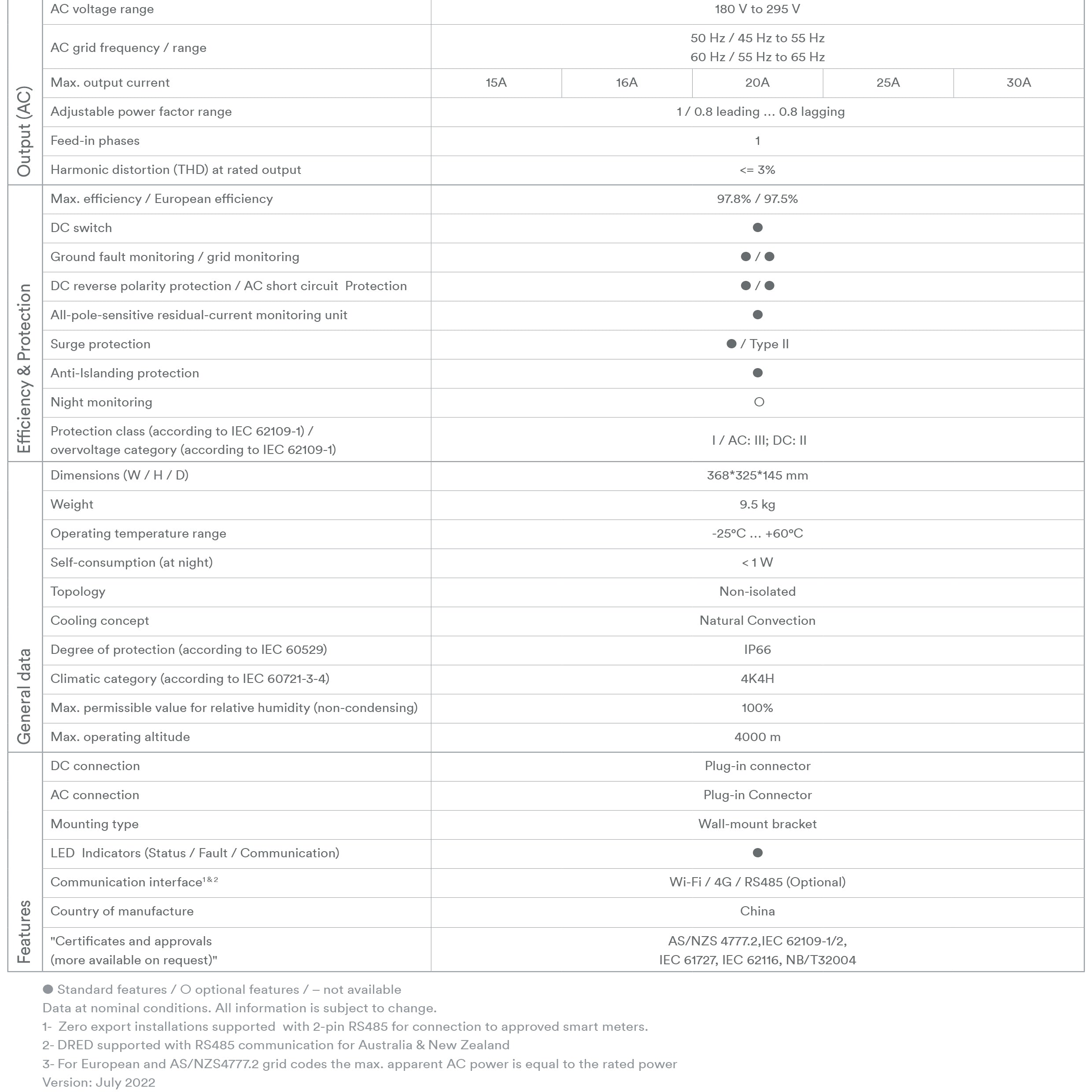

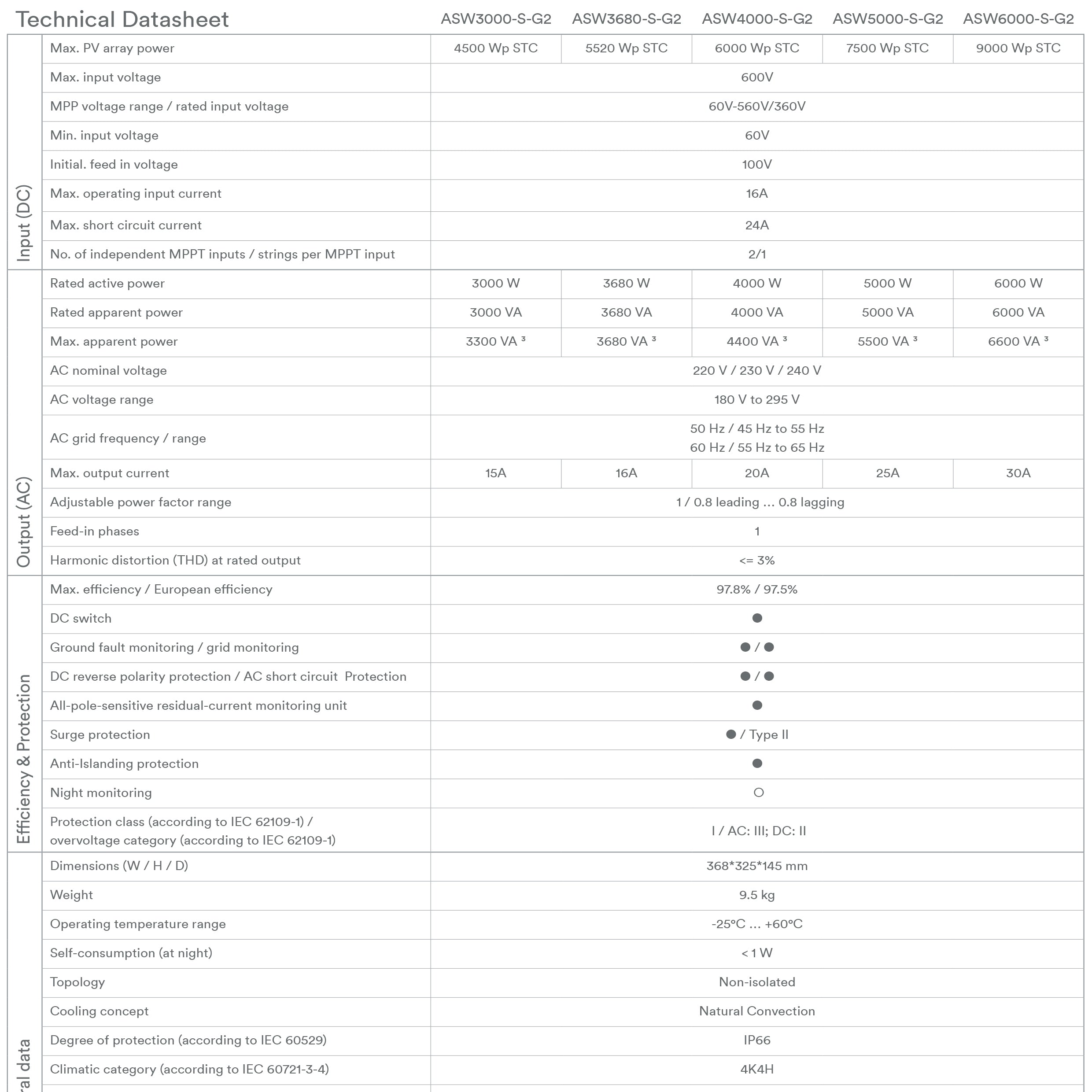

Technical Datasheet
Input (DC)
Max. PV array power: 7500 Wp STC
Max. input voltage: 600 V
MPP voltage range / rated input voltage: 60V-560V/360V
Min. input voltage: 60V
Initial. feed-in voltage: 100V
Max. operating input current: 16A
Max. short circuit current: 24A
No. of independent MPPT inputs /strings per MPPT input: 2/1
Output (AC)
Rated active power: 5000 W
Rated apparent power: 5000 VA
Max. apparent power: 5000 VA
AC nominal voltage: 220 V / 230 V / 240 V
AC voltage range: 180 V to 295 V
AC grid frequency / range: 50 Hz / 45 Hz to 55 Hz, 60 Hz / 55 Hz to 65 Hz
Max. output current: 25A
Adjustable power factor range: 1 / 0.8 leading … 0.8 lagging
Feed-in phases: 1
Harmonic distortion (THD) at rated output: < 3 %
General data
Dimensions (W / H / D): 368 / 325 / 145 mm
Weight: 9.5kg
Self-consumption (at night): < 1 W
Topology: Non-isolated
Cooling concept: Natural Convection
Degree of protection (according to IEC 60529): IP66
Climatic category (according to IEC 60721-3-4): 4K4H
Max. permissible value for relative humidity (non-condensing): 100%
Max. operating altitude: 4000m
