**Vector Approved Inverter**
**10-Year Warranty**

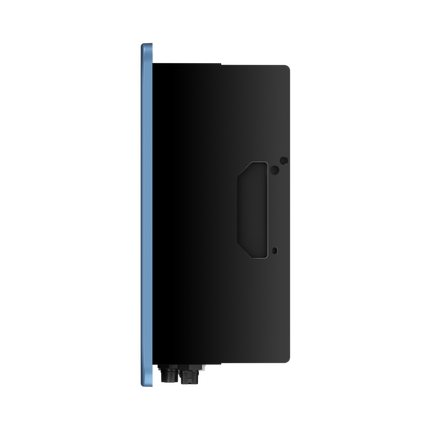

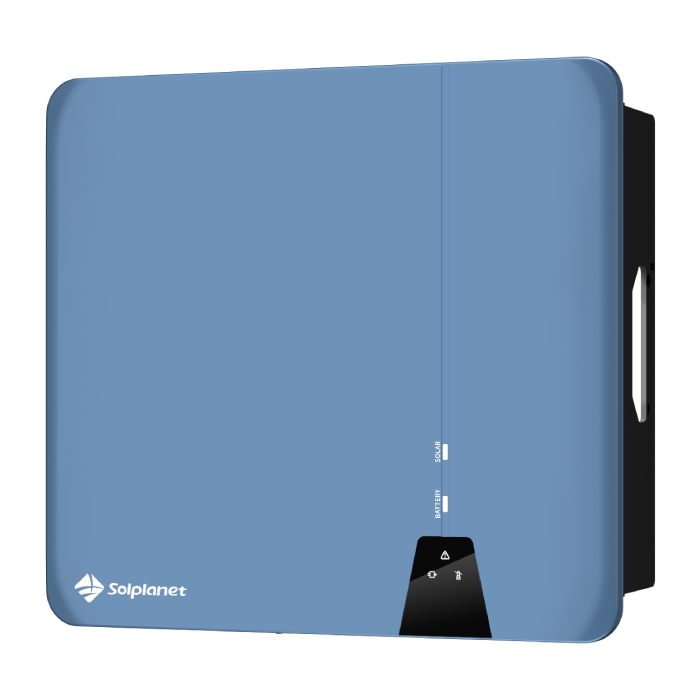

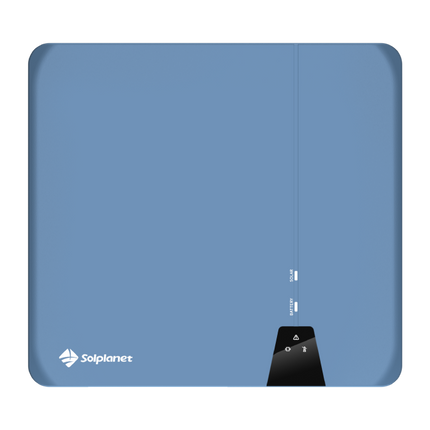

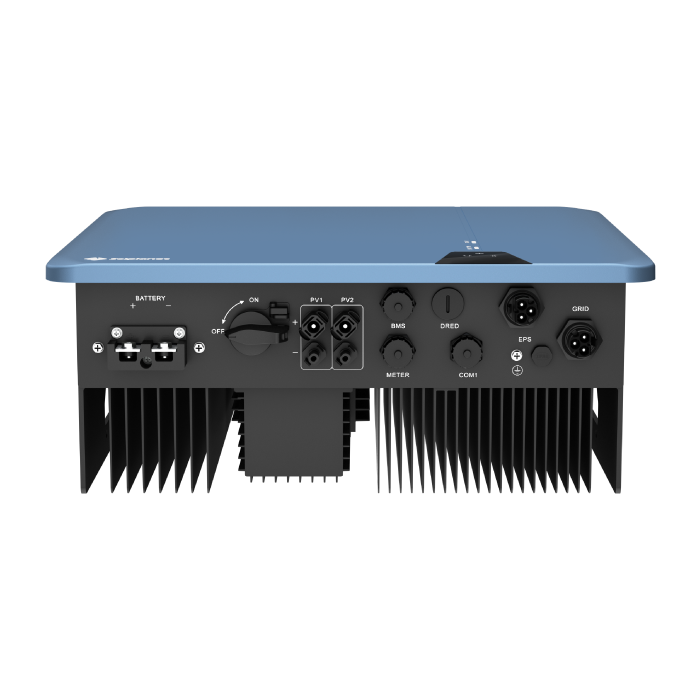

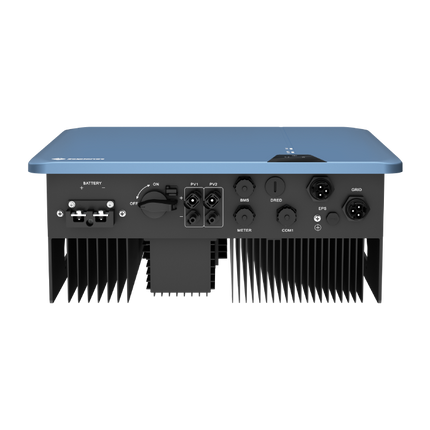

ASW5000H-S2 | 5kW | Single Phase | 1 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
Easy-to-install
Quick and easy to install with standard tools, featuring a compact wall-mount design and smart setup, commissioning, and monitoring via the Solplanet App.
Safe & reliable
Smart energy management with UPS capability for backup power during blackouts and an IP66-rated design for both indoor and outdoor installation.
User-friendly
User-friendly app interface with ShadeSol technology for improved energy generation in shaded or non-ideal conditions.

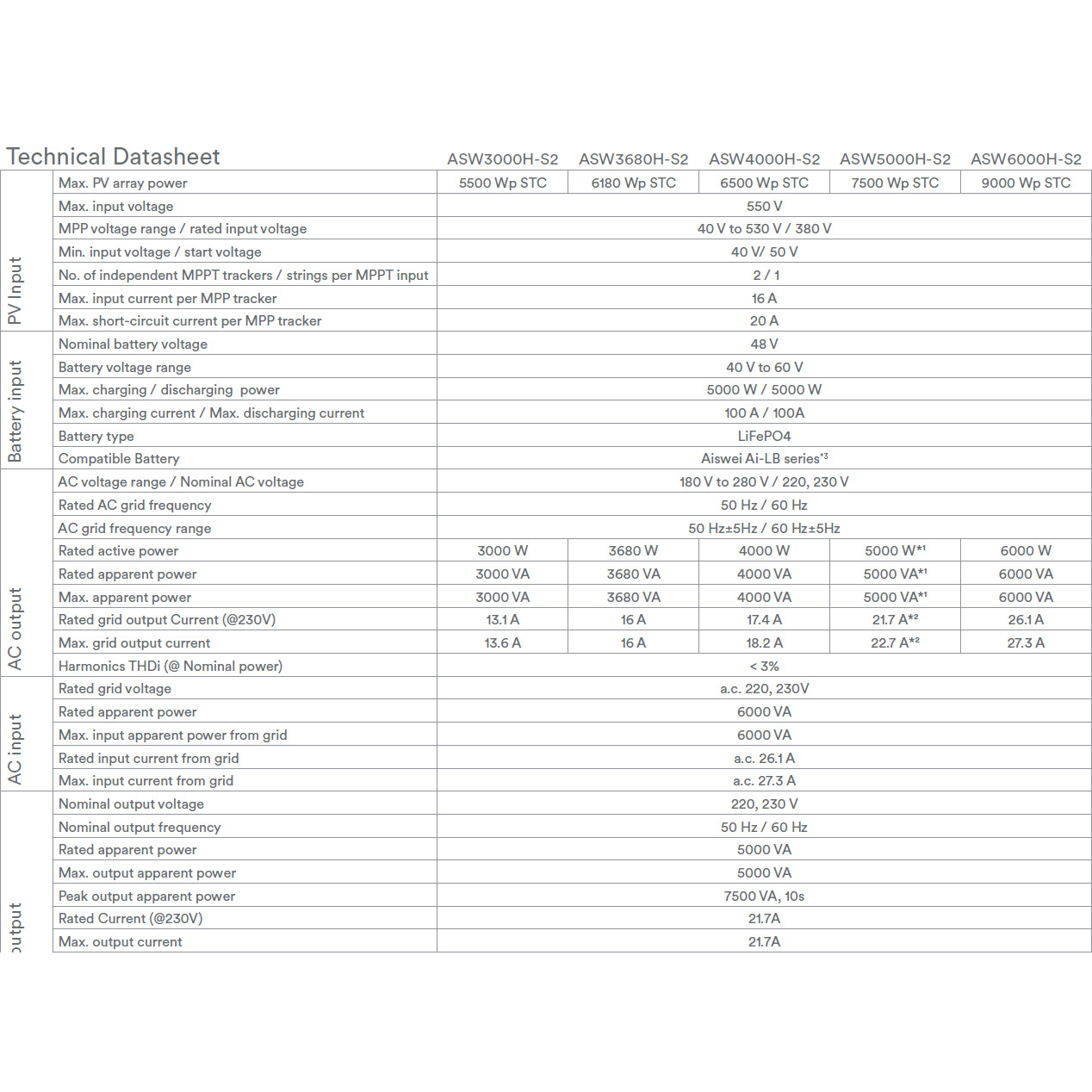

PV Input
Max. PV array power: 7500 Wp STC
Max. input voltage: 550V
MPP voltage range / rated input voltage: 40V to 530V/380V
Min. input voltage / start voltage: 40V/50V
No. of independent MPPT trackers / strings per MPPT input: 2/1
Max. input current per MPP tracker: 16A
Max. short-circuit current per MPP tracker: 20A
Battery input
Nominal battery voltage: 48V
Battery voltage range: 40 V to 60 V
Max. charging / discharging power: 5000W/5000W
Max. charging current / Max. discharging current: 100A/100A
Battery type: LiFePO4
Compatible Battery: Aiswei Ai-LB series*3
AC output
AC voltage range / Nominal AC voltage: 180 V to 280 V / 220, 230 V
Rated AC grid frequency: 50 Hz / 60 Hz
AC grid frequency range: 50 Hz +- 5Hz / 60 Hz +- 5Hz
Rated active power: 5000 W
Rated apparent power: 5000VA
Max. apparent power: 5000VA
Rated grid output Current (@230V): 21.7A
Max. grid output current: 22.7A
Harmonics THDi (@ Nominal power): < 3%
AC input
Rated grid voltage: a.c. 220, 230V
Rated apparent power: 6000 VA
Max. input apparent power from grid: 6000VA
Rated input current from grid: a.c. 26.1 A
Max. input current from grid: a.c. 27.3 A

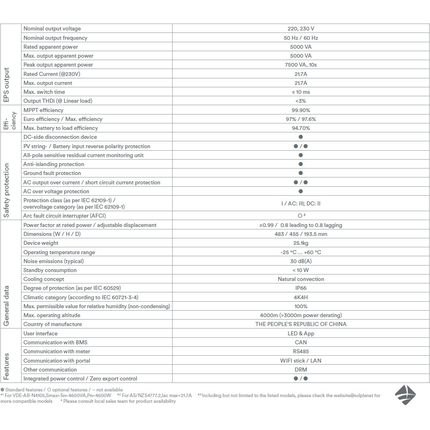

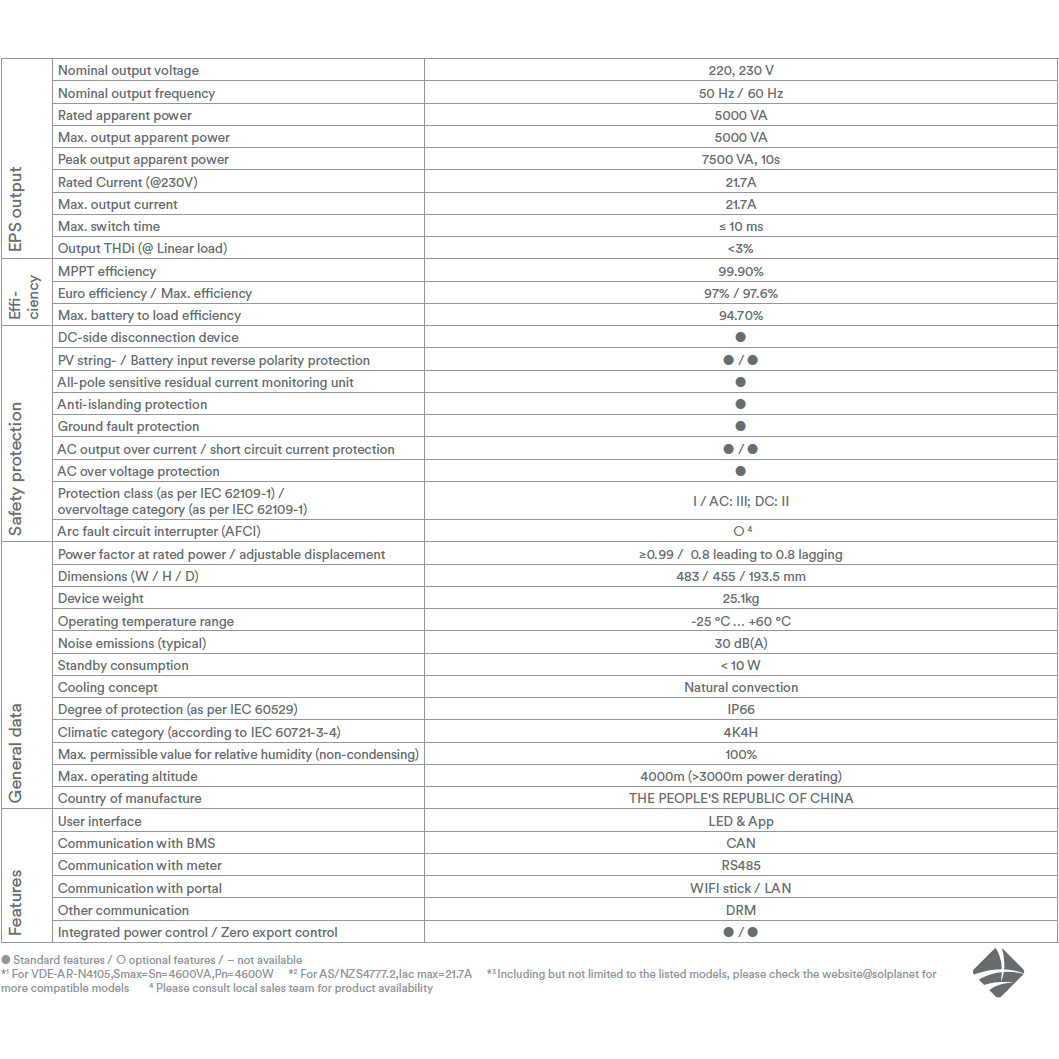

General data
Dimensions (W / H / D): 483 / 455 / 193.5 mm
Device weight: 25.1kg
Noise emissions (typical): 30 dB(A)
Standby consumption: < 10 W
Degree of protection (as per IEC 60529): IP66
