**Vector Approved Inverter**
**10-Year Warranty**

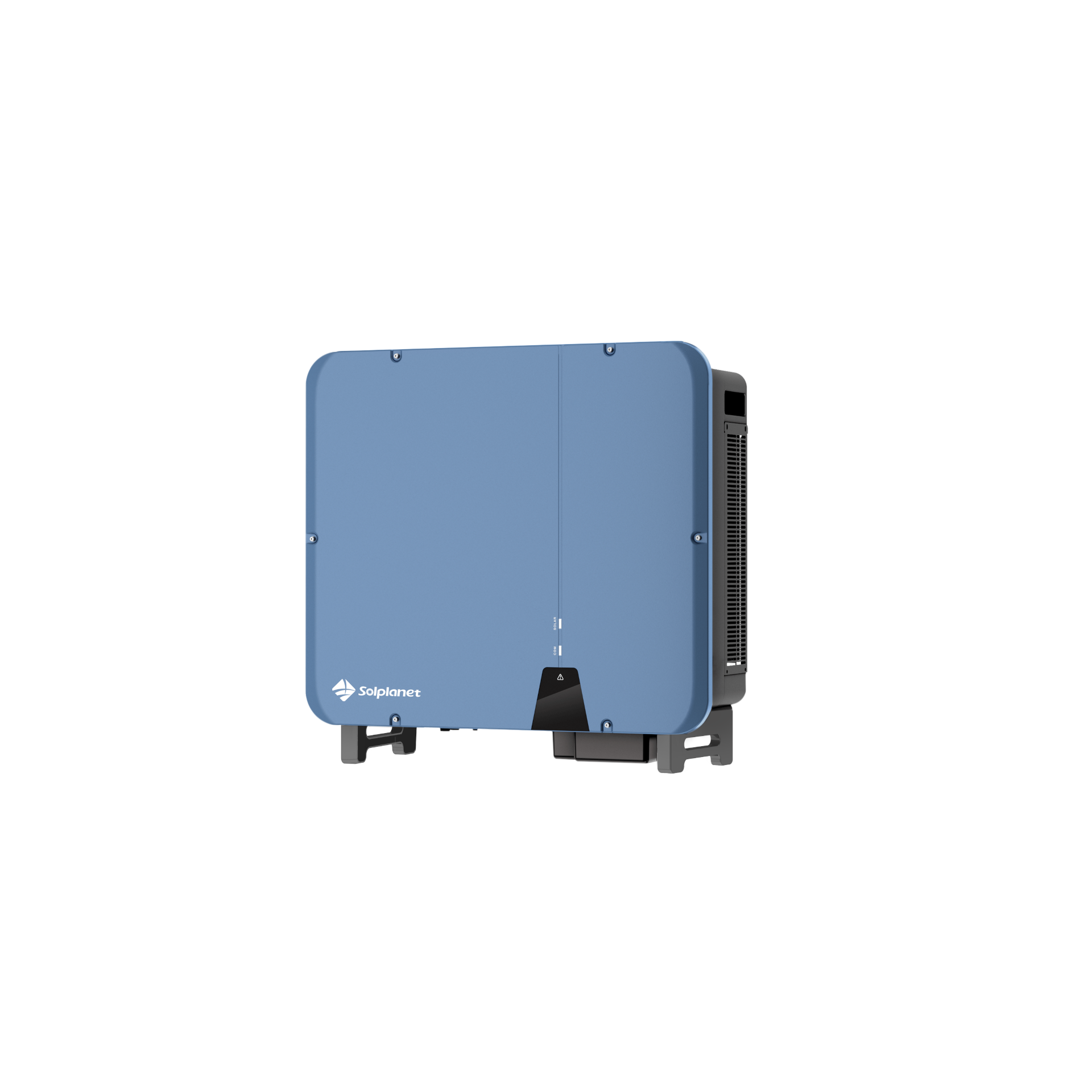

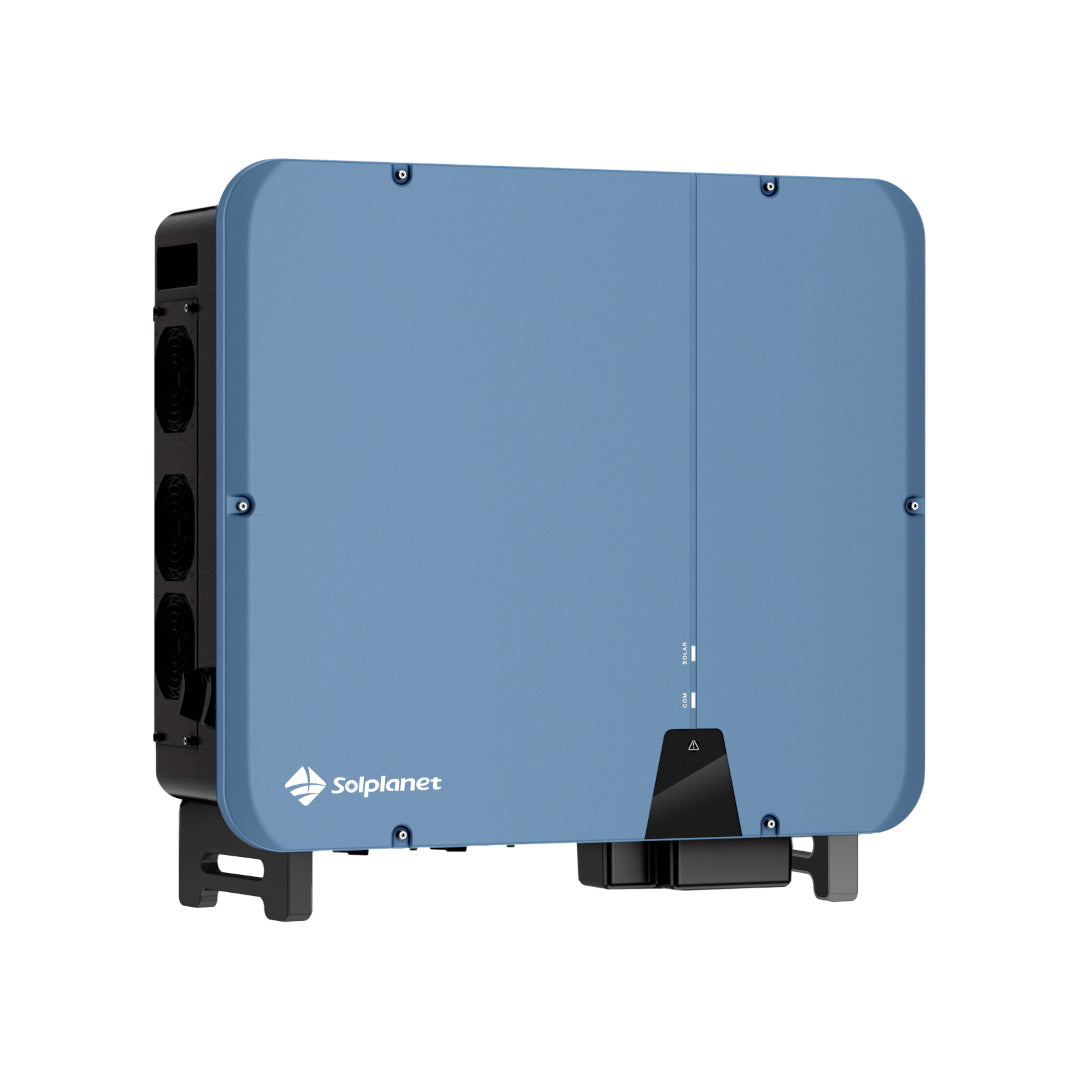

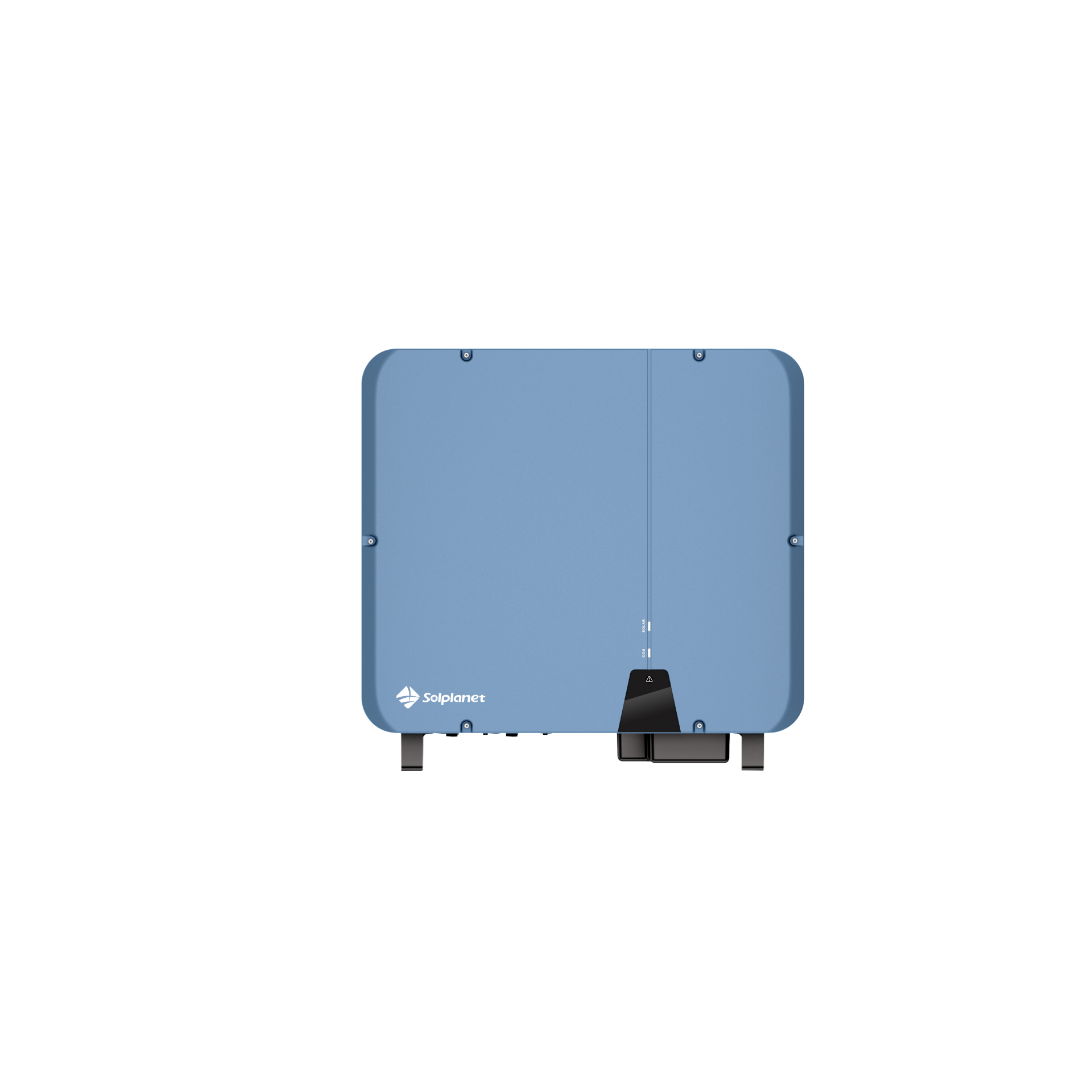

ASW50K-LT-G3 | 50kW | Three Phase | 5 MPPT | string Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
Easy-to-install

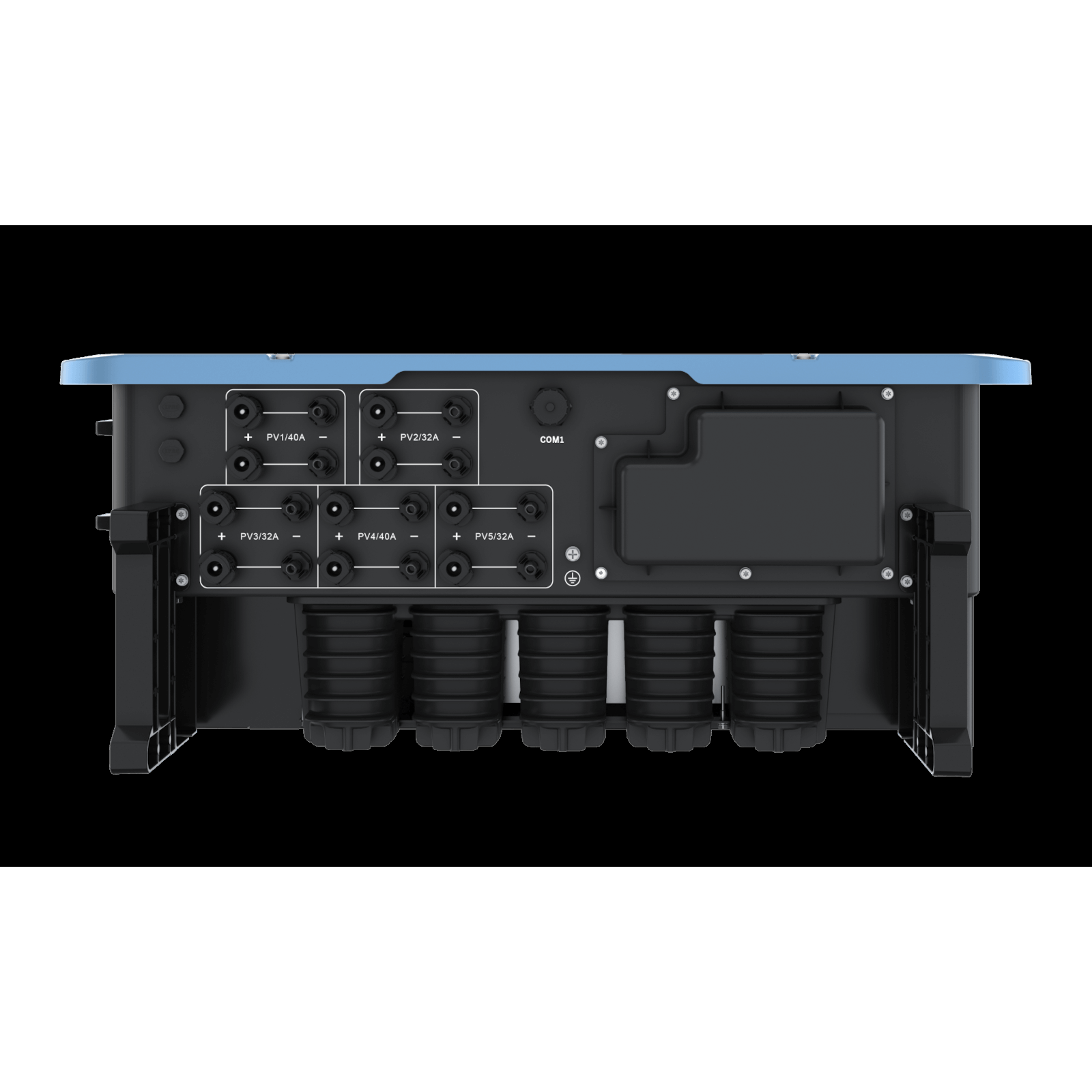

Features Phoenix Contact connectors for reliable, tool-free DC connections, a compact wall-mount design, and a fuse-free architecture to reduce BOS costs. Setup, commissioning, and monitoring are streamlined via the Solplanet app
Higher Yields
Supports 150% PV array oversizing for greater energy yields, with up to 5 MPPTs for flexible system design. Handles up to 20 A input per string—ideal for bifacial and large-area PV modules—and includes ShadeSol for improved performance in shaded conditions.
Reliable & Safe
Built-in Type II AC & DC surge protection with integrated DC switches and an IP66-rated design for reliable outdoor use.

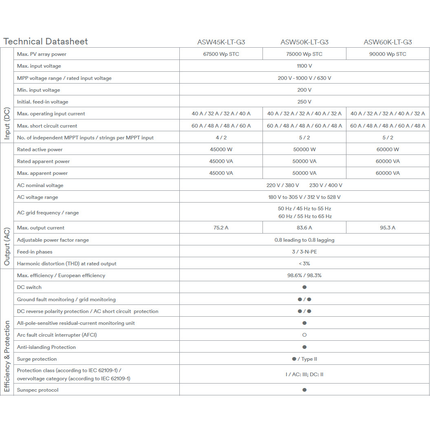

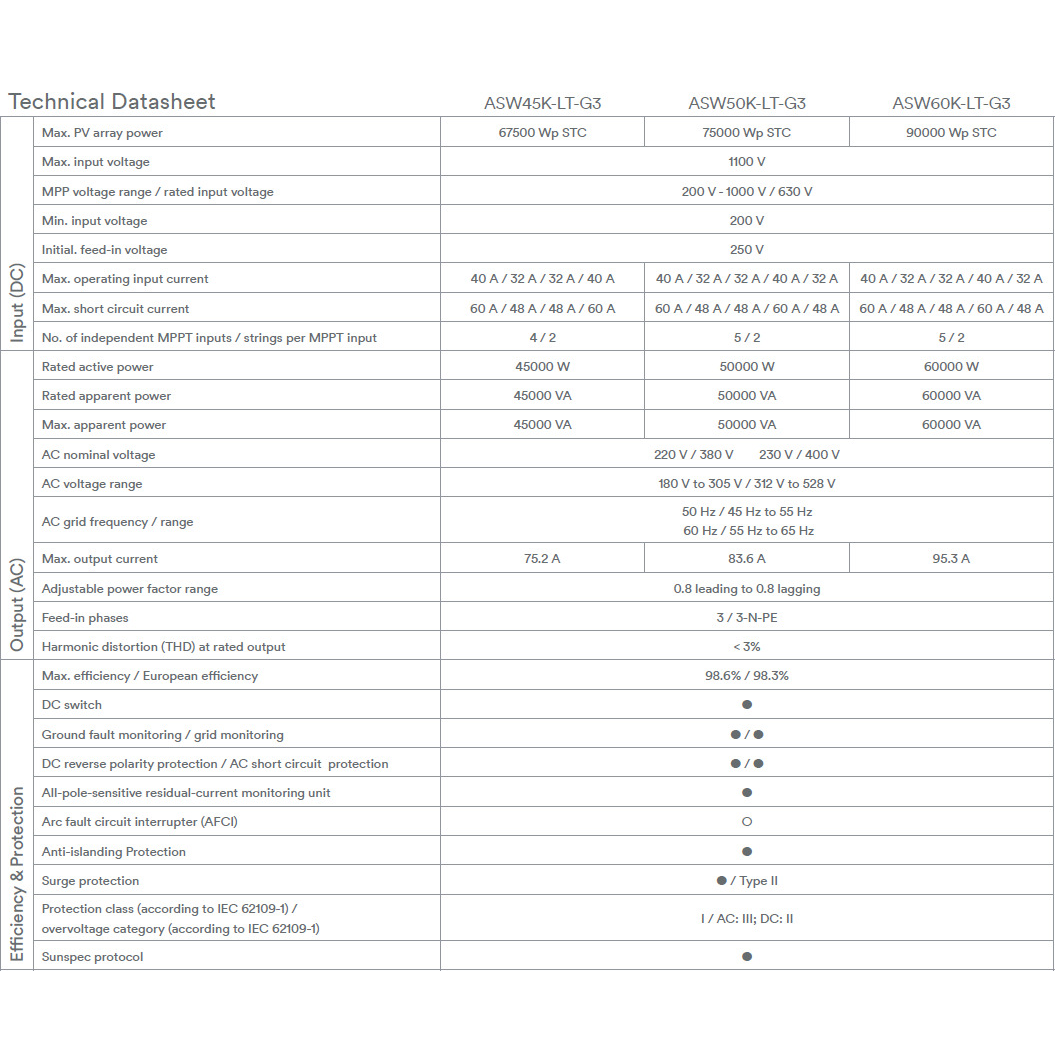

Technical Datasheet
Input (DC)
Max. PV array power: 75000 Wp STC
Max. input voltage: 1100V
MPP voltage range / rated input voltage: 200 V - 1000 V / 630 V
Min. input voltage: 200V
Initial. feed-in voltage: 250V
Max. operating input current: 40 A / 32 A / 32 A / 40 A / 32 A
Max. short circuit current: 60 A / 48 A / 48 A / 60 A / 48 A
No. of independent MPPT inputs / strings per MPPT input: 5/2
Output (AC)
Rated active power: 50000 W
Rated apparent power: 50000 VA
Max. apparent power: 50000 VA
AC nominal voltage: 220 V / 380 V 230 V / 400 V
AC voltage range: 180 V to 305 V / 312 V to 528 V
AC grid frequency / range: 50 Hz / 45 Hz to 55 Hz, 60 Hz / 55 Hz to 65 Hz
Max. output current: 83.6A
Adjustable power factor range: 0.8 leading to 0.8 lagging

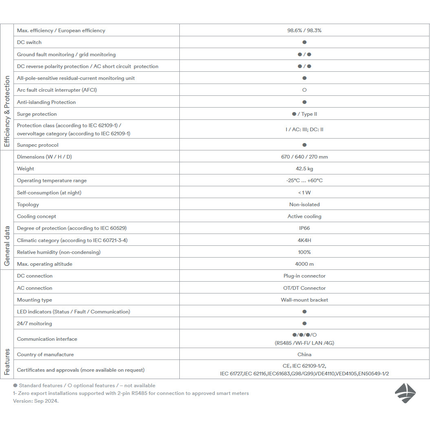

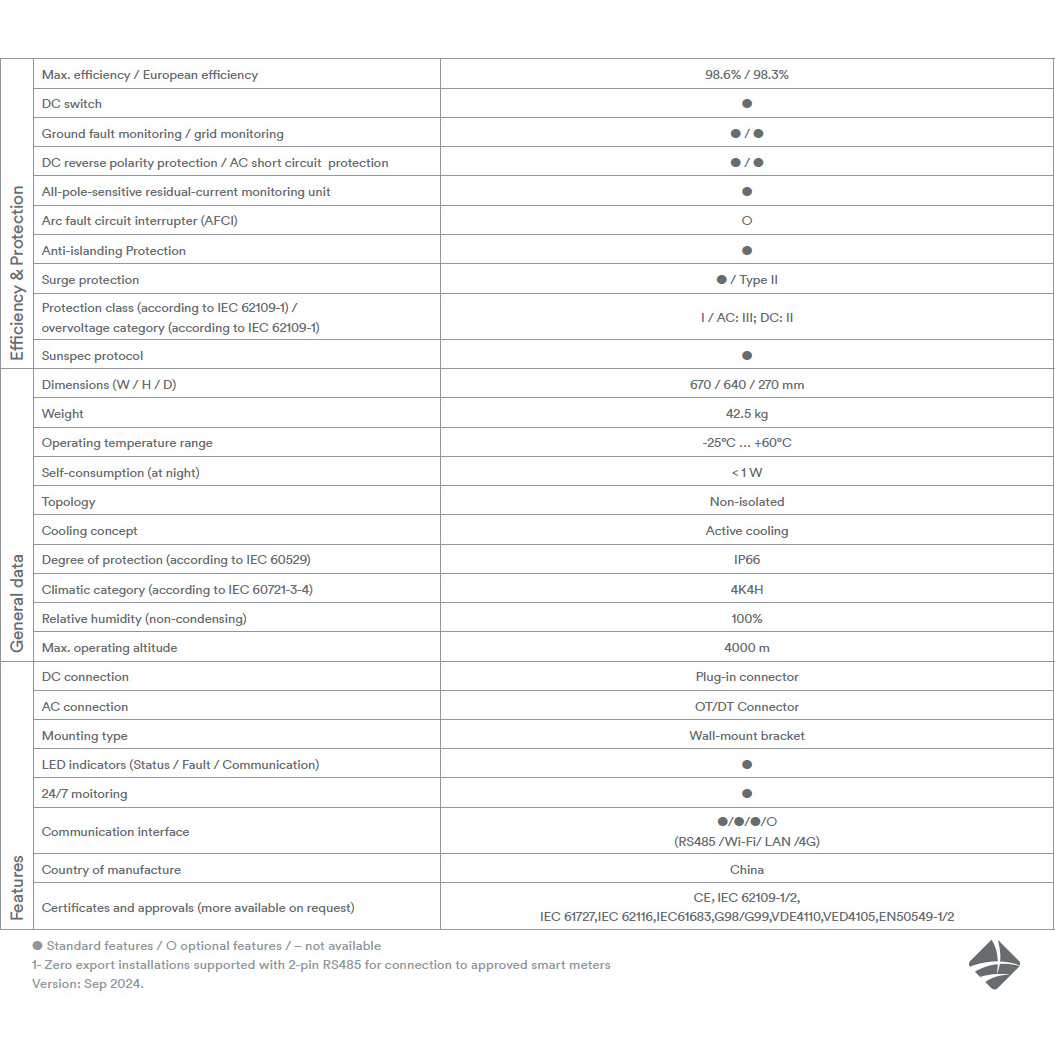

General data
Dimensions (W / H / D): 670 / 640 / 270 mm
Weight: 42.5kg
Degree of protection (according to IEC 60529): IP66
Relative humidity (non-condensing): 100%
Climatic category (according to IEC 60721-3-4): 4K4H
Max. operating altitude: 4000m
