Description

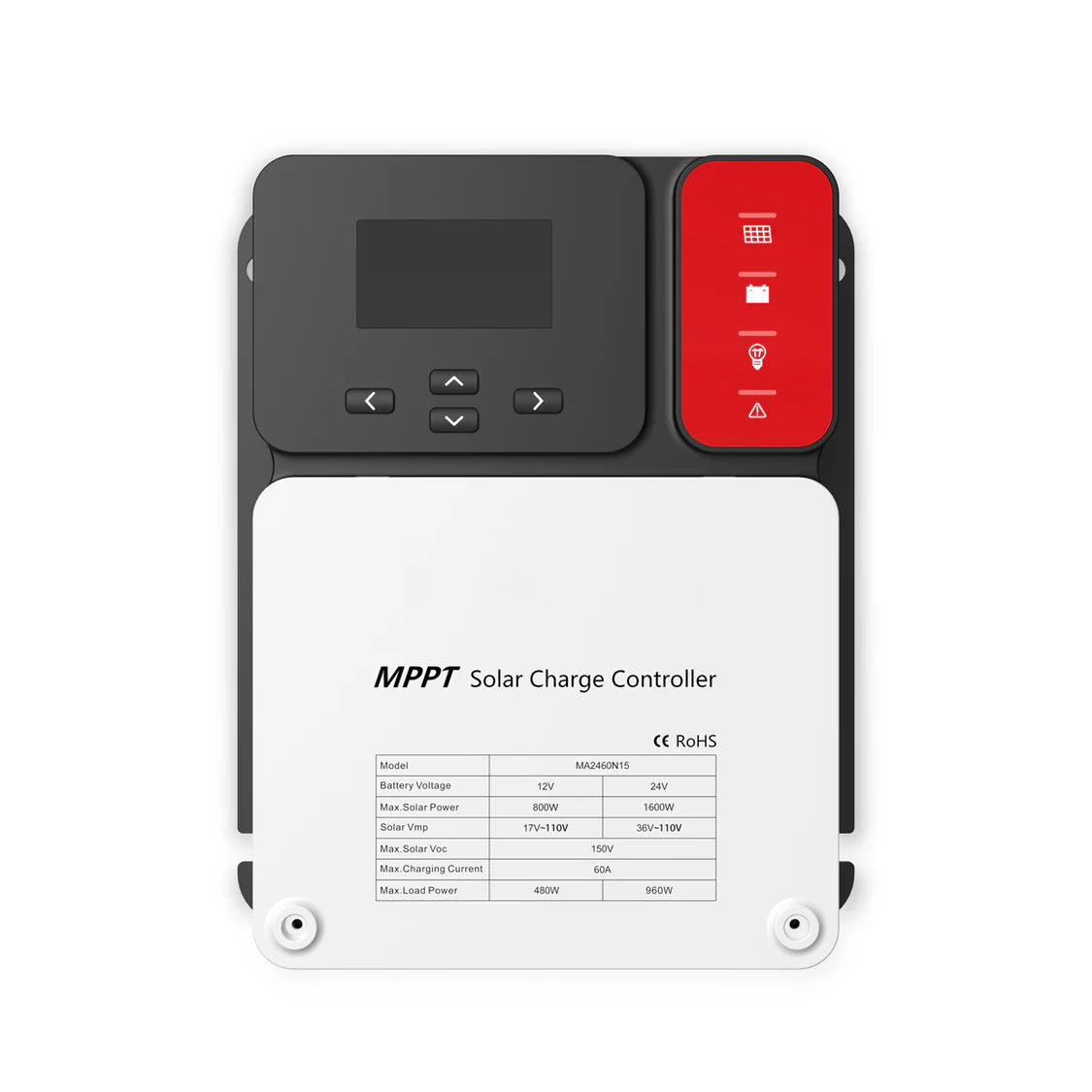

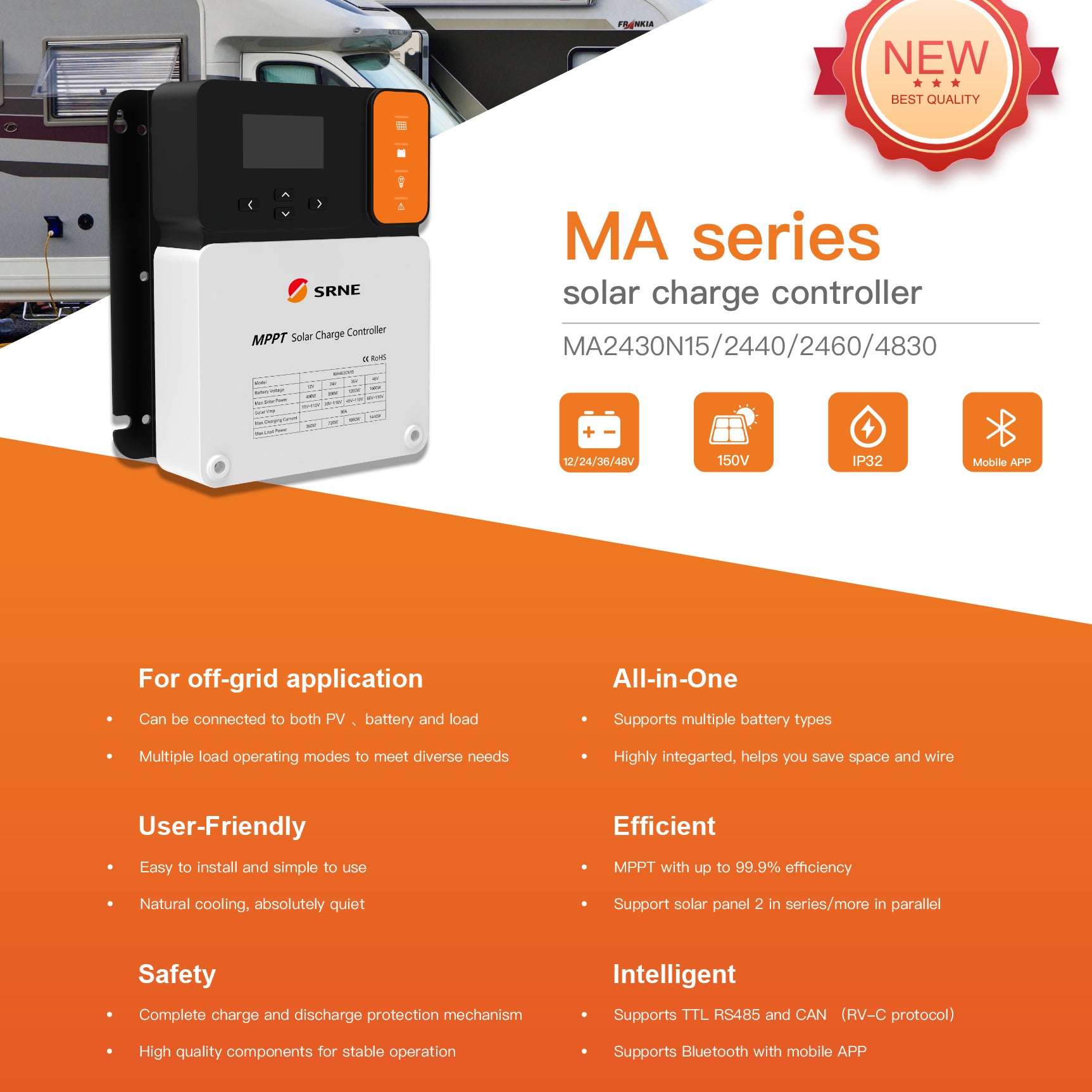

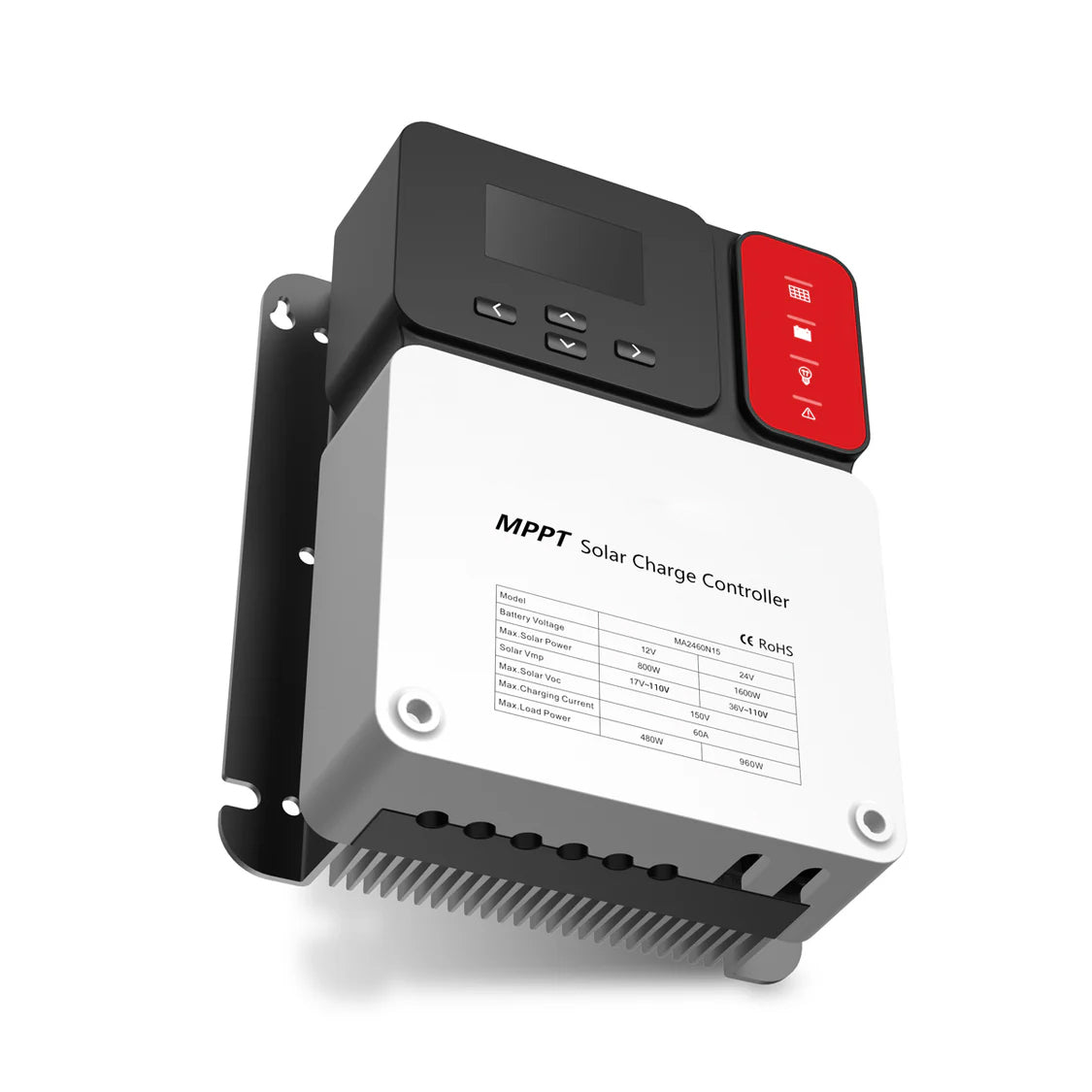

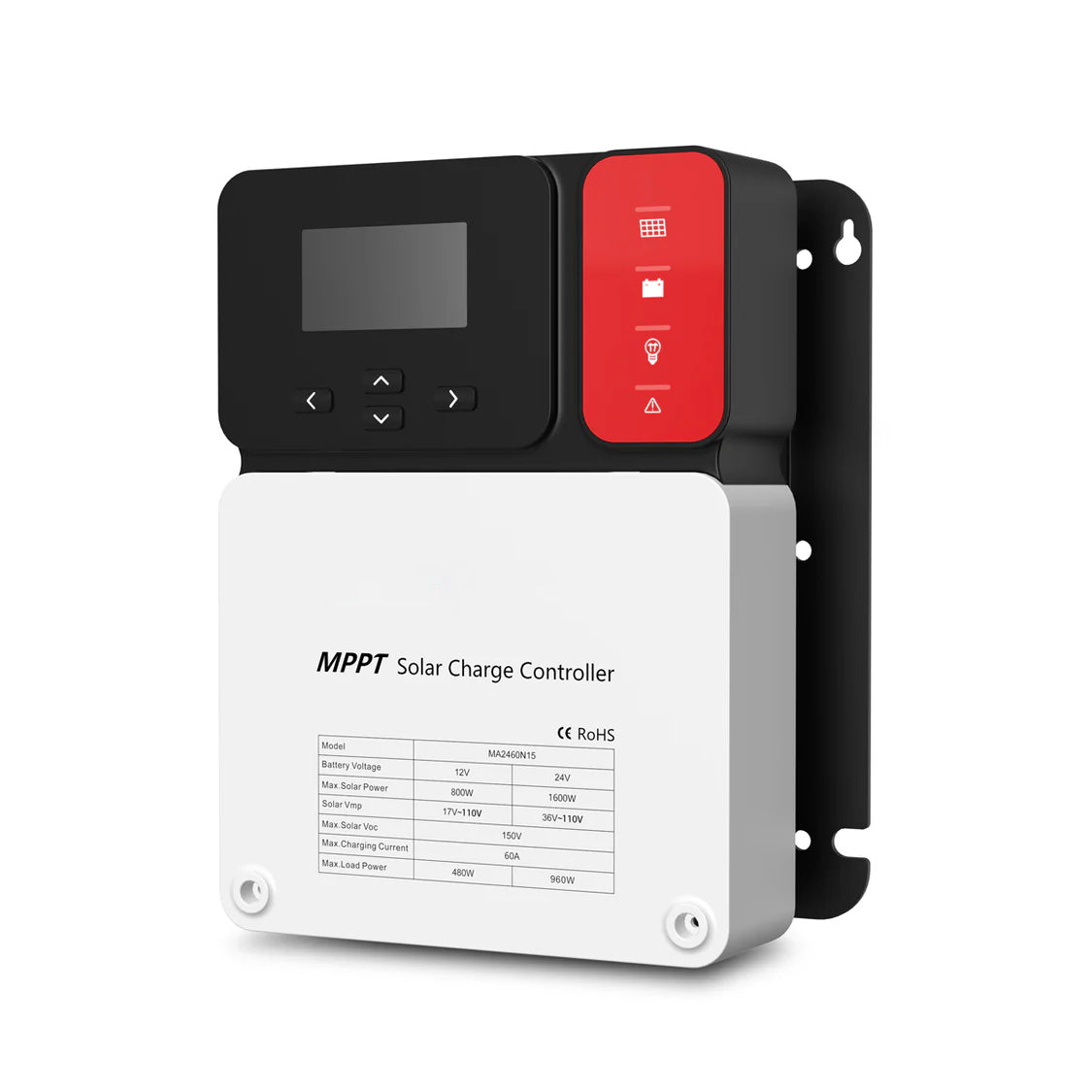

SRNE 12V 24V 60A MPPT Solar Charge Controller
For off-grid application
Supports connection to PV, battery, and load with multiple load operating modes to meet diverse needs
User-Friendly
Easy to install and simple to use, with natural cooling for absolutely silent operation.
Safety
Complete charge and discharge protection mechanism with high-quality components for stable operation
All-in-One
Supports multiple battery types and features a highly integrated design to save space and reduce wiring.
Efficient
MPPT with up to 99.9% efficiency, supporting 2 solar panels in series and more in parallel.
Intelligent
Supports TTL RS485 and CAN (RV-C protocol), as well as Bluetooth connectivity with a mobile app.

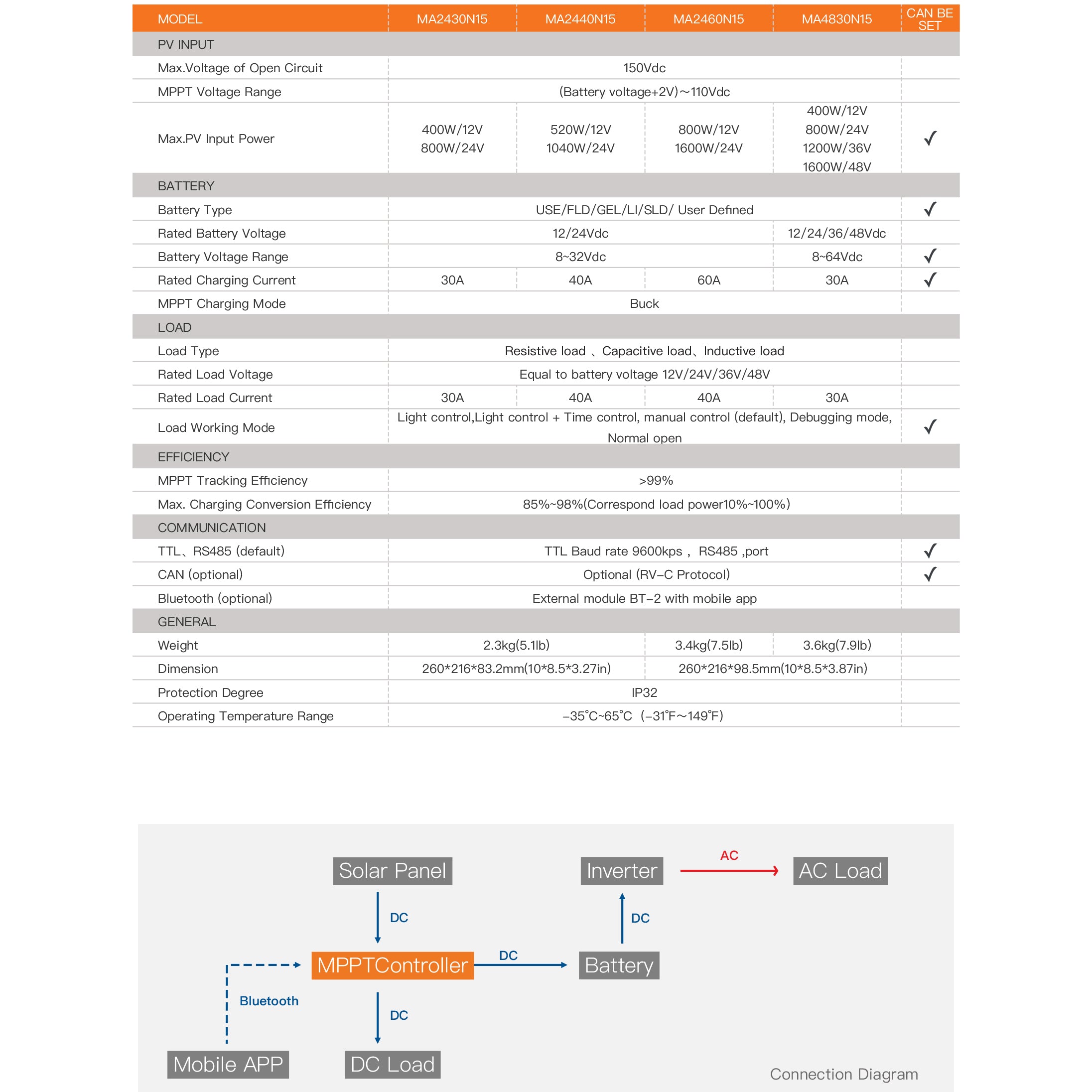

Max Voltage of Open Circuit:150Vdc
MPPT Voltage Range :(Battery voltage+2V)～110Vdc
Max PV Input Power:800W/12V,1600W/24V
Battery Type: USE/FLD/GEL/LI/SLD/ User Defined
Rated Battery Voltage: 12/24Vdc
Battery Voltage Range: 8~32Vdc
Rated Charging Current: 60A
MPPT Charging Mode: Buck
Load Type: Resistive load 、Capacitive load、 Inductive load
Rated Load Voltage: Equal to battery voltage 12V/24V/36V/48V
Rated Load Current: 40A
Load Working Mode: Light control, Light control + Time control, manual control (default), Debugging mode, Normal open
MPPT Tracking Efficiency: >99%
Max Charging Conversion Efficiency:85%~98%(Correspond load power10%~100%)
TTL、RS485 (default): TTL Baud rate 9600kps ，RS485 ,port
CAN (optional): Optional (RV-C Protocol)
Bluetooth (optional):External module BT-2 with mobile app
Weight:3.4kg(7.5lb)
Dimension: 260*216*98.5mm(10*8.5*3.87in)
Protection Degree: IP32
