Description

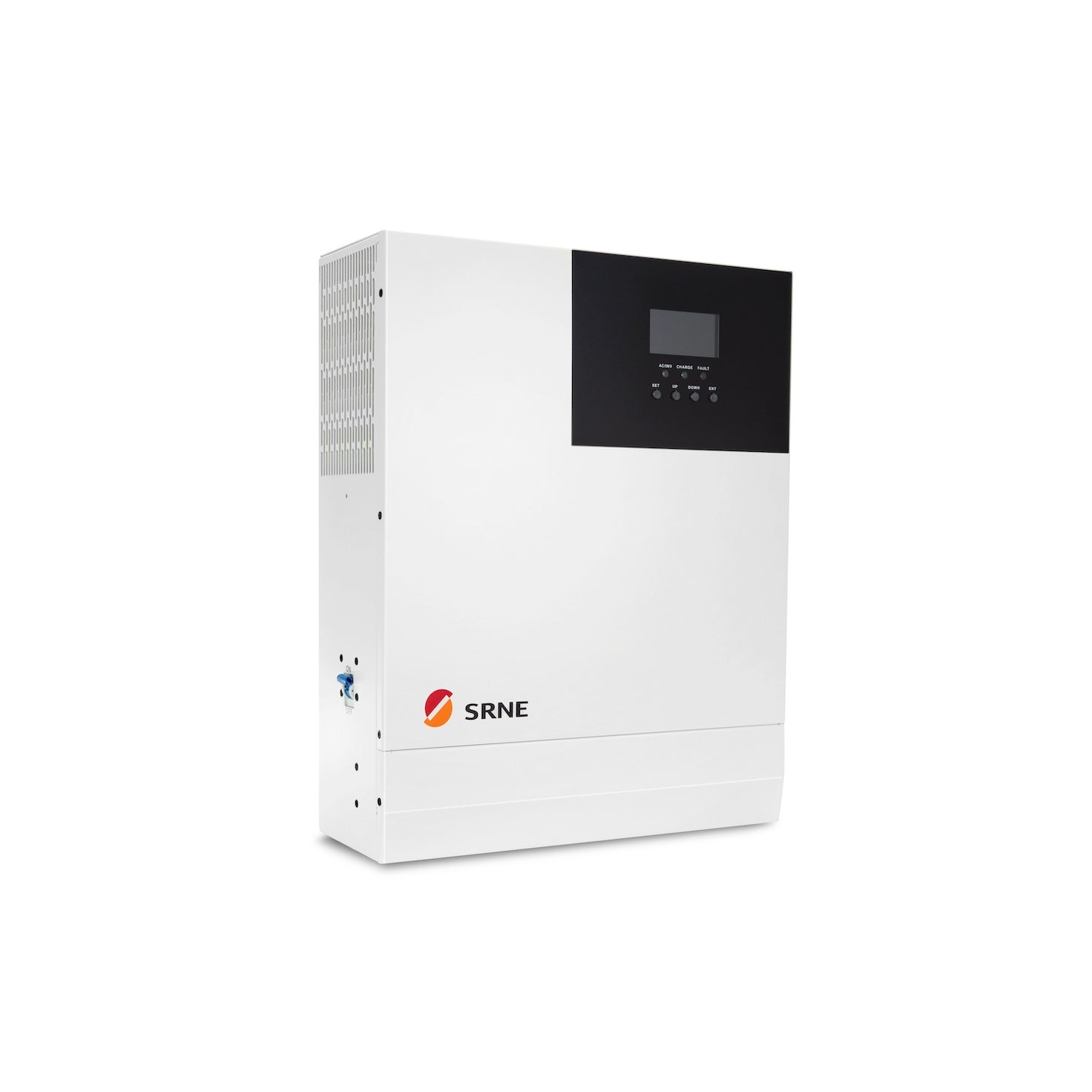

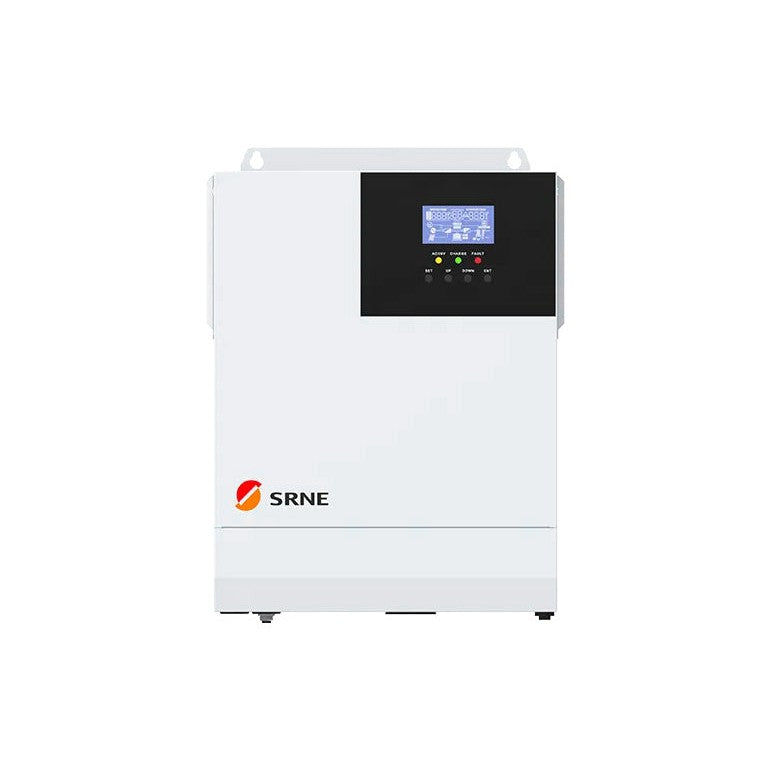

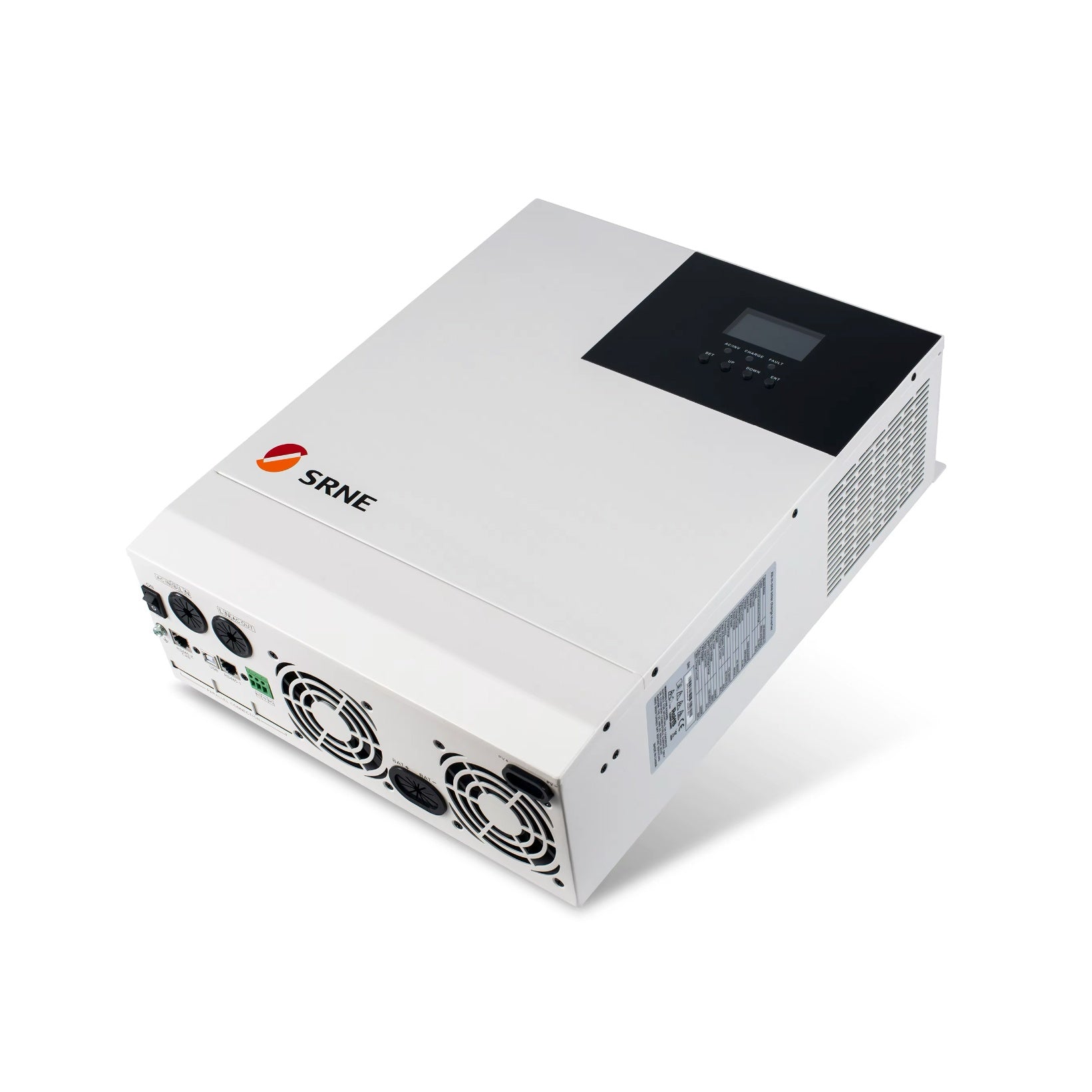

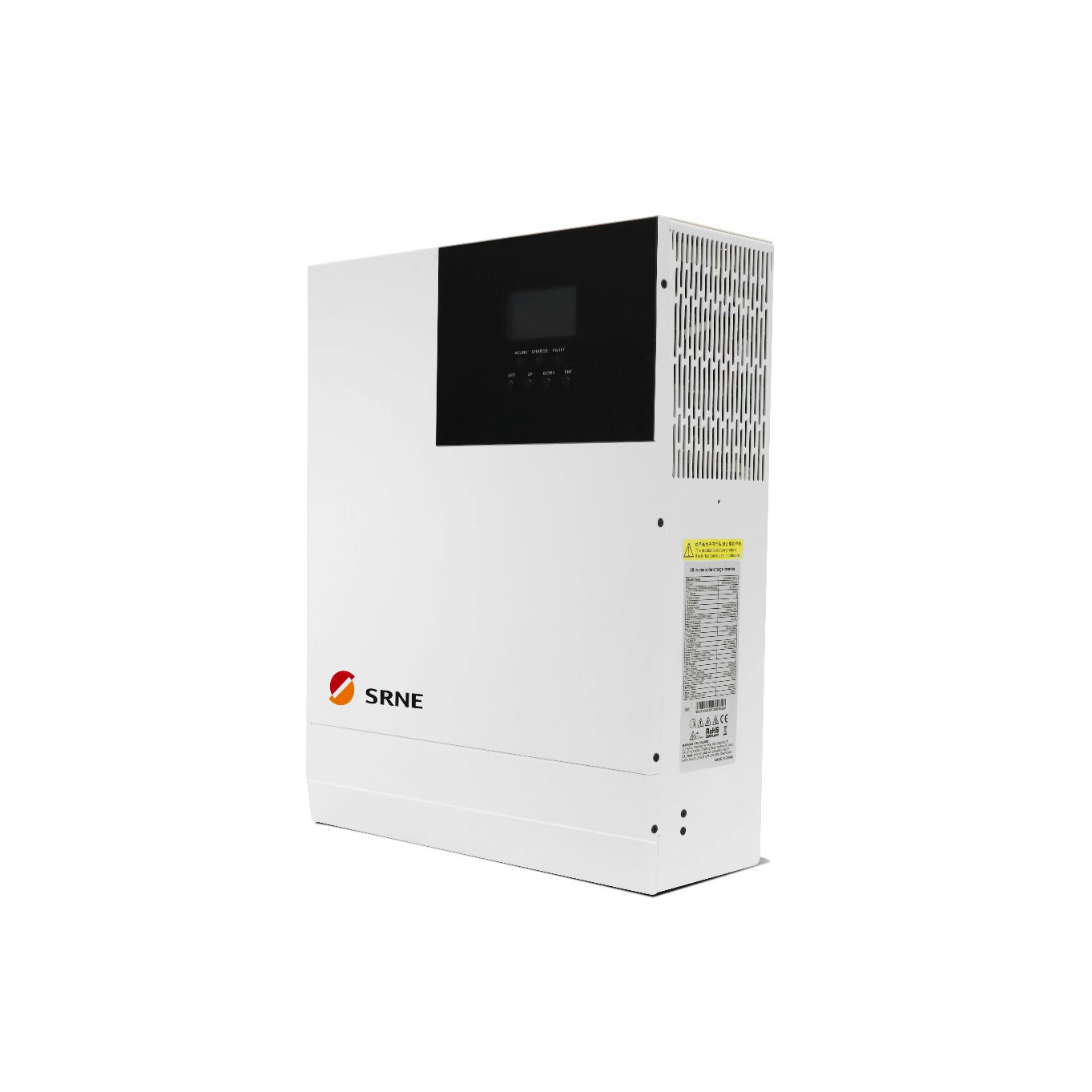

The SRNE HF2430S80-H is a high-efficiency solar charge inverter designed for off-grid and backup power systems. It combines pure sine wave AC output, MPPT solar charging, and battery management in one compact unit. With smart monitoring, multiple battery support, and hybrid charging, it ensures reliable and stable power for homes, businesses, and RVs.
Key Features
Reliable Power Output
3,300W rated power, 6,000VA peak power
Supports motor loads up to 2HP
High-Efficiency Solar Charging
4,000W max. PV input, 99.9% MPPT efficiency
Flexible Battery Compatibility
Works with Li-ion, Lead-Acid, and custom batteries

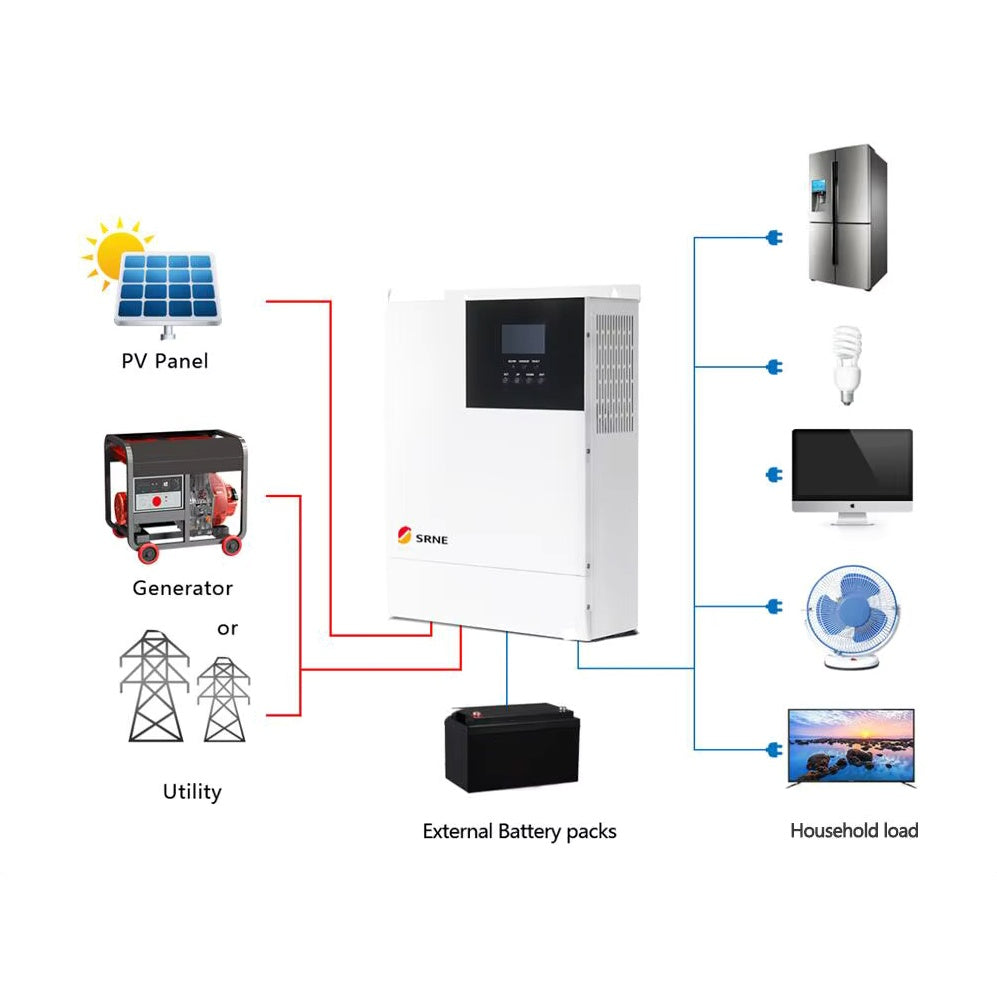

Hybrid Power Support
Supports mains and generator input (90-280V AC)
10ms switching time for uninterrupted power
Safe & Durable
2-year warranty

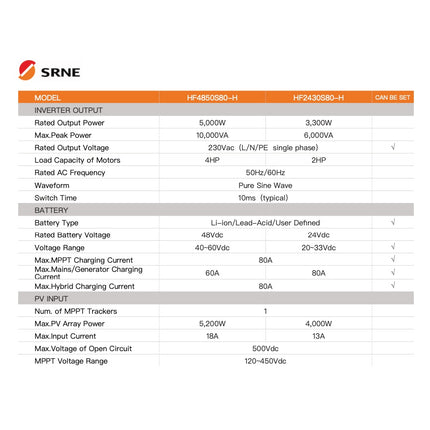

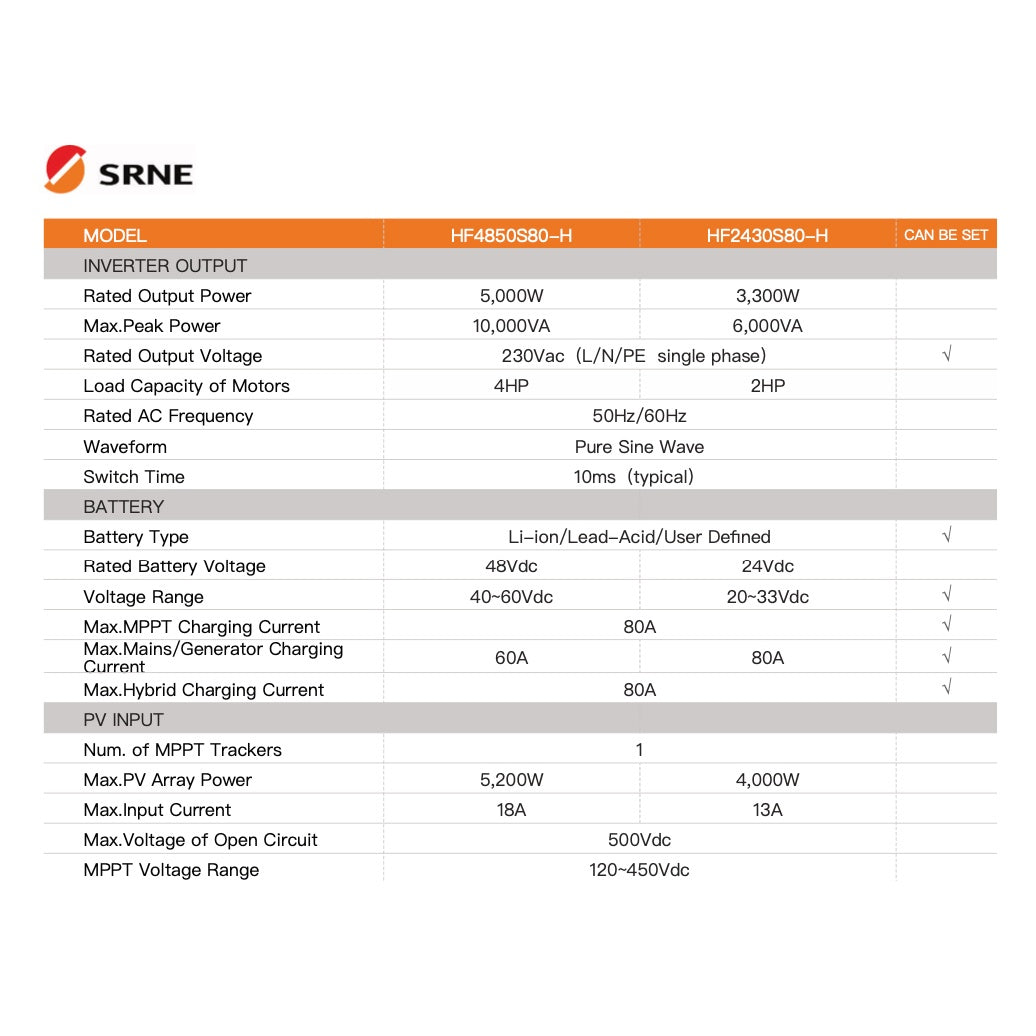

Specifications
Inverter Output
Rated Power: 3,300W
Peak Power: 6,000VA
Output Voltage: 230V AC (L/N/PE)
Waveform: Pure Sine Wave
Motor Load Capacity: 2HP
Frequency: 50Hz/60Hz
Switching Time: 10ms
Battery
Type: Li-ion / Lead-Acid / User-Defined
Voltage: 24VDC
Voltage Range: 20-33VDC
Max. Charging Current: 80A

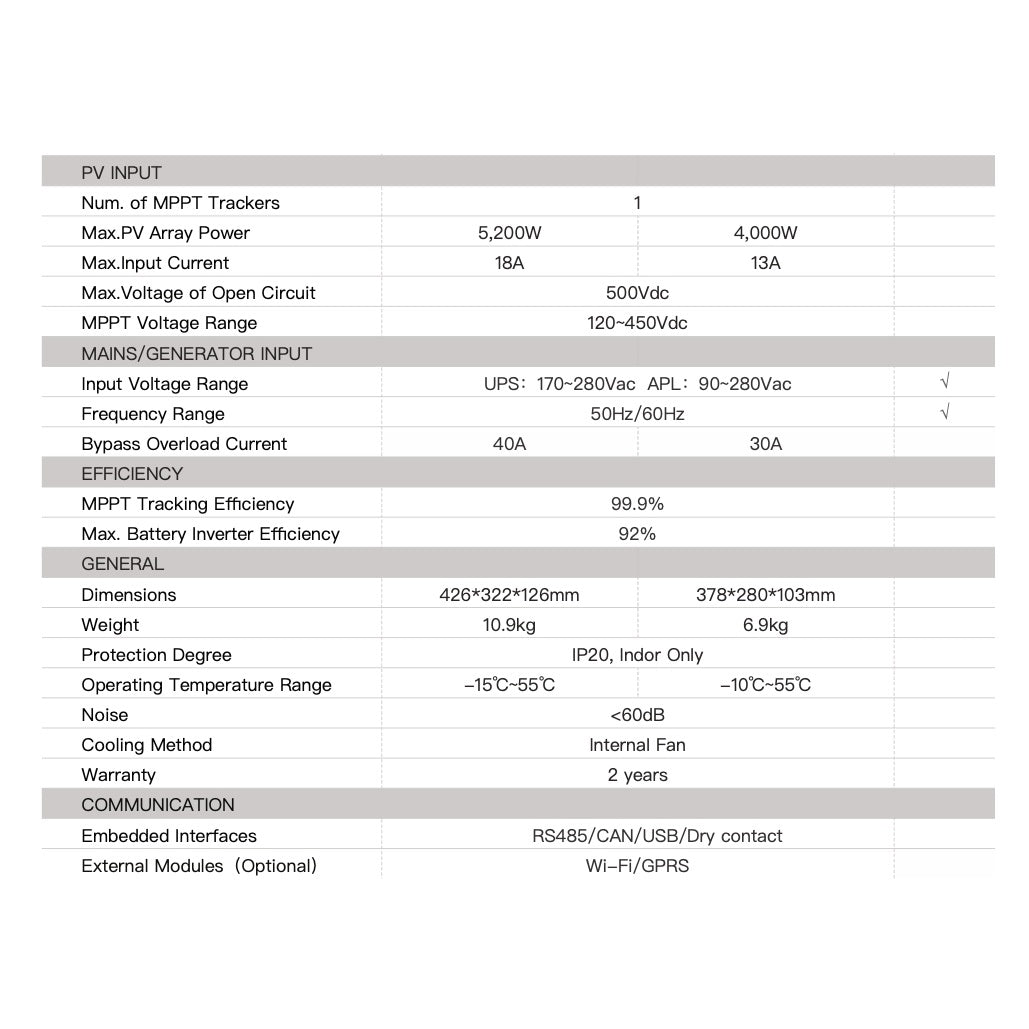

PV Input
MPPT Trackers: 1
Max. PV Power: 4,000W
Max. PV Open Circuit Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
Mains/Generator Input
AC Input Voltage: 90-280V AC
Frequency: 50Hz/60Hz
Bypass Overload Current: 30A
Efficiency
MPPT Efficiency: 99.9%
Battery Inverter Efficiency: 92%
General
Size: 378×280×103mm
Weight: 6.9kg
Protection: IP20 (Indoor Use)
Operating Temperature: -10°C to 55°C
Cooling: Internal Fan
Noise Level:
