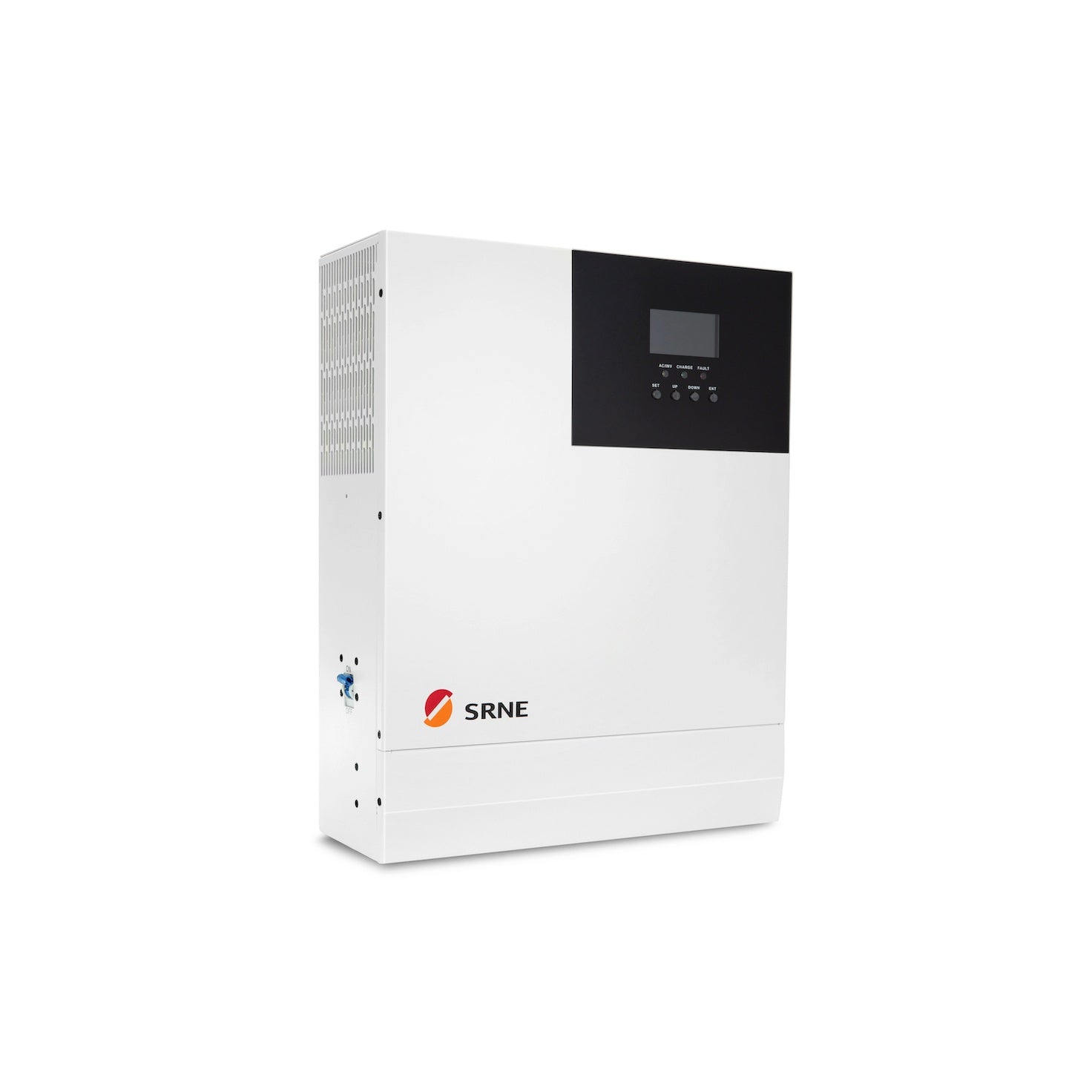

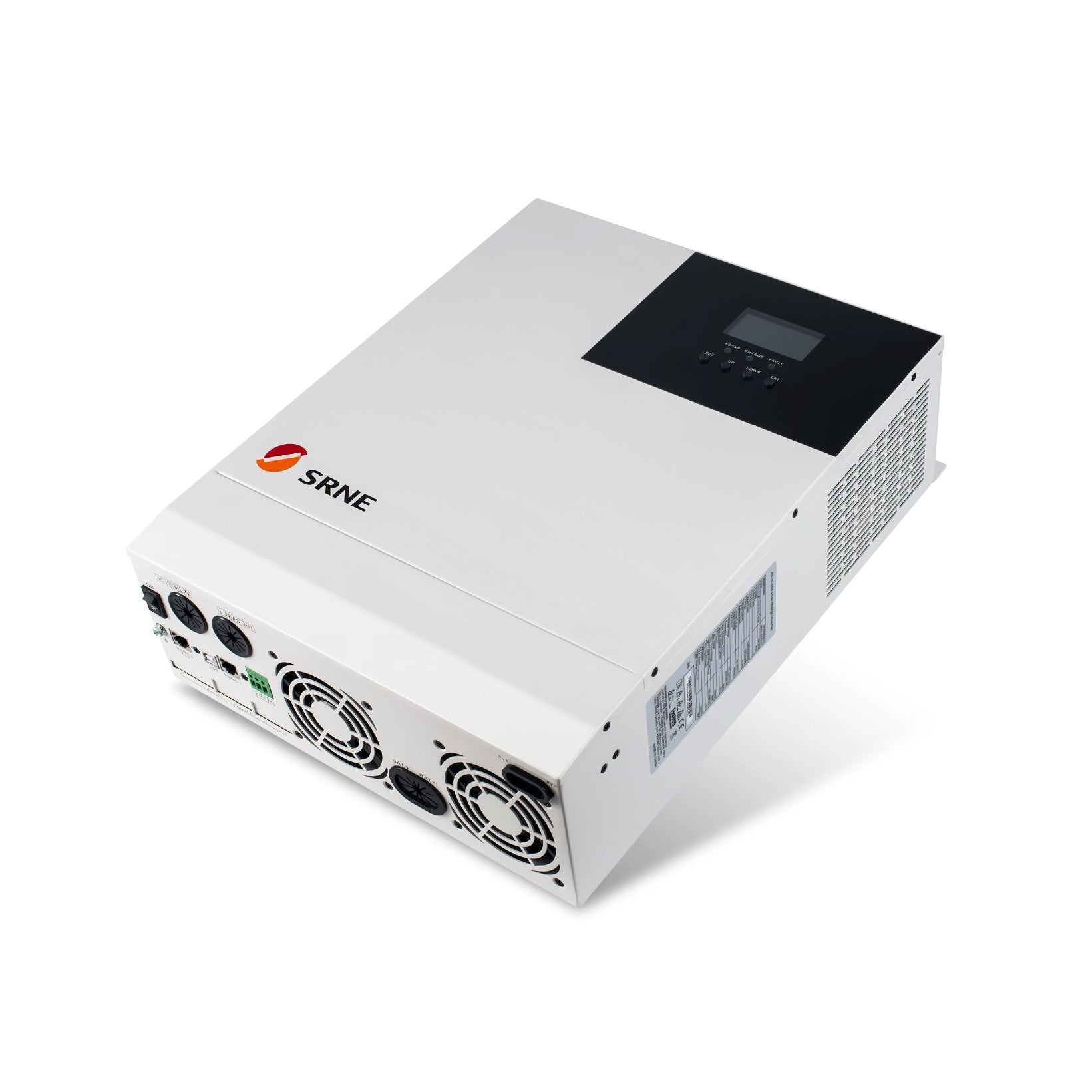

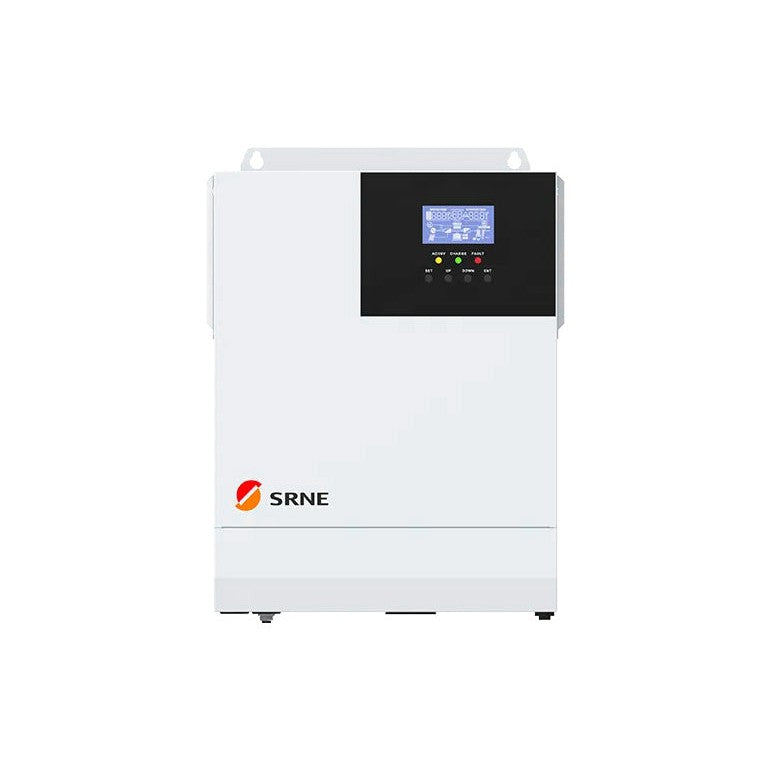

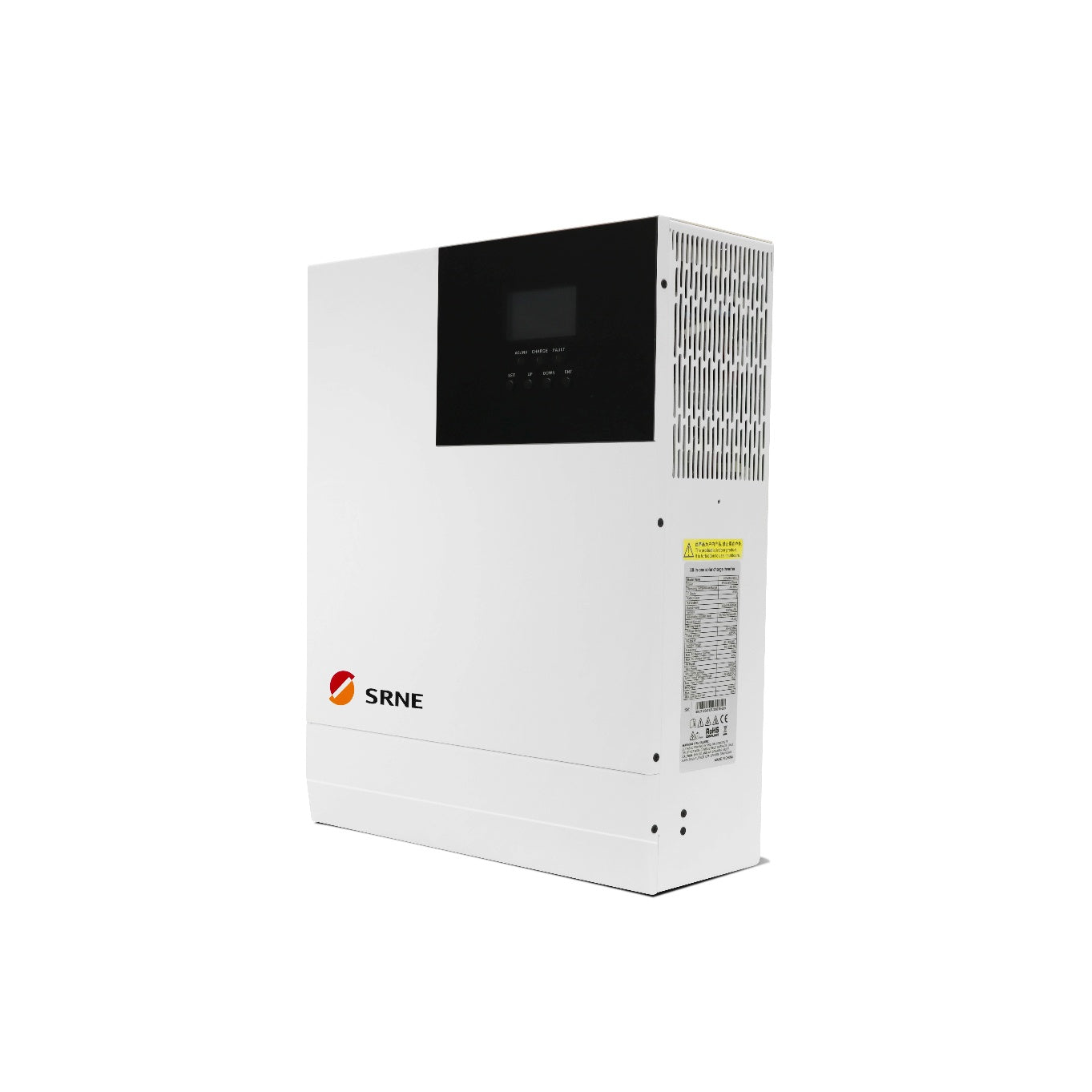

HF Series All-in-One Hybrid Solar Inverter
Integrated Solar Charging, Energy Storage, and Pure Sine Wave AC Output
The HF Series is a next-generation, all-in-one hybrid inverter that combines solar energy conversion, battery charging/storage, and pure sine wave AC output in a compact and high-performance system. Built with DSP control and an advanced control algorithm, it delivers fast response, high reliability, and meets industrial-grade standards.
Key Features
Full Digital Control & SPWM Technology
Dual Output Modes
Flexible Charging Modes
High-Efficiency MPPT Charging
Power Saving Mode
Smart Cooling System
Compatible with 24V storage batteries
Multiple charging and on-load modes to maximise energy use
Efficient heat dissipation, prolonging system life
Support remote monitoring of equipment operating parameters
MODEL: HF2430S60-100
INVERTER OUTPUT
Rated Output Power: 3000W
Max.Peak Power: 6000VA
Rated Output Voltage: 230Vac Single-Phase
Load Motor Capacity: 2HP
Rated Frequency: 50/60Hz
Waveform: Pure sine wave
BATTERY
Battery Type: Lead-Acid / Li-ion / User-Define
Rated Battery Voltage: 24V
Battery Volatge Range: 20 - 33Vdc
Max. Solar Charging Current: 60A
Max. Grid/Generator Charging Current: 80A
Max. Hybrid Charging Current: 140A
SOLAR INPUT
No. Of MPPT: 1
Max.PV Array Power: 1600W
Max. Input Current: 40A
Max. Open Circuit Voltage: 108Vdc
MPPT Voltage Range: 30 - 90Vdc
GRID/GENERATOR INPUT
Input Voltage Range: 170 - 280Vac
Input Frequency Range: 50/60Hz
Bypass Overload Current: 30A
EFFICIENCY
MPPT Tracking Efficiency: 99.9%
Max. Efficiency: 92%
GENERAL DATA
Dimension: 378 x 280 x 103mm
Weight: 6.8kg
Protection Degree: IP20 Only Indoor
External Module (Optional): Wi-Fi/GPRS
Communication: RS485/CAN/USB/Dry Contact
Warranty: 2 years
