Description

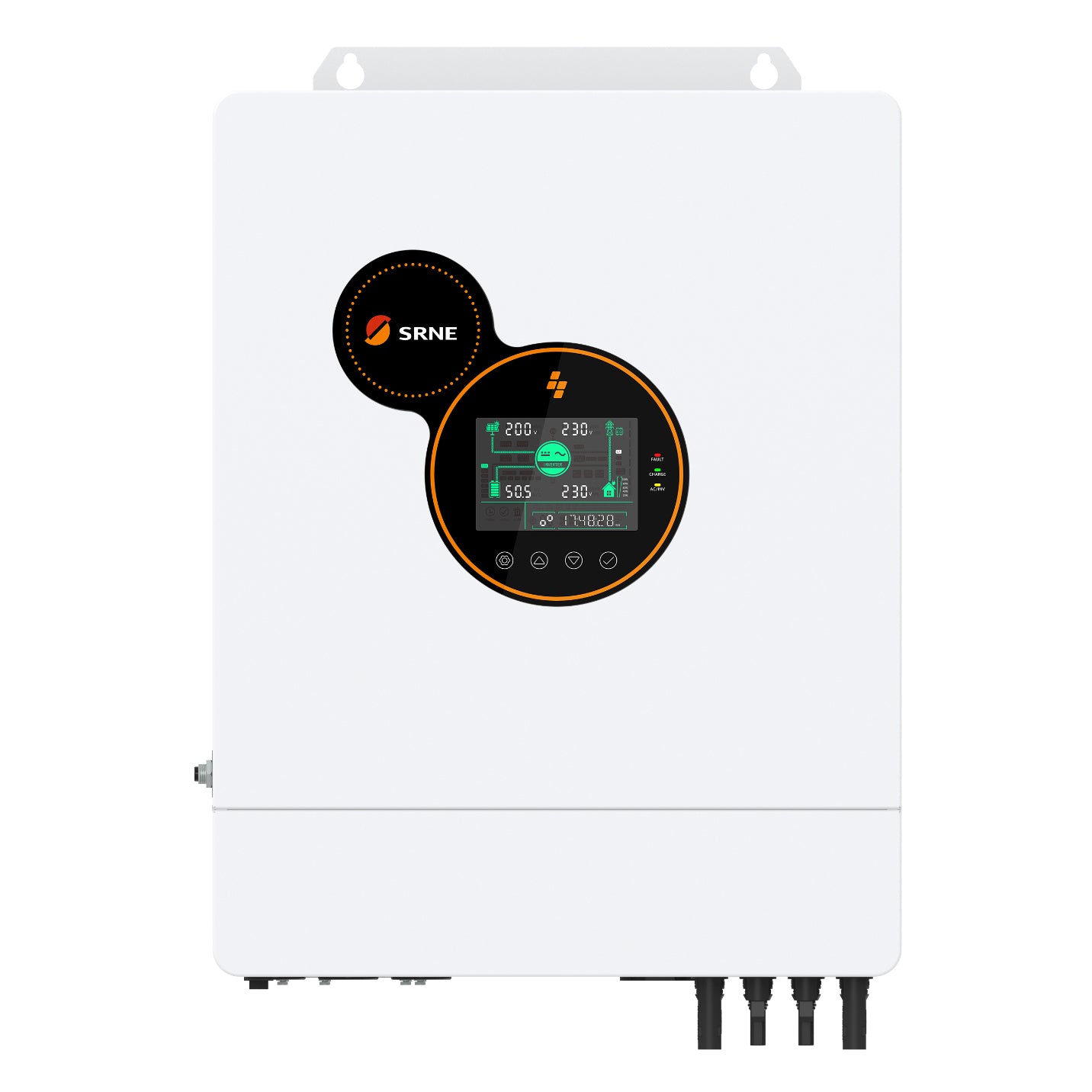

SRNE 6KW Single Phase Hybrid Solar Inverter HYP4860S100-H
***2-Year Warranty***
Key Features
Advanced MPPT technology with up to 99.9% tracking efficiency
Supports parallel operation up to 6 units (up to 36kW total system power)
Time-slot charging and discharging function to reduce electricity costs during peak and off-peak periods
Off-grid operation with optional battery-free output mode
Modern industrial-grade design with a clean, professional appearance
Supports BMS communication for lithium battery systems

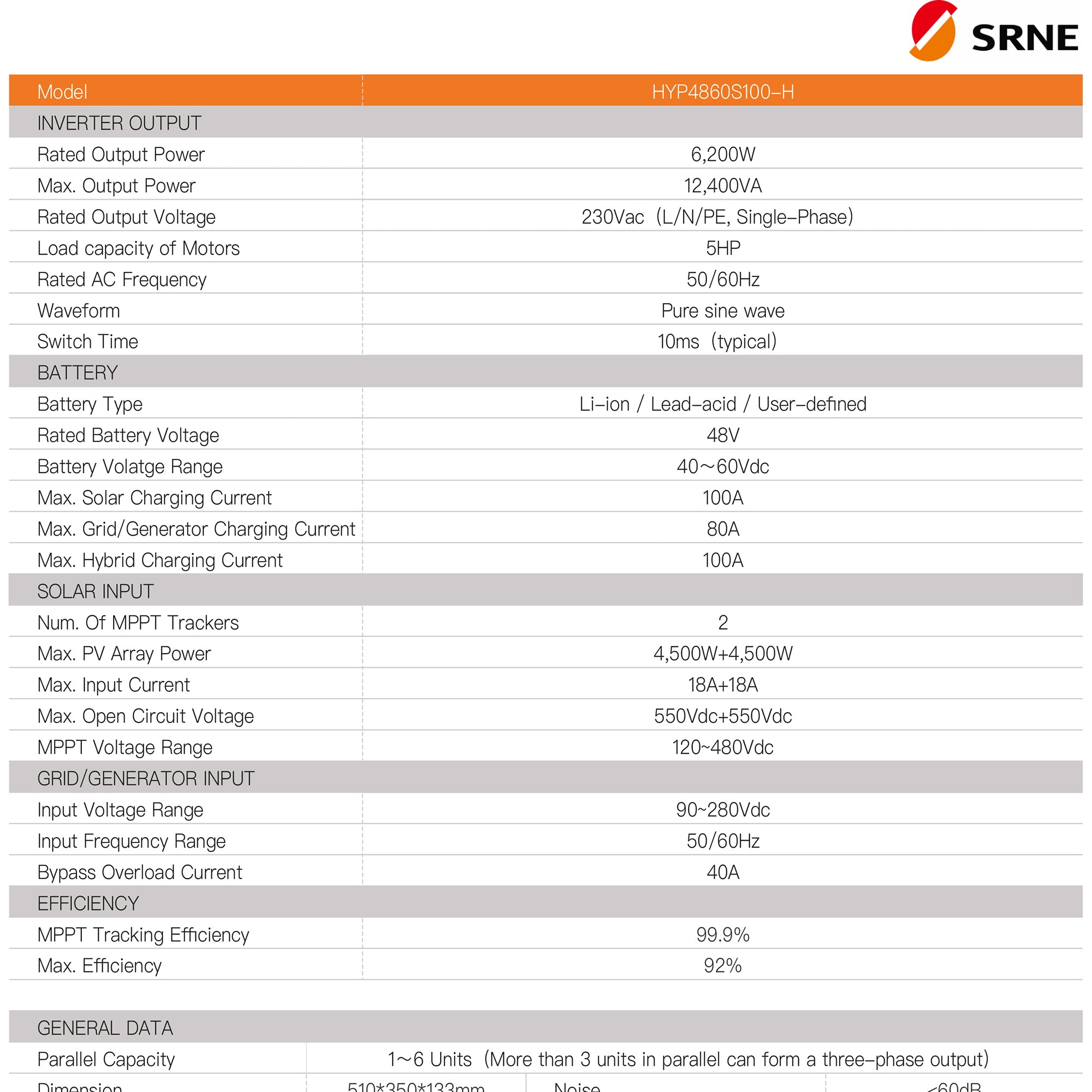

Model: HYP4860S100-H
Inverter Output
Rated Output Power: 6,200 W
Maximum Output Power: 12,400 VA
Rated Output Voltage: 230 Vac (L / N / PE, Single Phase)
Motor Load Capacity: Up to 5 HP
Rated AC Frequency: 50 / 60 Hz
Waveform: Pure Sine Wave
Transfer Time: 10 ms (typical)
Battery Specifications
Supported Battery Types: Lithium-ion, Lead-acid, User-defined
Rated Battery Voltage: 48 V
Battery Voltage Range: 40 – 60 Vdc
Max. Solar Charging Current: 100 A
Max. Grid / Generator Charging Current: 80 A
Max. Hybrid Charging Current: 100 A
Solar Input
MPPT Trackers: 2
Max. PV Array Power: 4,500 W + 4,500 W
Max. Input Current: 18 A + 18 A
Max. Open Circuit Voltage: 550 Vdc + 550 Vdc
MPPT Voltage Range: 120 – 480 Vdc
Grid / Generator Input
Input Voltage Range: 90 – 280 Vac
Input Frequency Range: 50 / 60 Hz
Bypass Overload Current: 40 A
Efficiency
MPPT Tracking Efficiency: Up to 99.9%
Maximum System Efficiency: 92%
General Information
Parallel Capability: 1–6 units
(More than 3 units in parallel can form a three-phase output system)
Dimensions (W × H × D): 510 × 350 × 133 mm
Net Weight: 13 kg
