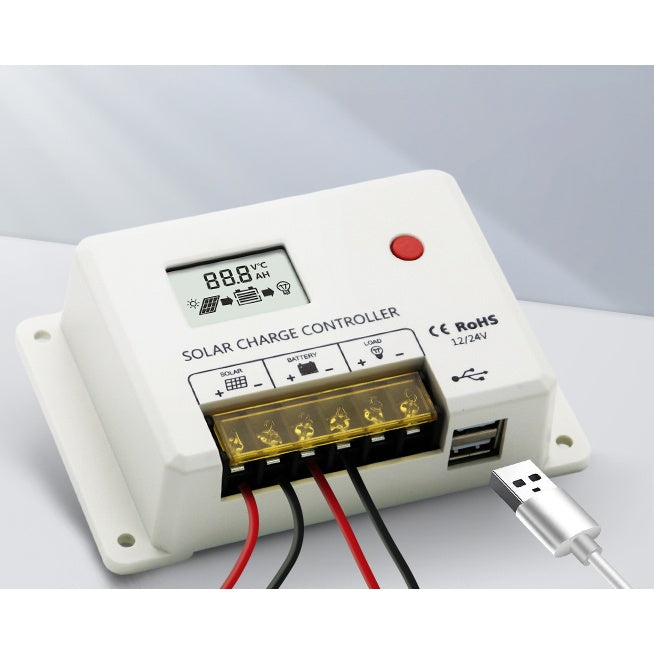

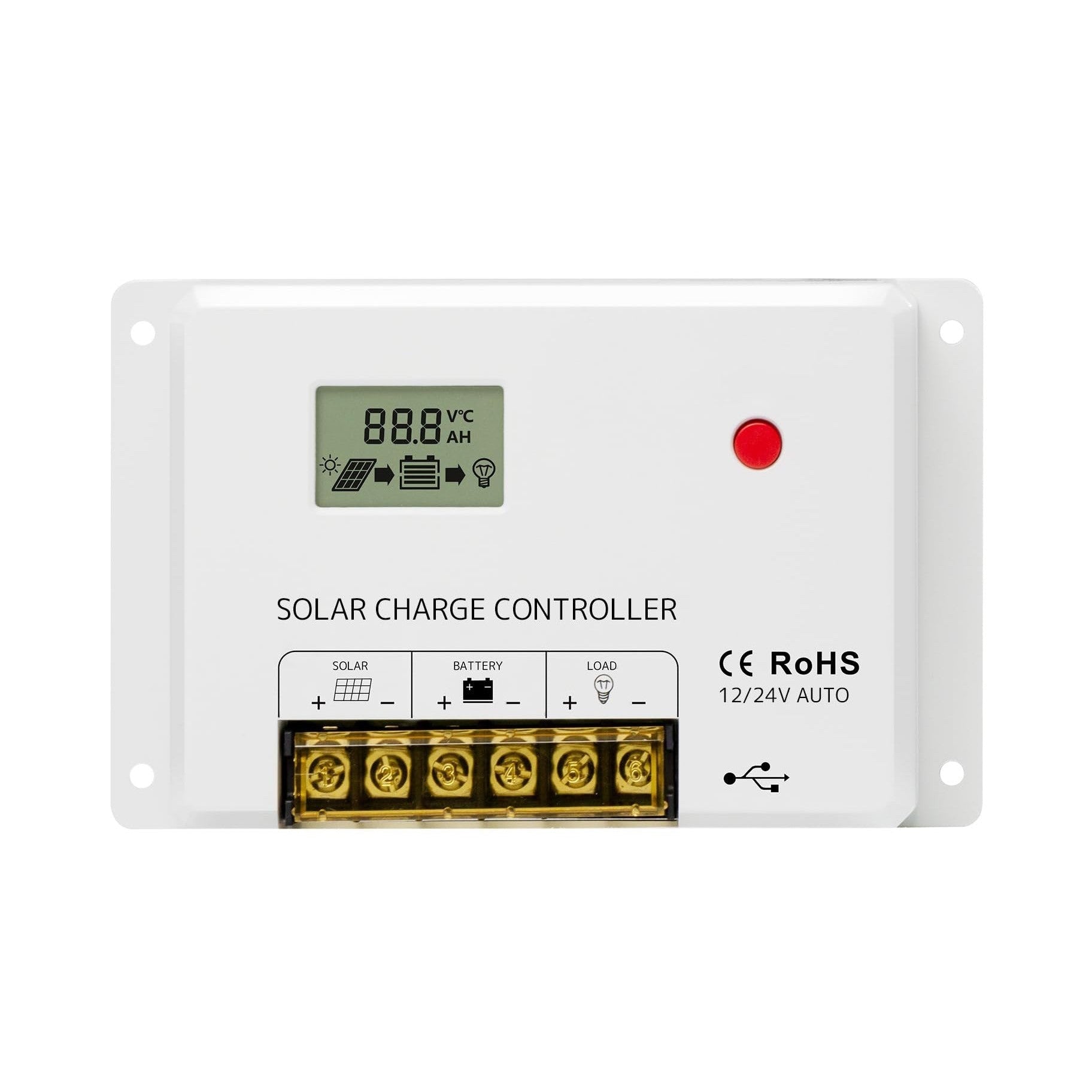

SRNE HC2430 High Quality 30A PWM Solar Charge Controller 12V/24V
Features:
32-bit high-speed master control chip.
Large LCD screen for adjustable charge and discharge settings.
Supports multiple battery types and allows setting the load to operate during day or night.
Multi-stage PWM charge management.
Built-in protections: reverse connection, open circuit, high temperature, and over-current/short-circuit (optional), all self-recovering with no damage to the controller.
Double MOS anti-backflow circuit for ultra-low heat generation.
Lithium battery activation.
Dual USB outputs (5V, 2A) for fast charging of devices like iPhone, iPad, and Android phones.
Specifications:
Model: SRNE HC2430
System Voltage: 12V/24V
Rated Current: 30A
Max PV Input Voltage: 50V
Charging Mode: PWM/Intermittent
Battery Types Supported: Lead Acid, Lithium
USB Output: 5V, 2A
No Load Power Consumption: ≤10mA
Operating Temperature: -35 - +60°C
Altitude: ≤3000m
IP Rating: IP32
Product Size: 159x100x39mm
Weight: 290g
