Description

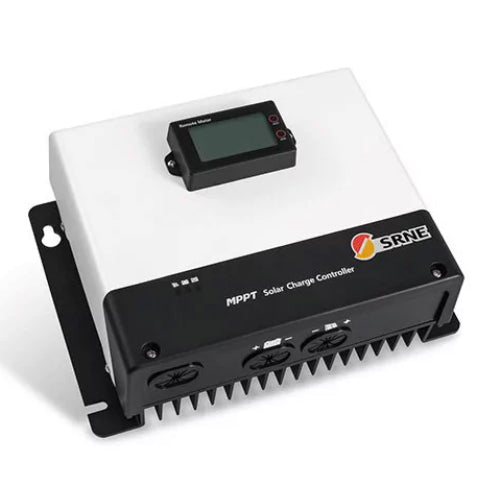

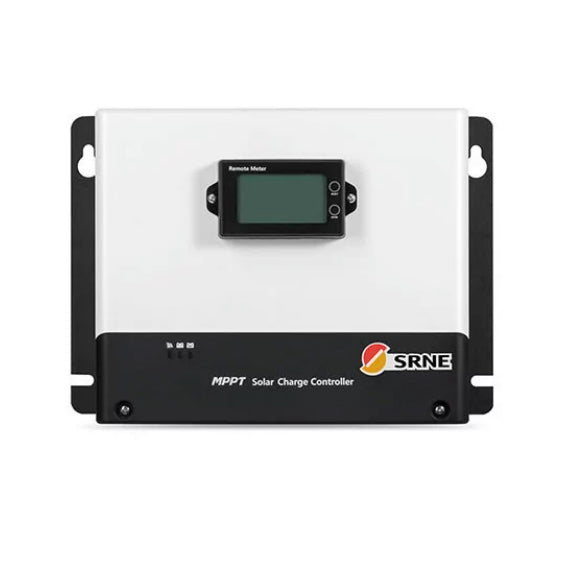

The SRNE MC48100N25 is a high-performance MPPT solar charge controller, ideal for off-grid solar systems. With 99.9% MPPT tracking efficiency, it ensures maximum power output from solar panels.

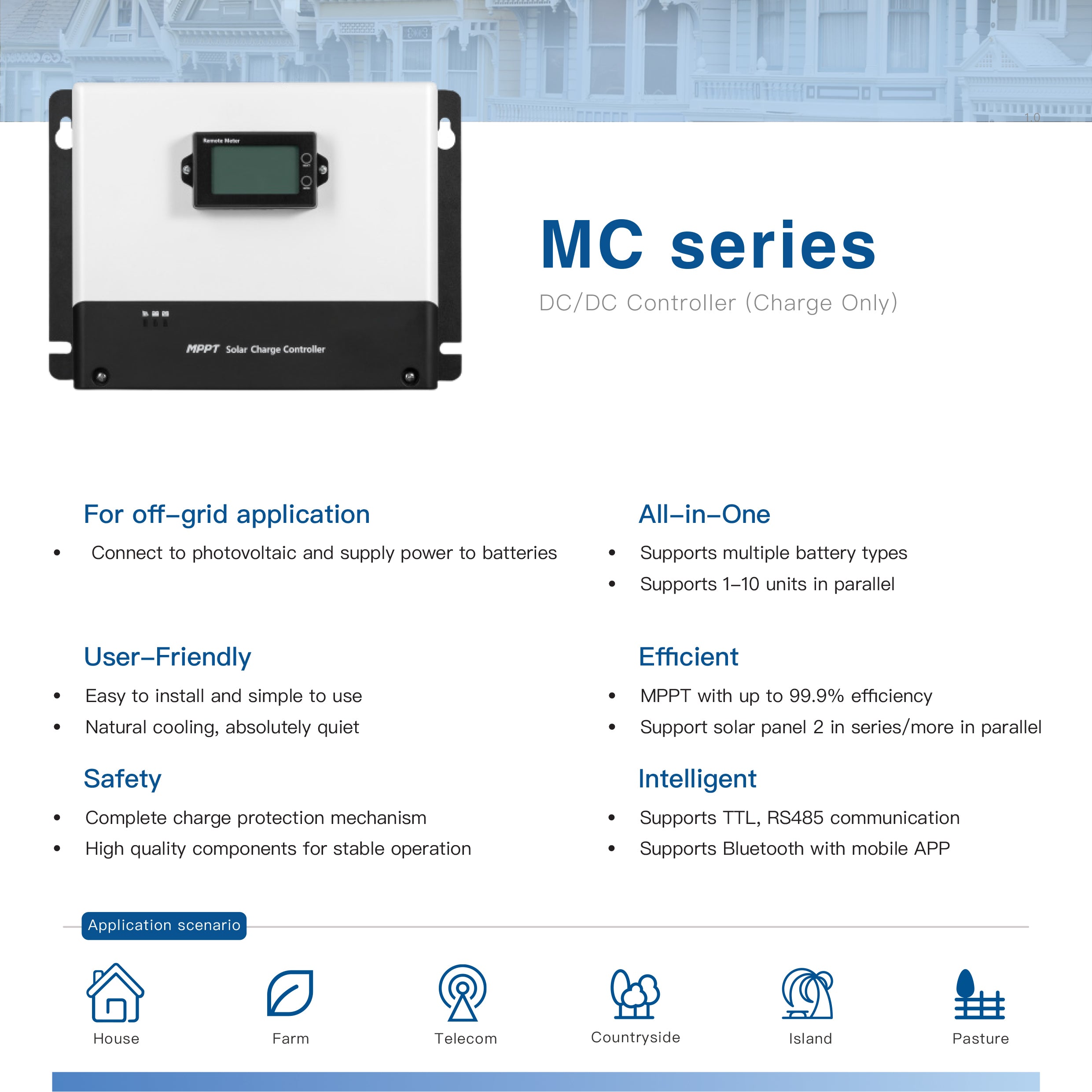

Key Features:
For off-grid application: Connect to photovoltaic and supply power to the battery.
User-Friendly
Easy to install and simple to use
Natural cooling, absolutely quiet
Safety
Complete charge protection mechanism
High-quality components for stable operation
All-in-One
Supports multiple battery types
Support 1-10 PCS in parallel
Efficient
MPPT with up to 99.9% efficiency
Support solar panel 2 in series/more in parall
Intelligent
Supports TTL, RS485 communication
Supports Bluetooth with mobile APP

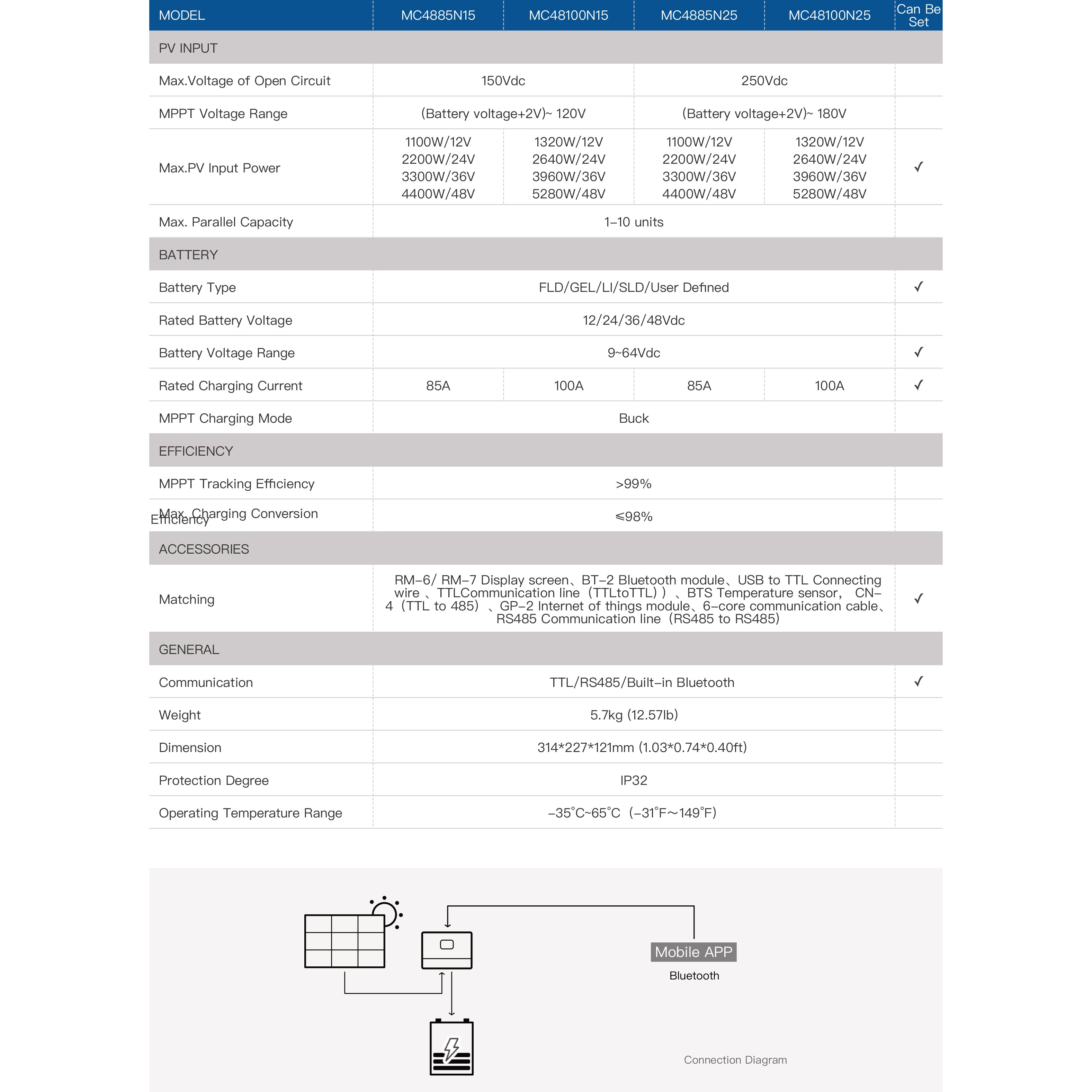

Specifications:
Model: MC48100N25
PV INPUT
Max.Voltage of Open Circuit: 250Vdc
MPPT Voltage Range : (Battery voltage + 2V) - 180V
System Voltage: 12V/24V/36V/48V Auto
Rated Charging Current: 100A
Max PV Input Power:
1320W/12V
2640W/24V
3960W/36V
5280W/48V
Efficiency:
MPPT Tracking Efficiency: >99%
Max Charging Conversion Efficiency: ≤98%
Communication: TTL/RS485/Built-in Bluetooth
Operating Temperature: -35°C to 65°C
Protection Level: IP32
Weight: 5.7kg
Dimensions: 314 × 227 × 121mm
Perfect for large off-grid solar systems, the MC48100N25 provides high efficiency, intelligent control, and reliable performance for solar power management.
