Description

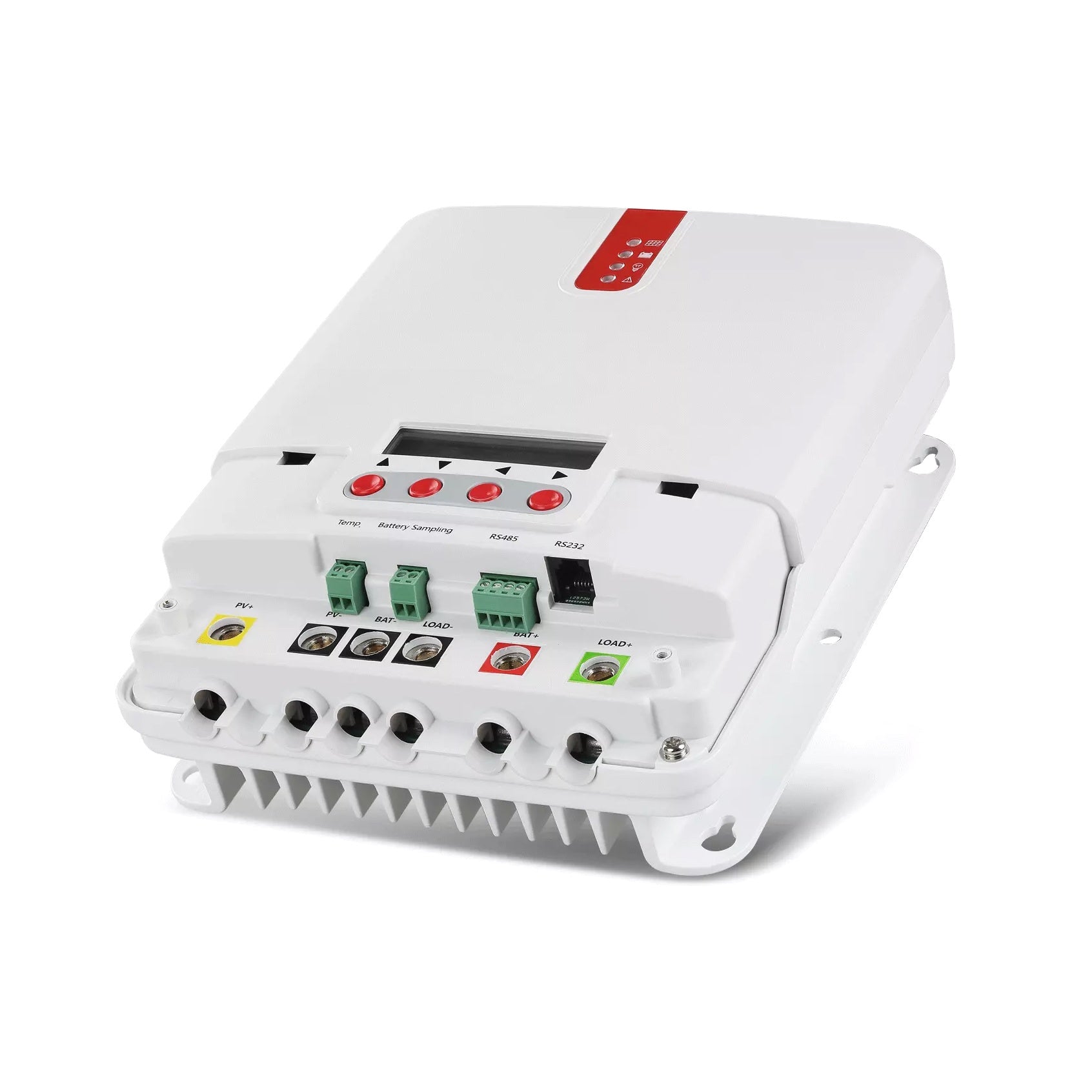

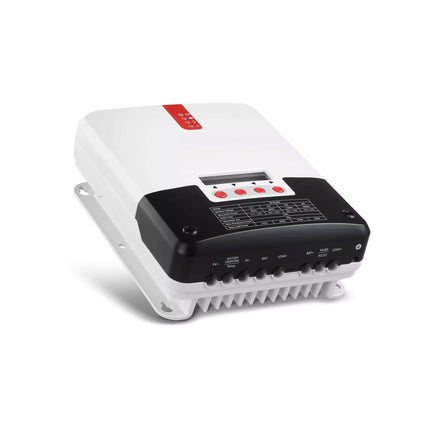

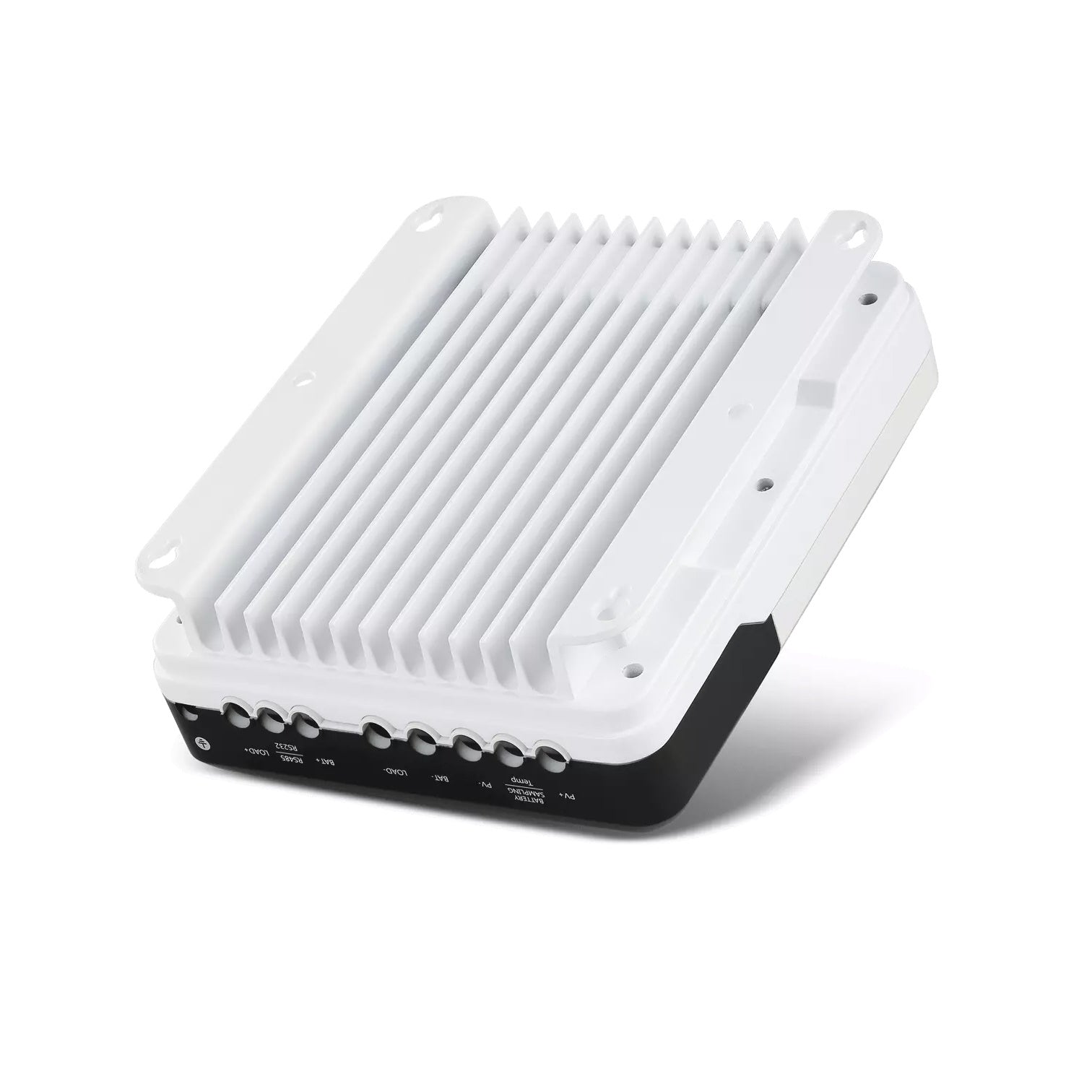

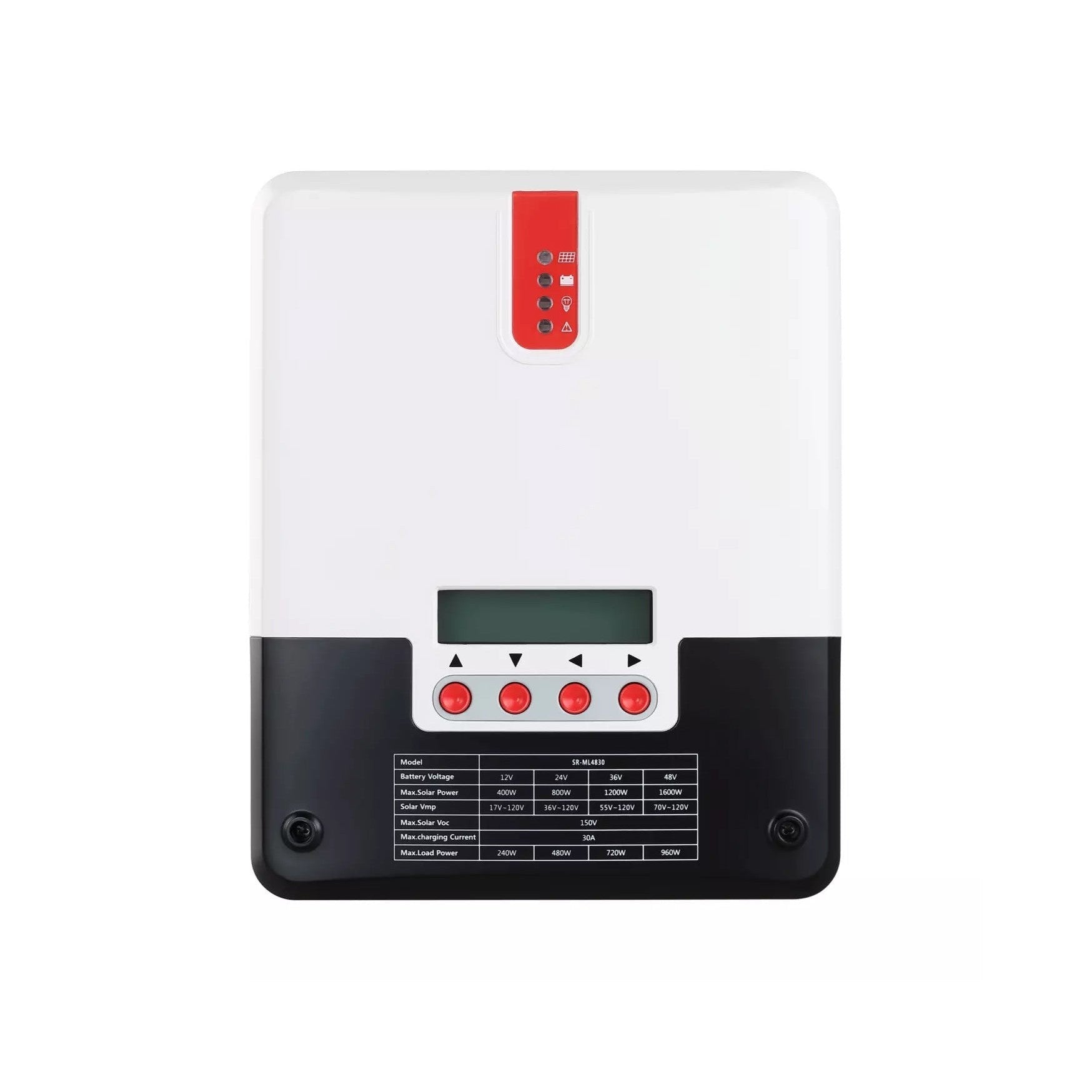

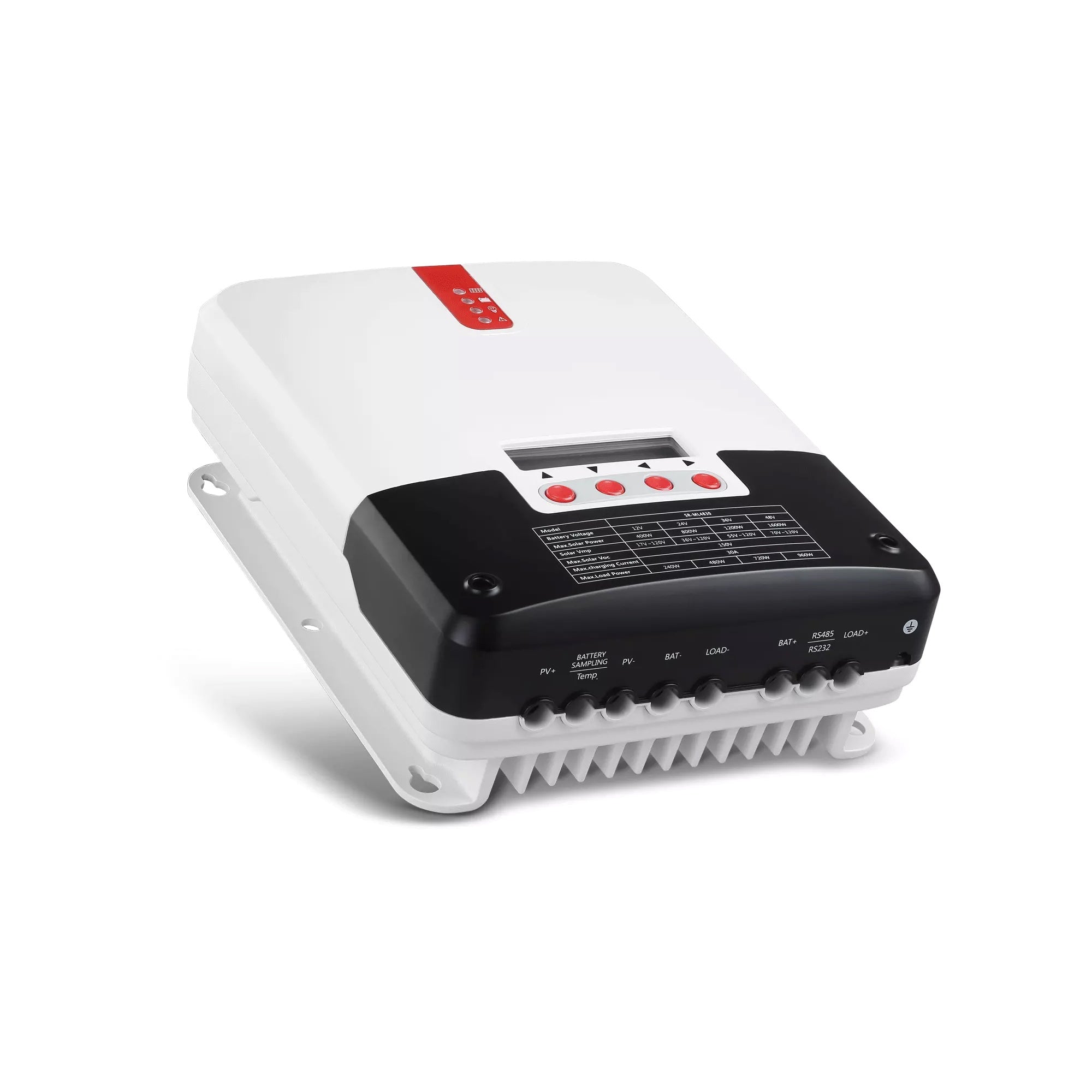

The SRNE ML4860N15 is a high-performance MPPT solar charge controller, ideal for off-grid solar systems. With 99.9% MPPT tracking efficiency, it ensures maximum power output from solar panels.
Key Features:
Wide Compatibility – Supports Lead-acid, Lithium, and User-defined battery types.
Smart MPPT Charging – High-efficiency power conversion with up to 98% charging efficiency.
User-Friendly Design – Compact, easy to install, and quiet natural cooling.
Multiple Load Control Modes – Light Control, Time Control, Manual, Debugging, and Always On.
Advanced Safety – Comprehensive charge and discharge protection for system stability.
Smart Monitoring – Supports RS232, RS485, Bluetooth, and mobile app control.
Scalability – Supports parallel operation of up to 10 units.

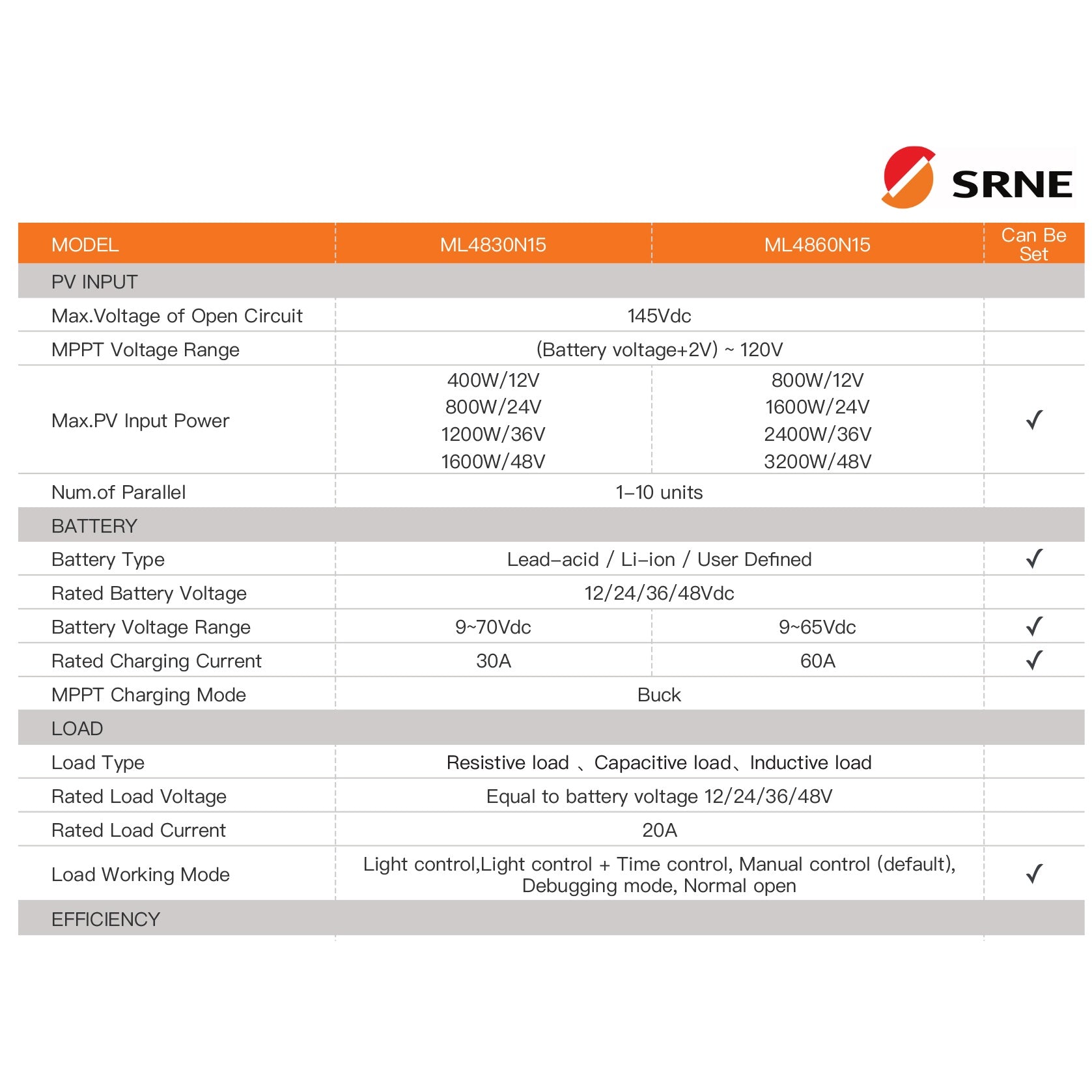

ML4860N15 Specifications:
System Voltage: 12V/24V/36V/48V Auto
Rated Charging Current: 60A
Max PV Input Power:
800W (12V)
1600W (24V)
2400W (36V)
3200W (48V)
MPPT Voltage Range: (Battery voltage +2V) - 120V
Max PV Open Circuit Voltage: 145V

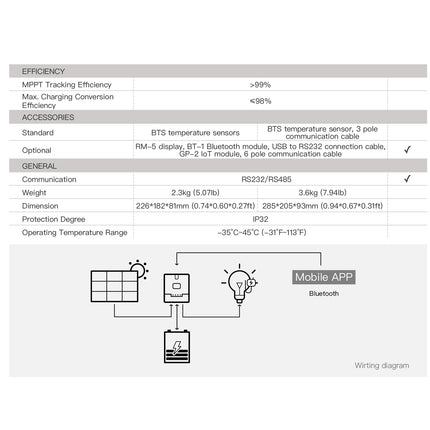

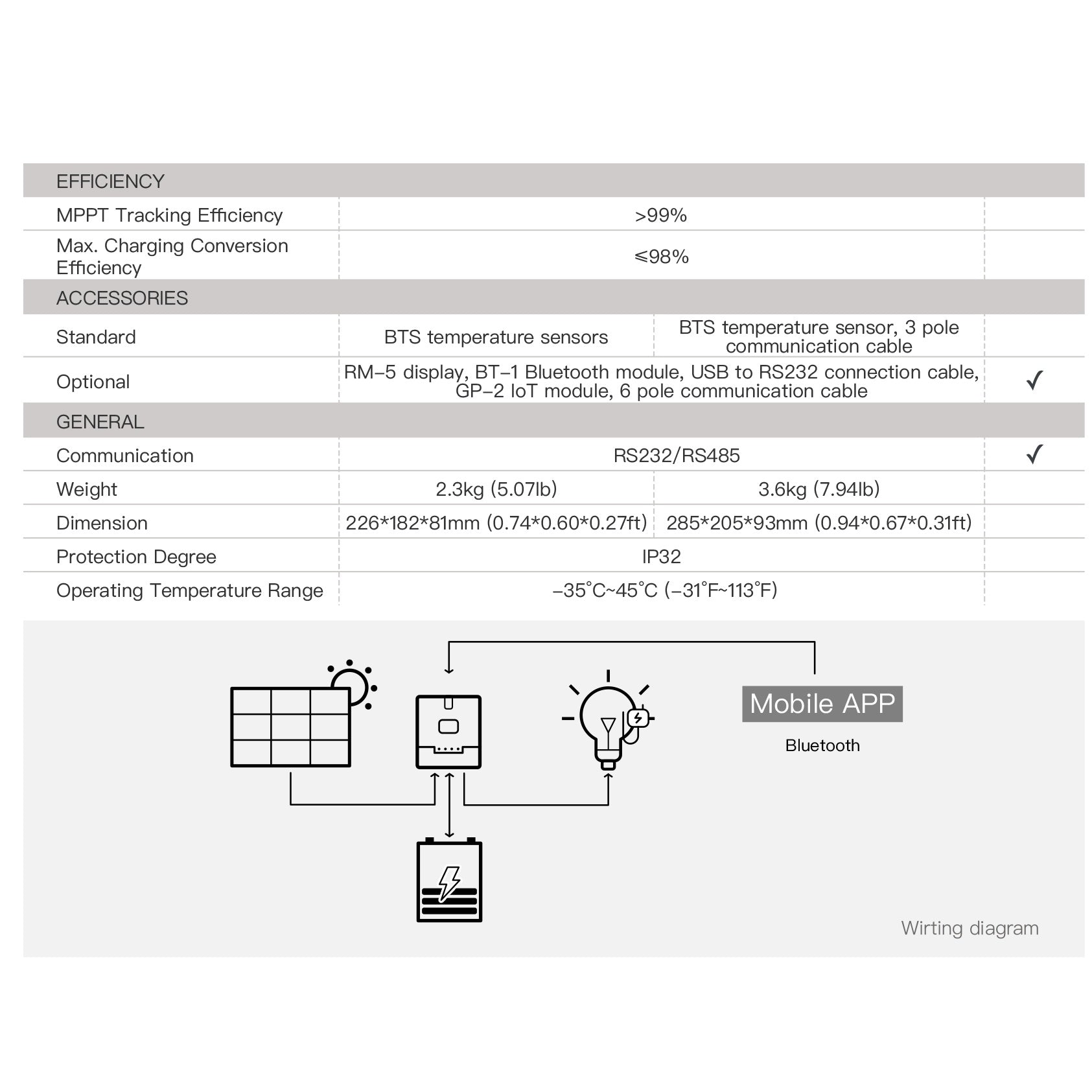

Efficiency:
MPPT Tracking Efficiency: >99%
Max Charging Conversion Efficiency: ≤98%
Load Control: Supports Resistive, Capacitive, and Inductive loads
Load Working Modes: Multiple control options for flexibility
Communication: RS232 / RS485, Bluetooth (via optional module)
Operating Temperature: -35°C to 45°C
Protection Level: IP32
Weight: 3.6kg
Dimensions: 285 × 205 × 93mm
Perfect for large off-grid solar systems, the ML4860N15 provides high efficiency, intelligent control, and reliable performance for solar power management.
