Description
Efficient | Intelligent | Reliable

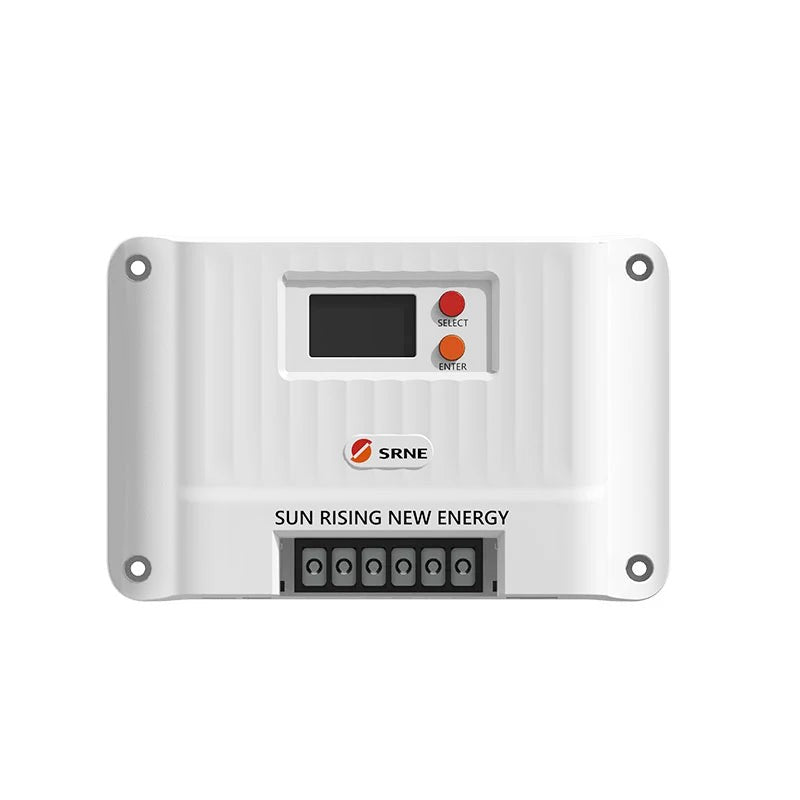

The Shiner Series MPPT Solar Charge Controller is designed for off-grid solar applications, offering high efficiency, advanced protection, and user-friendly operation.
Key Features:
High MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.
Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.
Smart Connectivity – RS485 and CAN communication, Bluetooth support with mobile app.
Multiple Load Control Modes – Light control, time control, manual control, and more.
Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.
Compact & Quiet – Natural cooling design, saving space and reducing noise.
Shiner2410 Specifications:
MPPT Efficiency: >99%
Max.Voltage of Open Circuit: 60VDC
MPPT Voltage Range: Battery voltage +2V to 45VDC
Max PV Input Power:
130W (12V)
260W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 10A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 155 × 99 × 41.7 mm
Weight: 350g
Ideal for off-grid solar systems, caravans, and remote applications, the Shiner Series delivers stable and intelligent solar charging performance.
