Description

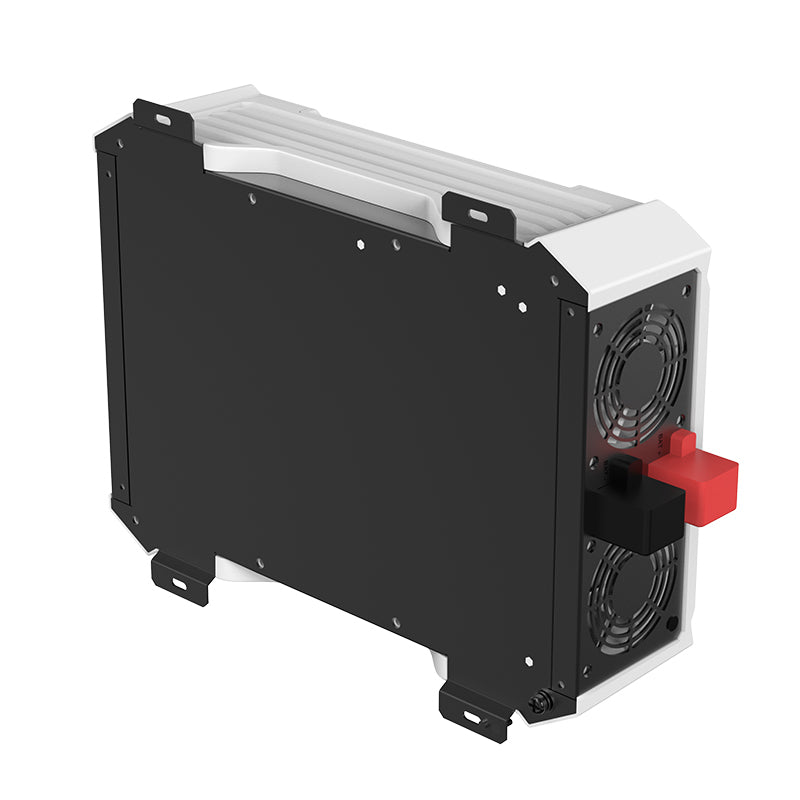

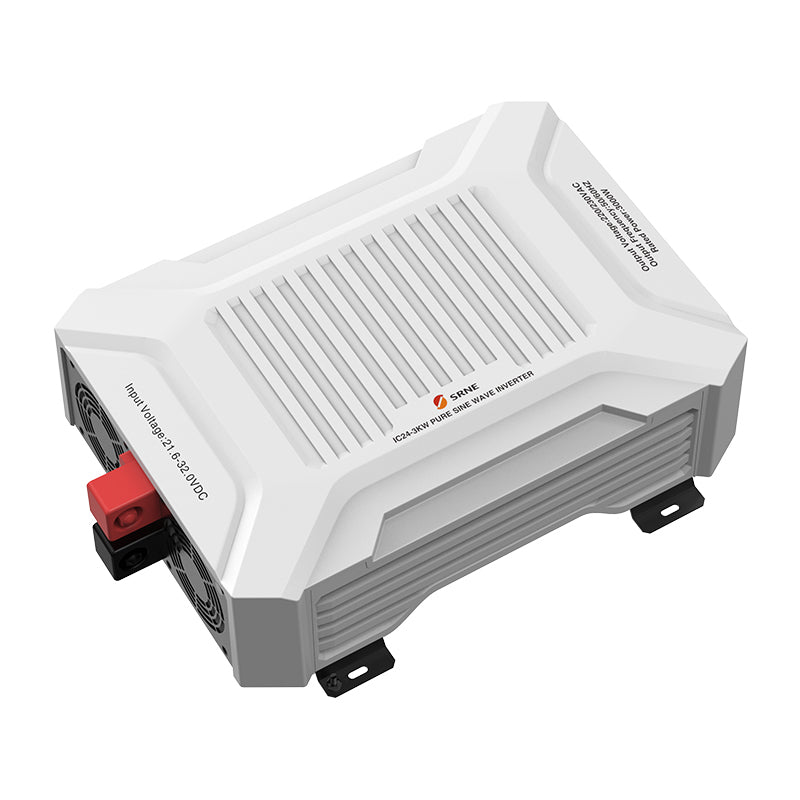

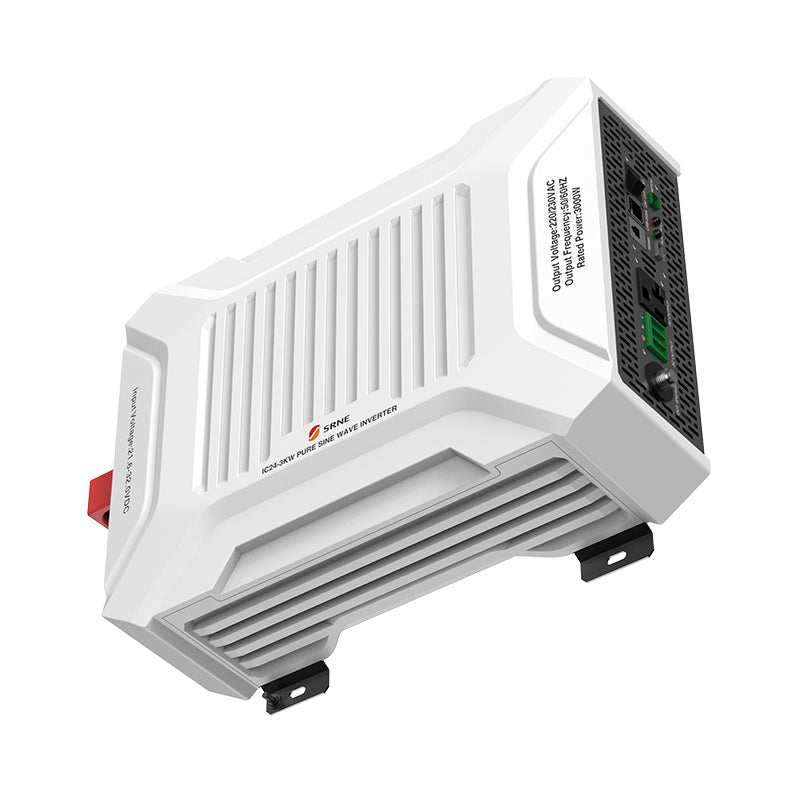

SRNE SR-IC12-3KW 12V 3000W High Frequency Pure Sine Wave Inverter
Stable
Utilises advanced SPWM modulation technology to deliver a pure sine wave output with high power quality, supported by high power density and long-life components for reliable, long-term full-power operation.
Efficiency
Offers high conversion efficiency with low losses and minimal harmonic distortion, along with multiple operating modes to maximise power savings.
Intelligent
Bluetooth comes standard, enabling mobile app support for viewing device operating parameters, with multiple expansion interfaces to meet diverse user needs.
Safety
Equipped with battery over-voltage, over-discharge, output overload, short-circuit, and over-temperature protection. Note: Reverse connection protection is not included—please do not reverse the connection. Surge protection design is suitable for lithium battery power systems.
Key Specifications:
Model: SR-IC12-3KW
Rated battery voltage: 12Vdc
Battery voltage range: 10.8 - 16Vdc
Rated output power: 3000W
Peak power: 6000W
Rated output voltage: 220/230(default)/240Vac(±3%)
Output Frequency 50/60Hz
Output Waveform Pure sine wave
THD: THD90%
Max Output Efficiency: >91.5%(30%load)
Dimensions: 366 x 300 x 116mm
Weight: 7.0kg
IP Grade: IP20
Ambient Temperature: -20°C - 60°C
Certificates: CE, ROHS, IEC62109-1/2, EN61000-6-2/4
Warranty:
Covered with a 2-year warranty for your peace of mind.
