Description

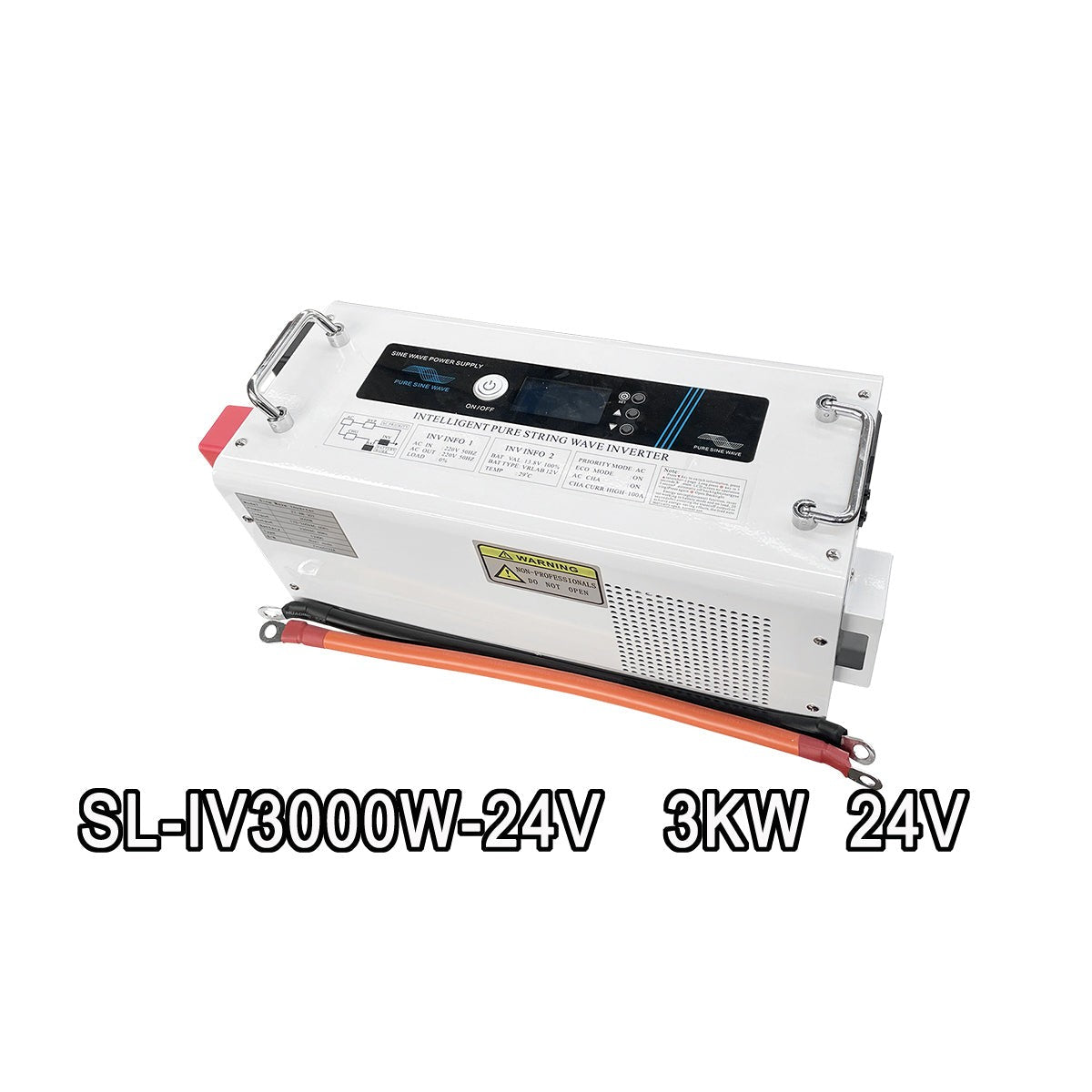

Uninterruptible Power Supply Low-Frequency Pure Sine Inverter has Arrived!
heavy duty, 23kg 5 years warranty
We are a technically oriented solar service company that provides quality products, extensive service and support to our customers.
With years of accumulated expertise and rich experience, we will create professional and efficient system design solutions for you according to your different needs.
This inverter can be:
1 Used for PV system
2 Suitable for RV modification
3 Compatiblelithium battery
Product features.
1.Continuous power output

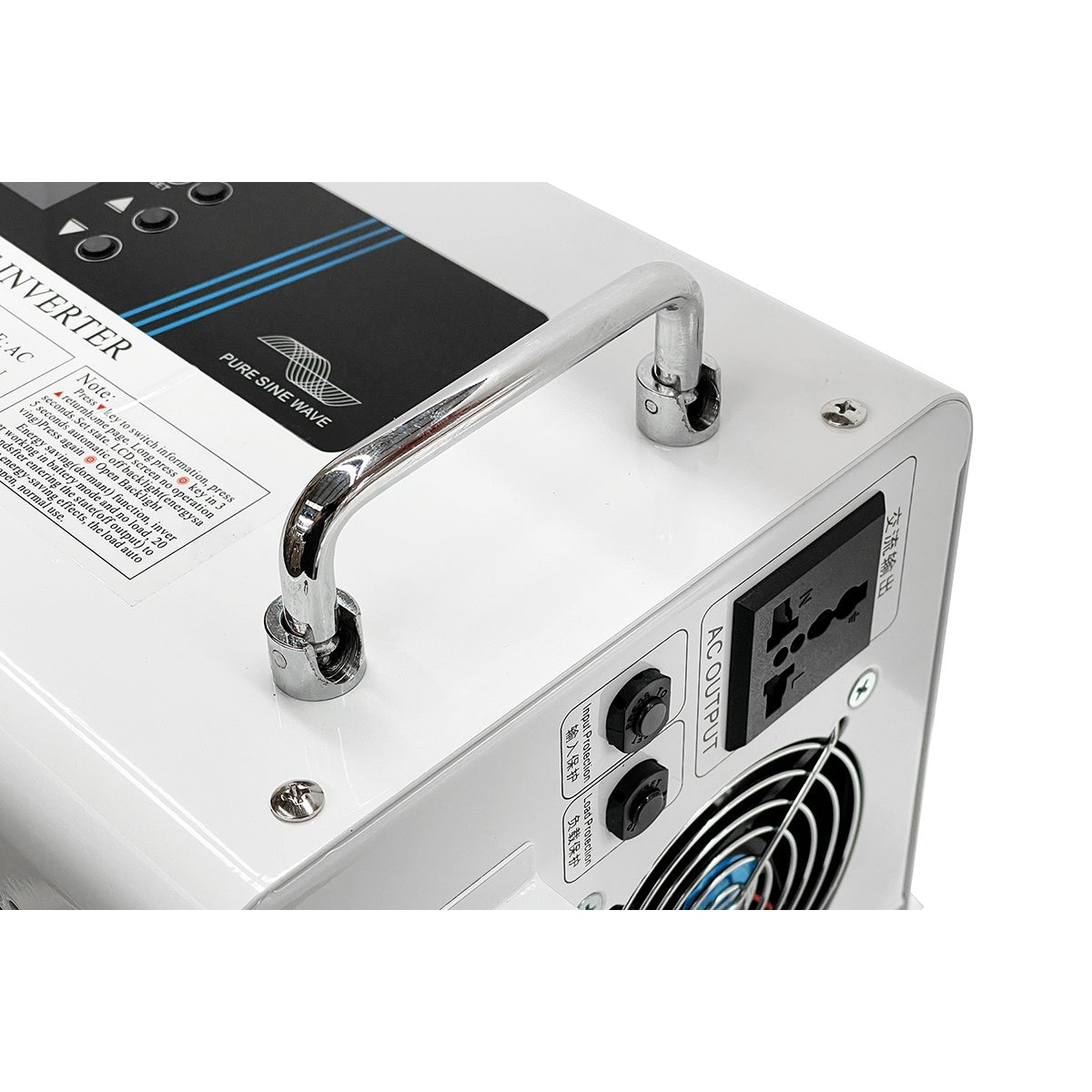

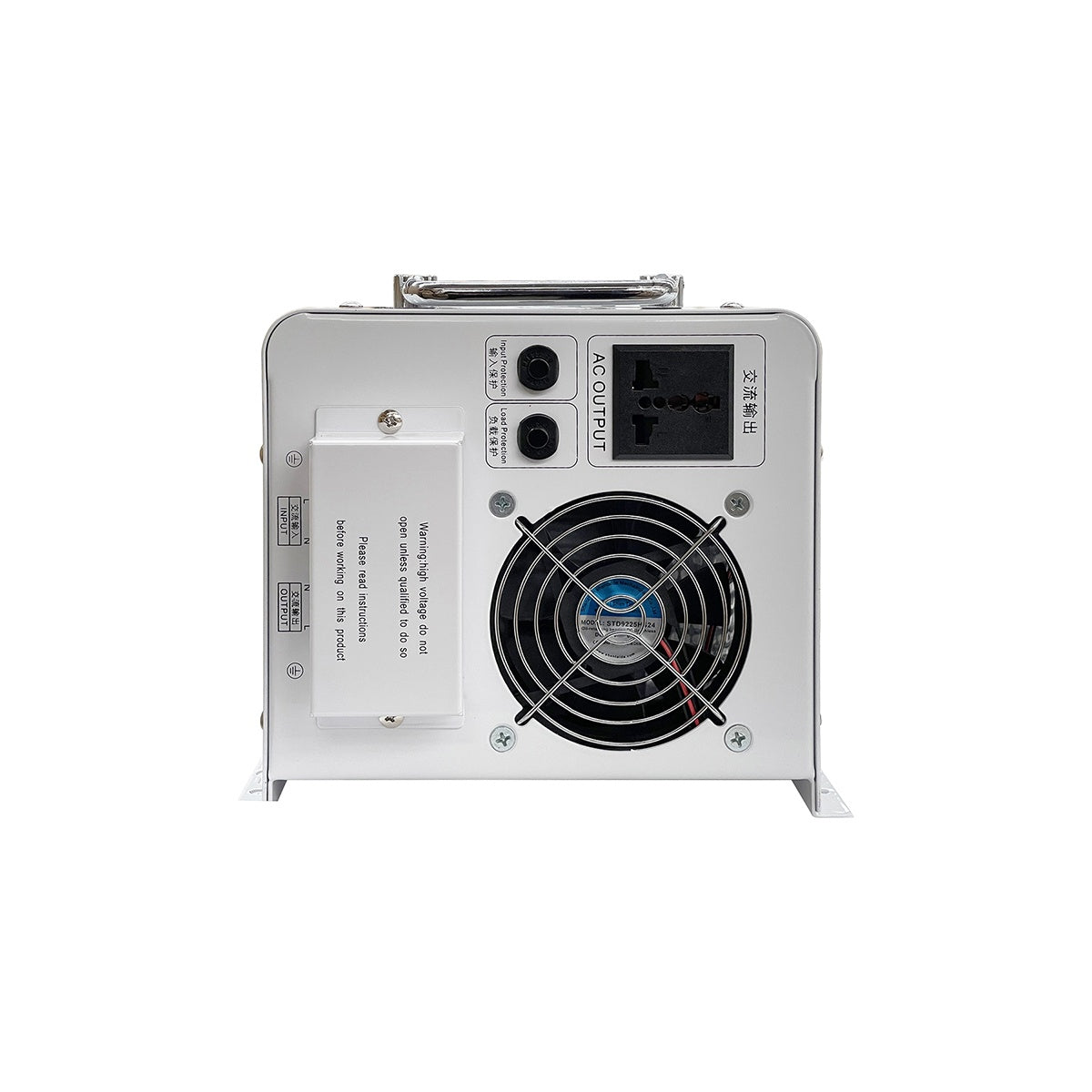

2.universal socket design, suitable for all appliances connected to use
3.input & output completely isolated
4.power: transformer isolation
5.Signal: Optocoupler isolation
6.Independent auxiliary power supply
7.Excellent efficiency, greater than 93%
8.Constant (limited) power output, real short circuit protection
9.SMT chip technology, reliable quality, stable output
10.PWM regulated power, output voltage ± 3%
Rated power：3000W
peak power：12000W
voltage：24V
Dimension L×W×H:460×220×180（mm）
ACInputvoltagerange(VAC):170-260VAC（220V) 85-130VAC(110V)
Inputfrequency(Hz):45-65HZ
Battery voltage range:24v
Outputvoltage range(VAC):Inverter mode 110V/120V/220V/230V/240V±3%
Outputfrequency(Hz）:50/60±1%.
Utility output frequency range:50 Hz/60 Hz automatic tracking
Output waveform:Pure sine wave
Efficiency:＞85%
Transfer time(ms):≤5ms
Compatible battery type:Lead-acid batteries/colloidal batteries/lithium-iron batteries/ternary lithium batteries/unconventional batteries
Protection function:Short circuit protection; high voltage protection; low voltage protection; overcharge protection; overload protection; high temperature protection
Overload protection:Overload 110% - 120% of the inverters will stop after 60 seconds, and over-load 150% of the inverters will stop after 10 seconds.
