Description

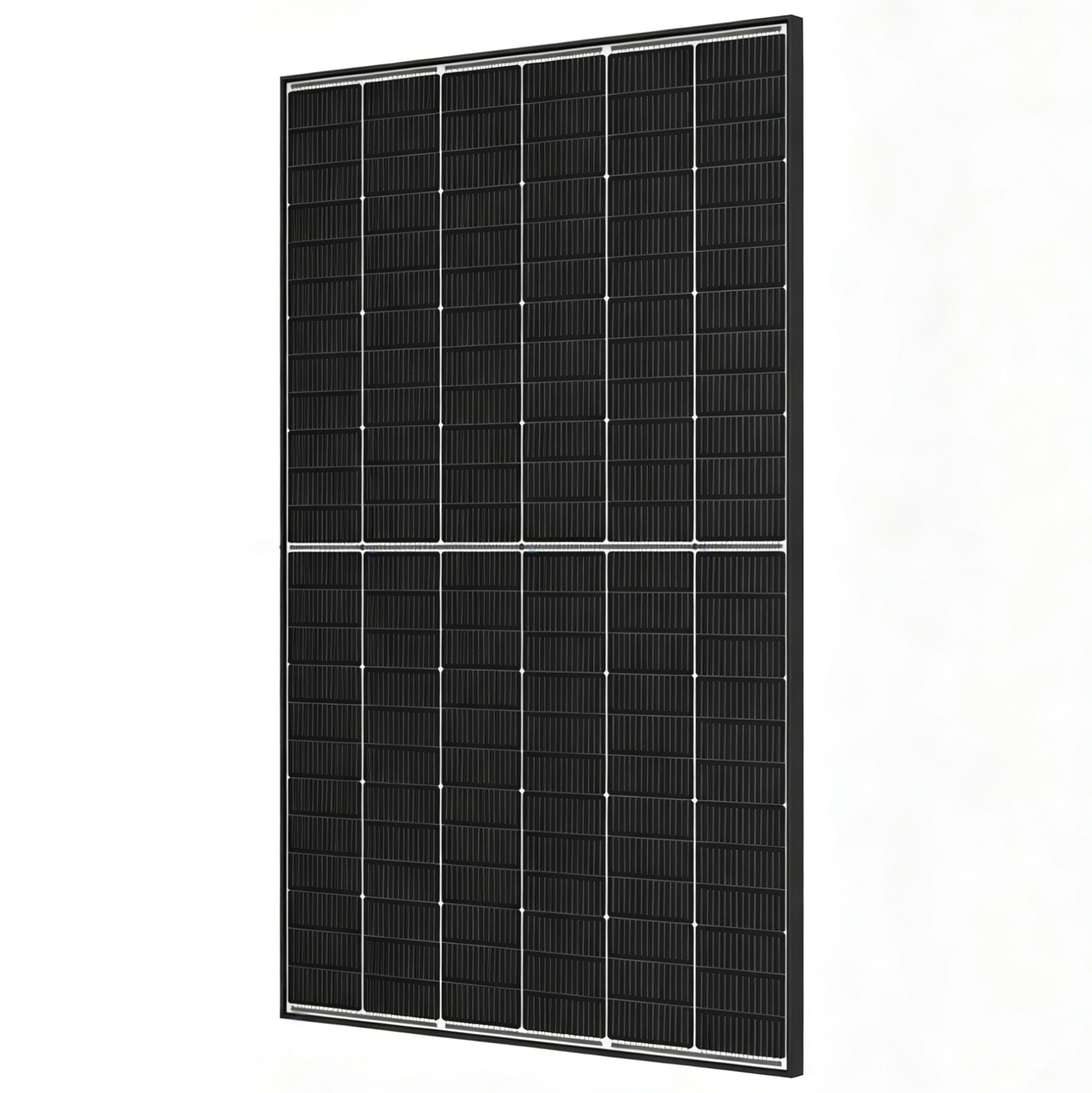

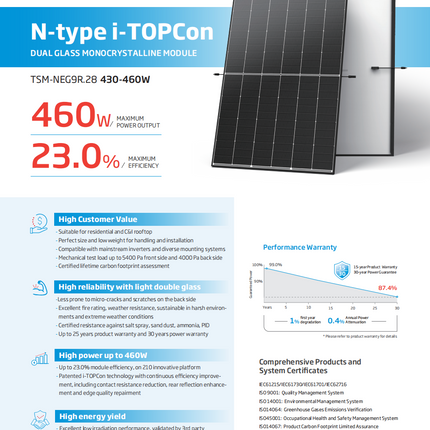

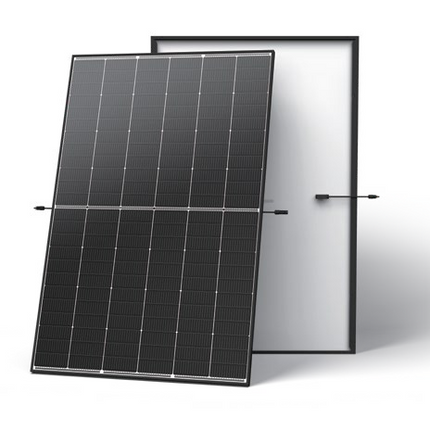

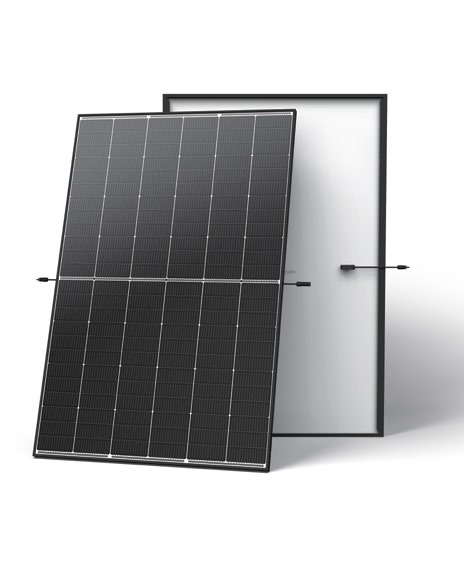

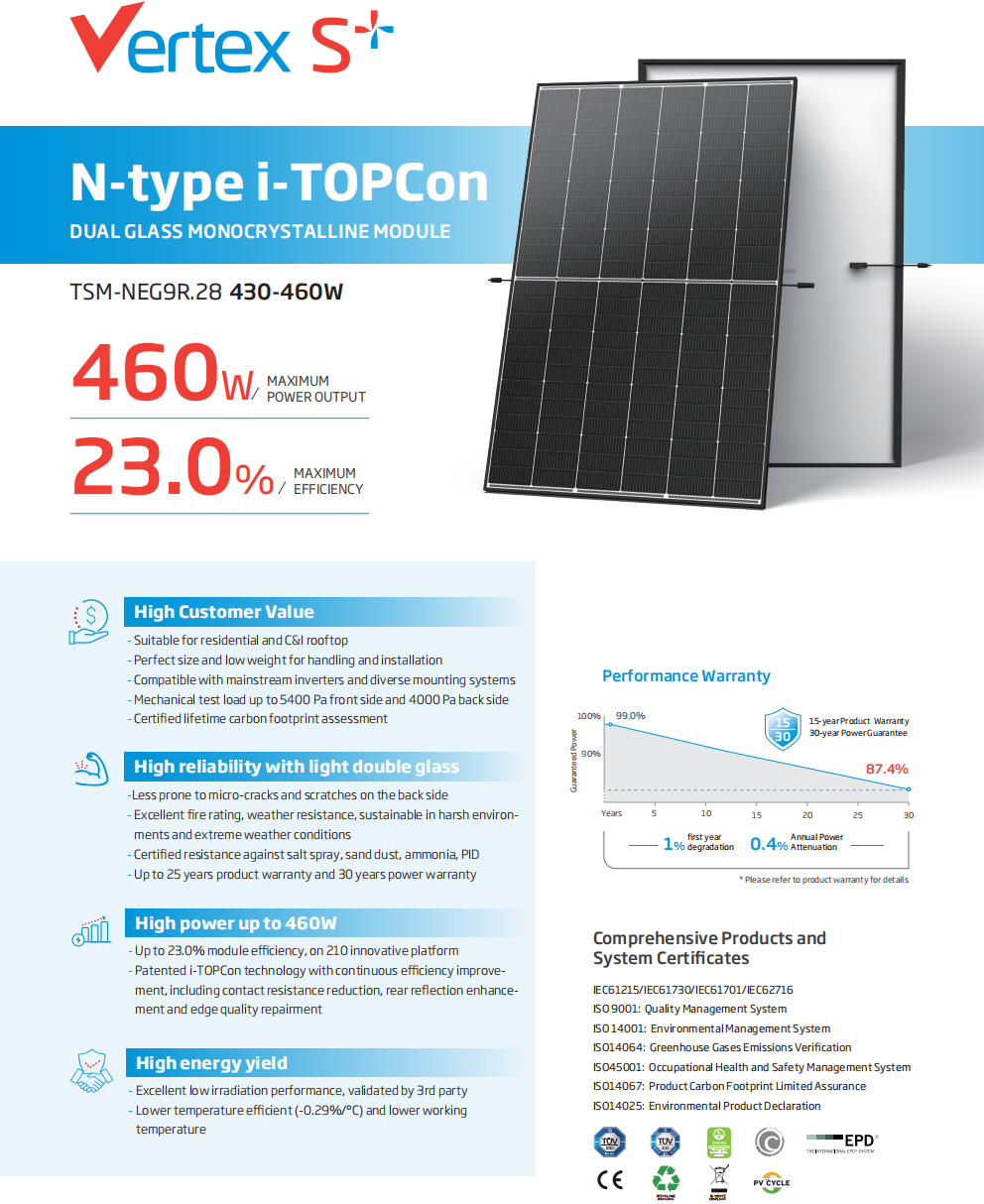

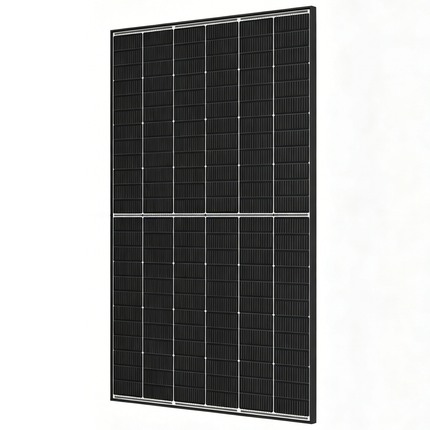

Trinasolar Vertex S+ N-type i-TOPCon 450W Mono Solar Panel DUAL GLASS MONOCRYSTALLINE MODULE
Trinasolar NEG9R.28 black frame product is built on the 210R innovative platform, combined with n-type i-TOPCon cell technology, achieving up to 460W of power and 23% efficiency. Its 1.6+1.6mm dual-glass structure outperforms conventional backsheet modules, offering superior reliability, extended warranty, higher energy yield, and easier handling.
1.6+1.6mm Lightweight Dual-Glass: Exceptional durability, resistant to high temperatures and humidity.
High Power, High Efficiency: 460W+ power output, 23% efficiency.
High Reliability, High Safety: Front load 5400 Pa, back load 4000 Pa, capable of withstanding extreme weather conditions.

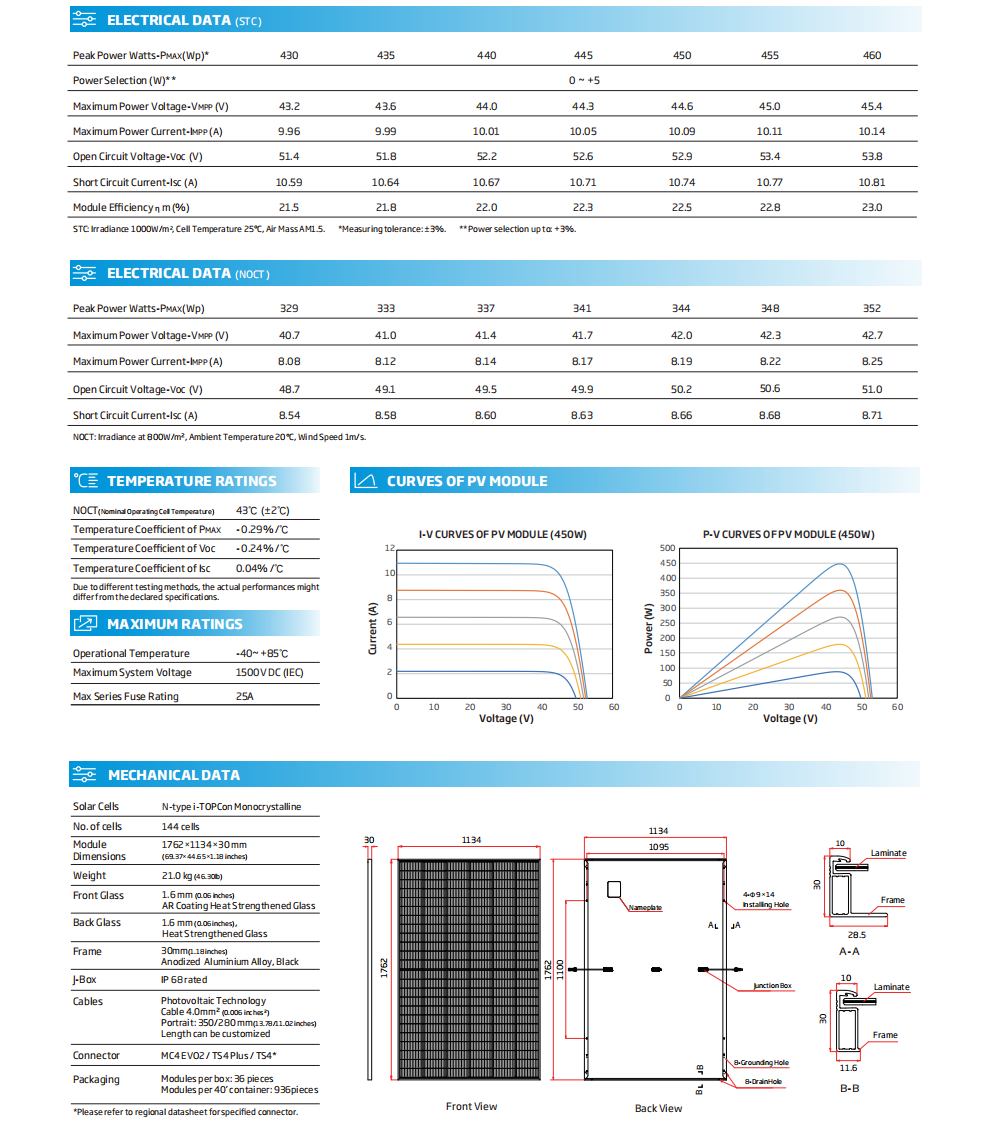

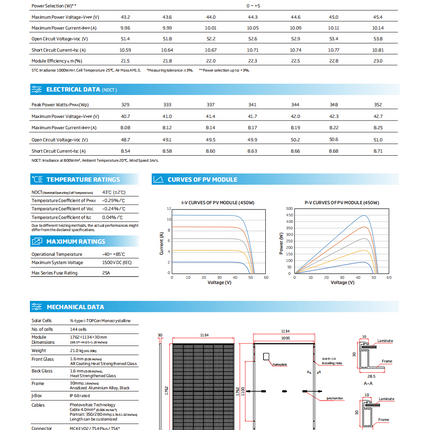

- ELECTRICAL DATA (STC):
- Peak Power Watts-PMAX(Wp): 450W
- Power Selection (W): 0 - +5
- Maximum Power Voltage-VMPP (V): 44.6
- Maximum Power Current-IMPP (A): 10.09
- Open Circuit Voltage-VOC (V): 52.9
- Short Circuit Current-ISC (A): 10.74
Module Eciency η m (%): 22.5
- ELECTRICAL DATA (NOCT):
- Peak Power Watts-PMAX(Wp): 344
- Maximum Power Voltage-VMPP (V): 42
- Maximum Power Current-IMPP (A): 8.19
- Open Circuit Voltage-VOC (V): 50.2
- Short Circuit Current-ISC (A): 8.66
- MECHANICAL DATA:
- Solar Cells: N-type i-TOPCon Monocrystalline
- Module Dimensions: 1762 x 1134 x 30 mm (69.37 x 44.65 x 1.18 inches)
- Weight: 21.0 kg (46.30lb)
- J-Box: IP68 rated
- Cables: Photovoltaic Technology Cable 4.0mm2 (0.006 inches2)
- Portrait: 350/280 mm(13.78/11.02 inches) Length can be customized
- Connector: MC4 EVO2 / TS4 Plus / TS4
- Extended Warranty: 25-year product warranty, 30-year power warranty.
