Description

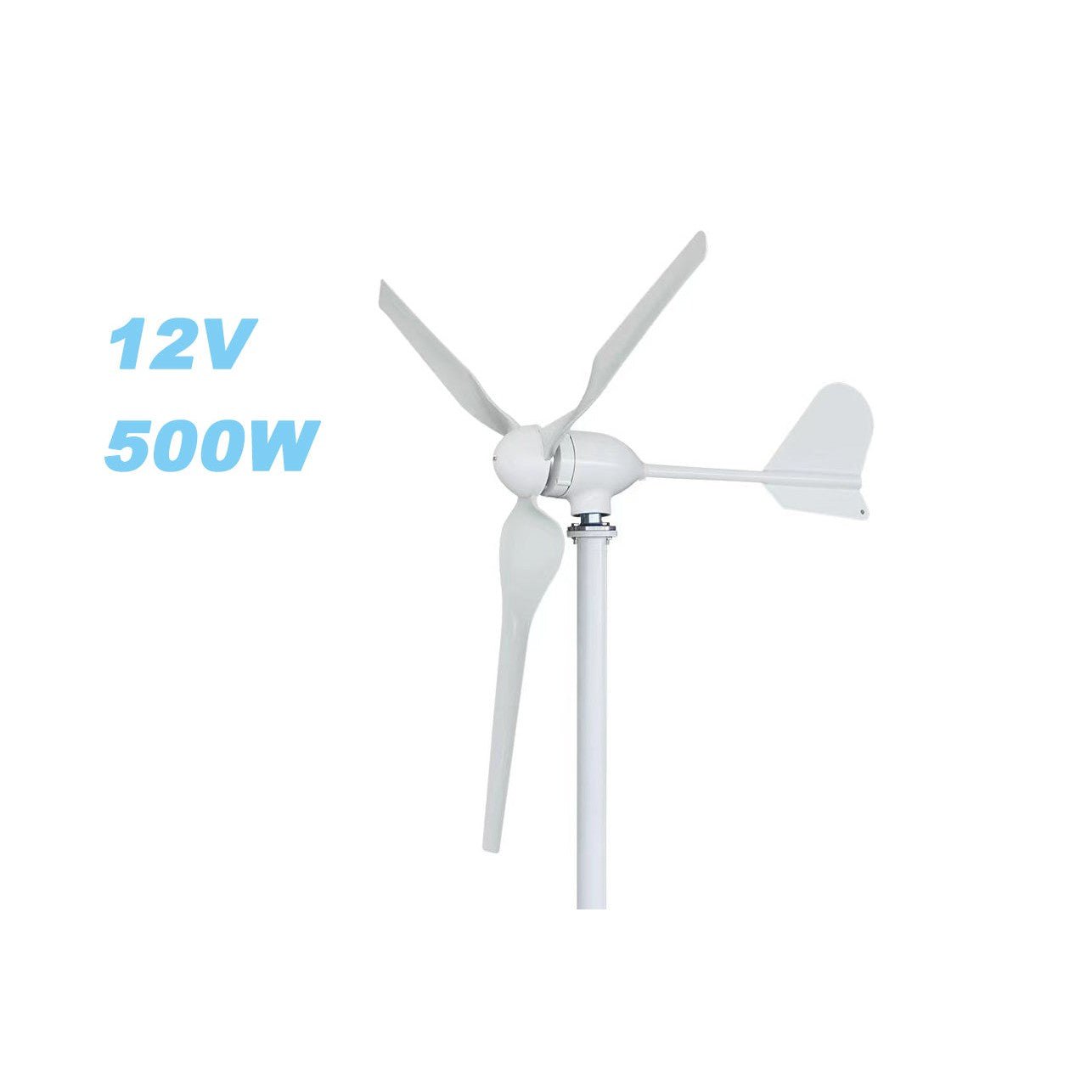

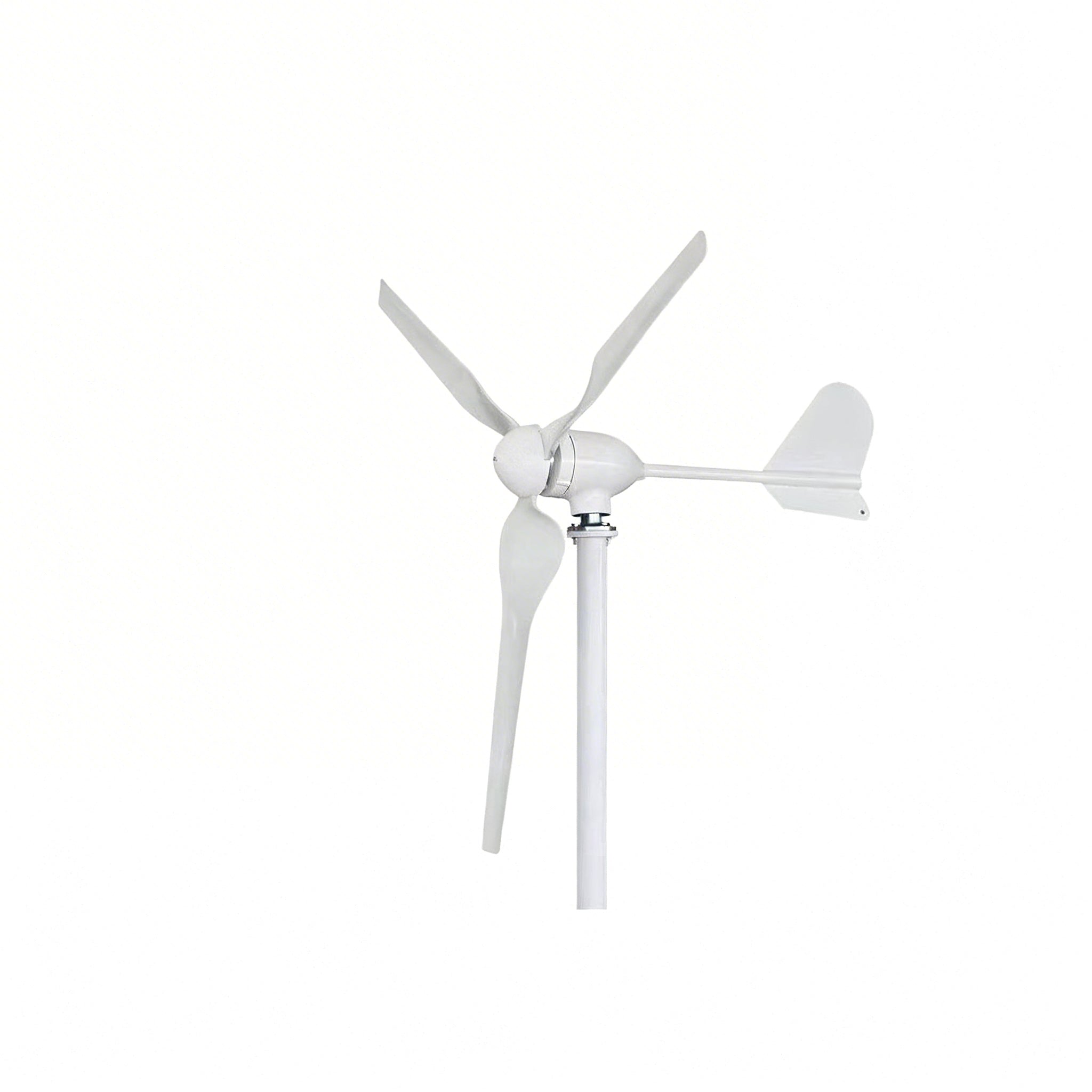

M2-500 500W Wind Turbine
(Pole Not Included)
Features:
Low Start-up Wind Speed: Special-shaped magnet and unique winding structure allow the turbine to start at just 2.5 m/s (for 5-blade version: 1.5 m/s) without any auxiliary starting device.
Quiet Operation: Nylon fiber blades and aerodynamic design ensure smooth and low-noise performance.
Compact & Lightweight: Rare earth permanent magnets reduce the overall volume and weight of the turbine.
High Efficiency: Delivers 100% full output power with extremely high energy conversion efficiency.
Durable & Consistent Quality: Molded construction ensures stable quality and long-term reliability.
Comprehensive Protection: Built-in protections against over-voltage, over-discharge, over-current, and strong wind conditions.
Robust Construction: Die-cast aluminum casing offers excellent corrosion resistance.
Weatherproof: Fully sealed design prevents intrusion from sand, salt spray, and rainwater.
Long Lifespan: Unique heat dissipation structure extends the design life to 15–20 years.
Applications:
Ideal for LED lighting, street signals, security cameras, outdoor telecommunication systems, and off-grid residences. Easily integrates with solar panels to form a wind & solar hybrid off-grid power system, providing consistent and clean energy. Available in 24V for battery charging.
Specifications:
Model Name: M2-500
Rated Power: 500W
Maximum Power: 530W
Rated Voltage: 12V
Start-up Wind Speed: 2.5 m/s
Rated Wind Speed: 11.5 m/s
Net Weight: 20 kg
Wind Wheel Diameter: 1.65 m
Number of Blades: 3
Blades Material: Nylon Fibre
Generator Type: Three-phase Permanent Magnet AC Generator
Magnet: NdFeB Rare Earth
Controller System: Electromagnetic
Speed Regulation: Automatic windward adjustment
Working Temperature: -40℃ to 80℃
Note: Pole not included.
