Description

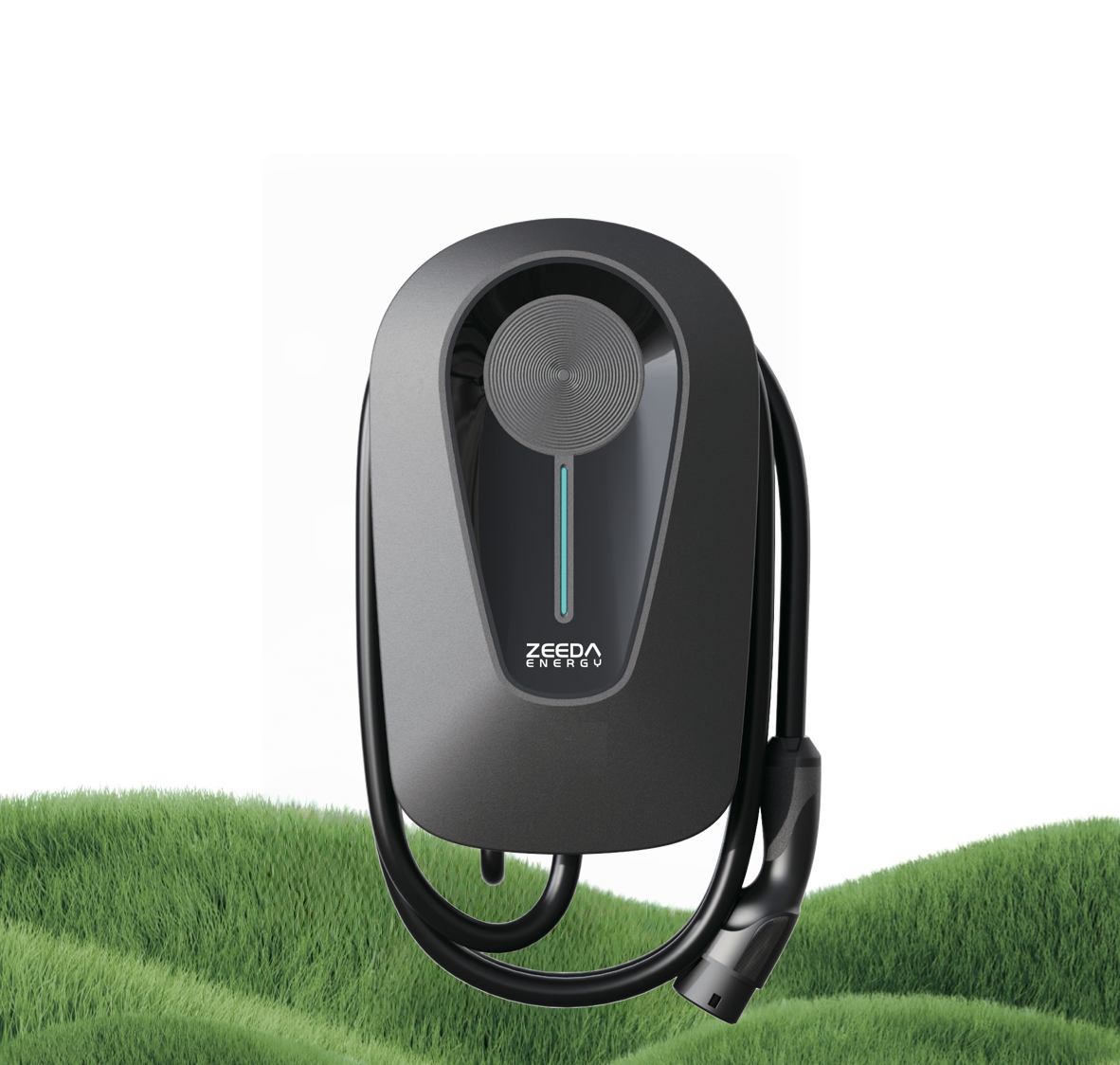

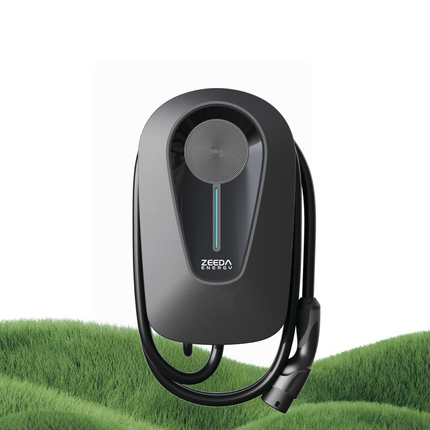

The ZEEDA Explorer is a smart three-phase Type 2 AC EV charger for homes, apartment buildings, workplaces, fleets, and commercial sites. It is available in 11kW and 22kW configurations and combines IP66 protection with optional smart connectivity for flexible indoor or outdoor installation.
Key Features
- 11kW or 22kW three-phase AC charging, depending on configuration
- Type 2 charging connection
- IP66 protection for indoor and outdoor use
- Optional RFID, Bluetooth, Wi-Fi, and 4G connectivity

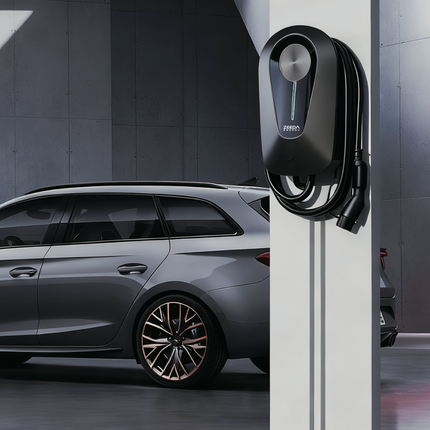

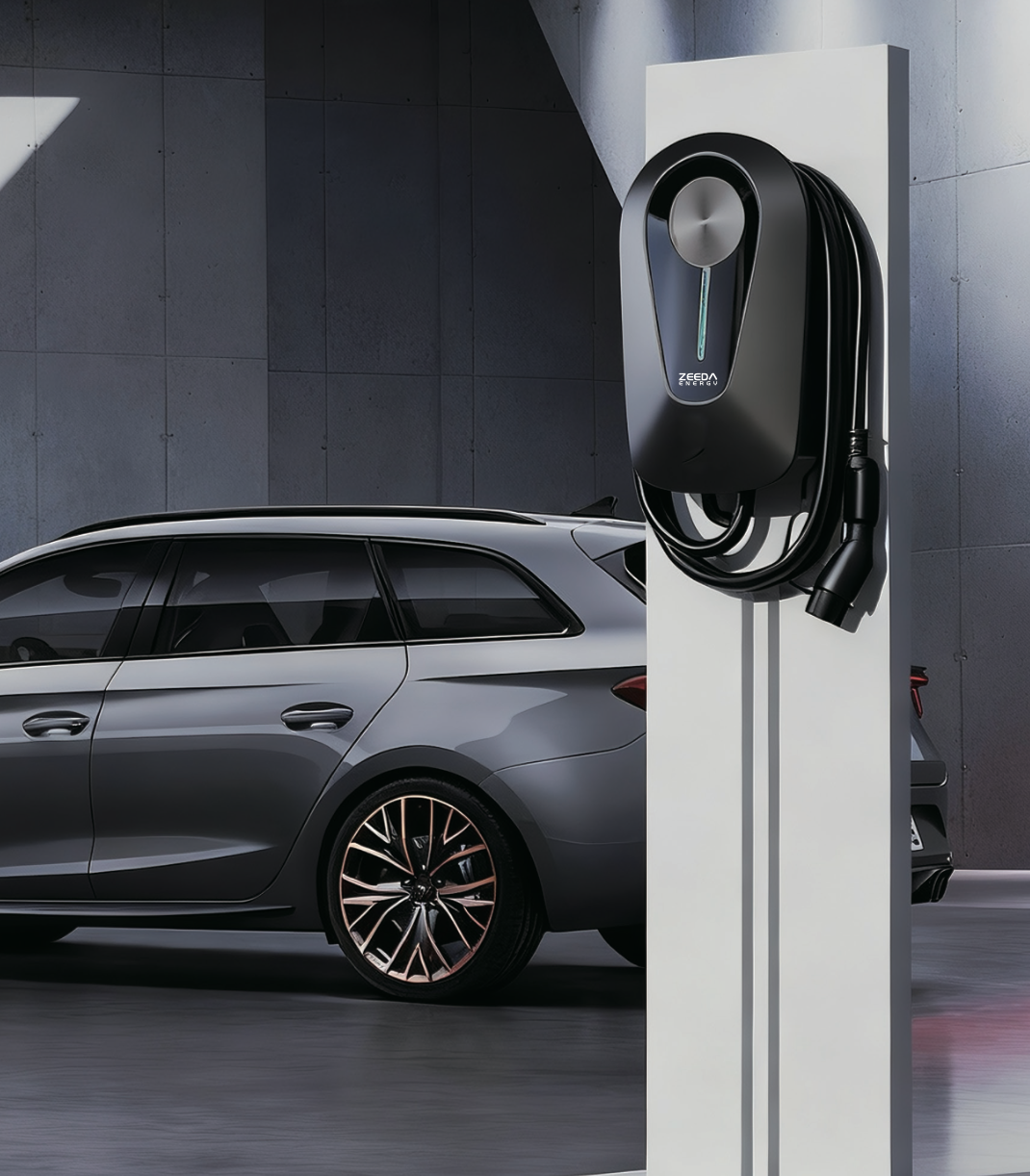

- Wall-mounted or pedestal-mounted installation
- Operating temperature from -40 C to +55 C
- Connector mechanical life of at least 10,000 uses
Safety Protection
- Undervoltage and overvoltage protection
- Overcurrent, overheat, and short-circuit protection
- Leakage, lightning, and emergency stop protection
Ideal For
- Home and shared residential charging
- Workplace and fleet charging
- Small business and commercial charging
- Indoor and outdoor installations

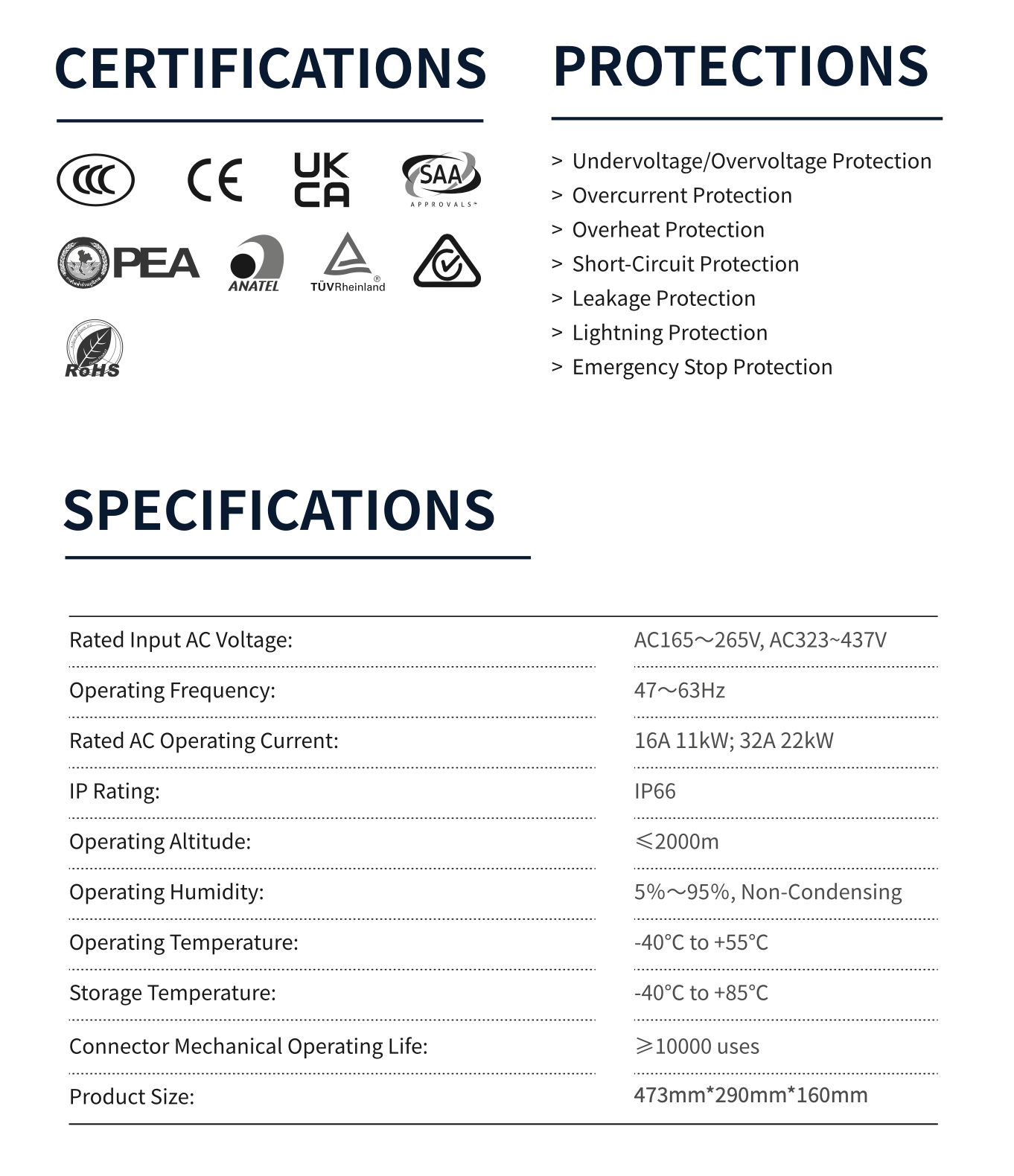

Specifications
-
Rated input voltage: AC 165-265V / AC 323-437V
-
Operating frequency: 47-63Hz
-
Rated current: 16A for 11kW / 32A for 22kW
-
Charging power: 11kW or 22kW, depending on configuration
-
Connector: Type 2
-
Protection rating: IP66
-
Dimensions: 473 x 290 x 160 mm
-
Actual weight: 10 kg
-
Certifications: CE, UKCA, RoHS, RCM, SAA, and TUV Rheinland
Professional installation is required.
