Description

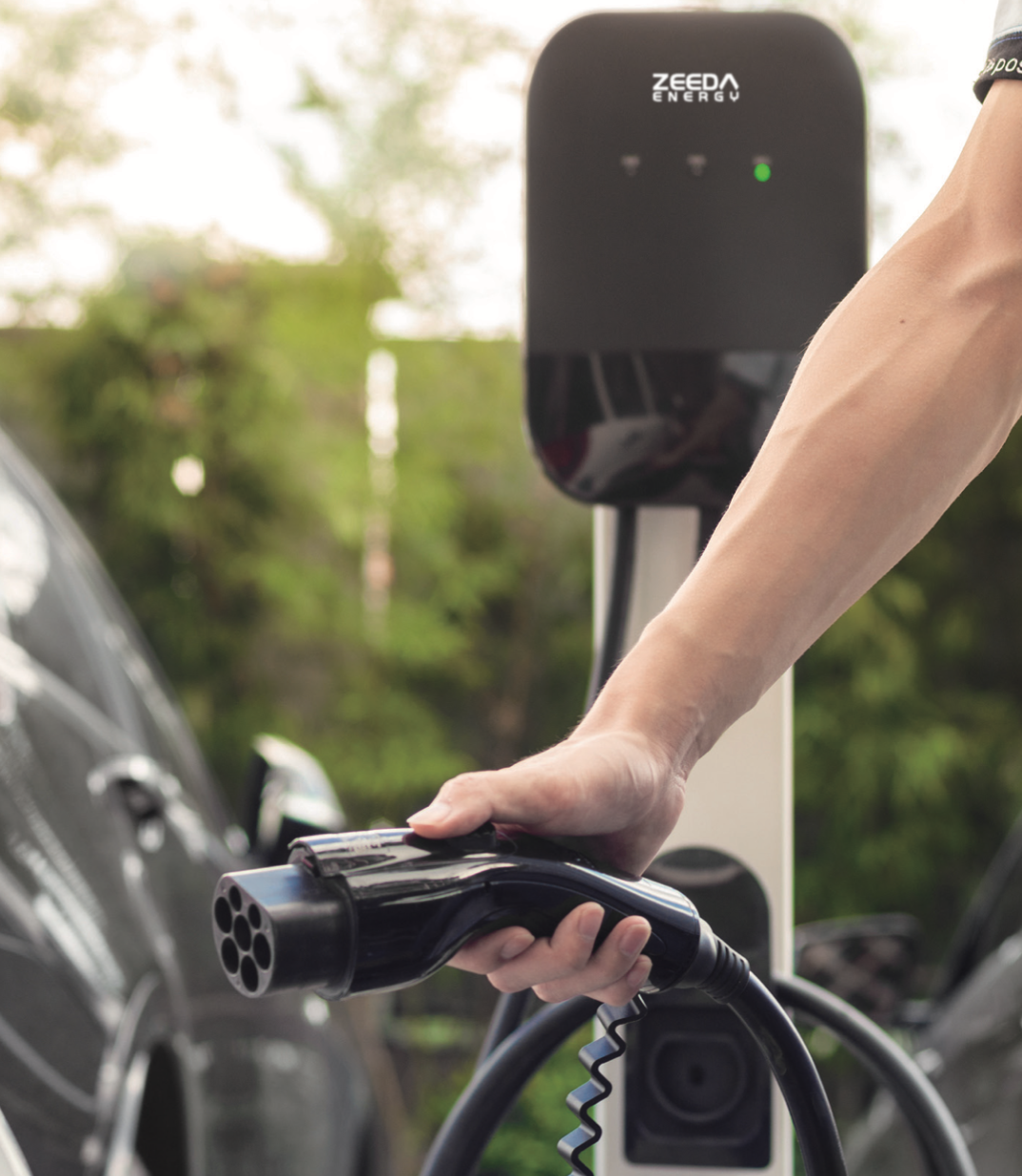

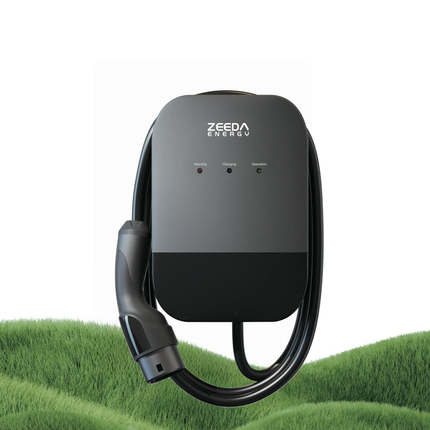

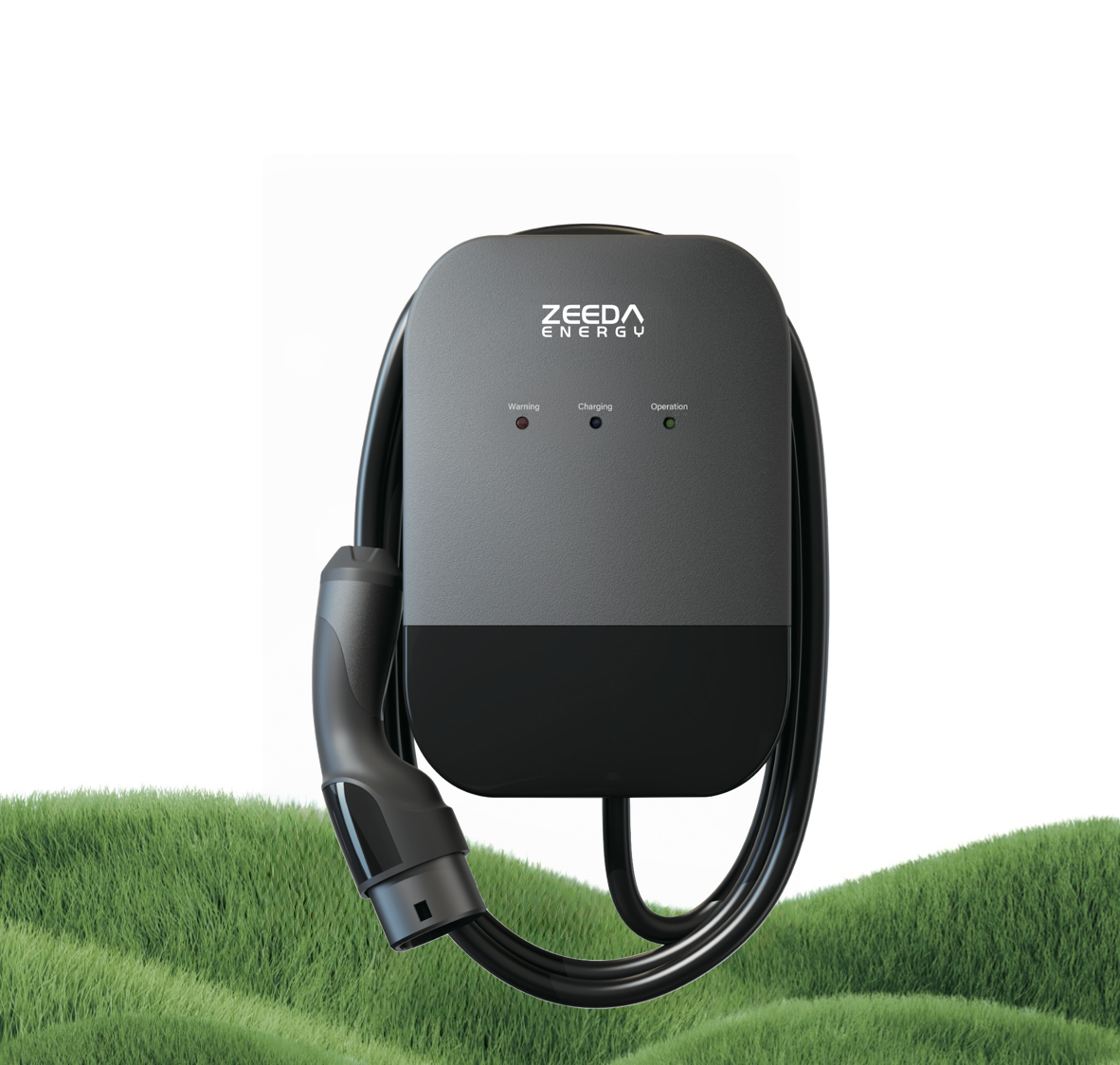

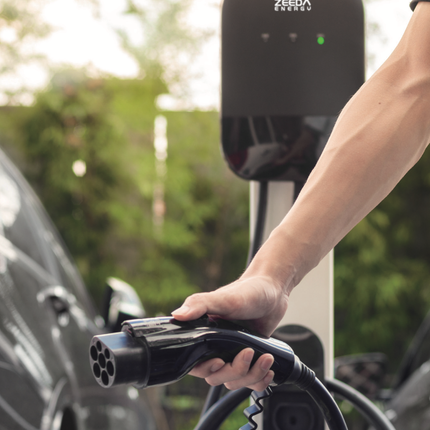

The ZEEDA Guardian is a compact 7kW single-phase Type 2 AC EV charger for homes, apartments, workplaces, and small businesses. Its compact enclosure, broad operating range, and built-in electrical protections make it suitable for indoor or outdoor installation.
Key Features
- 7kW single-phase AC charging at 32A
- Type 2 charging connection
- IP55 protection for indoor and outdoor use
- Optional RFID, Bluetooth, Wi-Fi, and 4G connectivity
- Wall-mounted or pedestal-mounted installation
- Operating temperature from -40 C to +55 C
- Connector mechanical life of at least 10,000 uses
Safety Protection
- Undervoltage and overvoltage protection
- Overcurrent, overheat, and short-circuit protection
- Leakage, lightning, and emergency stop protection
Ideal For
- Home and apartment EV charging
- Workplaces and small businesses
- Indoor and outdoor installations

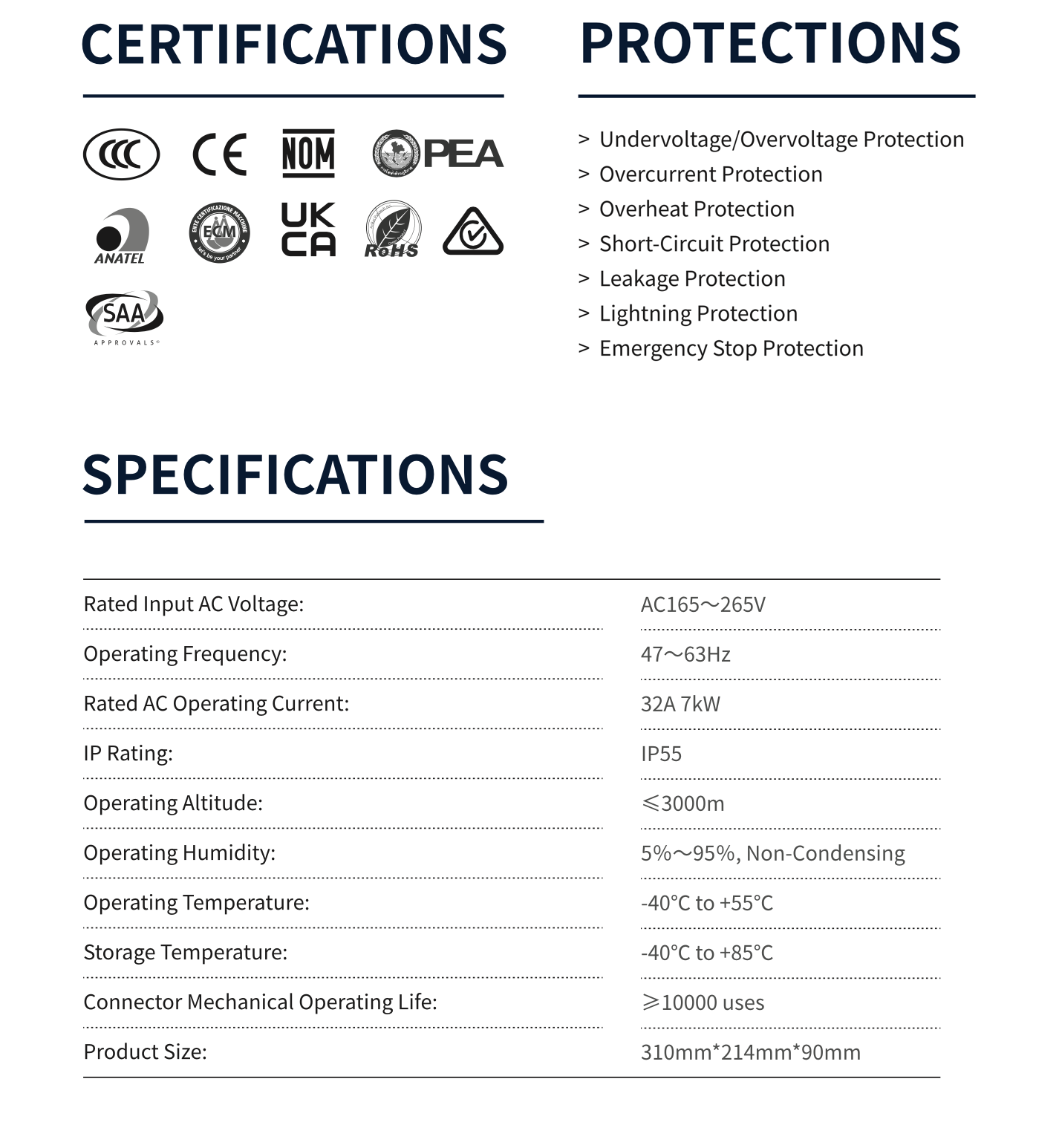

Specifications
-
Rated input voltage: AC 165-265V
-
Operating frequency: 47-63Hz
-
Rated current: 32A
-
Charging power: 7kW
-
Connector: Type 2
-
Protection rating: IP55
-
Dimensions: 310 x 214 x 90 mm
-
Actual weight: 6.5 kg
-
Certifications: CE, UKCA, RoHS, RCM, and SAA
Professional installation is required.
