Description
Introducing an exceptional solar off-grid system that showcases Grade A solar panels and a premium hybrid solar inverter system.
Package Includes:

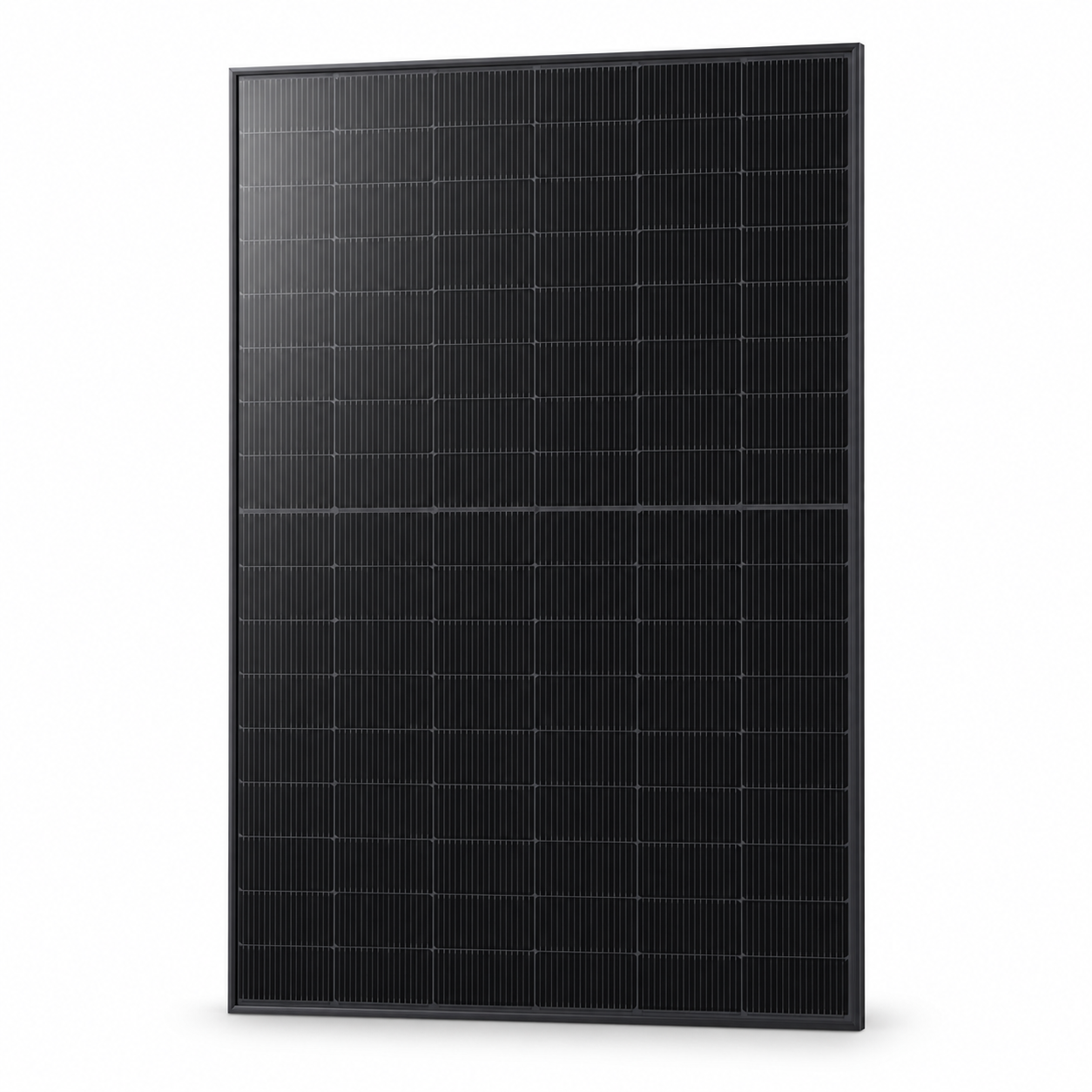

24 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

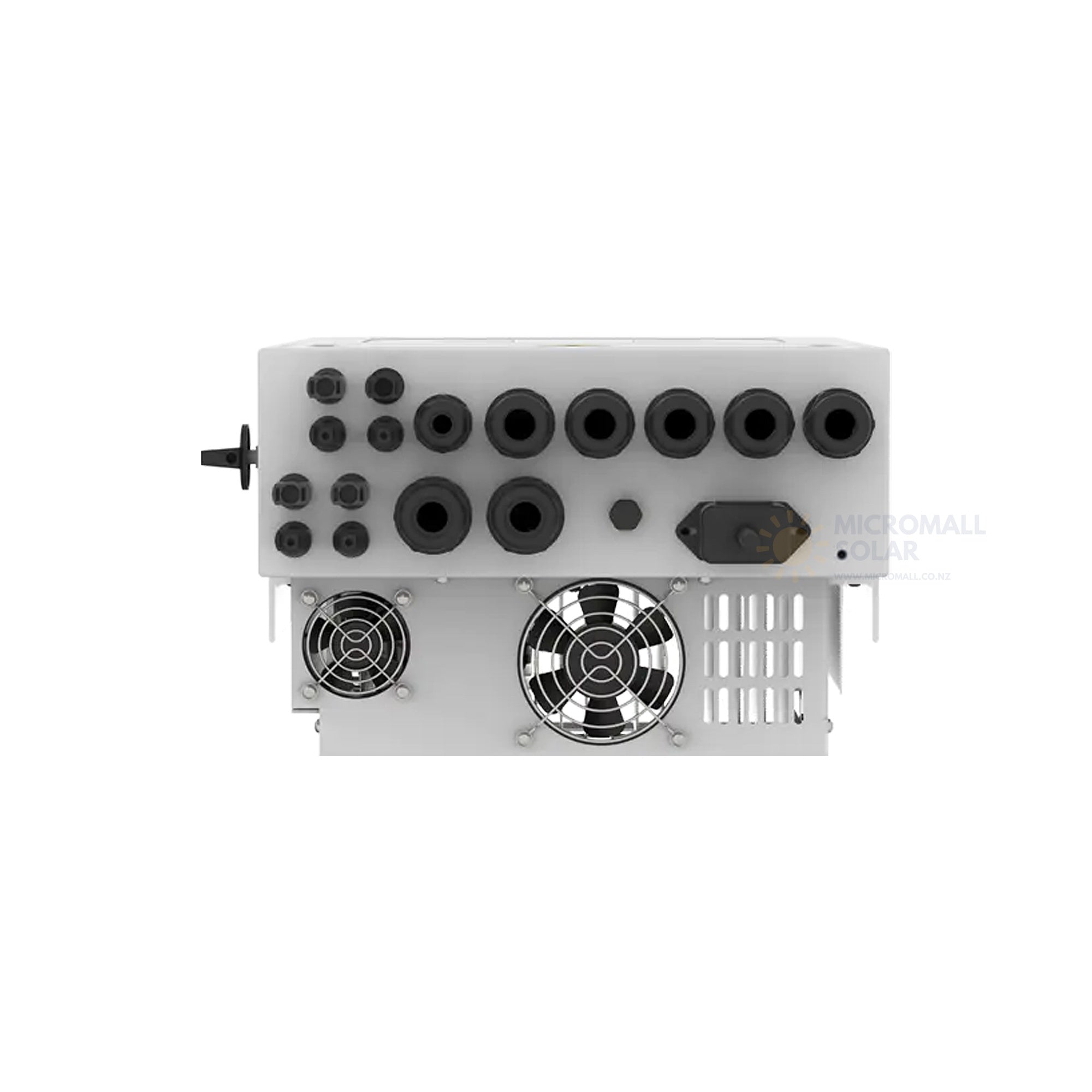

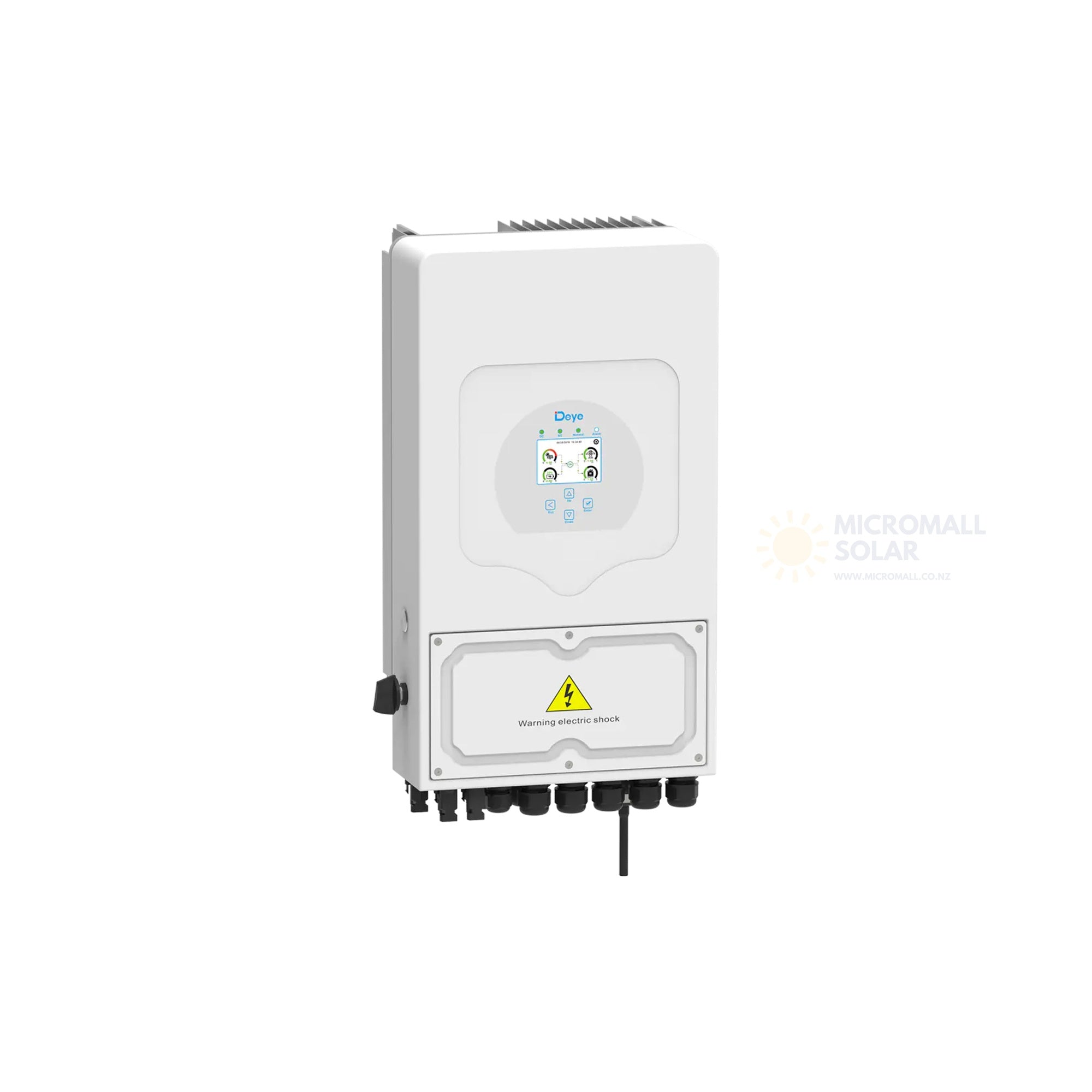

1 x DEYE 8000W Hybrid Inverter SUN-8K-SG05LP1-AU (10 Years Warranty)

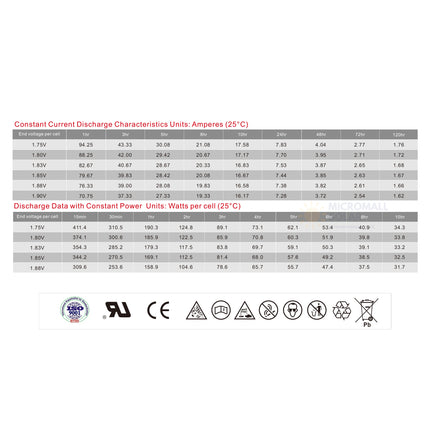

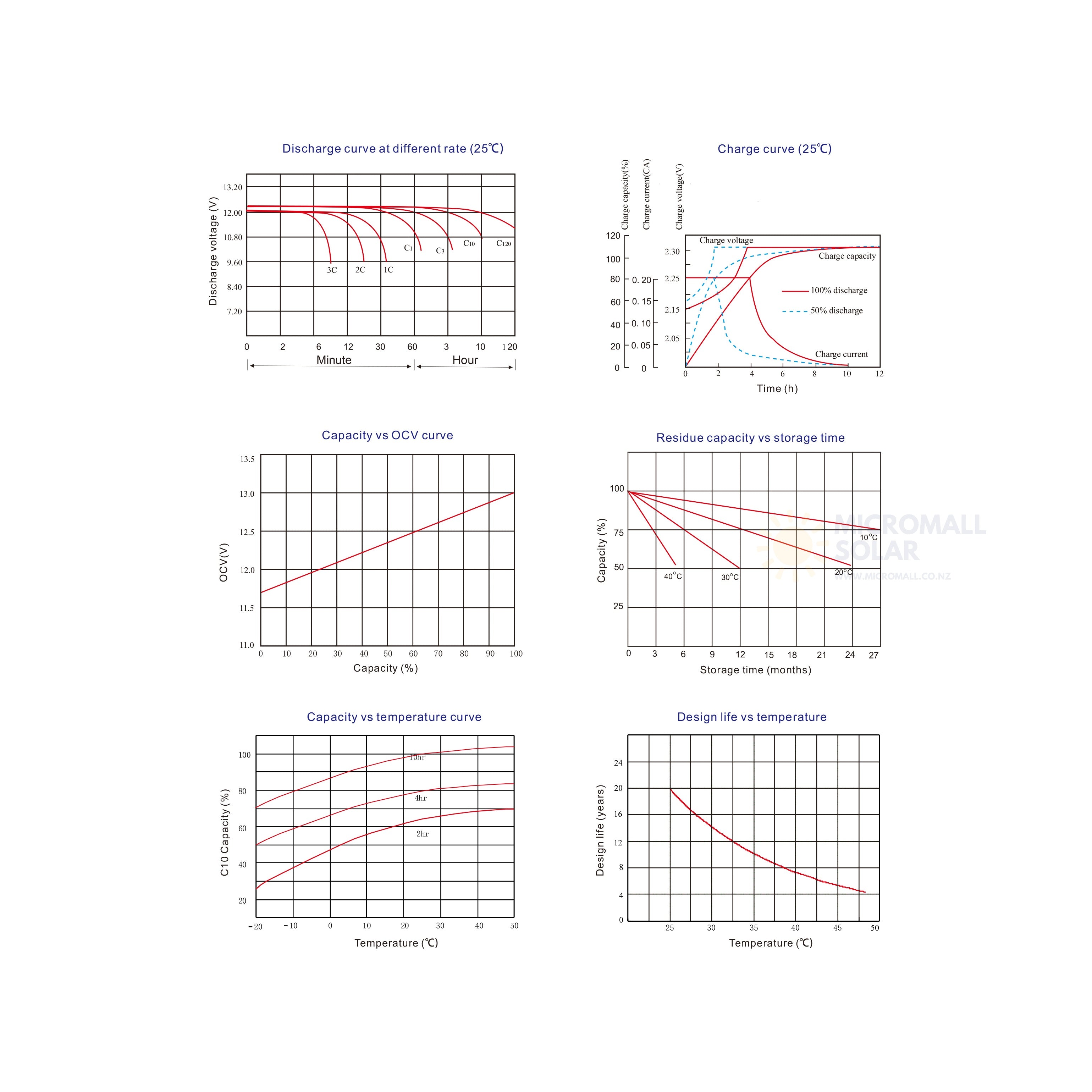

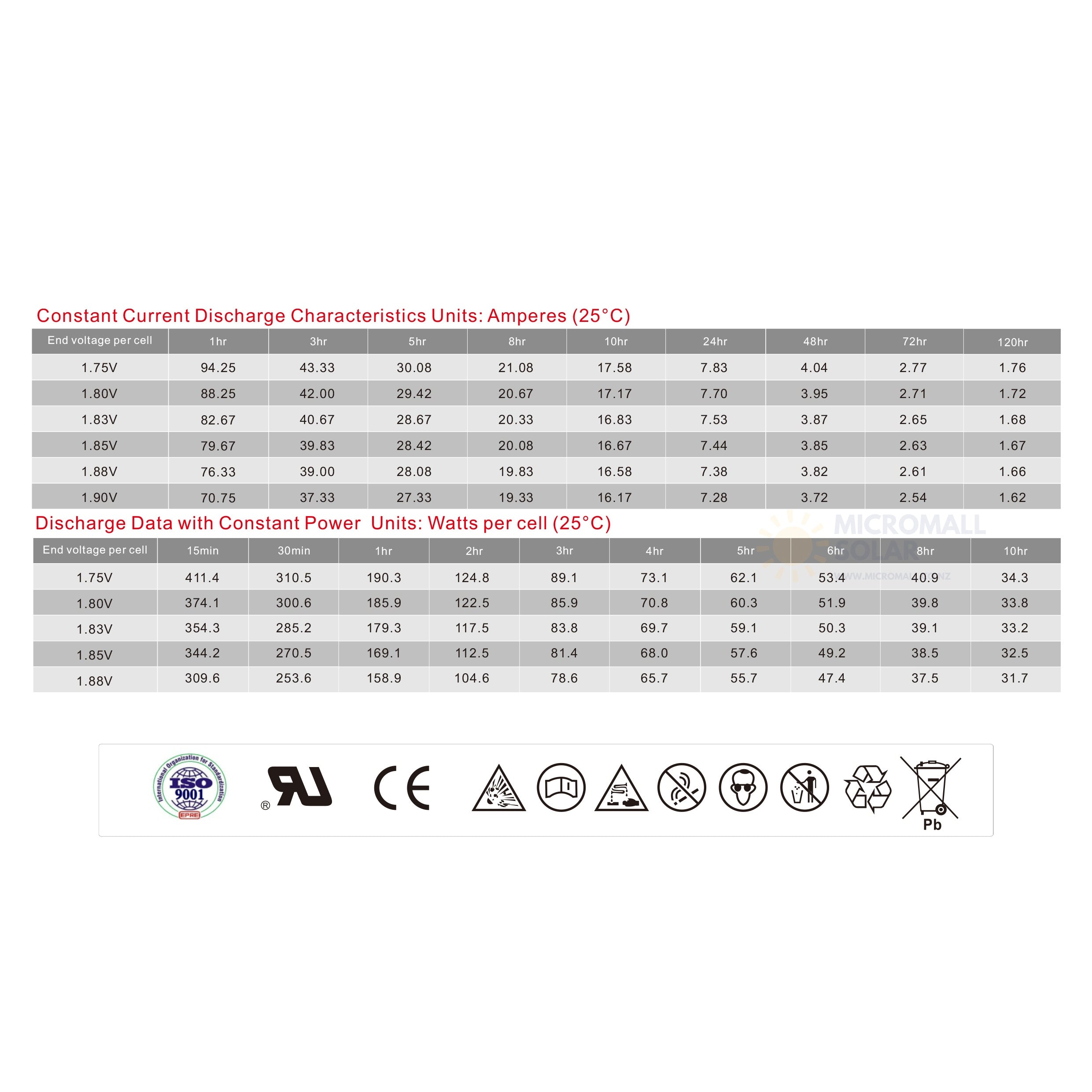

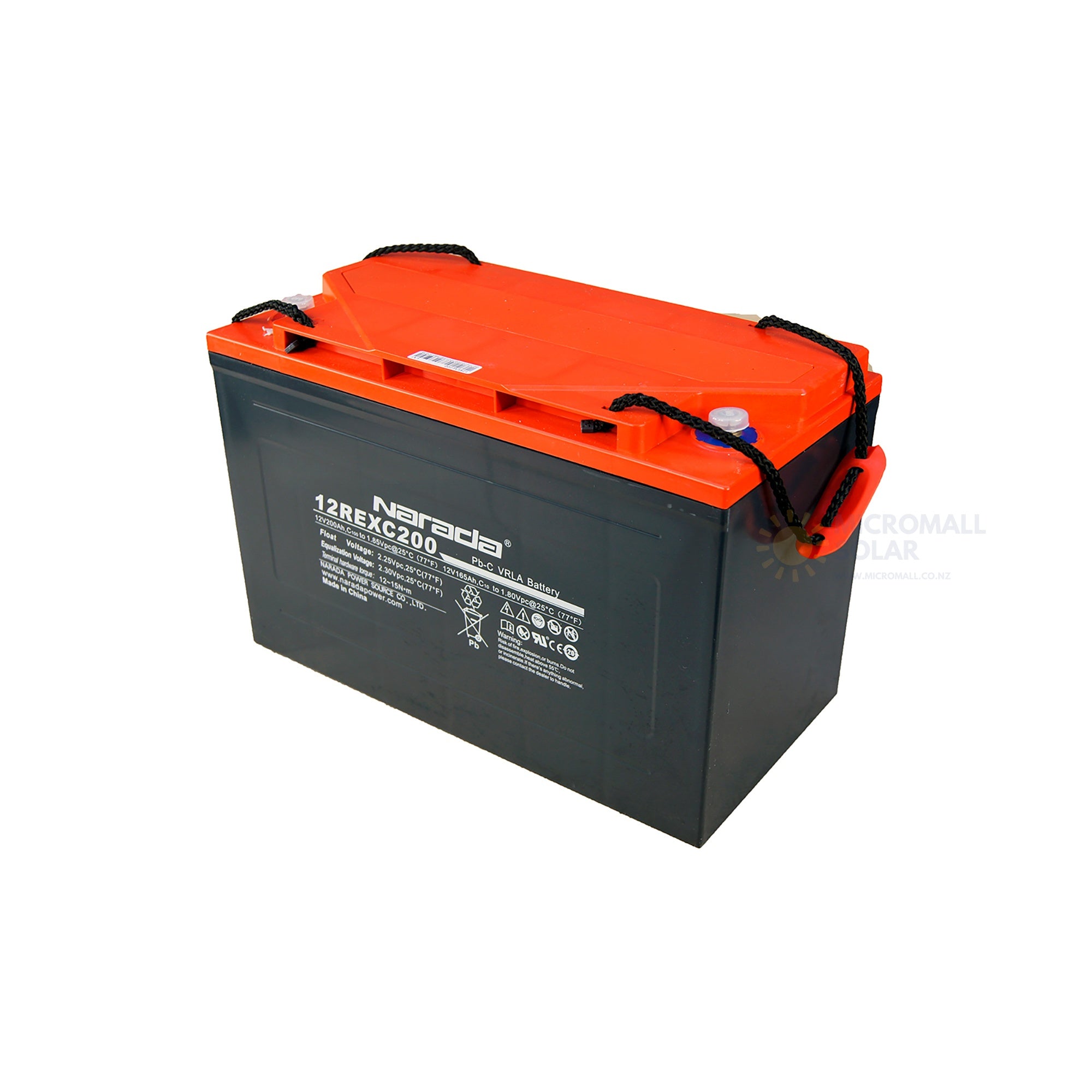

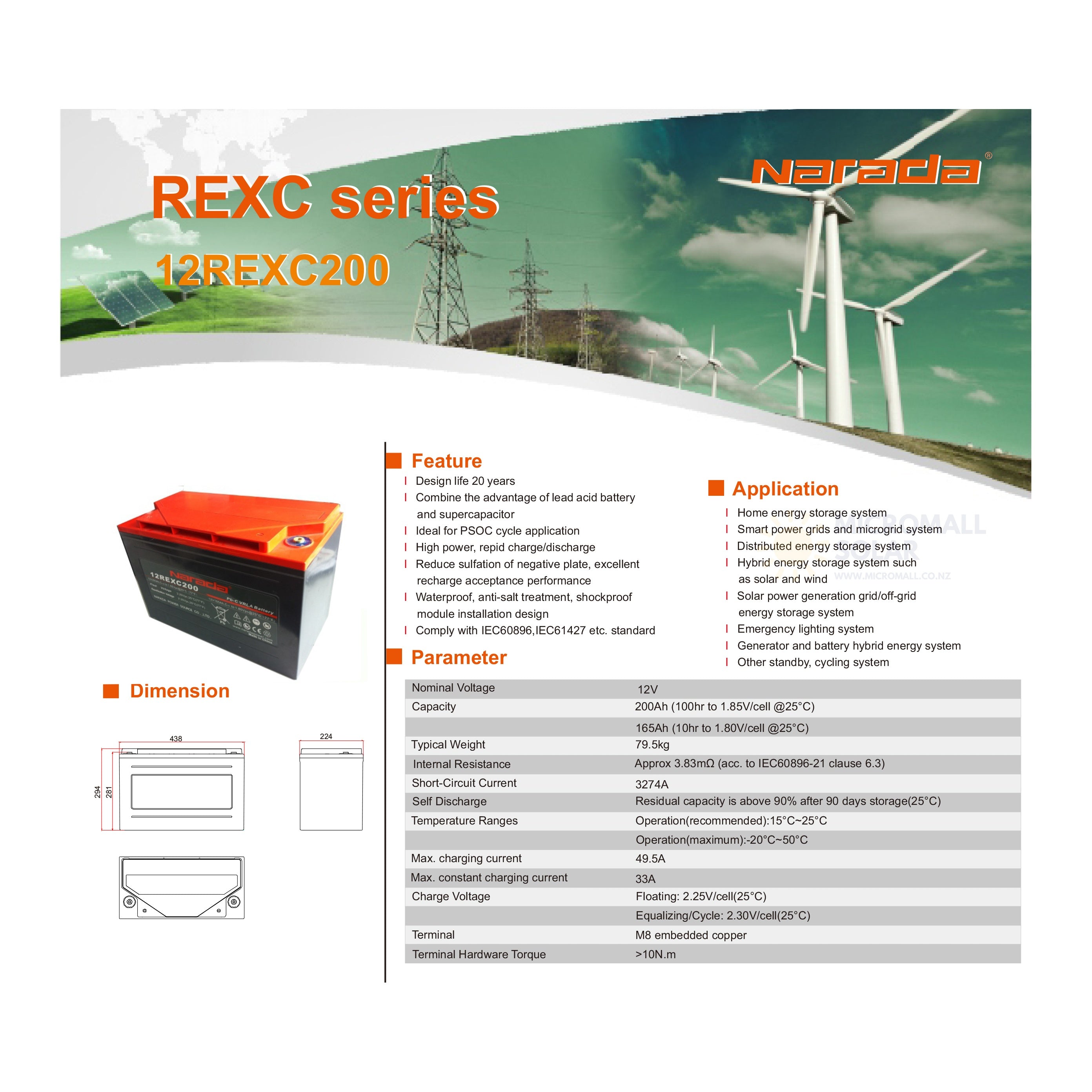

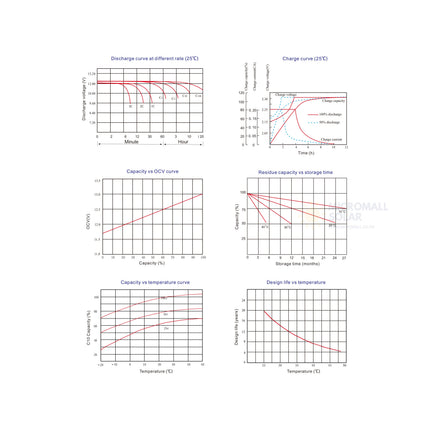

4 x Narada 12REXC200 12V 200Ah Ultra Lead Carbon Deep Cycle Solar Battery (5-year warranty)
1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors
2 x PV Safety System with Fuse system
1 x earth system

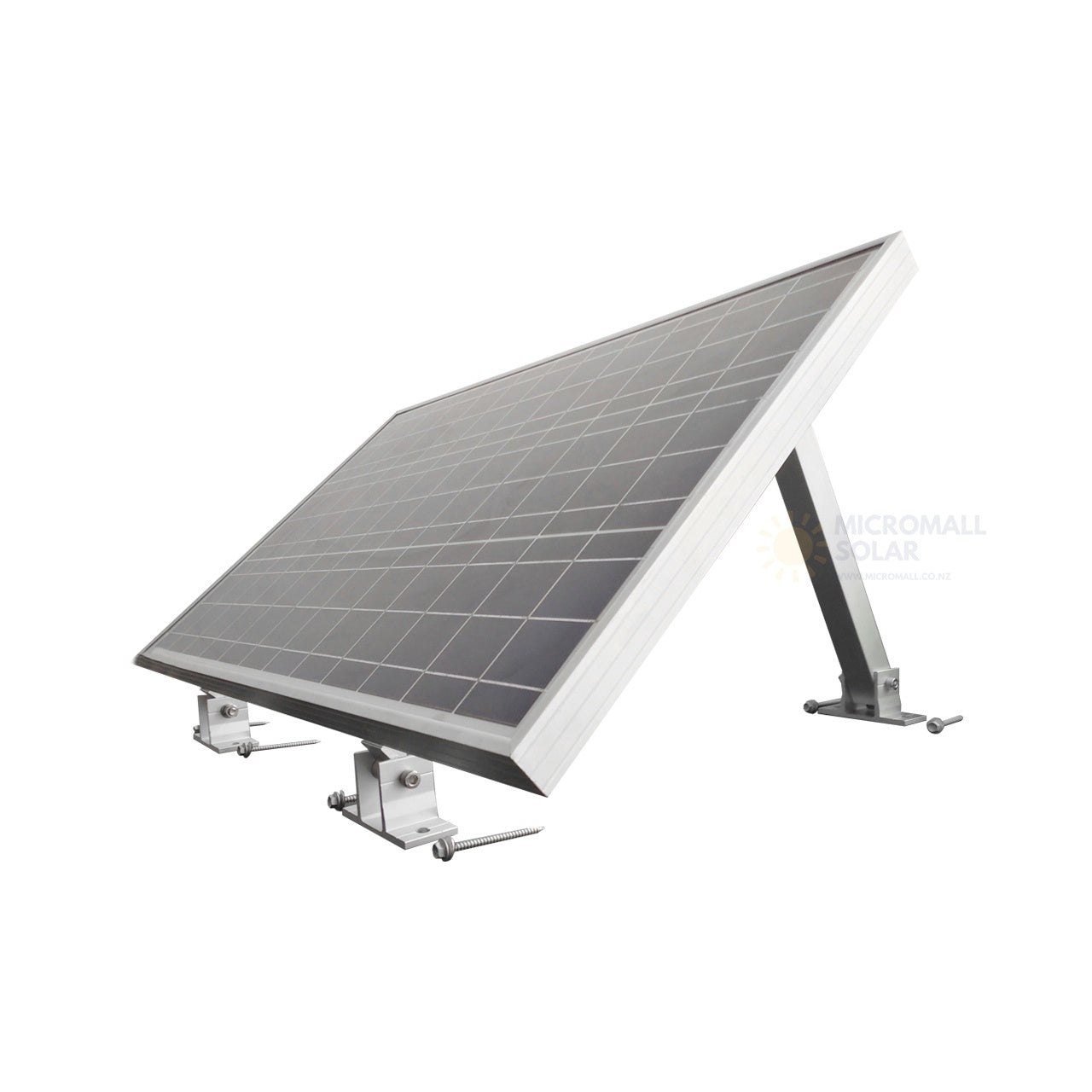

24 x Commercial Mount Kits Adjustable Angle Version
4 x MC4 Port

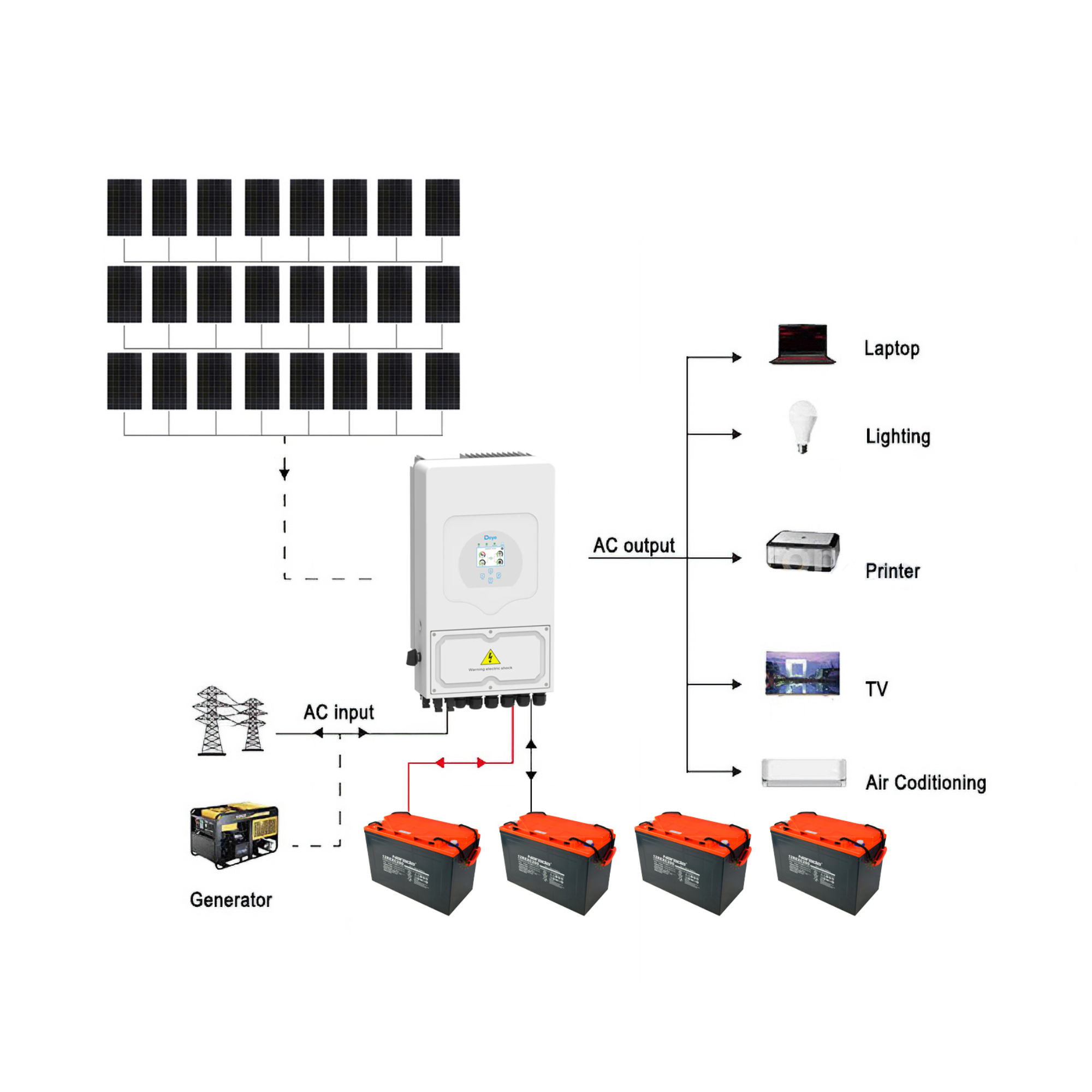

The SUN 8K-SG05 hybrid inverter is ideal for residential and light commercial purposes. It prioritizes solar energy for load use, storing excess power in batteries. The battery can also be charged by a diesel generator, ensuring consistent supply during grid failures.
Model: SUN-8K-SG05LP1-AU

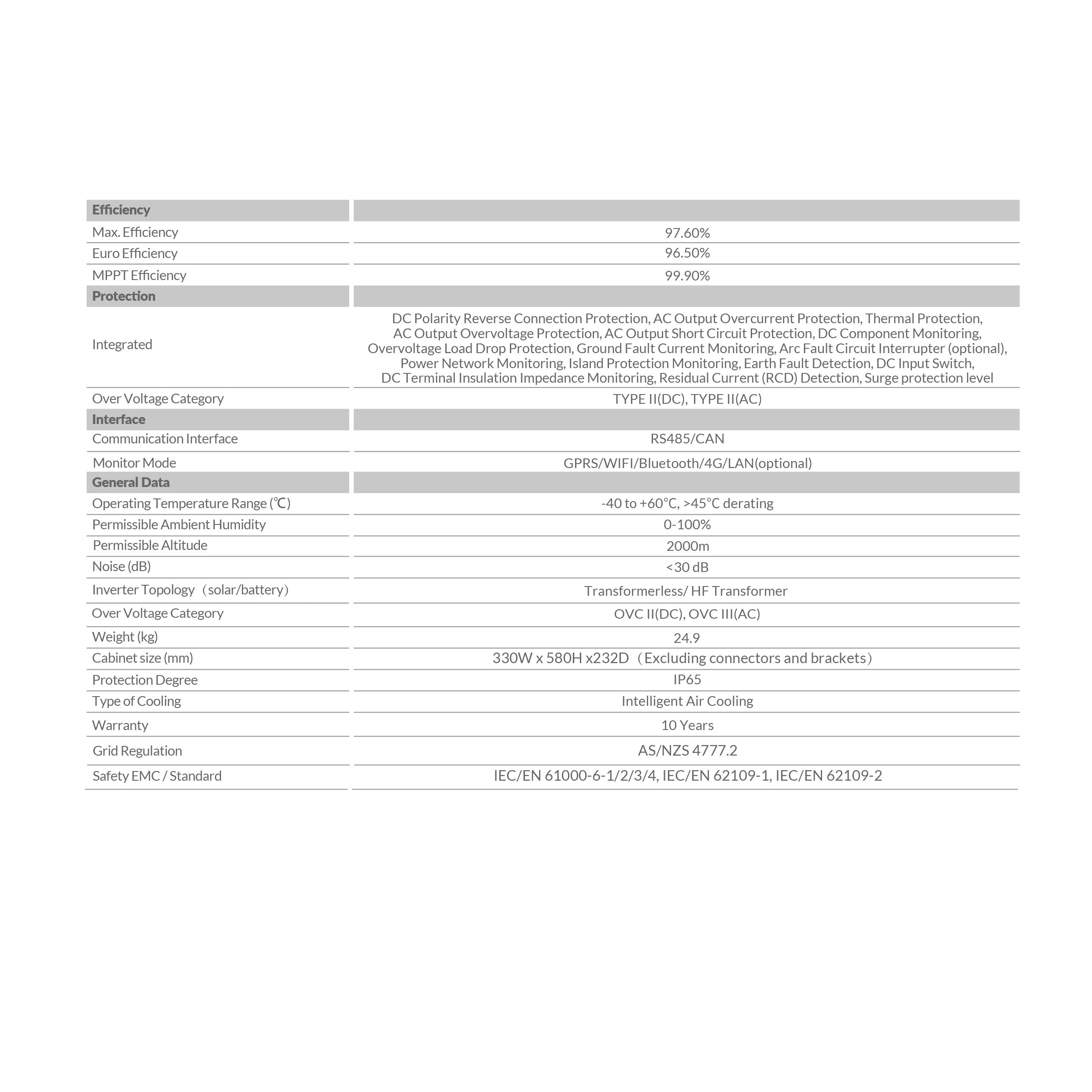

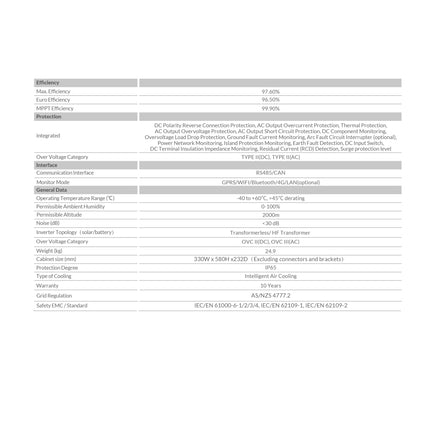

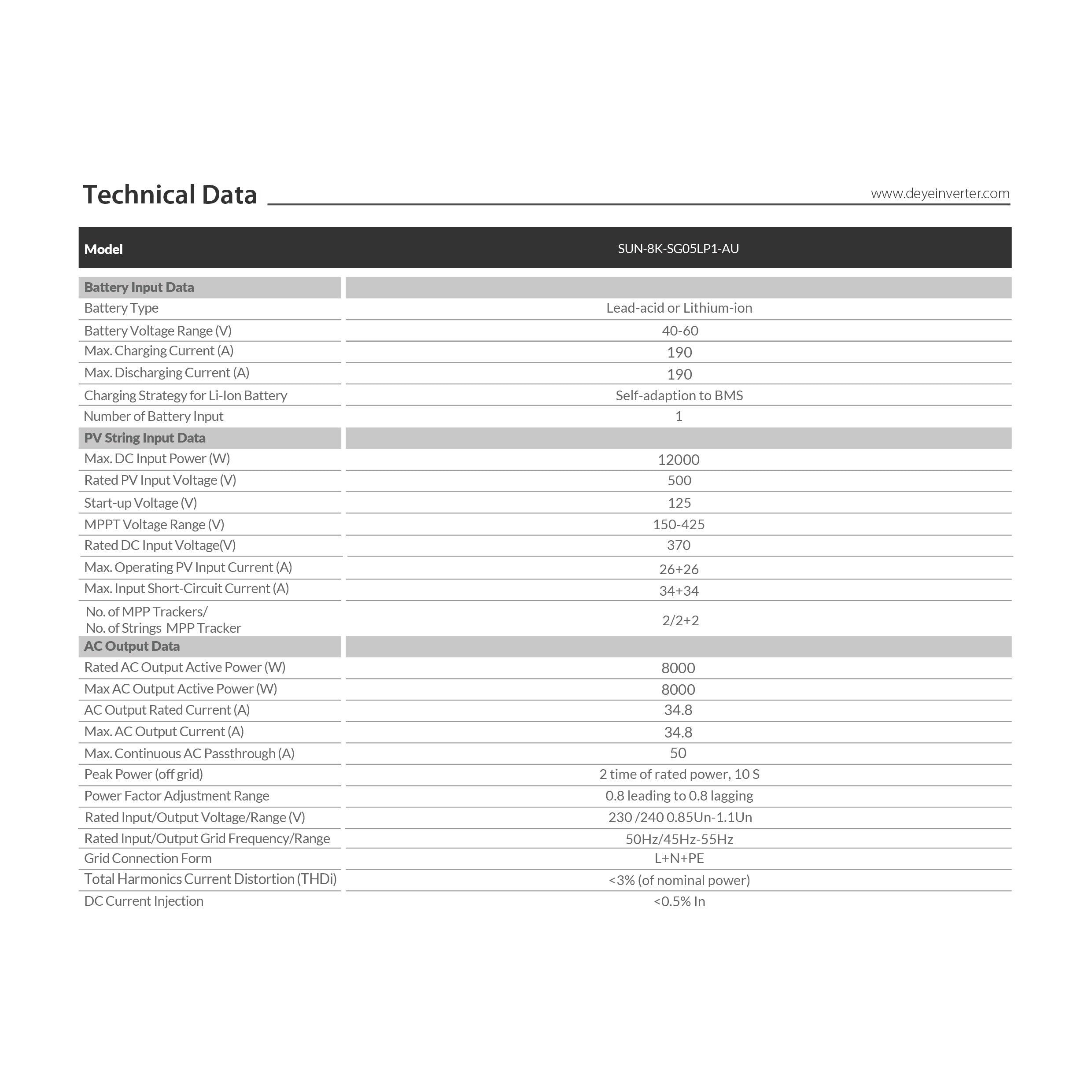

Technical Specifications:
Model: SUN-8K-SG05LP1-AU
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 190
Max. Discharging Current (A): 190
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
Max. DC Input Power (W): 12000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A):26+26
Max. Input Short-Circuit Current (A):34+34
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
Rated AC Output Active Power (W): 8000
Max AC Output Active Power (W): 8800
Peak Power (off grid): 2 times of rated power, 10 S
AC Output Rated Current:34.8A
Max AC Output Current: 34.8A
Output Frequency and Voltage: 50Hz/45Hz-55Hz
***Vector Approved Inverter***
***DEYE New Zealand Distributor - Micromall Solar***
**Authorized Longi distributor in New Zealand**
