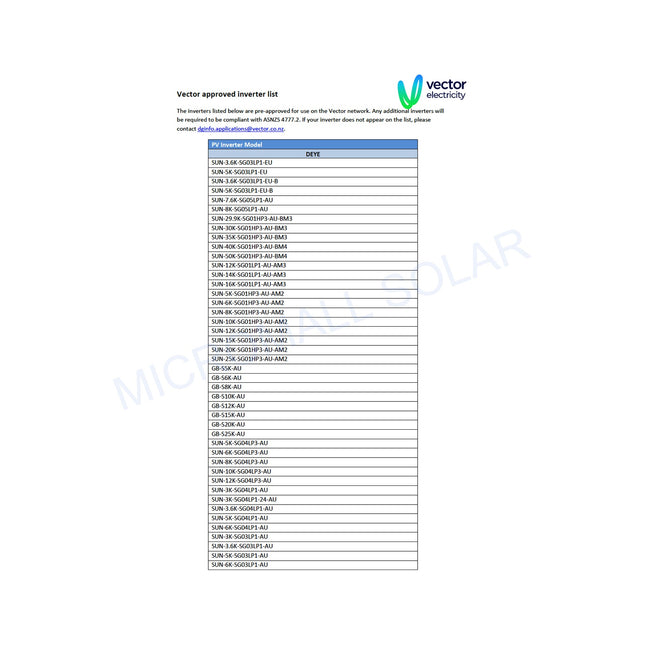

**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**

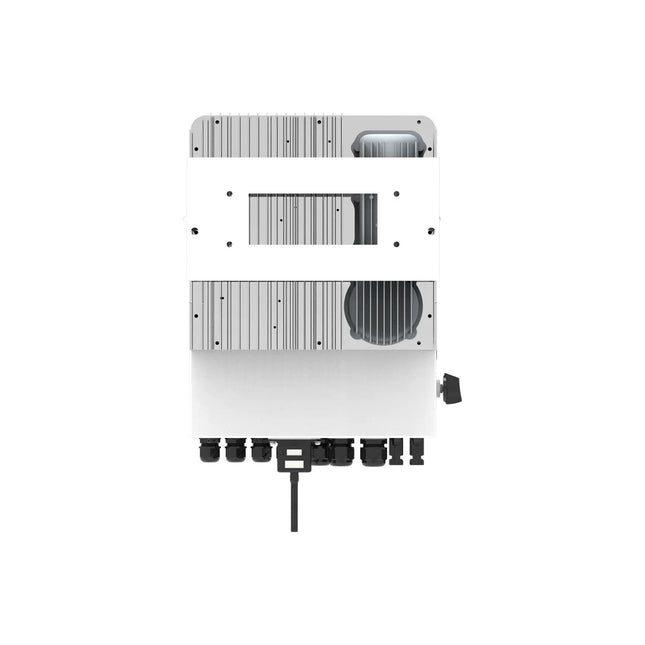

**4th Generation AU Version Inverter**
**10-Year Warranty**

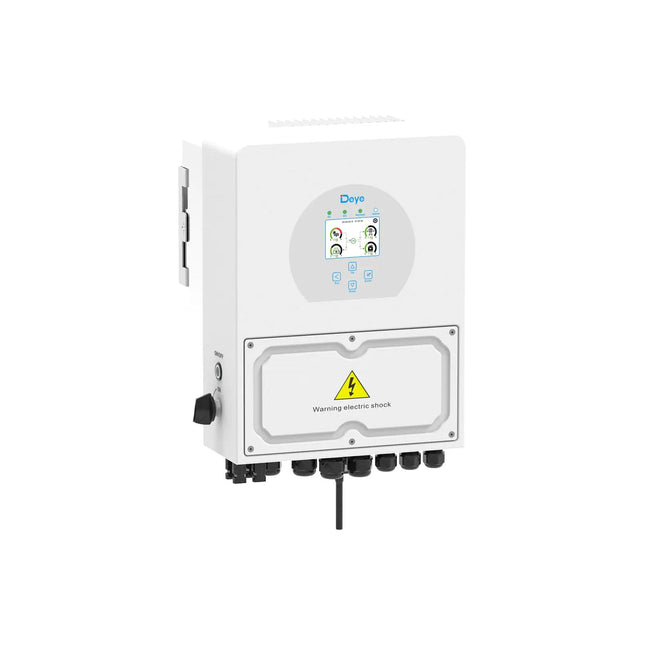

SUN-5K-SG04LP1-AU | 5kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 120A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-5K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 120
Max. Discharging Current (A): 120
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 7500
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 17+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 5000
Max AC Output Active Power (W): 5000
AC Output Rated Current (A): 21.7
Max. AC Output Current (A): 21.7
Max. Continuous AC Passthrough (A): 35
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-10K-SG02LP1-AU-AM3 | 10kW | Single Phase | 3 MPPT | Hybrid Inverter | LV-Baterio Subtenita
Higher yields / Safe & Reliable / Smart / User-friendly
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-10K-SG02LP1-AU-AM3
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 220
Max. Discharging Current (A): 220
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 9999
Max. AC Input/Output Apparent Power (VA): 9999
AC Output Rated Current (A): 43.5
Max. AC Output Current (A): 43.5
Max. Continuous AC Passthrough (A): 60
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Cabinet size (mm): 420W×670H×233 D(Excluding connectors and brackets)
Weight (kg): 35.6
Protection Degree: IP65
Grid Regulation: AS/NZS 4777.2
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
Higher yields / Safe & Reliable / Smart / User-friendly
Suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN-8K-SG05LP1-AU. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 190A
Support storing energy from diesel generator

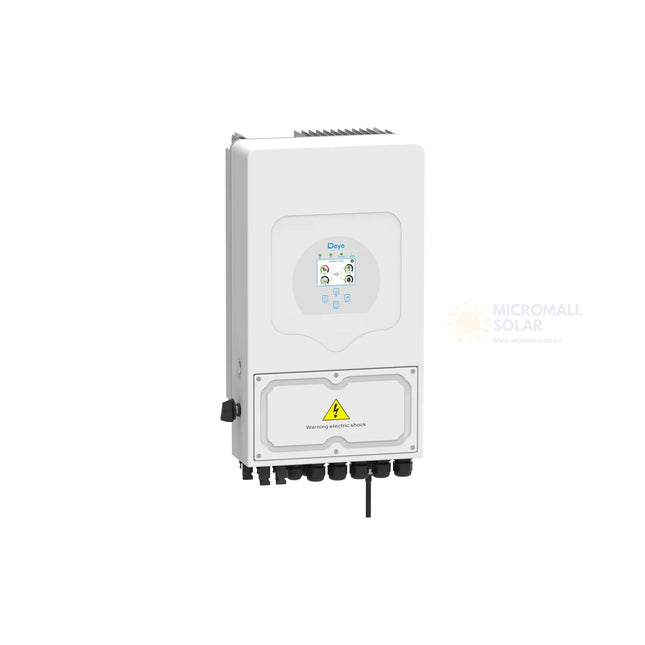

Model: SUN-8K-SG05LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 190
Max. Discharging Current (A): 190
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 12000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 34+34
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
AC Output Data
Rated AC Output Active Power (W): 8000
Max AC Output Active Power (W): 8000
AC Output Rated Current (A): 34.8
Max. AC Output Current (A): 34.8
Max. Continuous AC Passthrough (A): 50
Peak Power (off grid): 2 time of rated power, 10 S
Max. Efficiency: 97.60%
General Data
Weight (kg): 24.9
Cabinet size (mm): 330W x 580H x232D(Excluding connectors and brackets)
Protection Degree: IP65
Professional installation and service support.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-6K-SG04LP1-AU | 6kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 135A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-6K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 135
Max. Discharging Current (A): 135
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 9000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 17+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 6000
Max AC Output Active Power (W): 6000
AC Output Rated Current (A): 26.1
Max. AC Output Current (A): 26.1
Max. Continuous AC Passthrough (A): 40
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Professional installation and service support.
Dedicated communication with battery service assistance.

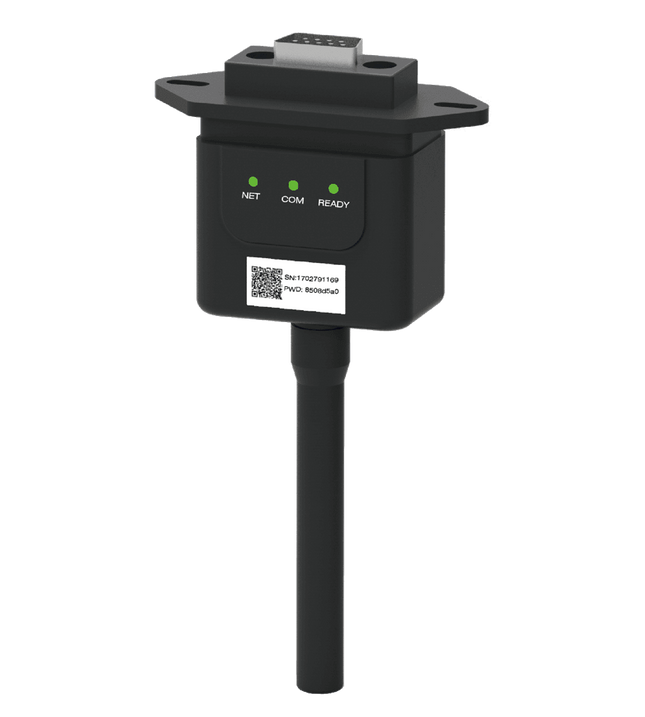

DEYE WiFi Plug Stick Logger LSW-3
Characteristics:
Type: WiFi Plug Stick Logger
Model: LSW-3
Connectivity: WiFi
Installation: Plug & Play
Compatibility: Compatible with DEYE inverters
Monitoring: Real-time
Operating Range: Wide Range for Stable Wireless Connection
Energy efficiency: Low energy consumption
Dimensions: Compact design for easy installation
Warranty: 2 years
Application:
The DEYE WiFi Plug Stick Logger LSW-3 is designed for wireless monitoring of DEYE inverters. This device offers an easy and fast way to connect and monitor the performance of your PV system in real-time. With the help of a WiFi connection, users can monitor the parameters of their inverters through a mobile application or web platform, thus gaining access to important information about the status of the system and energy production. Ideal for home and small commercial installations that want to optimize the efficiency and reliability of their solar systems.

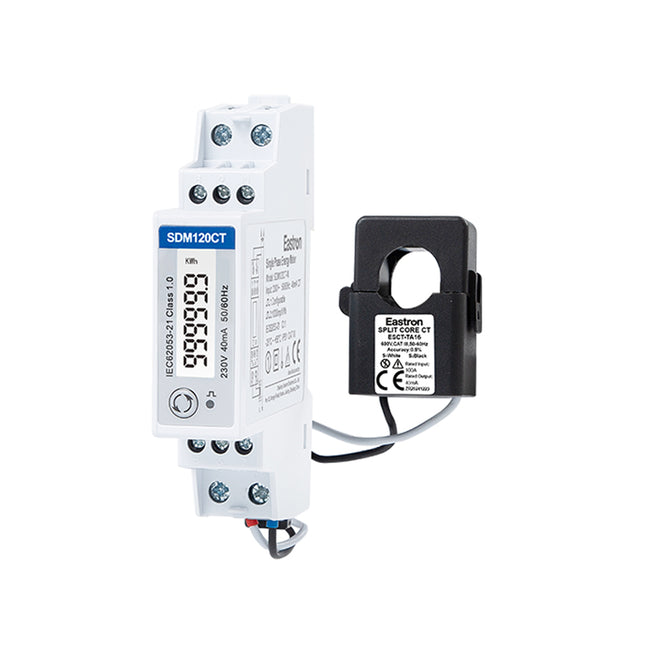

Eastron SDM120CTM-40mA DIN Rail Energy Meter
The SDM120CTM-40mA is a compact 1-module (18mm) single-phase multifunction DIN rail energy meter. It provides precise measurement of key electrical parameters including active energy (kWh), reactive energy, voltage, current, power, power factor, frequency, and more.
Designed for use in residential, solar PV, industrial, and utility applications, the meter supports bi-directional energy monitoring, making it ideal for solar and other renewable energy systems.
The device operates with 40mA current transformers (CTs) and is compatible with a wide range of external CTs for flexible installation. It features 2 pulse outputs and Modbus RS485 communication for easy remote monitoring and system integration.
Key Features
1 DIN module width (18mm)
40mA CT-operated (external current transformer)
Bi-directional measurement (import/export)
Multi-parameter monitoring: kWh, W, V, A, PF, Hz, demand, etc.
LCD display with backlight for clear readings
2 Pulse outputs for energy data logging
RS485 Modbus RTU communication
Wiring configuration: 1P2W (Single Phase, 2 Wire)
Optimize and monitor your energy system with the SUN-SMART-CTO1 combined with the SUN-SMART-TXO1. Designed for precision, efficiency, and reliable communication, this smart energy monitoring kit is perfect for residential, commercial, and industrial applications.Key FeaturesSUN-SMART-CTO1 – Smart Energy Meter (CT)
Model: L1/N (Single Phase) or L1/L2/L3/N (Three Phase)
Operating Voltage: 85–300 V AC (L-N)
Frequency: 50Hz (45–55Hz) / 60Hz (55–65Hz)
Secondary Current: 50mA
Self Consumption: ≤2 W
AC Voltage Withstand: 4 kV / 1 min
Accuracy: ±0.1 V, ±0.01 A, ±0.01 Hz, ±1 W
Communication: LoRa / RS485, up to 200m barrier-free
Display: LCD shows Voltage, Current, Active Power, Reactive Power, Frequency, Power Factor, and Energy
Installation: DIN-Rail Mounting
Dimensions: 53 x 96 x 64 mm | Weight: 0.15 kg
Operating Temp: 0–60°C | Humidity: 0–75% | IP Rating: IP20
Warranty: 5 Years | Standards: IEC/EN61010-1
SUN-SMART-TXO1 – LoRa Transmission Module
Input Voltage: DC 5V
Communication: LoRa, up to 200m barrier-free
Frequency Range: 863–870 MHz | Built-in Antenna Gain: 0.79 dBi @ 868 MHz
Display: N/A (Transmitter only)
Operating Temp: 0–60°C | Humidity: 0–100% | IP Rating: P20 (IP65 after installation)
Dimensions: 137.8 x 31.3 x 31.3 mm | Weight: 45.8 g
Warranty: 2 Years | Standards: IEC/EN 62368-1
Why Choose the SUN-SMART Kit?
Complete Monitoring Solution: Works seamlessly as a set for accurate measurement and remote transmission of energy data.
Easy Installation: DIN-rail mounting for the meter and compact design for the transmitter.
Reliable Communication: LoRa provides long-distance wireless transmission without barriers.
Wide Compatibility: Supports single and three-phase systems with high accuracy.
Durable & Safe: Built to international standards with excellent protection and operational reliability.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-10K-SG04LP3-AU | 10kW | Three Phase | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 16pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-10K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 210
Max. Discharging Current (A): 210
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+13
Max. Input Short-Circuit Current (A): 39+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 10000
Max AC Output Active Power (W): 10000
AC Output Rated Current (A): 14.5
Max. AC Output Current (A): 14.5
Max. Continuous AC Passthrough (A): 45
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
3-4 Years Pay Back
This on-grid solar power system is specifically designed to reduce your home's electricity costs throughout the year. Featuring 4550W of JA solar panels, this kit ensures that you can enjoy the comforts of home and power your everyday household appliances using solar energy during sunny days. Appliances such as lights, fridge, microwave, toaster, coffee machine, washing machine, vacuum cleaner, power tools, office equipment, and more can be powered during daytime hours.
Package Includes:10 x JA Solar Deep Blue 4.0 Pro 455W N-Type Double Glass Solar Module1 x Deye SUN-3.6K-G04-AU On Grid Single Phase String Inverter 2 MPPT (5 Years Manufacturer Warranty + 5 Years Local Warranty)1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors1 x PV Safety System with Fuse breaker surge etc10 x Mounting Rail Systems
Introducing the Deye SUN-3.6K-G04-AU Single Phase String Inverter, ideal for residential solar setups. Boasting a maximum efficiency of 97.3%, it supports zero export and VSG applications, enhancing overall performance. Safety features include a smart monitoring platform for remote shutdown in emergencies, while user-friendly design features a local LCD display for easy operation. With remote monitoring capabilities and a wide output voltage range, it ensures reliable and efficient solar power generation for your home.
Model: SUN-3.6K-G04-AUMax. DC Input Power: 5.4kWDC Input Voltage: 550VStart-up Voltage: 80VMPPT Voltage Range: 70-500VRated PV Input Voltage: 360VPV Input Current:Max. Operating Current: 13+13AMax. Input Short Circuit Current: 19.5+19.5AMPP Trackers/Strings per Tracker: 2/1Rated AC Output:Rated Output Power: 3.6 kWMax. Active Power: 3.6 kWRated AC Grid Output Current: 13A
The system generates a daily output of 22KWH with a 5-hour charging time, based on average sunlight hours during New Zealand's winter and summer seasons.

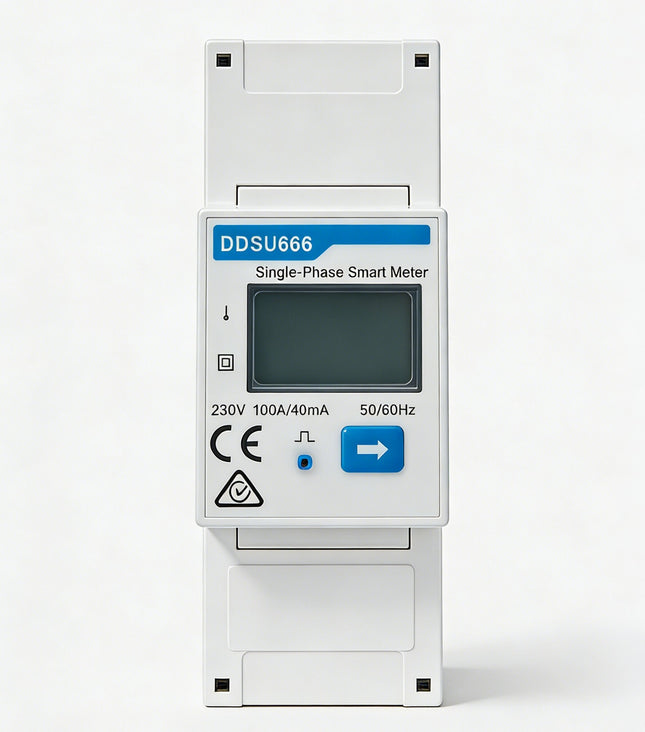

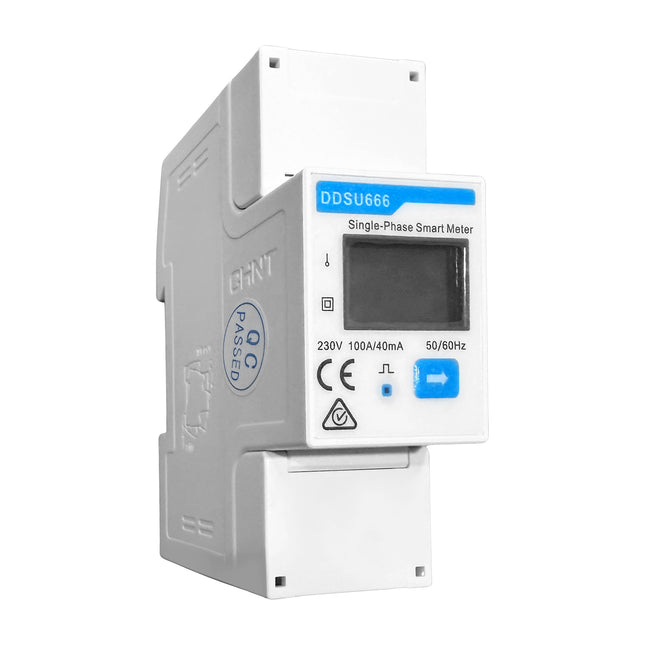

Upgrade your power management with the reliable DDSU666 single-phase smart meter. Designed for homes, offices, and light commercial use, this smart meter delivers accurate energy measurement and helps you monitor electricity usage efficiently.
Model: DDSU666
Voltage: 230V
Current: 100A / 40mA
2P (2-pole)Supports remote reading for easy monitoringBuilt-in overload protection for safe operationEasy to install and highly durablePerfect for energy monitoring, cost control, and ensuring safe electrical usage.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-12K-SG04LP3-AU | 12kW | Three Phase | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 16pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-12K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 240
Max. Discharging Current (A): 240
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 18000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+13
Max. Input Short-Circuit Current (A): 39+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 12000
Max AC Output Active Power (W): 12000
AC Output Rated Current (A): 17.4
Max. AC Output Current (A): 17.4
Max. Continuous AC Passthrough (A): 45
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**4th Generation AU Version Inverter**
**10-Year Warranty**
SUN-3K-SG04LP1-24-AU |24V | 3kW | Single Phase | MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 140A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-3K-SG04LP1-24-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 20V-30V
Max. Charging Current (A): 140
Max. Discharging Current (A): 140
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 4500
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13
Max. Input Short-Circuit Current (A): 17
No. of MPP Trackers/No. of Strings MPP Tracker: 1/1
AC Output Data
Rated AC Output Active Power (W): 3000
Max AC Output Active Power (W): 3000
AC Output Rated Current (A): 13
Max. AC Output Current (A): 13
Max. Continuous AC Passthrough (A): 35
Peak Power (off grid): 2 time of rated power, 10 S

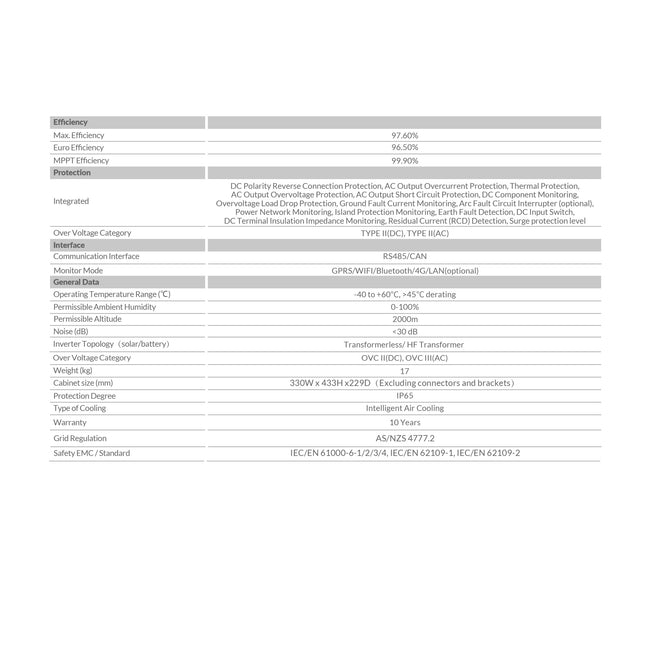

Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!

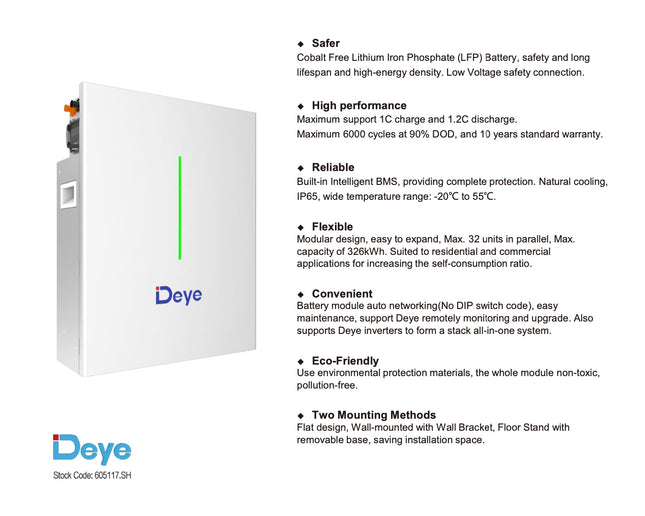

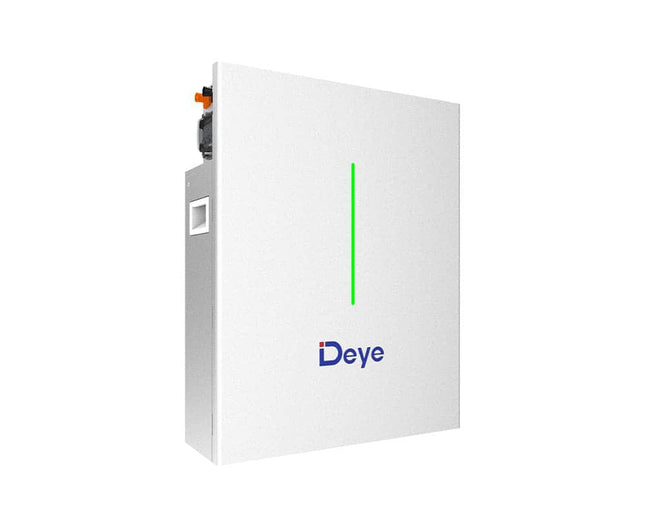

Key FeaturesHigh-Capacity LiFePO4 Energy StorageDeye RW-F16 uses safe Lithium Iron Phosphate (LiFePO4) chemistry with a nominal energy of 16kWh and 14.4kWh usable energy at 90% DOD.Safe and Reliable Battery DesignBuilt-in 125A 2P 60Vdc circuit breaker and intelligent battery system design. Low-voltage 51.2V battery platform for residential energy storage applications.Flexible ExpansionSupports up to 32 battery packs in parallel, providing a maximum system capacity of up to 512kWh.High Charge and Discharge PerformanceSupports 160A continuous charge/discharge current and 300A peak charge/discharge current for 10 seconds.Easy Installation and MonitoringWall-mounted or floor-mounted installation. LED indicator shows SOC and working status. Communication ports include CAN2.0 and RS485 for compatible inverter systems.Specifications
Model: RW-F16
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Voltage: 51.2V
Operating Voltage: 44.8V ~ 57.6V
Capacity: 314Ah
Nominal Energy: 16kWh
Usable Energy: 14.4kWh @ 90% DOD
Scalability: Up to 32 packs in parallel, max. 512kWh
Charge/Discharge Current: 160A continuous; 300A peak for 10 sec
Recommended Depth of Discharge: 90%
Dimensions: 480mm (W) x 830mm (H) x 235mm (D), without hanging board and base
Weight: Approx. 122kg
IP Rating: IP20
Operating Temperature: Charge 0°C ~ 55°C; Discharge -20°C ~ 55°C
Recommended Operating Temperature: 15°C ~ 35°C
Storage Temperature: 0°C ~ 35°C
Relative Humidity: 95%
Altitude: ≤2000m
Cycle Life: ≥6000 cycles at 25°C±2°C, 0.5C/0.5C, 90% DOD, 70% EOL
Installation: Wall-mounted or floor-mounted
Communication Port: CAN2.0, RS485
Warranty Period: 5 / 10 years
Energy Throughput: 26.25 / 52.5MWh
Certification: UN38.3, MSDS
The Deye AI-W5.1-B Lithium Iron Phosphate Battery is a reliable, safe, and flexible energy storage solution that caters to your specific needs. With its modular design, quick installation, and remote monitoring capabilities, this battery system is the ideal choice for optimizing your energy consumption and reducing your carbon footprint.
Key Features:
Safe & Durable – Cobalt-free Lithium Iron Phosphate (LFP) chemistry with an intelligent Battery Management System (BMS) for maximum protection and long lifespan.
Reliable Performance – Supports high discharge power, operates in -20°C to 55°C, and features an IP65 rating with natural cooling.
Scalable & Flexible – Expandable up to 184 kWh with 36 units in parallel, suitable for various energy needs.
Easy Installation – Flat, stackable design with wall-mounted or floor-mounted options; no wiring required.
Smart Monitoring – Auto-networking for seamless maintenance, plus remote monitoring and firmware upgrades.
Eco-Friendly – Made from non-toxic, pollution-free materials.
Model: AI-W5.1-B
Battery Chemistry: LiFePO4
Built-in Circuit Breaker: 125A 2P, 60Vdc
Battery Module Energy (kWh): 5.12
Battery Module Voltage (V): 51.2
Battery Module Capacity (Ah): 100
Nominal Voltage (V): 51.2
Operating Voltage(V): 43.2 - 57.6
IP Rating of Enclosure: IP65 (after stacking)
Dimension (W/D/H, mm): 720 x 255 x 569
Weight (kg): 74.5
**10 Years Warranty**
**This listing is for 1 battery module only.**
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

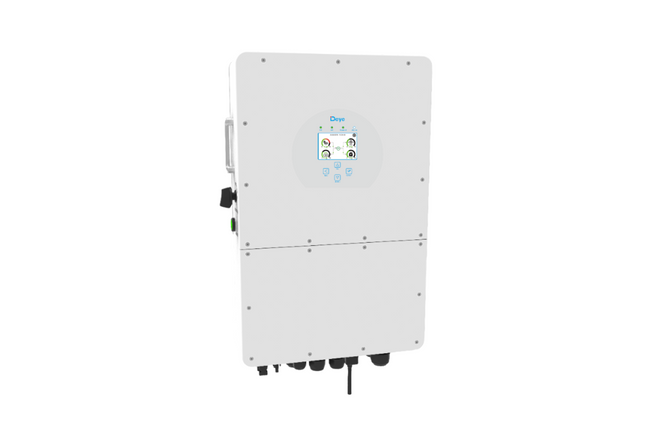

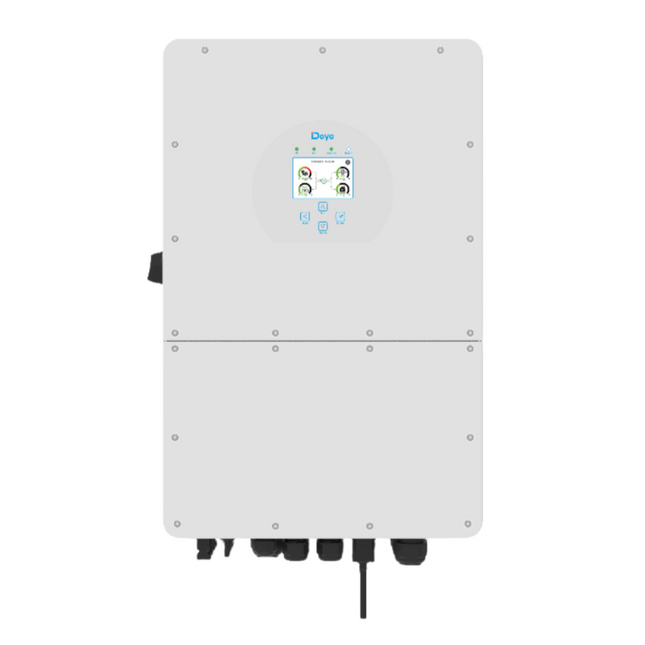

SUN-25K-SG01HP3-AU-AM2 | 25kW | Three Phase | 2 MPPT
Hybrid Inverter | High-Voltage Battery Supported
Smart Monitoring Platform
Through Deye’s smart monitoring platform, the inverter supports remote monitoring, parameter configuration, firmware updates and remote shutdown when required, making system operation and maintenance easier and more efficient.
100% unbalanced three-phase output
AC coupling for retrofitting existing solar systems
Maximum 16 units in parallel for on-grid and off-grid operation
Supports multiple batteries in parallel
Maximum charging and discharging current of 50A
High-voltage battery support for improved system efficiency
Six programmable battery charging and discharging periods
Supports energy storage from a diesel generator
Model: SUN-25K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160–700
Max. Charging Current (A): 50
Max. Discharging Current (A): 50
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Inputs: 1
PV String Input Data
Max. PV Access Power (kW): 50
Max. PV Input Power (kW): 40
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150–850
Rated PV Input Voltage (V): 700
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/
No. of Strings per MPP Tracker: 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (kW): 25
Max. AC Input/Output Apparent Power (kVA): 27.5
Rated AC Input/Output Current (A): 37.9/36.3
Max. AC Input/Output Current (A): 41.7/39.9
Max. Continuous AC Passthrough – Grid to Load (A): 80
Peak Off-Grid Power: 1.5 Times Rated Power for 10 Seconds
Grid Connection: 3L+N+PE
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Operating Temperature Range: -40°C to +60°C, Derating Above 45°C
Ingress Protection Rating: IP65
Noise Level: ≤55dB
Cooling: Intelligent Air Cooling
Communication Interface: Wi-Fi, RS485 and CAN
Cabinet Size (mm): 408W × 638H × 237D
(Excluding Connectors and Brackets)
Weight (kg): 30.5
Warranty: 10 Years
Grid Regulation: AS/NZS 4777.2
Safety/EMC Standards: IEC/EN 61000-6-1/2/3/4,
IEC/EN 62109-1 and IEC/EN 62109-2

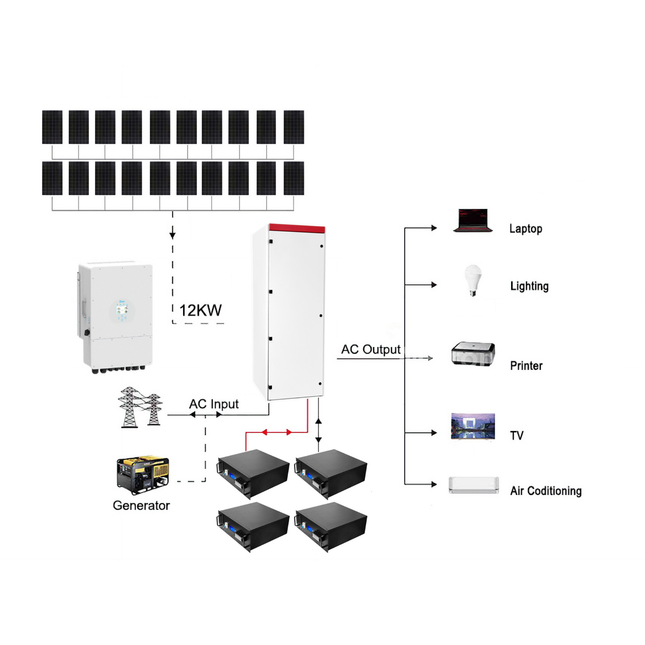

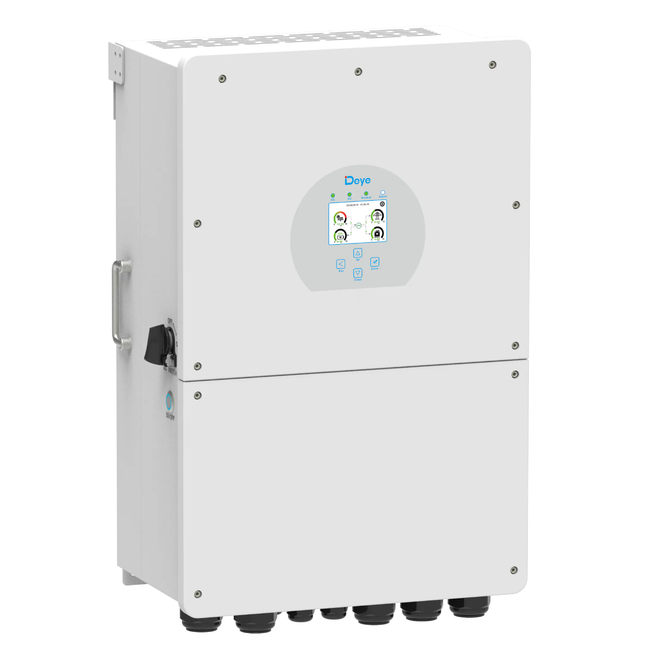

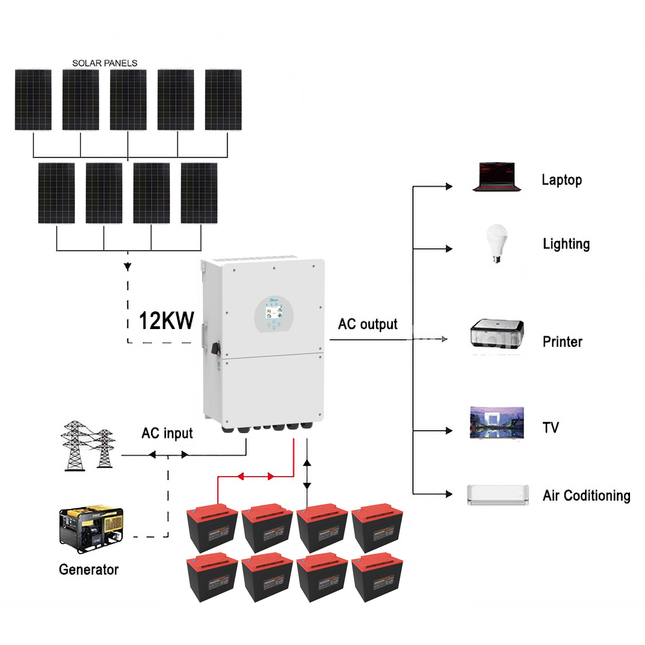

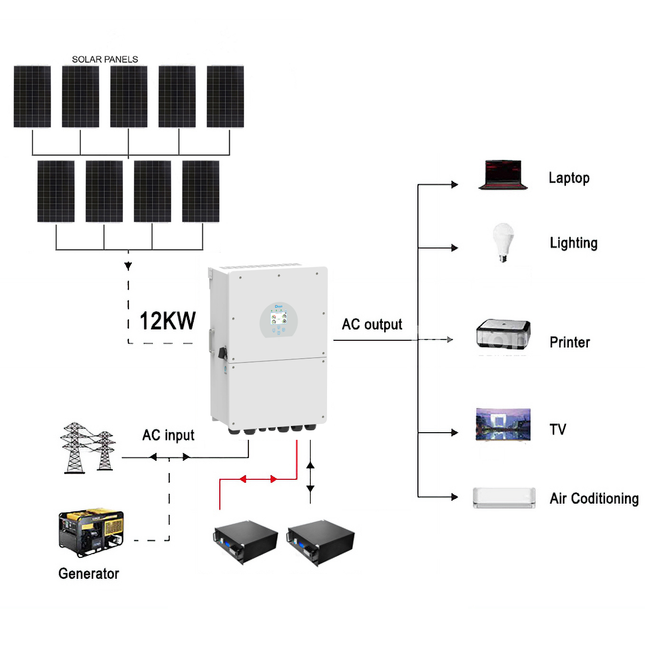

Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.(Powered by Micromall battery)
Package includes:
1 x 12000W Deye Single Phase Hybrid Inverter SUN-12K-SG01LP1-EU (5 years warranty)
9 x JA Solar Deep Blue 4.0 Pro 455W N-Type Double Glass Solar Module
2 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x PV Safety System with Fuse Box
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
9 x Commercial Mounting Kits with Adjustable Angle Version
This is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
Model: SUN-12K-SG01LP1-EU
Features
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 290A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Specifications
Rated AC Input/Output Active Power (W): 12000
Max. AC Input/Output Apparent Power (VA): 13200
Rated AC Input/Output Current (A): 54.5/52.2
Max. AC Input/Output Current (A): 60/57.4
Max. Continuous AC Passthrough (grid to load) (A): 100
Weight: 52kg
Dimension: 464 x 763 x 282 (Excluding Connectors and Brackets)
Protection Degree: IP65
Temperature: -40 - 60°C, >45°C Derating
Cooling Method: Intelligent Air Cooling
Warranty: 5 years

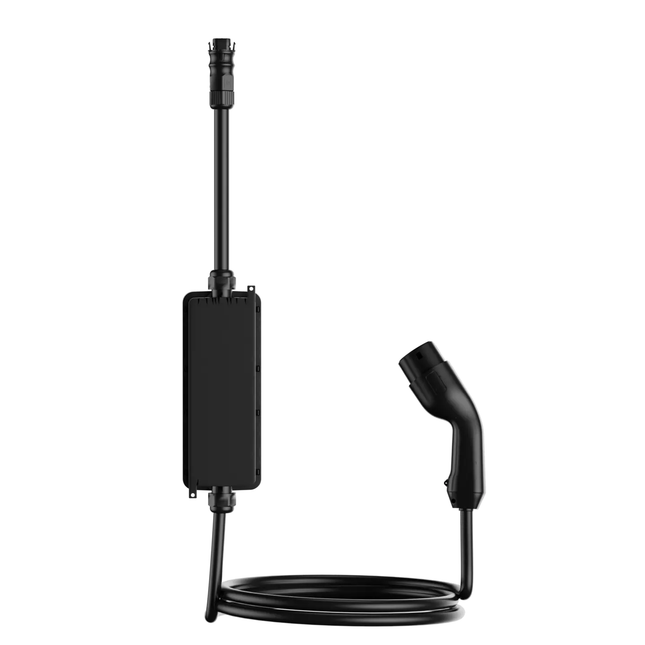

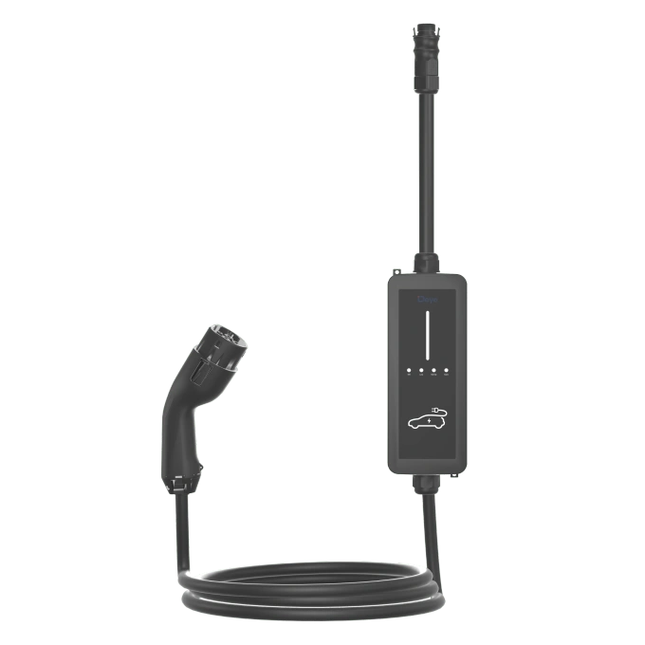

Deye EV AC Charger SUN-EVSE22K01-EU-AC 7kW Single Phase/22kW 3 Phase IP66Deye Smart EV Charger can be directly connected to any AC port of the inverter and is controlled by the inverter via LoRa communication. It offers flexible options to take advantage of low-cost electricity, with modes such as Plug and Play, Time of Charge, or Solar Energy Only.
Features:Low latency.LoRa communication.Supports all Deye hybrid inverters.Maximize the use of solar power.Minimize the electricity bill as much as possible.
Specifications:Input Voltage/Range(V): 230(single phase), 230/400(three phase)Maximum Output Power(kW): 7(single phase)/ 22(three phase)Input Current(A):32AInput Frequency/Range: 50/45-55, 60/55-65Starting Method: Plug and Charge /Charge after Scanning/Appointment for ChargingPermissible Altitude (m): ≤33000Cabinet Size(WxHxD mm): 104x264x57.5Weight(kg): 3.7Gun Cable Length(m): 4.2Number Of Charging Guns: 1
Ingress Protection(IP) Rating: IP66Warranty: 5 years
Deye 10KW Three Phase Hybrid Inverter SUN-10K-SG04LP3-AU IP65 Solar Inverter with 21 Panels（Powered by Micromall Battery）This is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.Features100% unbalanced output, each phase; Max. output up to 50% rated powerAC couple to retrofit existing solar systemMax. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallelMax. charging/discharging current of 240A48V low voltage battery, transformer isolation design6 time periods for battery charging/dischargingSupport storing energy from diesel generatorSpecificationsOperating Temperature Range(℃): -40 to +60℃, >45℃ derating
Permissible Ambient Humidity: 0-100%
Permissible Altitude: 2000m
Noise(dB): ≤55dB
Weight(kg): 38
Cabinet size(mm):422W x 658H x 254D（Excluding connectors and brackets）
Protection Degree: IP65
Protection Level: Class I
Type of Cooling: Intelligent Air Cooling
LCD/LED Display: LCD
ApplicationsResidential All-in-One Energy SystemOff-Grid Solutions for Remote Areas and Extreme Emergency BackupIndustrial areas to reduce electricity costs and ensure critical equipment operationWarranty：10 yearsPackage Includes21× LONGI Hi-MO X10 Explorer LR7-54HVH-475M1× Micromall 48V 51.2V 340Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery Solar Battery1× SUN-10K-SG04LP3-AU
***Vector Approved Inverter***
***DEYE New Zealand Distributor - Micromall Solar***
**10 Years Warranty**
SUN-6K-G04-AU | 6kW | Single Phase | 2 MPPT
Higher yields / Safe & Reliable / Smart / User-friendly
1 MPP tracker, Max. efficiency up to 97.5%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)
Low start-up voltage of 80V
Technical Specifications:
Model: SUN-6K-G04-AU
PV String Input Data
Max. PV Input Power (kW): 9
Max. PV Input Voltage (V): 550
Start-up Voltage (V): 80
MPPT Voltage Range (V): 70-500
Rated PV Input Voltage (V): 360
Max. Operating PV Input Current (A): 13+13
Max. Input Short Circuit Current (A): 19.5+19.5
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/1
AC Output Data
Rated AC Output Active Power(kW): 6
Max. AC Output Apparent Power(kVA): 6
Rated AC Output current (A): 26.1
Max. AC Output Current(A): 26.1
Efficiency:
Max. Efficiency: 97.5%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data:
Dimensions: 330×323×190mm
Weight: 8kg
This inverter is a blend of high efficiency, safety, and user-friendly features, making it a superb choice for residential solar power systems.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-20K-SG01HP3-AU-AM2 | 20kW | Three Phase | 2 MPPT | Hybrid Inverter | HV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 50A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-20K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-700
Max. Charging Current (A): 37
Max. Discharging Current (A): 37
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 30000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated DC Input Voltage(V): 600
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
AC Output Data
Rated AC Output Active Power (W): 20000
Max AC Output Active Power (W): 20000
AC Output Rated Current (A): 29
Max. AC Output Current (A): 29
Max. Continuous AC Passthrough (grid to load) (A): 80
Peak Power (off grid): 1.5 times of rated power, 10s
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 30.5
Cabinet size (mm): 408W x 638H x237D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-30K-SG01HP3-AU-BM3 | 30kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase
High voltage battery, higher efficiency
AC couple to retrofit existing solar system
Max. charging/discharging current of 100A
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-30K-SG01HP3-AU-BM3
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 2
PV String Input Data
Max. DC Input Power (W): 44850
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Range (V): 150-850
Rated PV Input Voltage (V): 600
PV Input Current (A): 36+36+36
No.of MPP Trackers: 3
No.of Strings per MPP Tracker: 2+2+2
AC Output Data
Rated AC Output and UPS Power (W): 29900
Rated Apparent Output Power (VA): 29900
AC Output Rated Current (A): 43.4
Max. AC Output Current (A): 43.4
Max. Continuous AC Passthrough (A): 200
Peak Power (Off Grid): 1.5 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 80
Cabinet size (mm): 527W×894H×294D (Excluding connectors and brackets)
Protection Degree: IP65
Key Features
Safer
Cobalt-free Lithium Iron Phosphate (LFP) battery ensures safety and long lifespan with high energy density.
Low-voltage safety connection for added protection.
High Performance
Supports maximum 1C charge and 1.2C discharge rates.
Offers up to 6,000 cycles at 90% Depth of Discharge (DOD).
Backed by a standard 10-year warranty.
Reliable
Built-in intelligent Battery Management System (BMS) provides comprehensive protection.
Features natural cooling and an IP65 rating, operating reliably across a wide temperature range (-20°C to 55°C).
Flexible
Modular design allows easy expansion, supporting up to 32 units in parallel with a maximum capacity of 326 kWh.
Ideal for both residential and commercial applications, enhancing self-consumption ratios.
Convenient
Auto-networking battery module eliminates the need for DIP switch coding, simplifying setup and maintenance.
Compatible with Deye inverters to create an all-in-one stack system.
Supports remote monitoring and firmware upgrades via Deye’s platform.
Eco-Friendly
Manufactured with non-toxic and pollution-free materials, ensuring environmental sustainability.
Versatile Installation Options
Flat design supports wall-mounted installation with a wall bracket or floor-standing setup using a removable base, optimizing space.
Specifications
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Nominal Energy: 10.2 kWh
Usable Energy: 9.2 kWh (90% DOD)
Scalability: Supports up to 32 units in parallel (326 kWh max.)
Rated DC Power: 6 kW
Maximum DC Power: 12 kW
Operating Voltage: 43.2V ~ 57.6V
Charge/Discharge Current: Recommended: 100A; Maximum: 198A (charge), 240A (discharge)
Peak Discharge: 300A for 2 minutes (at 25°C)
Cycle Life: ≥6,000 cycles at 90% DOD (70% End of Life capacity at 25°C)
Enclosure Rating: IP65
Operating Temperature: Charge: 1°C ~ 55°C; Discharge: -20°C ~ 55°C
Weight: Approx. 104 kg
Dimensions: 600 mm (W) x 760 mm (H) x 200 mm (D)
**Solar Panel Warranty: 25 Years Linear Power Output Warranty****Inverter Warranty: 10 Years Warranty****Battery Warranty: 15 Years Warranty**

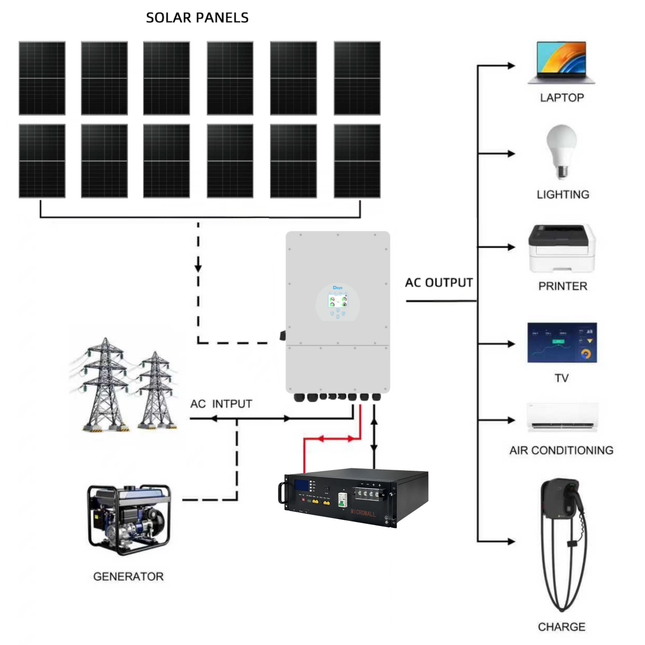

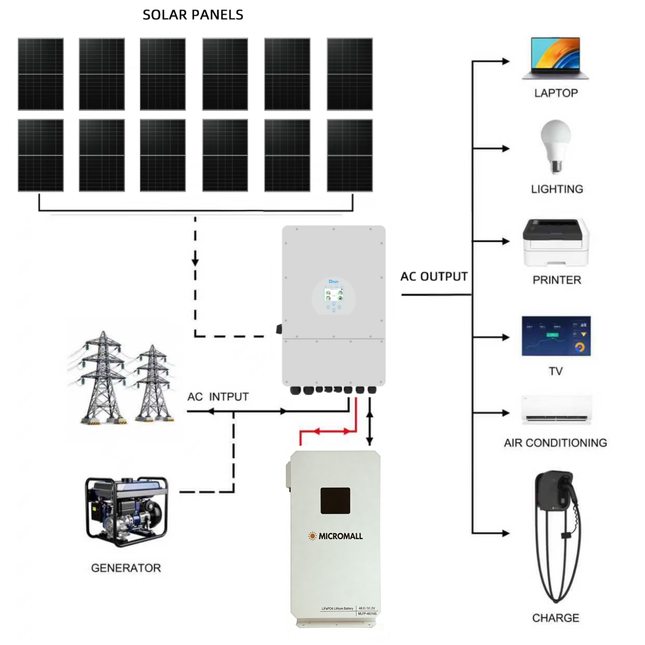

Introducing an exceptional Smart Hybrid system that showcases the latest LONGi HPBC solar panels and a Deye premium hybrid solar inverter system.
Package Includes:12 x JA Solar Deep Blue 4.0 Pro 455W N-Type Double Glass Solar Module1 x DEYE 5000W Hybrid Inverter SUN-5K-SG04LP1-AU (10 Years Warranty)1 x Micromall 48V 51.2V 200Ah 210Ah LiFePO4 Battery with 6000 cycle times (15 Years Warranty, 30-year run life)1 x 20m Twin 6mm PV Extension Cables with MC4 Connectors1 x PV Fuses1 x PV Circuit Breaker1 x Surge Protector1 x Safety Switchboard12 x Mounting Rail System1 x Solar PV + Battery Label Kit

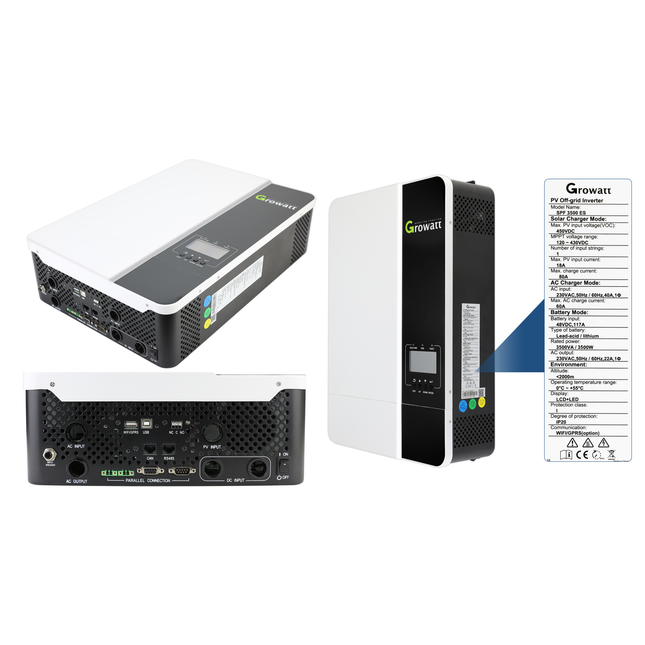

This inverter is a versatile inverter that combines the functions of an inverter, solar charger, and battery charger, providing uninterrupted power support in a portable size. Its comprehensive LCD display offers user-configurable settings and easy-access button operations, such as battery charging, AC/solar charging, and adjustable input voltage for various applications.
Technical Specifications:Battery Type： Lead-acid or Lithium-ionBattery Voltage Range (V)： 40-60Max. Charging Current (A)： 120Max. Discharging Current (A)： 120Charging Strategy for Li-Ion Battery： Self-adaption to BMSNumber of Battery Input： 1Max. DC Input Power (W)：7500Rated PV Input Voltage (V)：500Start-up Voltage (V)： 125MPPT Voltage Range (V)： 150-425Rated DC Input Voltage(V)：370Max. Operating PV Input Current (A)：13+13Max. Input Short-Circuit Current (A)： 17+17AC Output Rated Current (A)： 21.7Max. AC Output Current (A)： 21.7Weight (kg)： 17Cabinet size (mm)：330W x 433H x229D(Excluding connectors and brackets)Protection Degree：IP65
**Vector Approved Inverter****DEYE New Zealand Distributor**
***Vector Approved Inverter***
***DEYE New Zealand Distributor - Micromall Solar***
**10 Years Warranty**
SUN-5K-G04-AU | 5kW | Single Phase | 2 MPPT
Higher yields / Safe & Reliable / Smart / User-friendly
1 MPP tracker, Max. efficiency up to 97.5%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)
Low start-up voltage of 80V
Technical Specifications:
Model: SUN-5K-G04-AU
PV String Input Data
Max. PV Input Power (kW): 7.5
Max. PV Input Voltage (V): 550
Start-up Voltage (V): 80
MPPT Voltage Range (V): 70-500
Rated PV Input Voltage (V): 360
Max. Operating PV Input Current (A): 13+13
Max. Input Short Circuit Current (A): 19.5+19.5
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/1
AC Output Data
Rated AC Output Active Power(kW): 5
Max. AC Output Apparent Power(kVA): 5
Rated AC Output current (A): 21.7
Max. AC Output Current(A): 21.7
Efficiency:
Max. Efficiency: 97.5%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data:
Dimensions: 330×323×190mm
Weight: 8kg
This inverter is a blend of high efficiency, safety, and user-friendly features, making it a superb choice for residential solar power systems.
