Description
**Solar Panel Warranty: 25 Years Linear Power Output Warranty**
**Inverter Warranty: 10 Years Warranty**

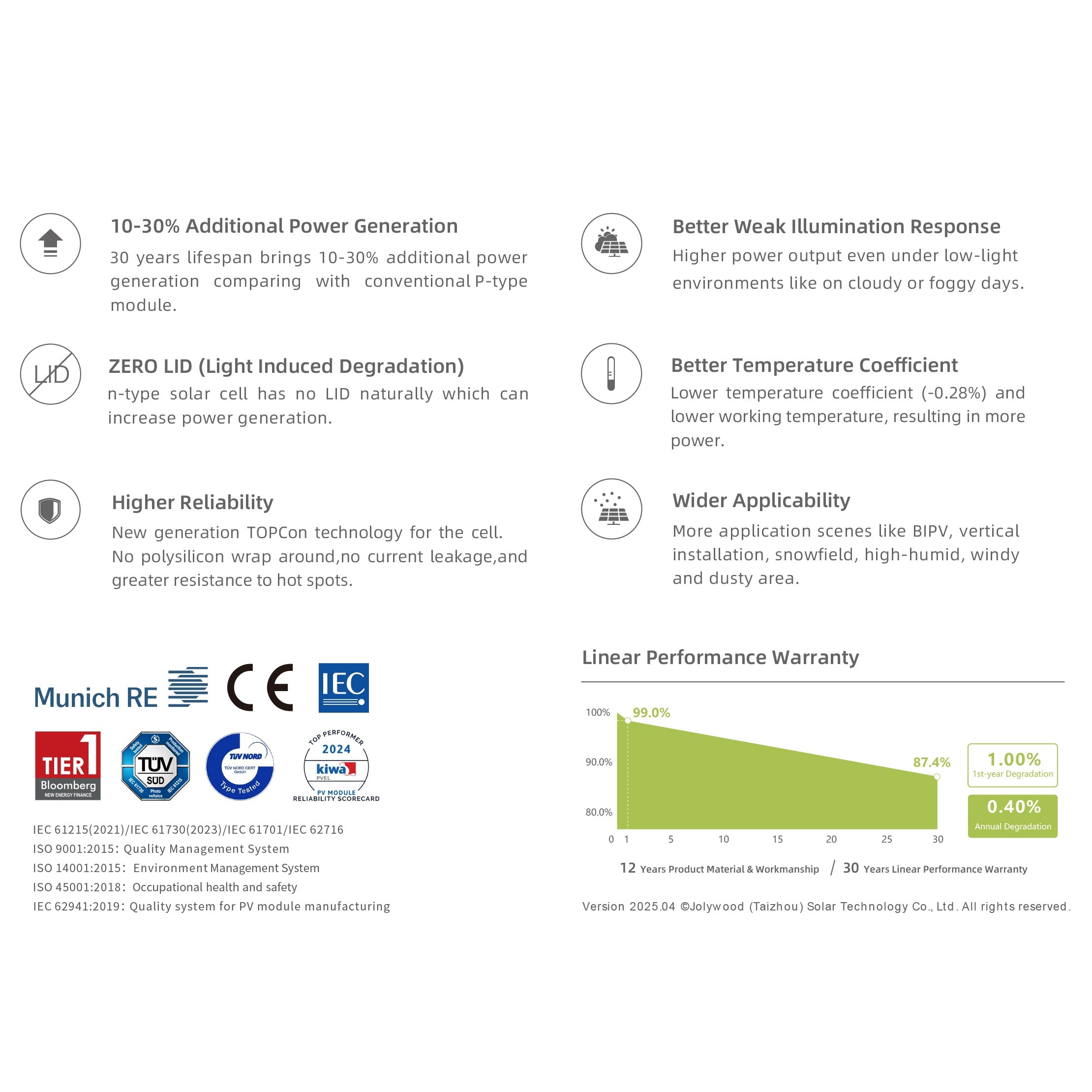

Experience the advanced Smart Hybrid System, combining high-efficiency 440W N-Type Mono Bifacial Topcon Half-Cell Solar Panels with a premium Deye Hybrid Inverter for exceptional performance and reliability.

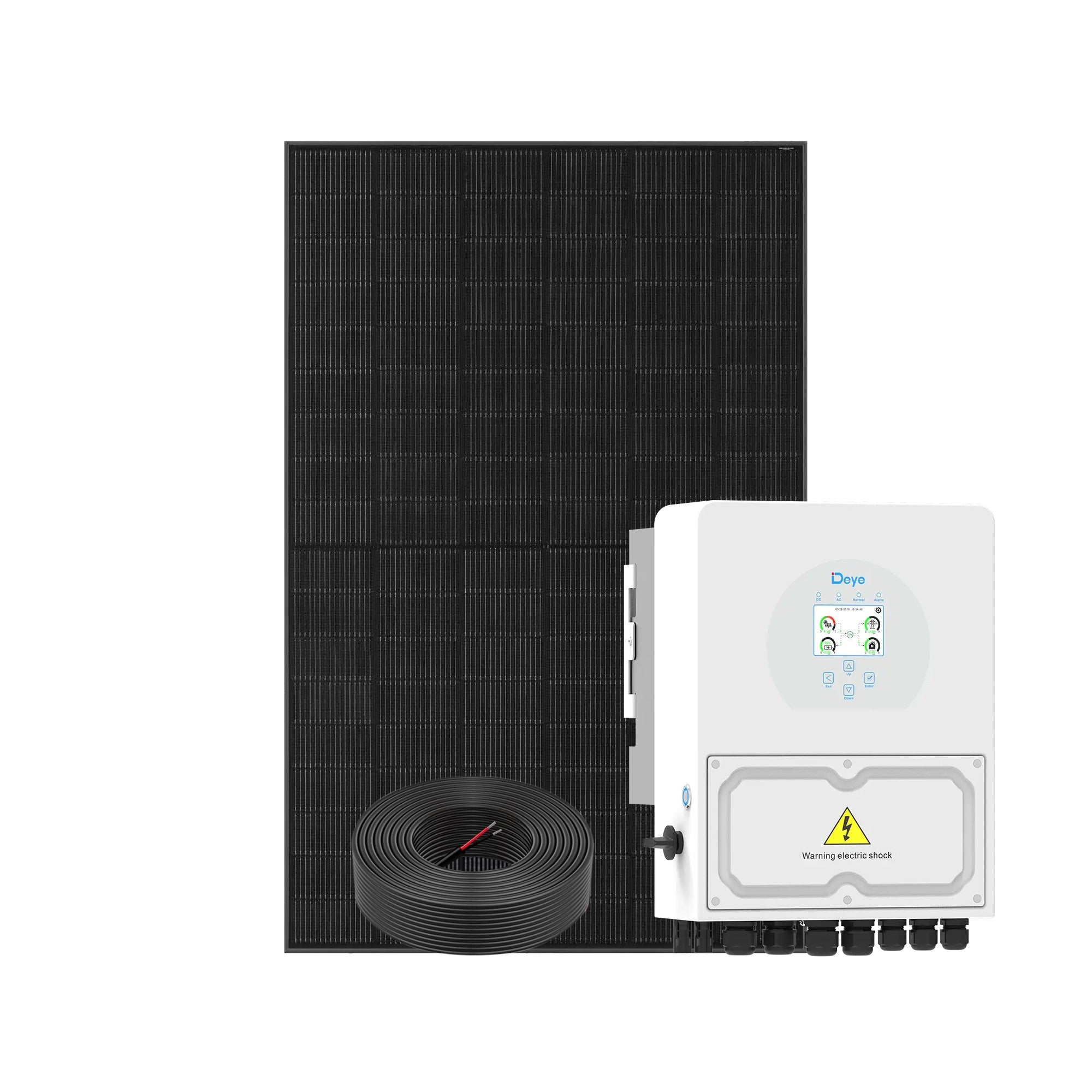

Package Includes:

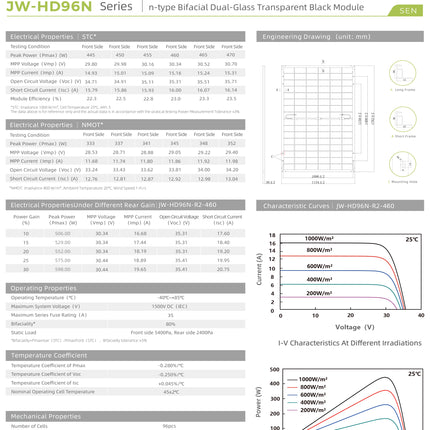

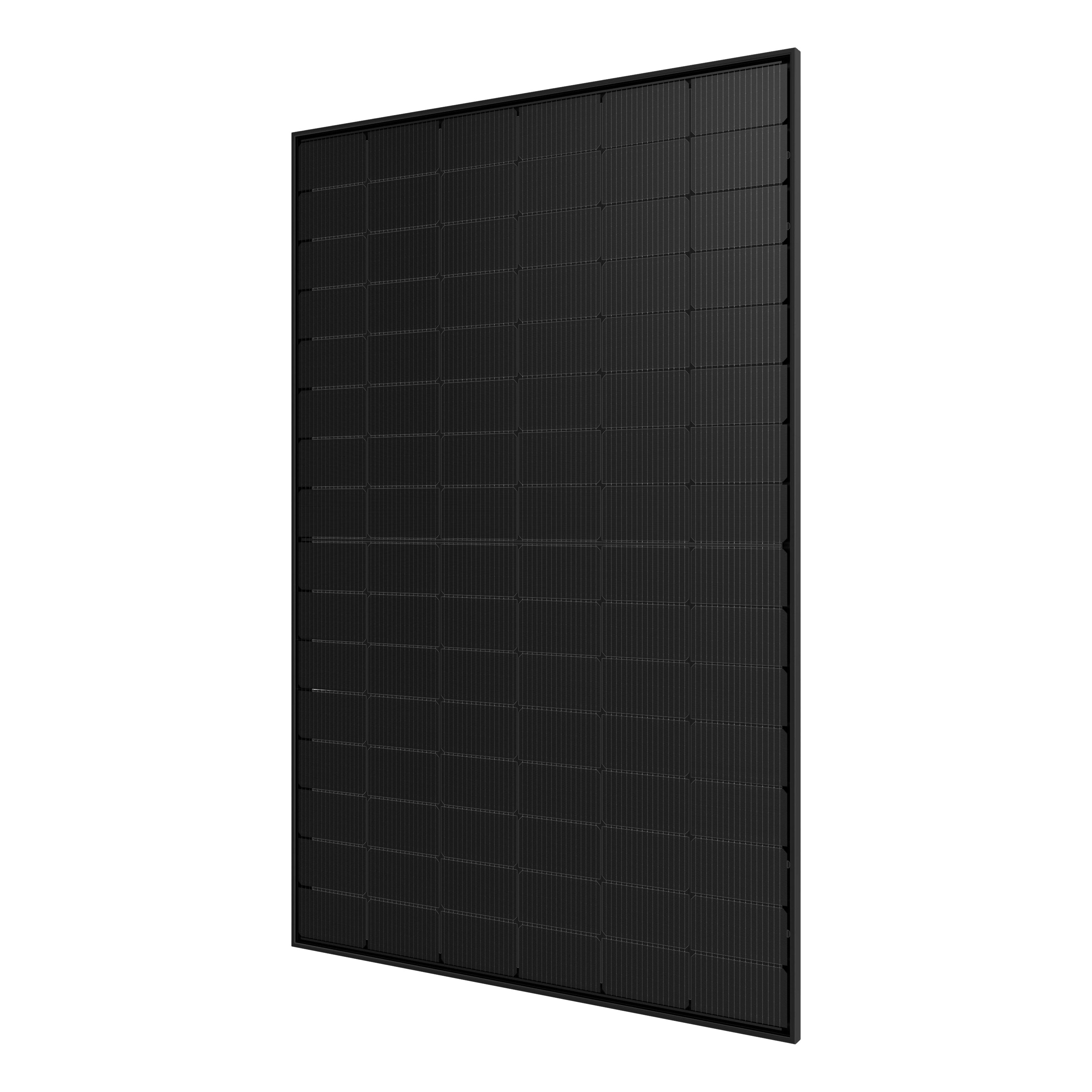

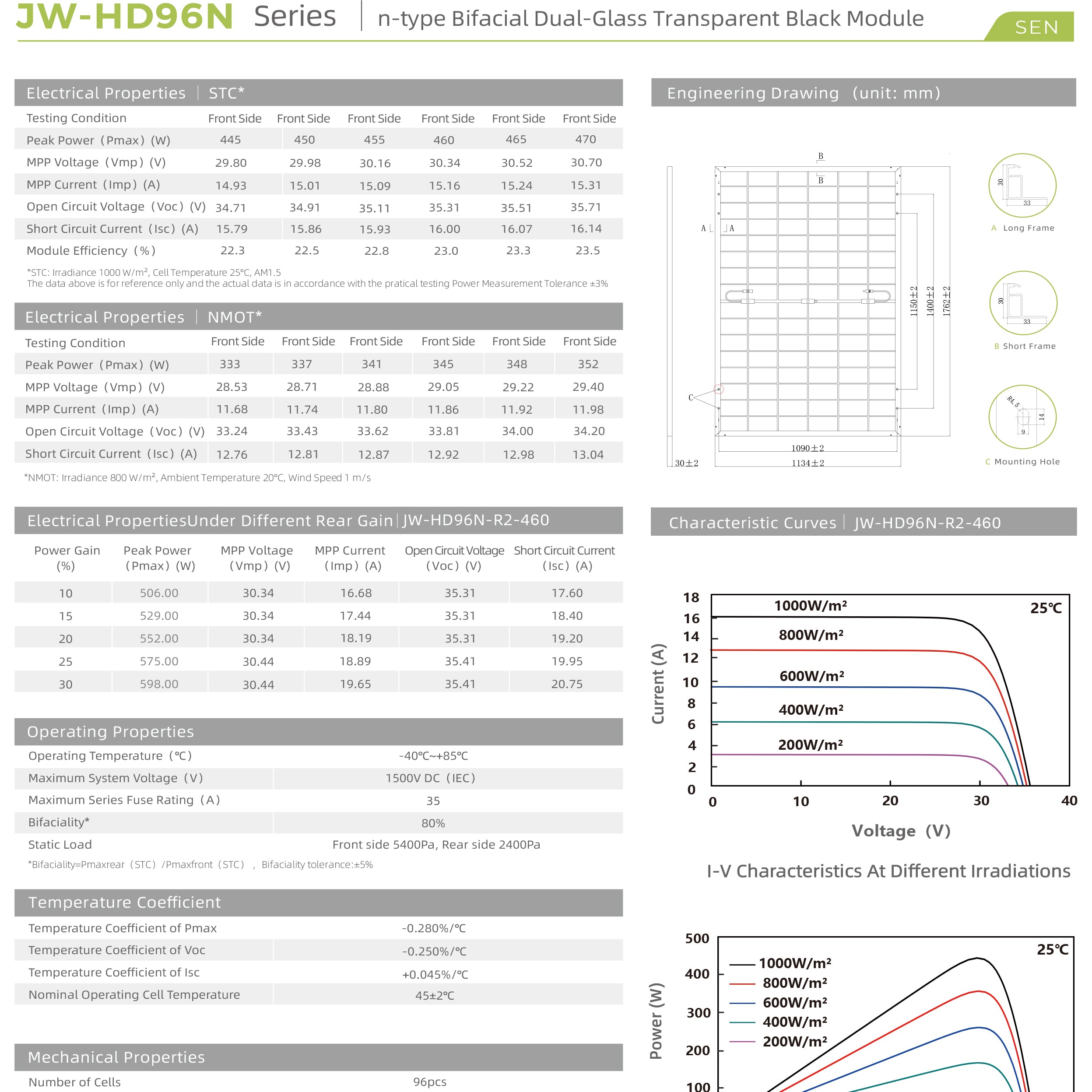

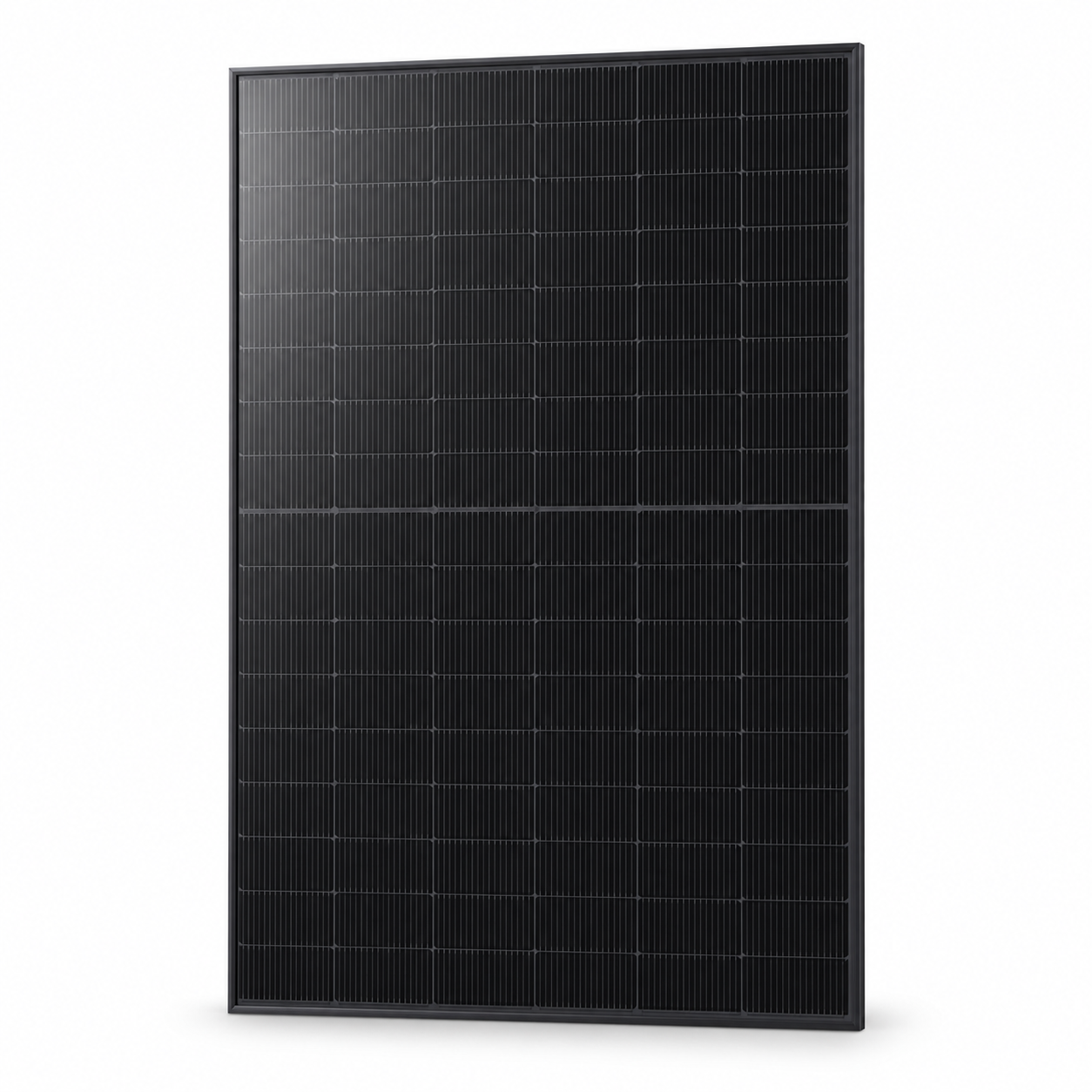

12 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell

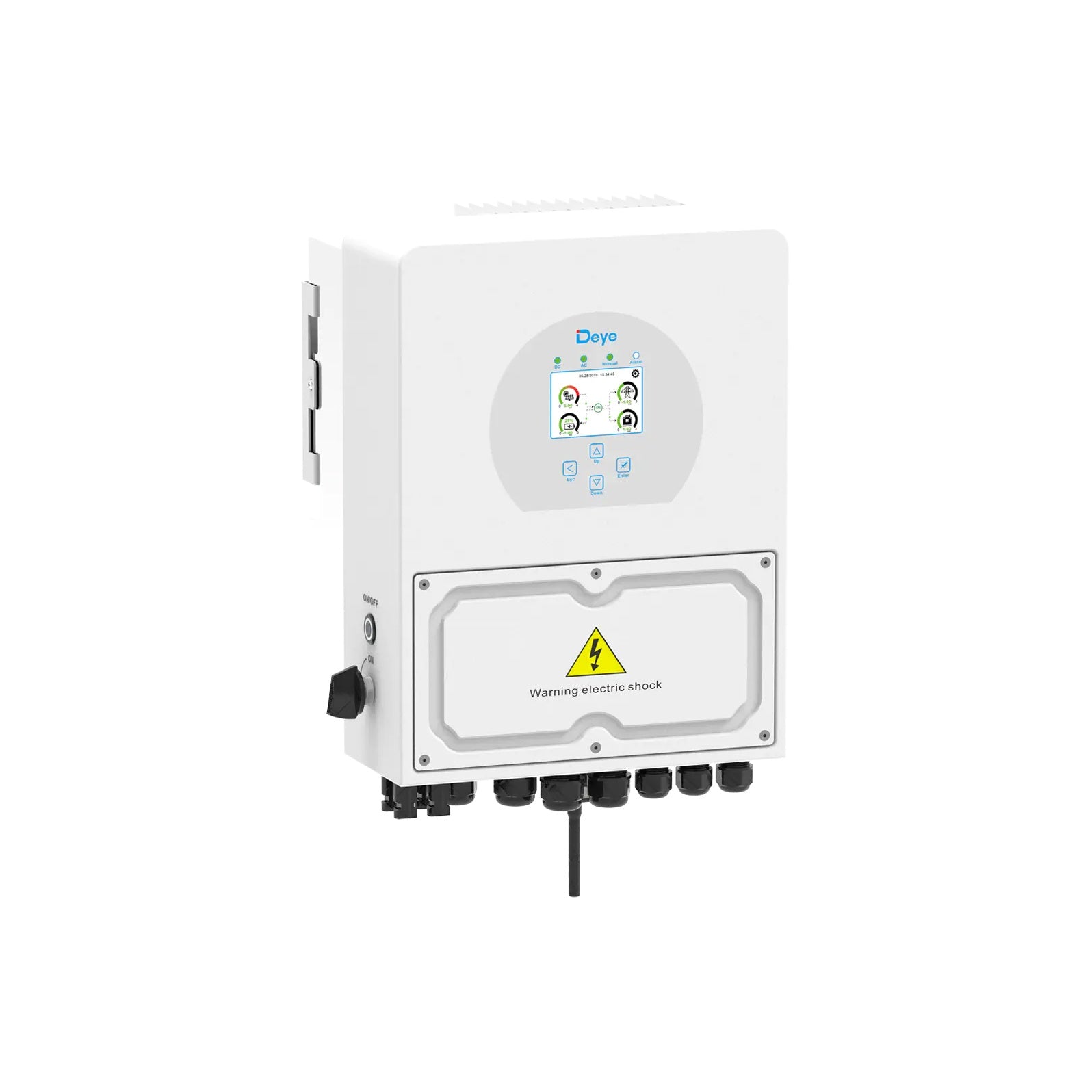

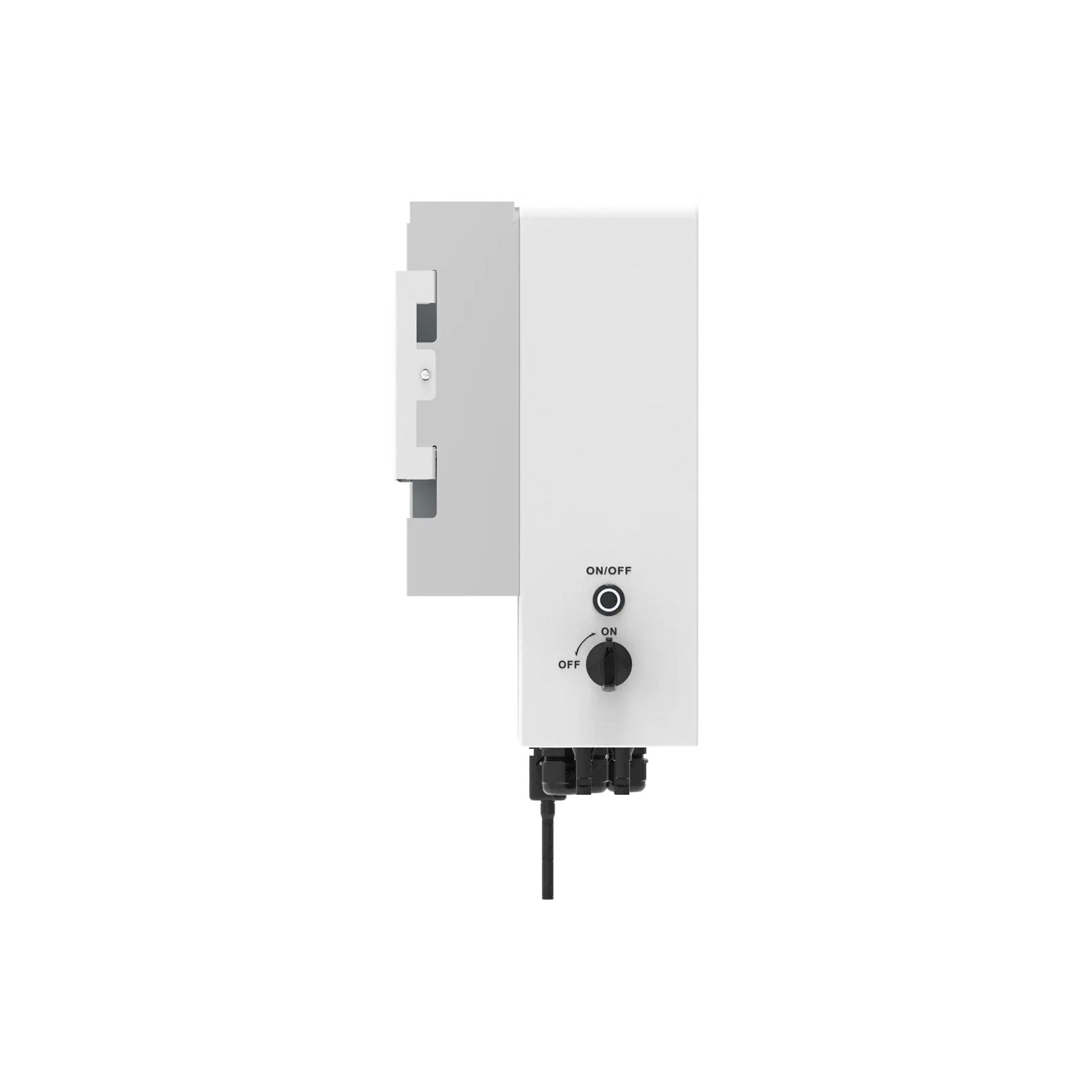

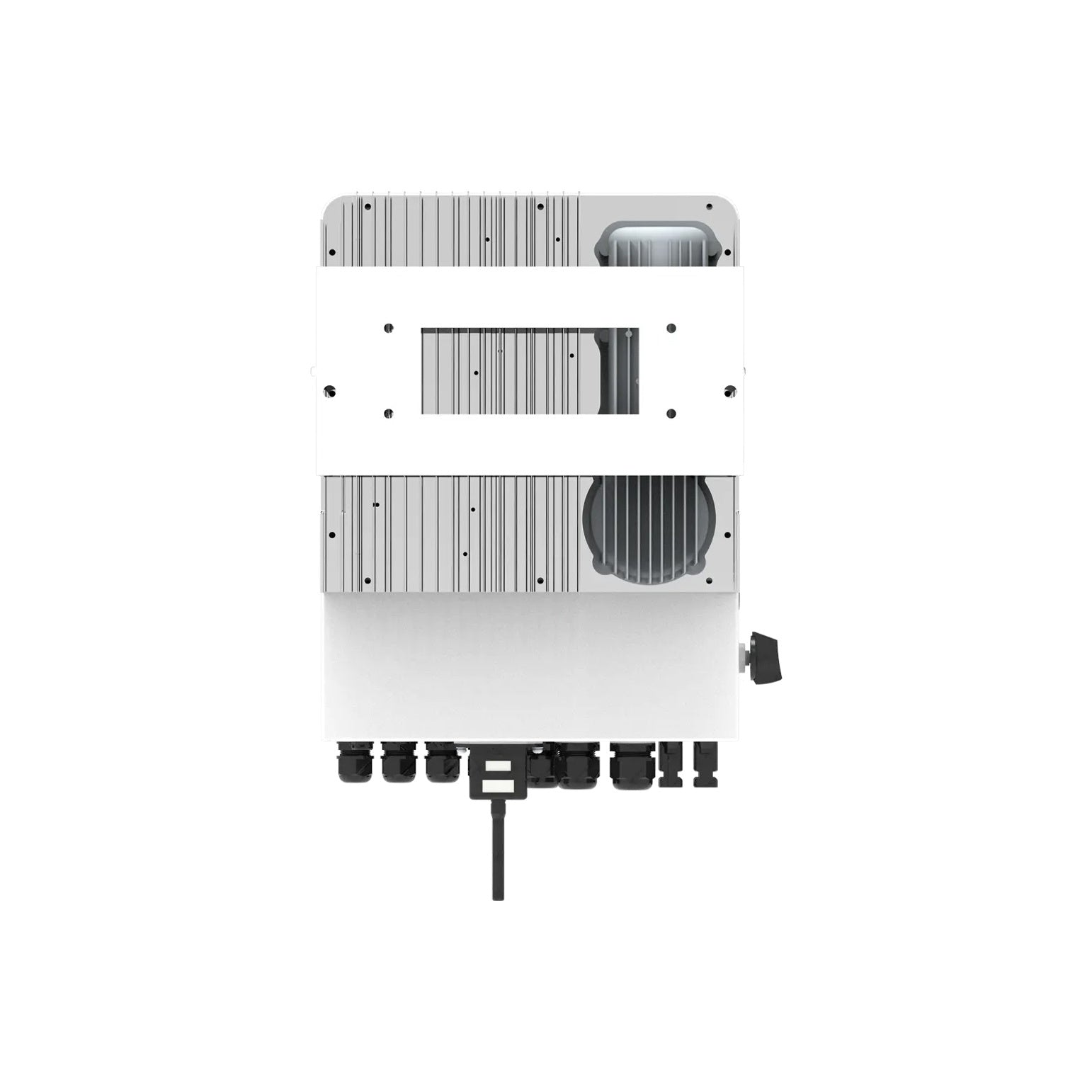

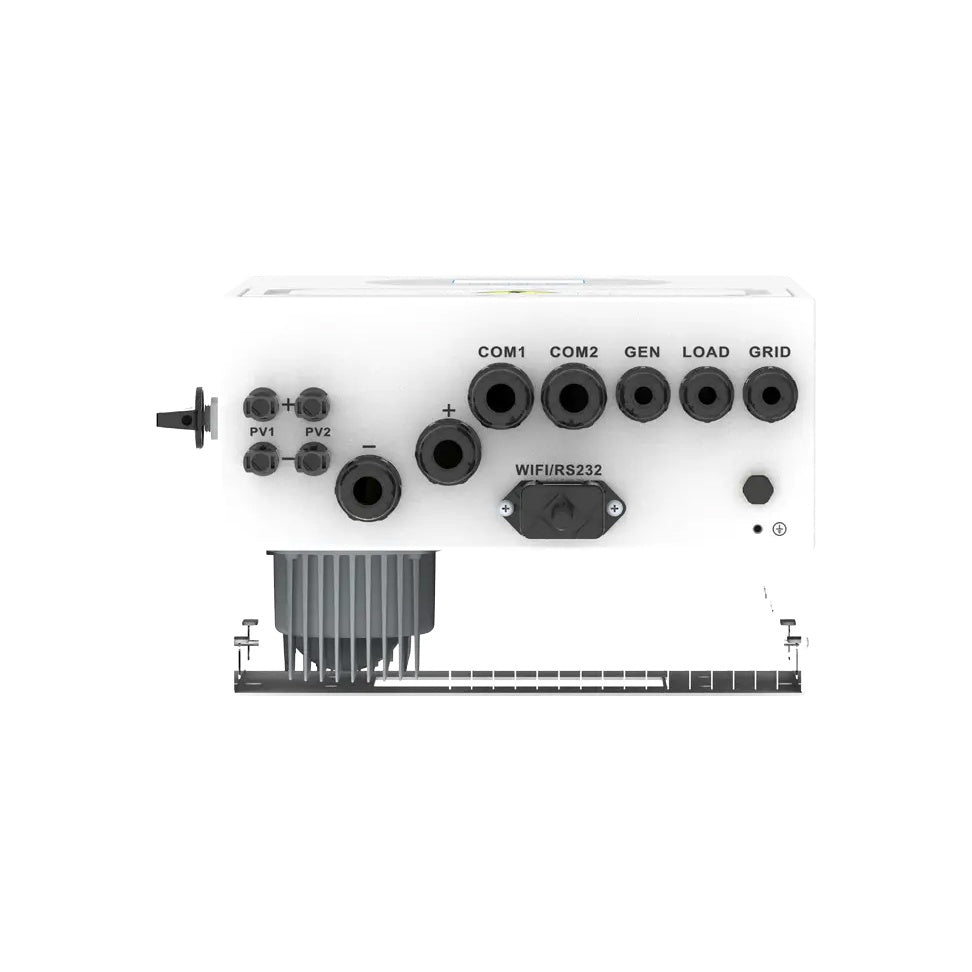

1 x DEYE 5000W Hybrid Inverter SUN-5K-SG04LP1-AU
1 x 20m Twin 4mm PV Extension Cables with MC4 Connectors
12 x Mounting Rail System
No Battery
This inverter is a versatile inverter that combines the functions of an inverter, solar charger, and battery charger, providing uninterrupted power support in a portable size. Its comprehensive LCD display offers user-configurable settings and easy-access button operations, such as battery charging, AC/solar charging, and adjustable input voltage for various applications.

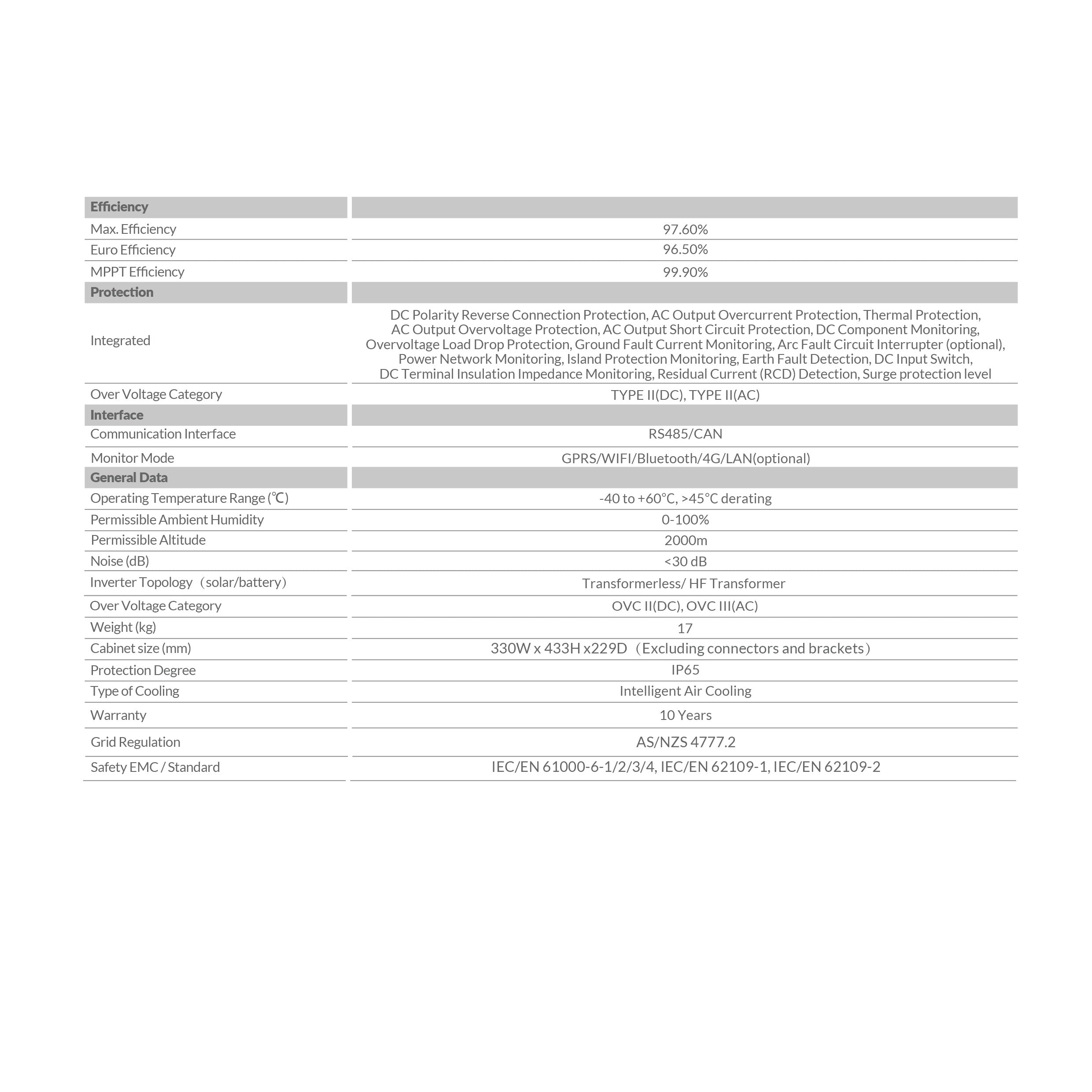

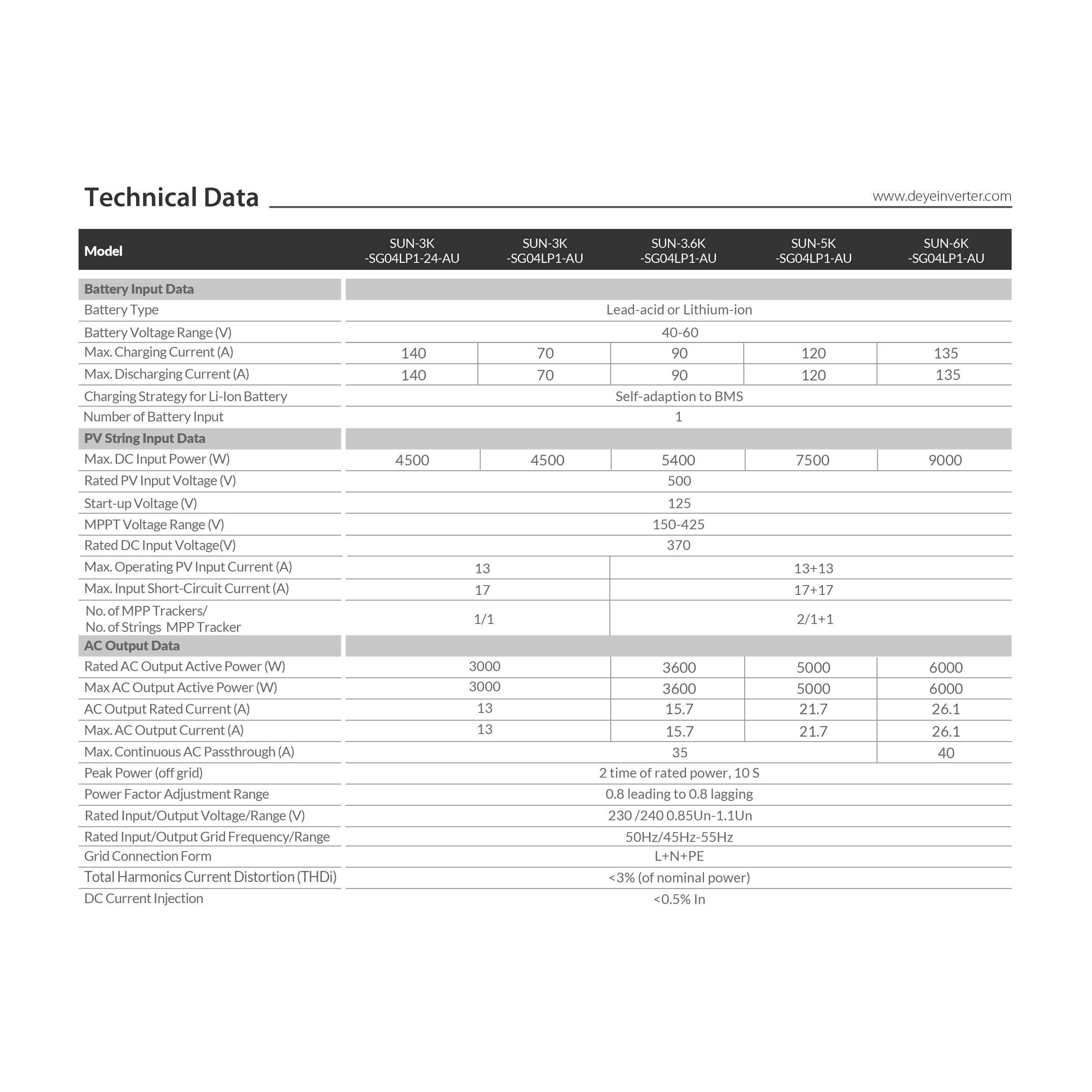

Technical Specifications:
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40 - 60V
Max Charging Current (A): 120A
Max Discharging Current (A): 120A
Charging Strategy for Li-Ion Battery: Self-adaptation to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 7500W
Rated PV Input Voltage (V): 500V
MPPT Range (V): 125V-425V
Start-up Voltage (V): 125V
Max. Operating PV Input Current (A): 13A + 13A
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 1 + 1
AC Output Data:
Rated AC Output and UPS Power (W): 5000W
Max AC Output Power (W): 5000W
AC Output Rated Current (A): 21.7A
Max. AC Current (A): 21.7A
**Vector Approved Inverter**
**DEYE New Zealand Distributor**
**Authorized Longi distributor in New Zealand**
