Description
3-4 Years Pay Back
Solar Panel Warranty: 25 Years Linear Power Output Warranty
Inverter Warranty: 10 Years Warranty
This Grid-Tied solar power system is specifically designed to reduce your home's electricity costs throughout the year. This kit ensures that you can enjoy the comforts of home and power your everyday household appliances using solar energy during sunny days. Appliances such as lights, fridge, microwave, toaster, coffee machine, washing machine, vacuum cleaner, power tools, office equipment, and more can be powered during daytime hours.

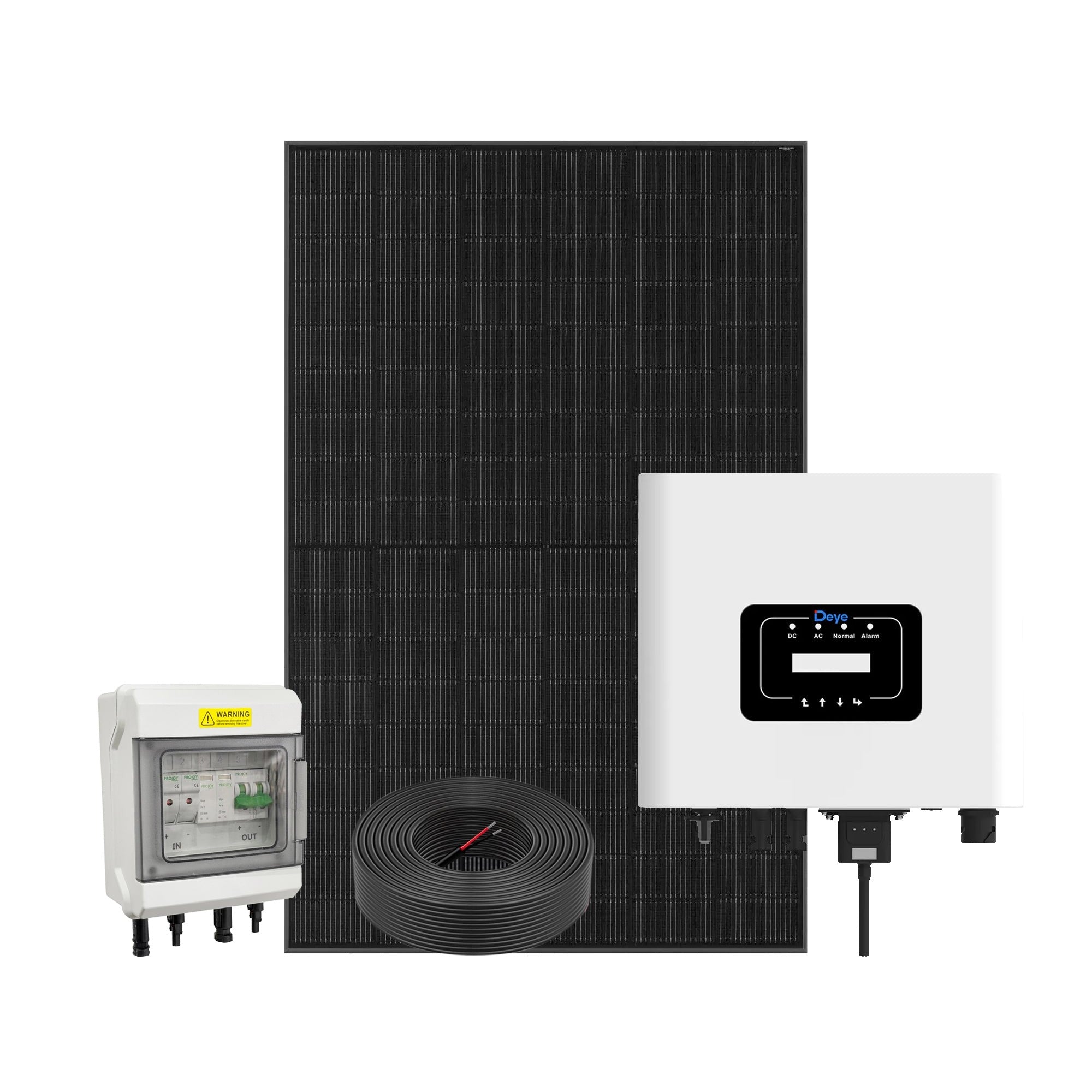

Package Includes:

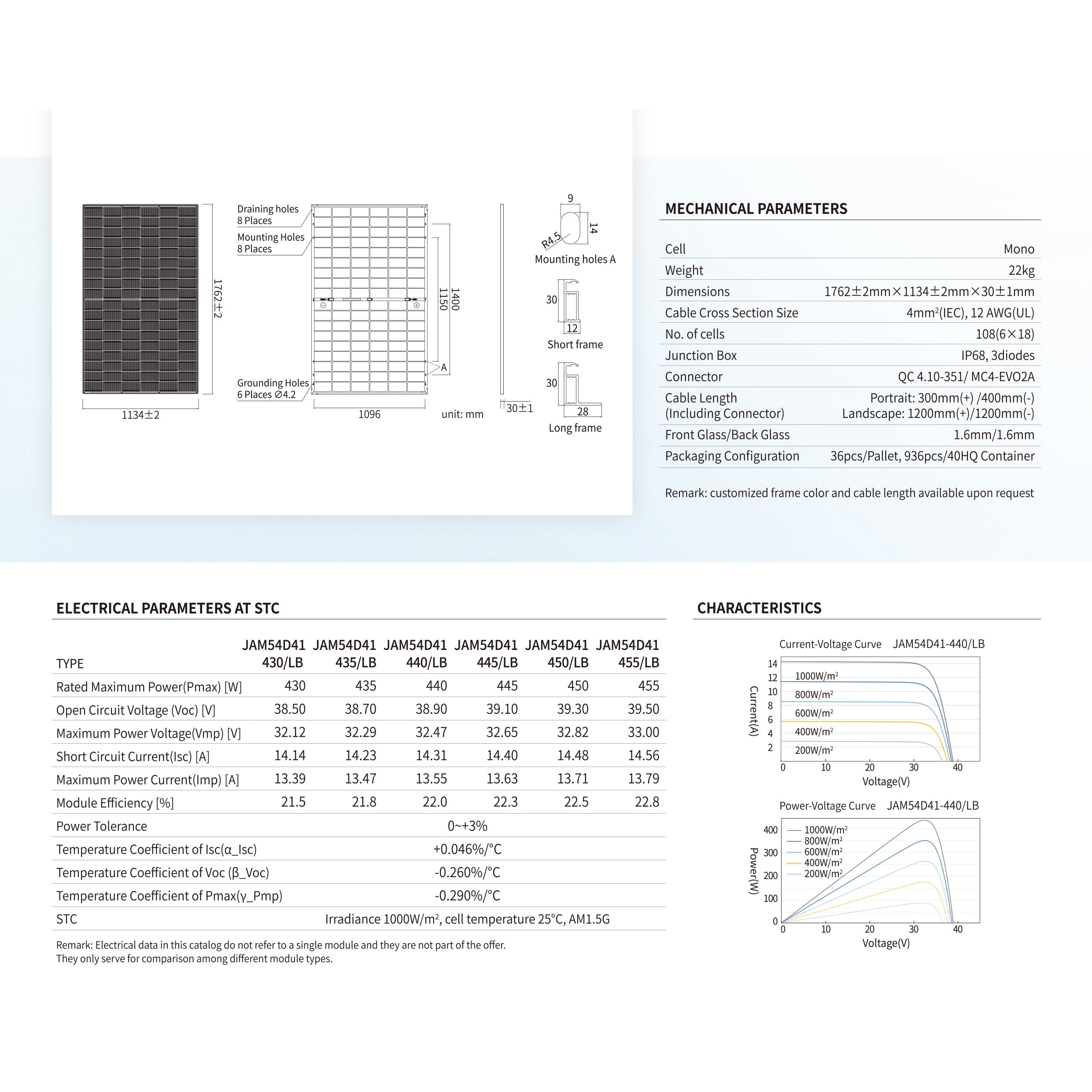

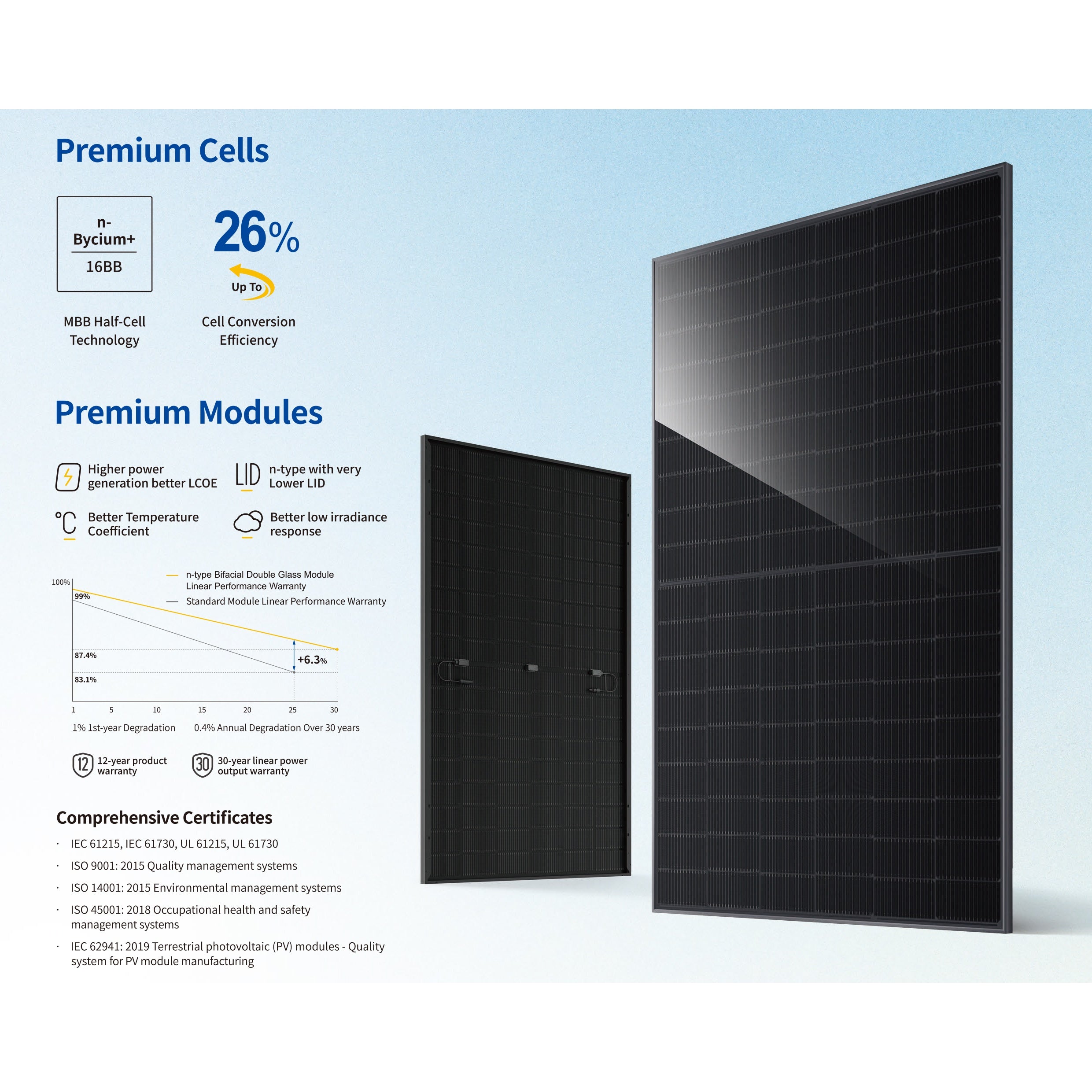

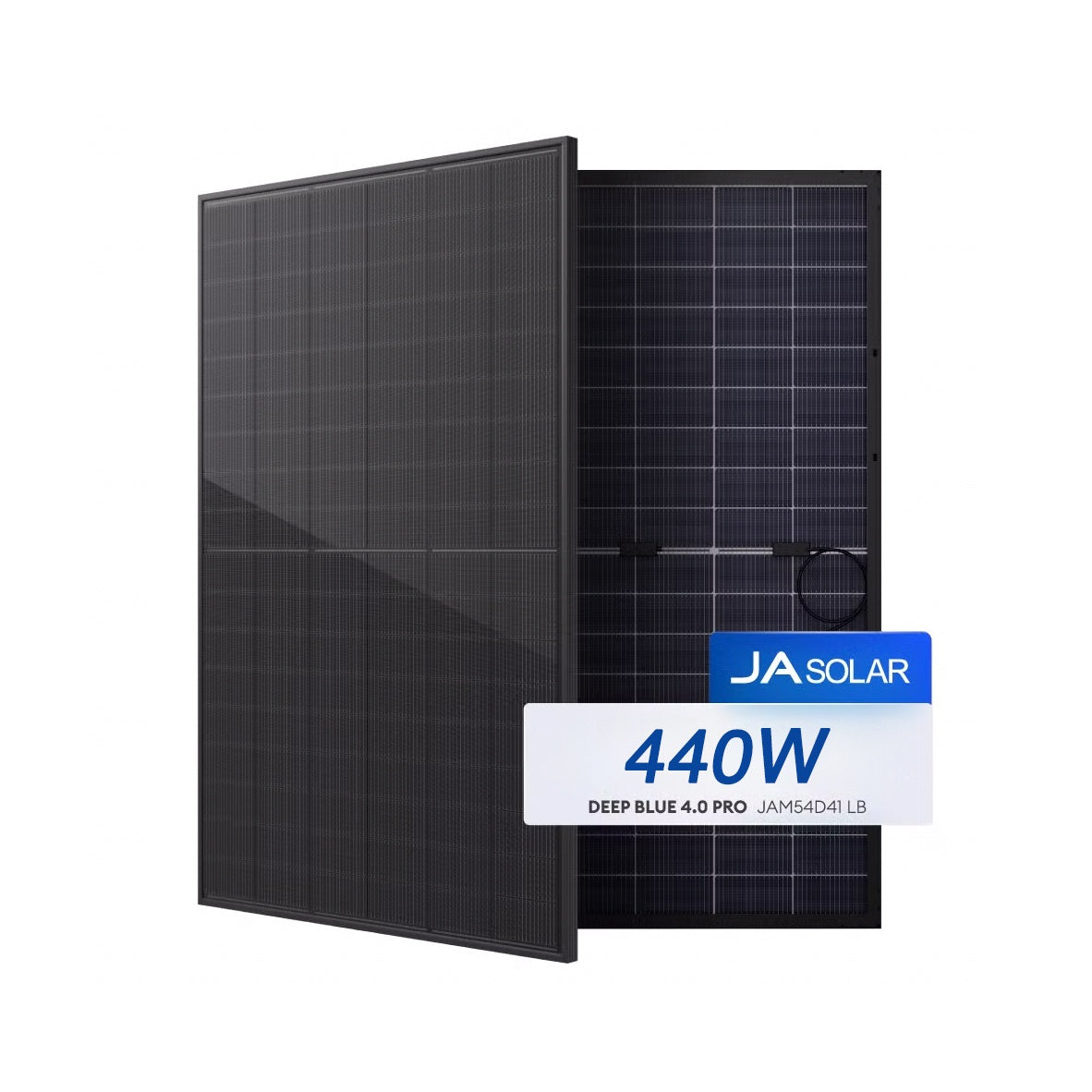

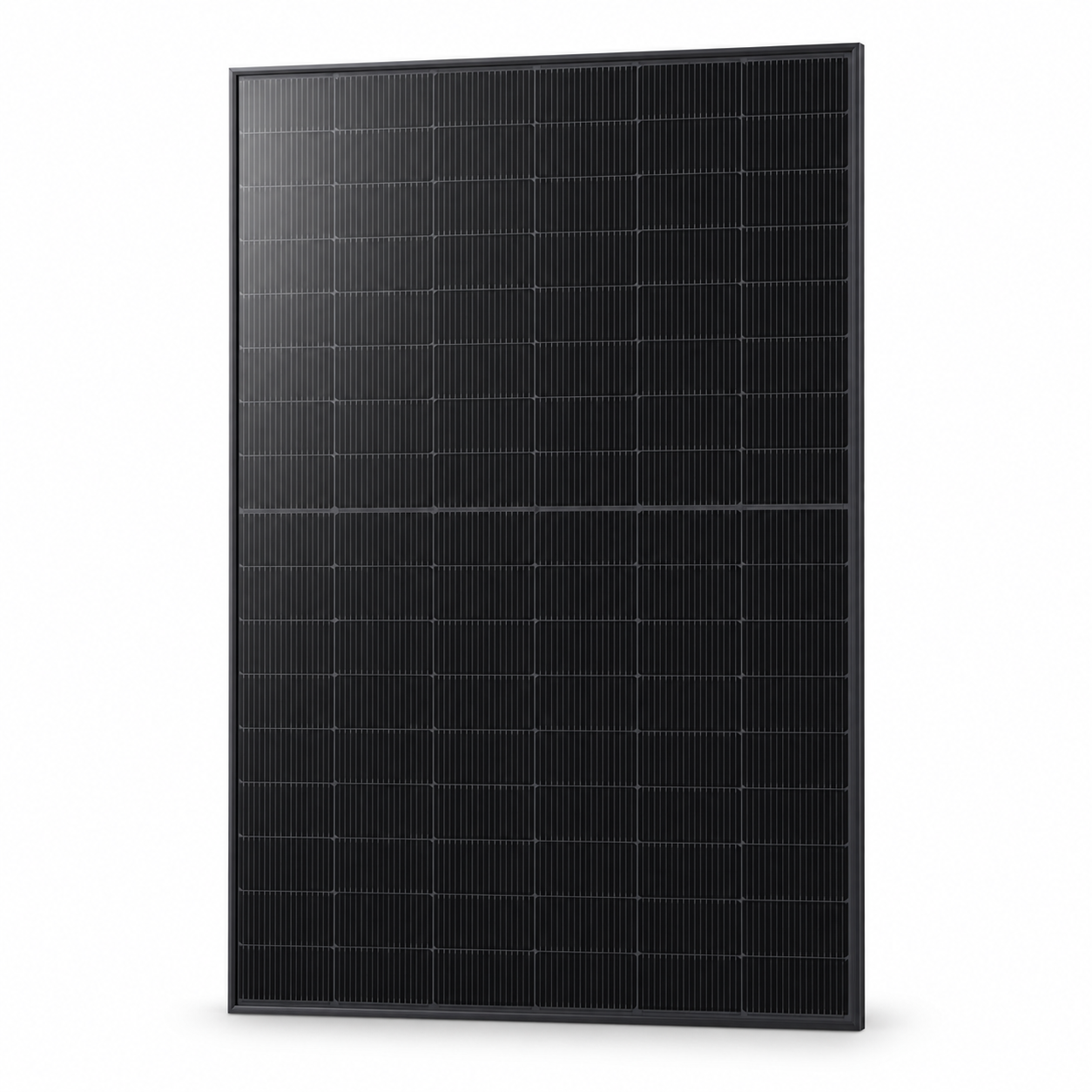

12 x JA Solar 440W Bifacial Topcon N-Type Mono Half-Cell Solar Panel (dimensions: 1762x1134x30mm)

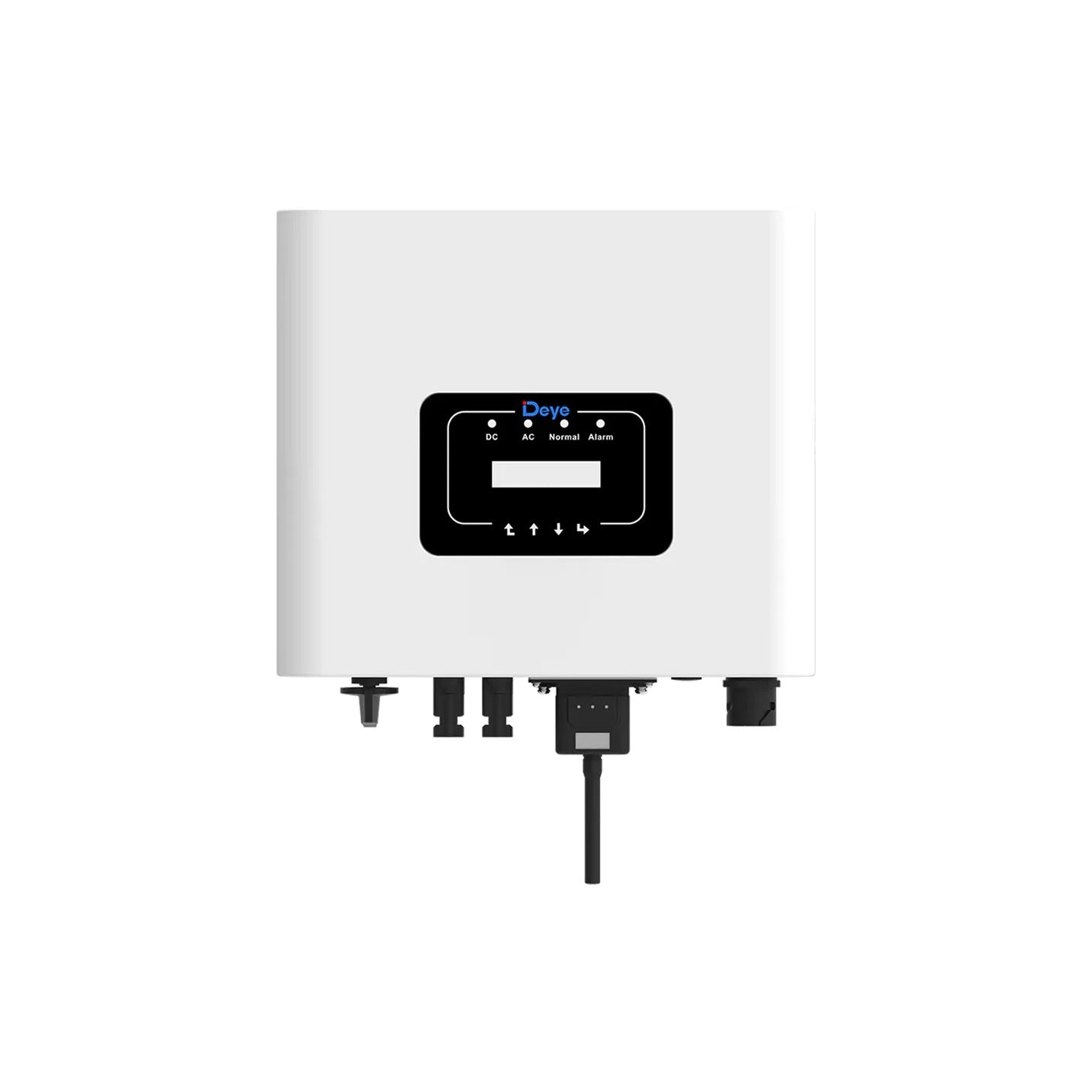

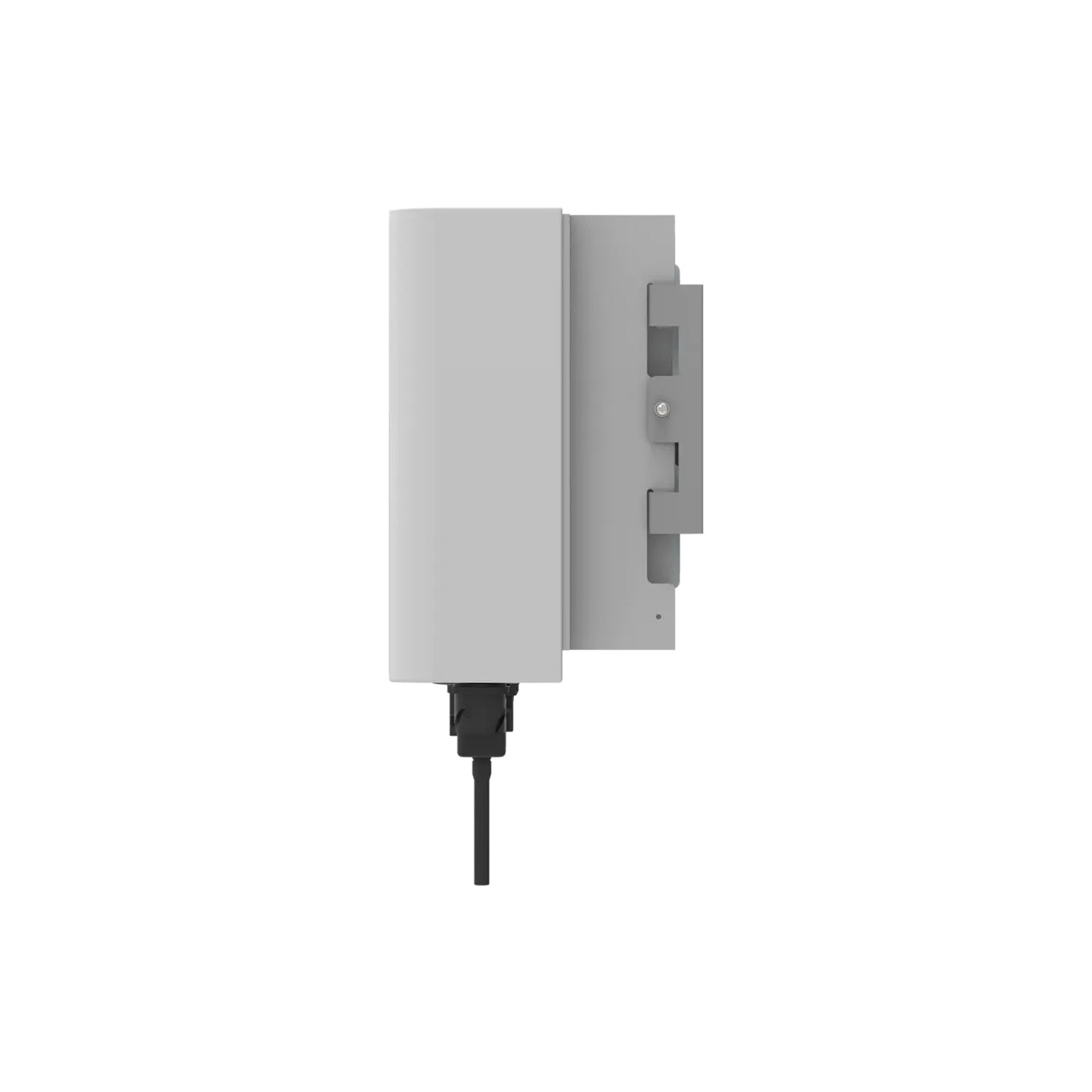

1 x Deye SUN-5K-G04-AU Grid Tied Single Phase String Inverter 2 MPPT
1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors

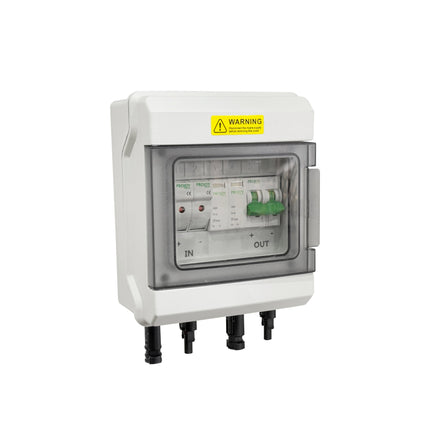

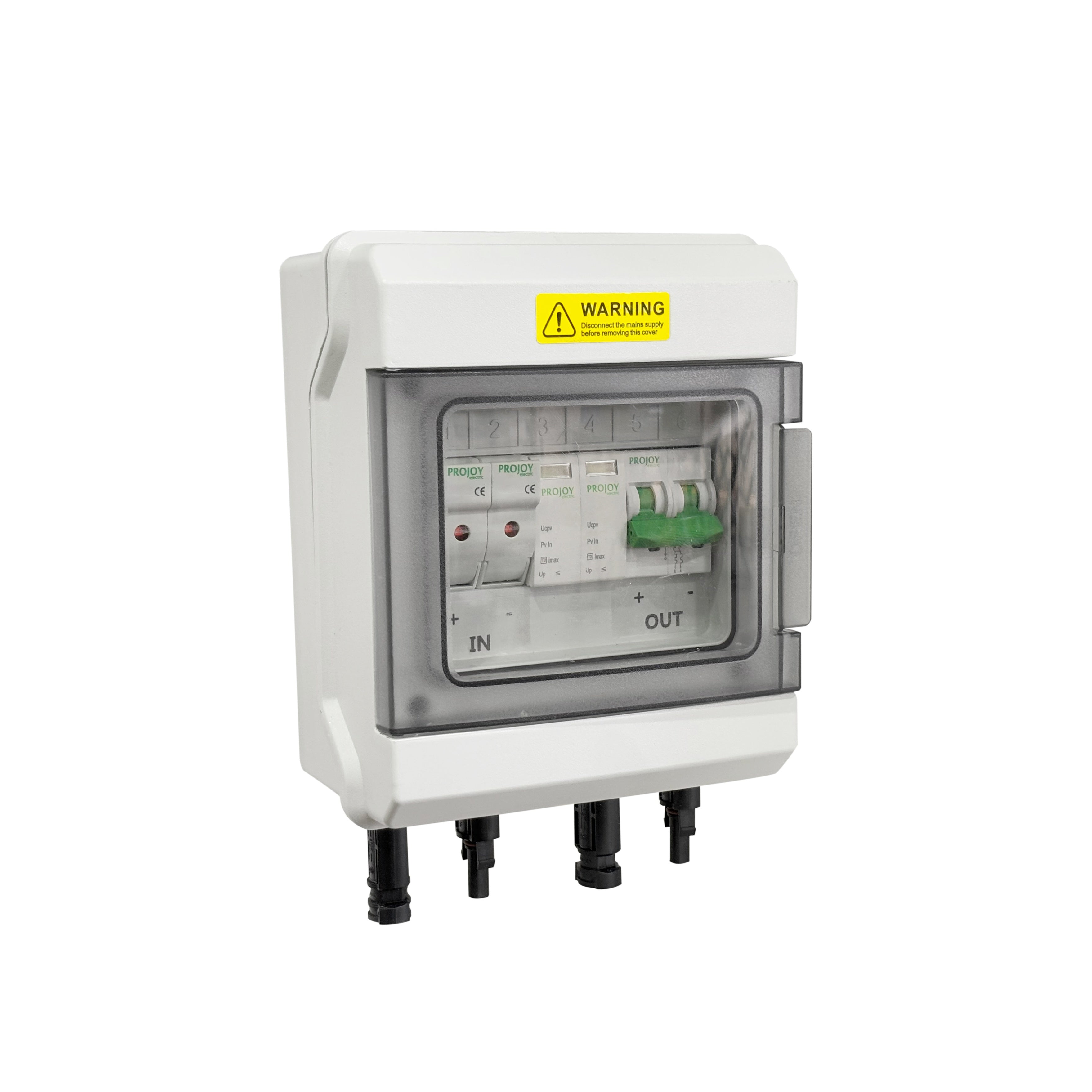

1 x PV Safety System with Fuse breaker surge
12 x Black Anodized Aluminum Solar Mounting Rail

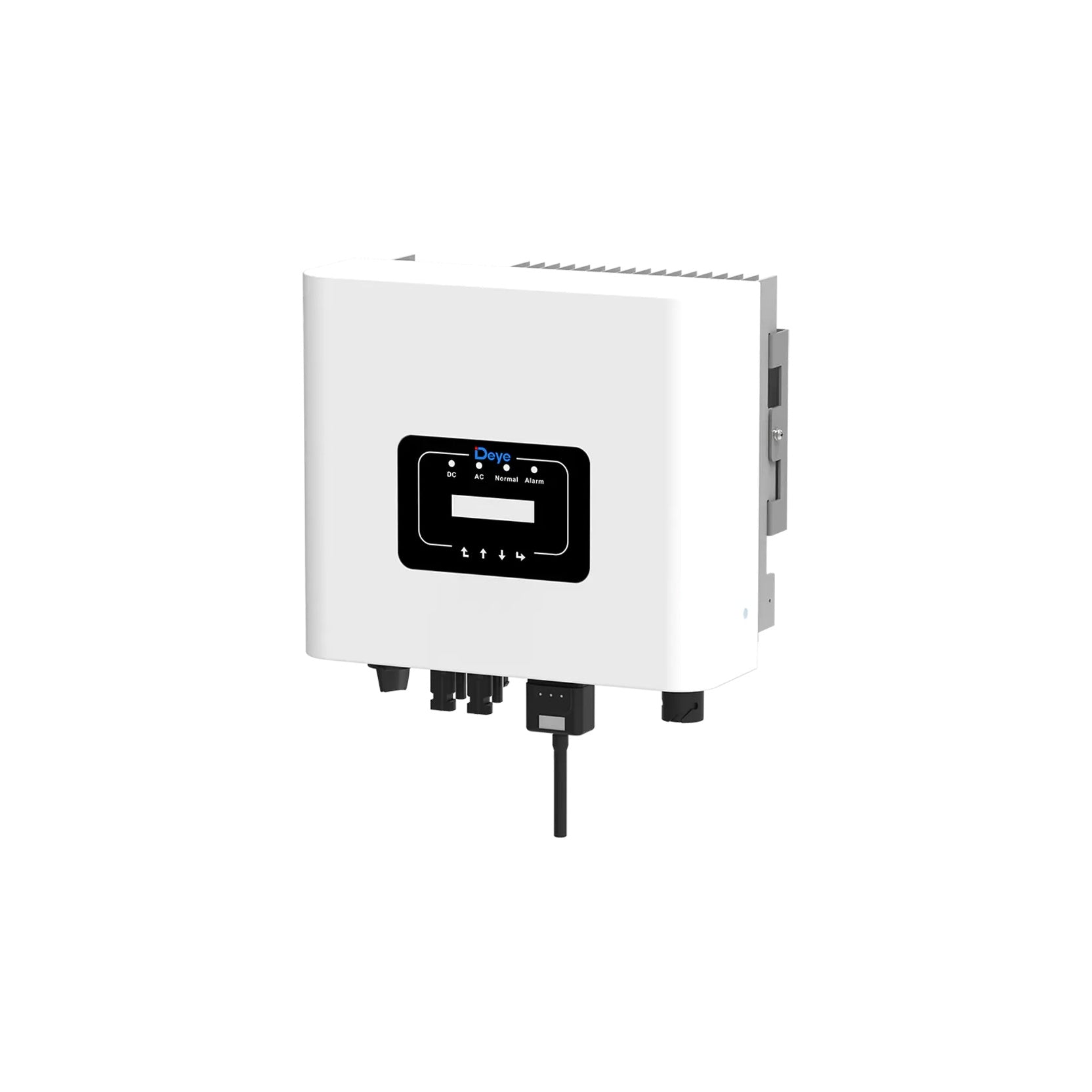

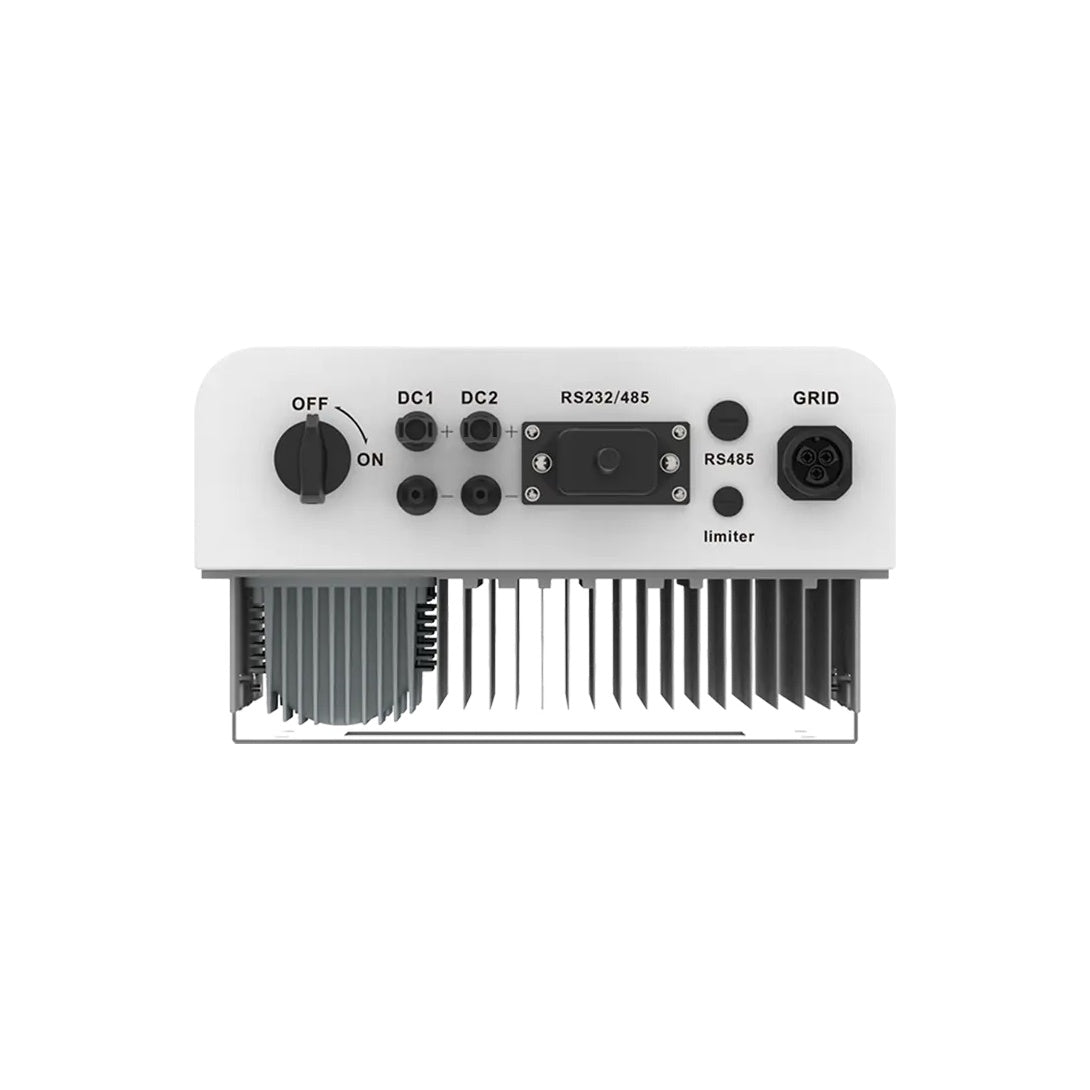

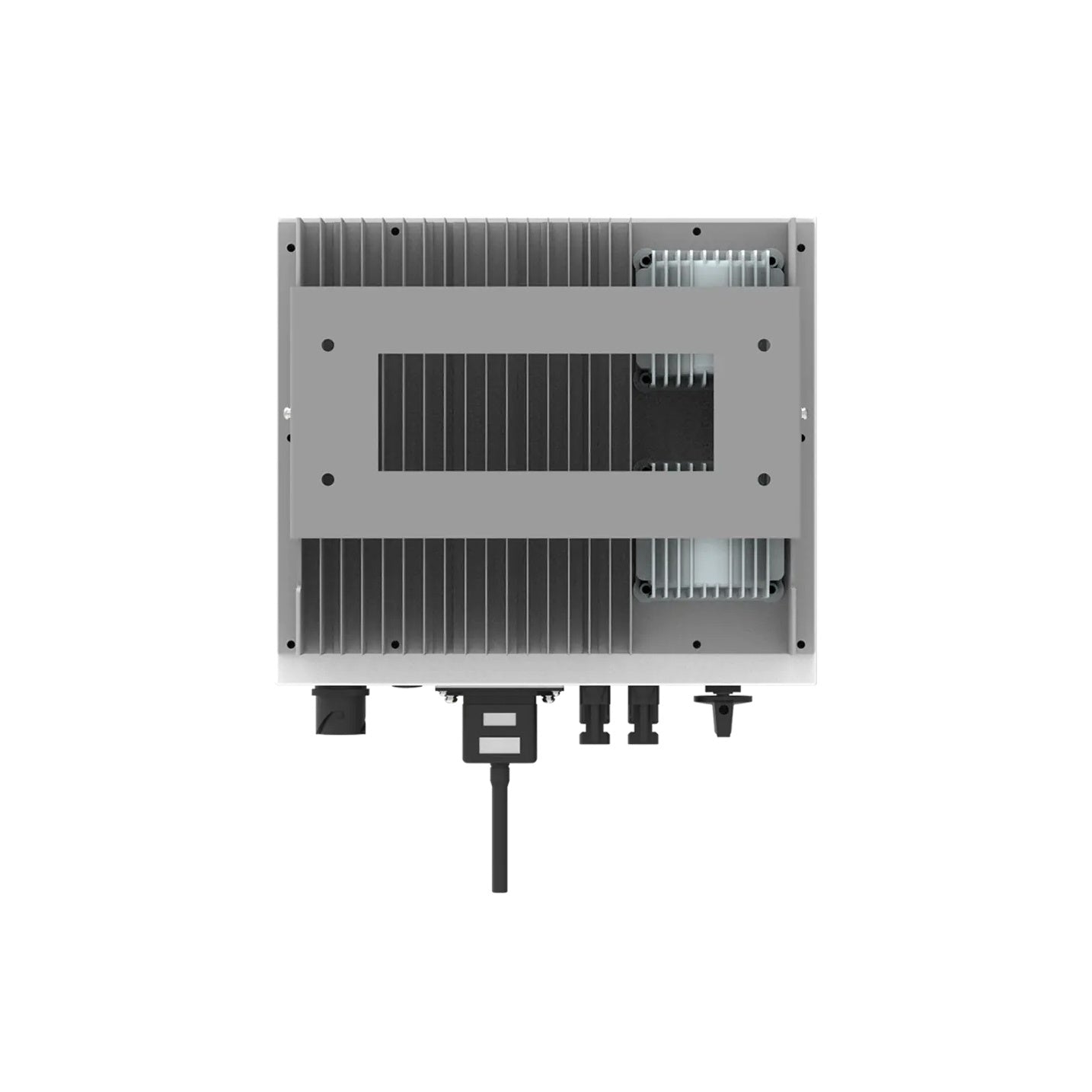

Introducing the Deye SUN-5K-G04-AU Single Phase String Inverter, ideal for residential solar setups. Boasting a maximum efficiency of 97.5%, it supports zero export and VSG applications, enhancing overall performance. Safety features include a smart monitoring platform for remote shutdown in emergencies, while user-friendly design features a local LCD display for easy operation. With remote monitoring capabilities and a wide output voltage range, it ensures reliable and efficient solar power generation for your home.

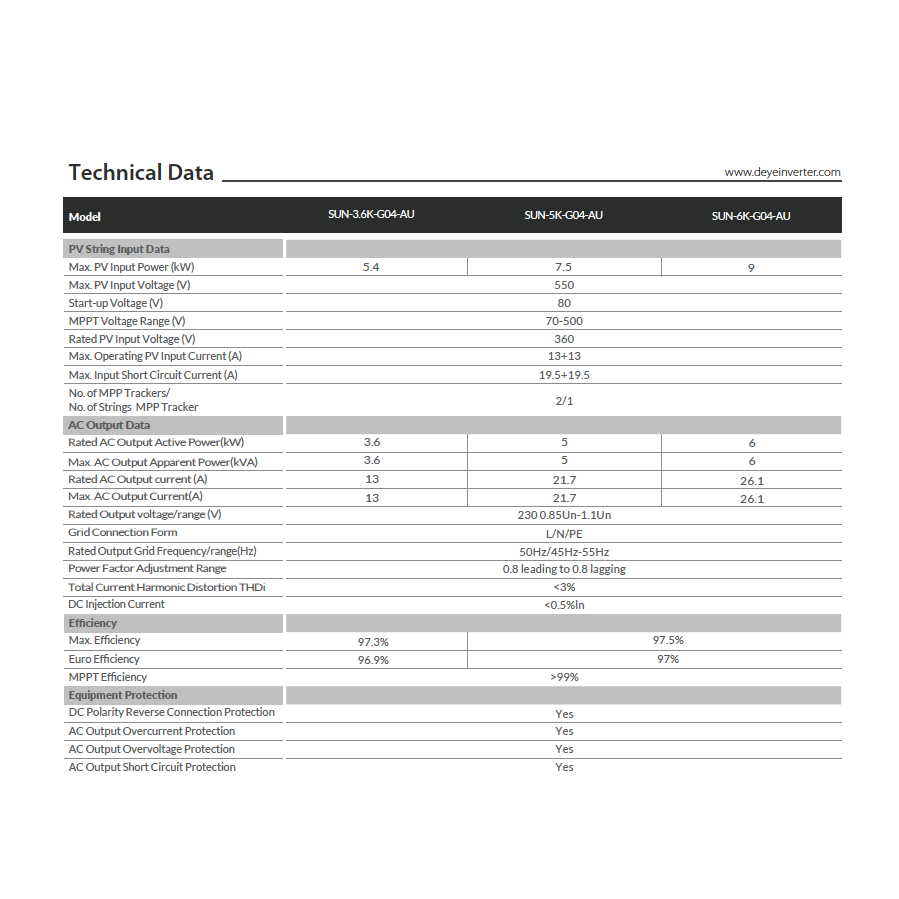

Model: SUN-5K-G04-AU
PV String Input Data
Max. PV Input Power (kW): 7.5
Max. PV Input Voltage (V): 550
Start-up Voltage (V): 80
MPPT Voltage Range (V): 70-500
Rated PV Input Voltage (V): 360
Max. Operating PV Input Current (A): 13+13
Max. Input Short Circuit Current (A): 19.5+19.5
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/1
AC Output Data
Rated AC Output Active Power(kW): 5
Max. AC Output Apparent Power(kVA): 5
Rated AC Output current (A): 21.7
Max. AC Output Current(A): 21.7

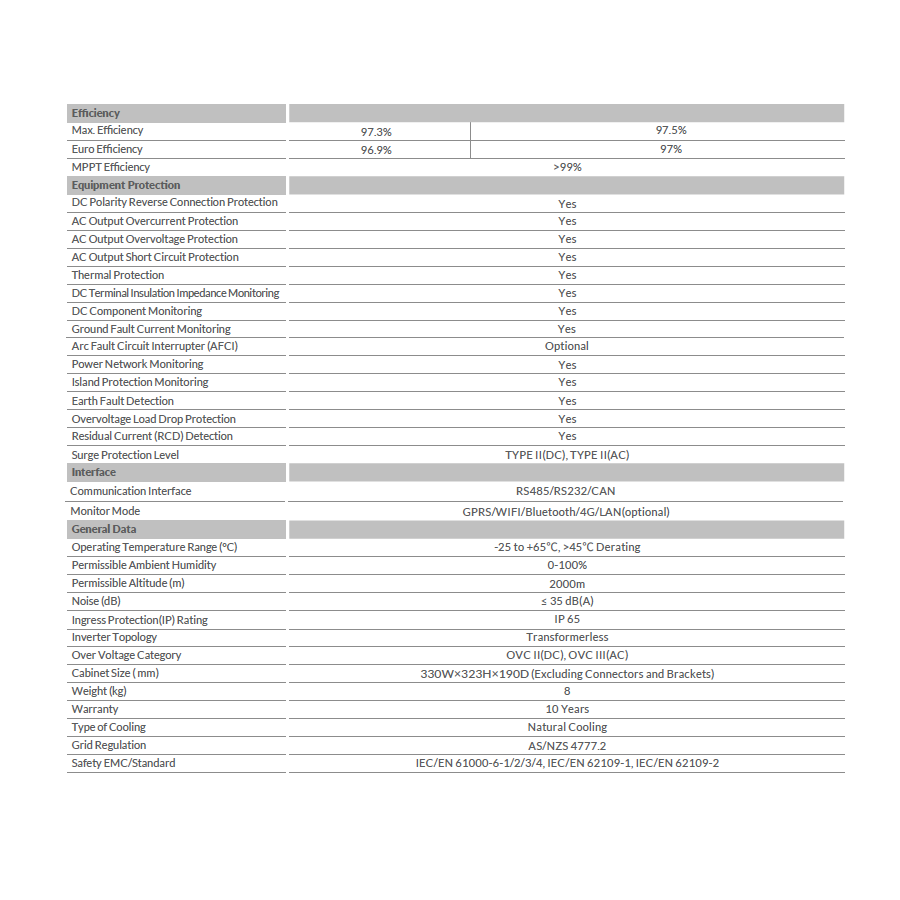

Efficiency:
Max. Efficiency: 97.5%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
